high-amp Posted November 7, 2011 Report Posted November 7, 2011 To all the owners of a transistor amplifier V3.0 from http://www.high-amp.de out there in the world. Here is a support how to update your amplifier to the version 4.0 that will be coming out soon. The items below are refered to the following schematic: http://high-amp.de/html/transistor_v3_schematics.html - replace the four resistors R07x and R08x with 51K/1W resistors to increase the current in the second stage to 4mA - replace the two resistors R11x with 200 ohm resistors to increase the current in the last stage to 15mA - replace the resistors R56, R57 by a constant voltage source as shown below (one per chanel) - If you are using the 2SC5466 in the last stage replace it by the 2SC5353 (Q06x). The 2SC5466 can not handle 15mA because of the nonlinear hfe-curve above 10mA (bad performance especially in high frequencies, missing resolution). What do you have to expect from the update? You will improve your amplifier significant to a very fine resolution over the complete frequency range with very deep and structured basses and an excellent reproduction of high frequencies. I would warmly recommend to you to perform this update. You won't regret. Quote
crappyjones123 Posted November 7, 2011 Report Posted November 7, 2011 (edited) dude that is awesome. i only have 51k/10w resistors though. can i cut them in 10 pieces and use the individual pieces? i cant wait to have very deep and structured basses. i dont want to regret. please respond fastly. ok? Edited November 7, 2011 by crappyjones123 Quote
grawk Posted November 7, 2011 Report Posted November 7, 2011 There's no need to haze a MOT who's just here to tell people how to update existing products for free. I don't know that anyone here has one of those amps, but there's no harm in this information, I think. Quote
high-amp Posted November 7, 2011 Author Report Posted November 7, 2011 Hi crappyjones123 send me your resistors and I will see what I can do for you. Hope my response was fast enough for you. ok? Quote
kevin gilmore Posted November 8, 2011 Report Posted November 8, 2011 - replace the resistors R56, R57 by a constant voltage source as shown below (one per chanel) ?? Quote

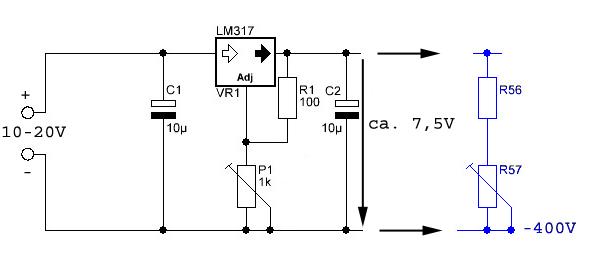

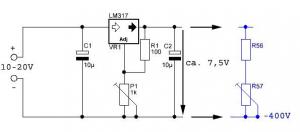

high-amp Posted November 8, 2011 Author Report Posted November 8, 2011 Here the lost constant voltage source. Quote
