Pixiy Posted January 24, 2013 Report Share Posted January 24, 2013 Hello, Kerry. Did you receive my message? Quote Link to comment Share on other sites More sharing options...

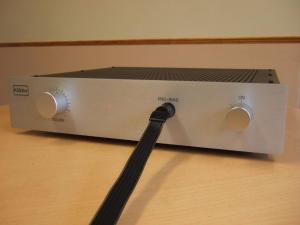

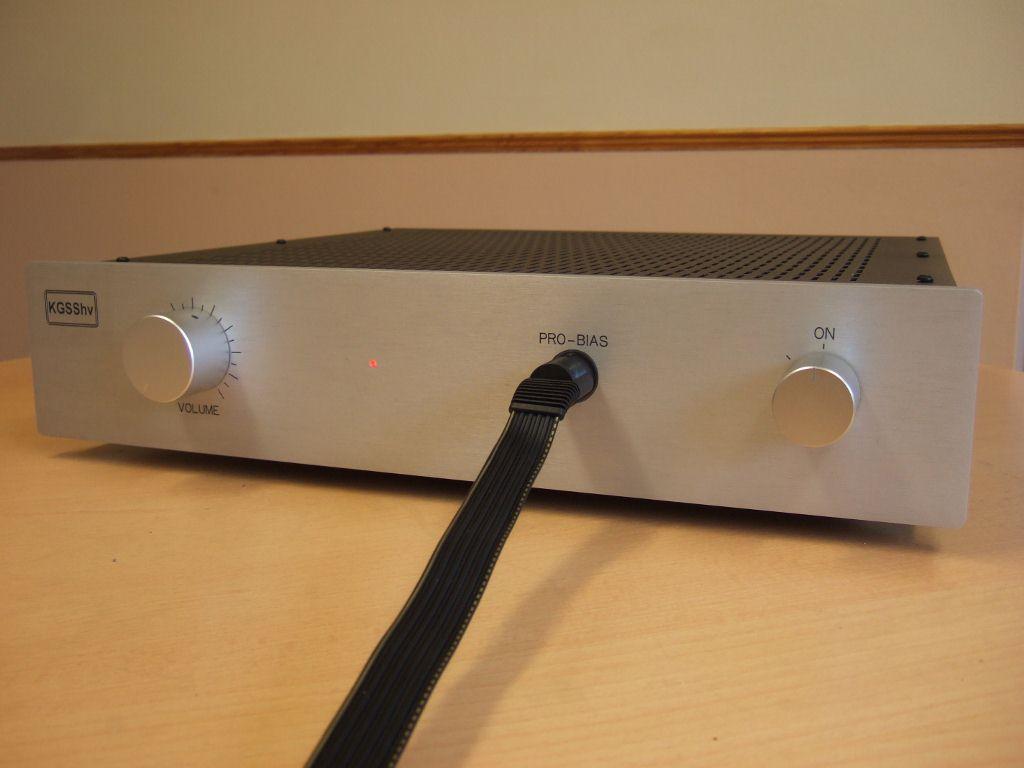

headinclouds Posted January 26, 2013 Report Share Posted January 26, 2013 I’ve finished my KGSShv and have at last been able to listen to my SR-507. The amp has run for 10 hours so far and I have listened to it for the latter couple of those. It’s certainly working well. I have heard some beautiful music already. Thanks to members who so kindly helped with advice and offers to supply parts, and to those who've joined in my "mini group buy". It's been a pleasure hooking up with you.I am really looking forward to getting to know this set-up and am already thinking of another version. Quote Link to comment Share on other sites More sharing options...
Victor Chew Posted January 26, 2013 Report Share Posted January 26, 2013 Congratulations! Quote Link to comment Share on other sites More sharing options...
spritzer Posted January 26, 2013 Report Share Posted January 26, 2013 Looking good!!! Now where are the internal pics... Quote Link to comment Share on other sites More sharing options...

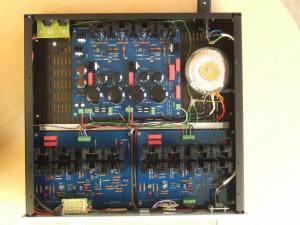

headinclouds Posted January 26, 2013 Report Share Posted January 26, 2013 OK if you insist!I basically a retiring guy -this feels like dropping my pants in public.Incidentally, I didn't buy the 3900pF used in the power supply - it wasn't in the circuit diag. I used. Is it for stability or noise control?Cheers Quote Link to comment Share on other sites More sharing options...
chinsettawong Posted January 26, 2013 Report Share Posted January 26, 2013 That's a nice build. Congratulations! Wachara C. Quote Link to comment Share on other sites More sharing options...
padam Posted January 26, 2013 Report Share Posted January 26, 2013 (edited) That is a neat build, well done. Edited January 26, 2013 by padam Quote Link to comment Share on other sites More sharing options...
headinclouds Posted January 26, 2013 Report Share Posted January 26, 2013 Thank you guys.I expect I'll be asking a number of questions as I get used to this system. Apart from what do those capacitors do?What is good practice with the amps and Stax "earwhatsits". Is it OK to plug in or unplug the phones from a live amp,for example?Any advice on that? Quote Link to comment Share on other sites More sharing options...
spritzer Posted January 26, 2013 Report Share Posted January 26, 2013 (edited) The cap is there for stability so I'd recommend adding it. How hot do those sinks get? Edit: No issues with plugging/unplugging headphones when the amp is on and playing. Edited January 26, 2013 by spritzer Quote Link to comment Share on other sites More sharing options...
Kerry Posted January 27, 2013 Report Share Posted January 27, 2013 I want to build a headamp with HV's input state and T2's output stae, but I am not really sure how to do. Here's what I had posted a while back... This version uses the KGSS front end and the output servo from the T2 - pretty much a blue Hawaii otherwise. I built a version on bread board using the T2 style batteries and a modified input stage as well. I'll look around for that too. Quote Link to comment Share on other sites More sharing options...
Kerry Posted January 27, 2013 Report Share Posted January 27, 2013 (edited) Here's the version with the active batteries to translate down to the bottom rail... Here's my build of one channel to test it out... EDIT: I built this using 425V rails instead of 500V. It simplified a number of things Edited January 27, 2013 by Kerry Quote Link to comment Share on other sites More sharing options...

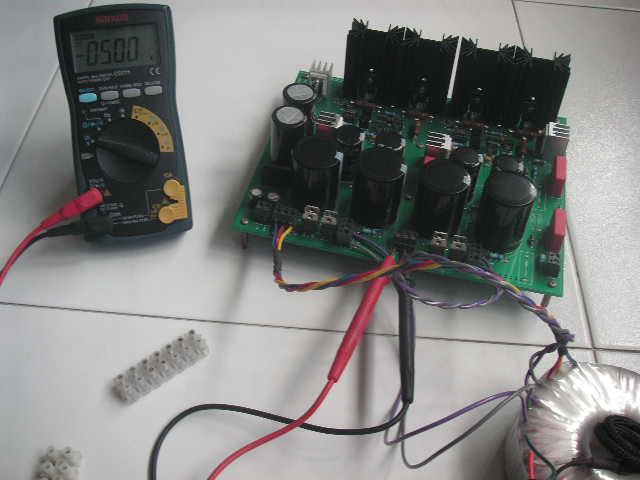

Victor Chew Posted January 27, 2013 Report Share Posted January 27, 2013 (edited) Awsome Kerry. What level of performance did you built it to achieve? Just got my PSU for my off board working. Took me 3 attempts to get it going. In the first attempt, negative channel saw flying silicon due to fake Mosfet. Ixys10m90s and FPQF8n80c spouted silicon and also killed the 2n3904, 24v zener. After repair, blew it again when I inserted the LT1021 the other way round melting the whole zener string taking out the 2n3904s and 24v zener. Reapir done and its been on for the last hour and no explosions so far. Thanks to Kerry for pointng out that the 2n3904 also had to be changed. Positive rail is +ve502v and negative at -ve500v. Edited January 27, 2013 by Victor Chew Quote Link to comment Share on other sites More sharing options...
spritzer Posted January 27, 2013 Report Share Posted January 27, 2013 Me like that one Kerry. In other news I have on my desk now a much smaller and simplified version of the HV supply. It's roughly half the size but with only one input cap it is more voltage limited. Quote Link to comment Share on other sites More sharing options...
headinclouds Posted January 27, 2013 Report Share Posted January 27, 2013 The cap is there for stability so I'd recommend adding it. How hot do those sinks get? Edit: No issues with plugging/unplugging headphones when the amp is on and playing. Thanks for that spritzer.As for temp - I have not done accurate heatsink checks yet, other than to note that they are not too hot to touch! The room temp is 20C, the temp in the case next to the heatsinks with the lid on is about 40C. it's running about as warm as I expected, but I will do more checks and report back. Quote Link to comment Share on other sites More sharing options...
Lil Knight Posted January 28, 2013 Report Share Posted January 28, 2013 Great to see you're back on track, Kerry I've just managed to picked up this monster 'sink, 10 kgs, 565mm x 204mm. Any idea on how I should cut to make the best use of it? Been trying to find another one for a second T2 but no luck so far. Quote Link to comment Share on other sites More sharing options...
headinclouds Posted January 28, 2013 Report Share Posted January 28, 2013 Now that's what I'd call a heatsink!I'd be thinking of slicing it into 4 or 5 at around 100mm each. It would go on the sides of a case nicely. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted January 28, 2013 Report Share Posted January 28, 2013 I agree. Get the fins oriented vertically and it should work well. 100mm seems like a nice size as well. Quote Link to comment Share on other sites More sharing options...
Pixiy Posted January 29, 2013 Report Share Posted January 29, 2013 Nice job.Kerry But I just wonder if I replace the 2sc2240 to 2sc3381 in active battery would be better? Quote Link to comment Share on other sites More sharing options...
Kerry Posted January 31, 2013 Report Share Posted January 31, 2013 That's fine. That was a print from LTSpice. I've used the 2SC2240 in the active battery component of the power supply (KGSSHV) and wasn't able to measure the noise unless I shield my apartment. Low noise and matched are both good things. Quote Link to comment Share on other sites More sharing options...
chinsettawong Posted February 1, 2013 Report Share Posted February 1, 2013 My KGSSHV is done. The chassis and the heatsinks aren't very good match, but since I have them sitting around, I might as well just use them. It sounds really nice with all my DIY headphones. Thanks Kevin for your wonderful amp design. Wachara C. Quote Link to comment Share on other sites More sharing options...

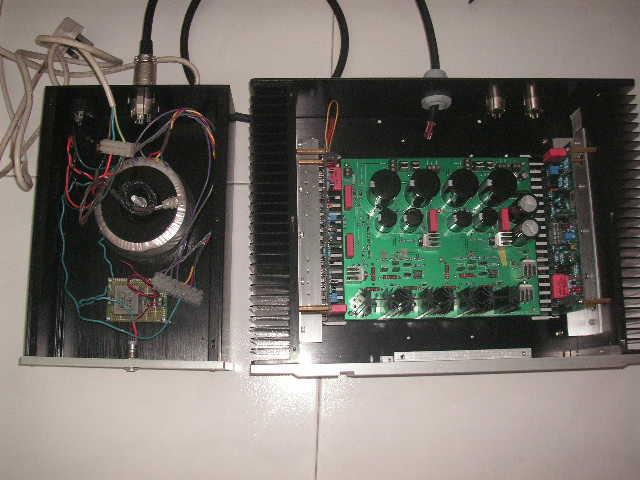

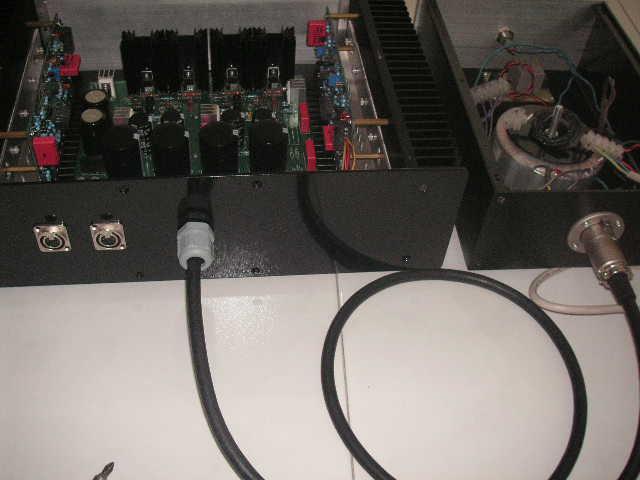

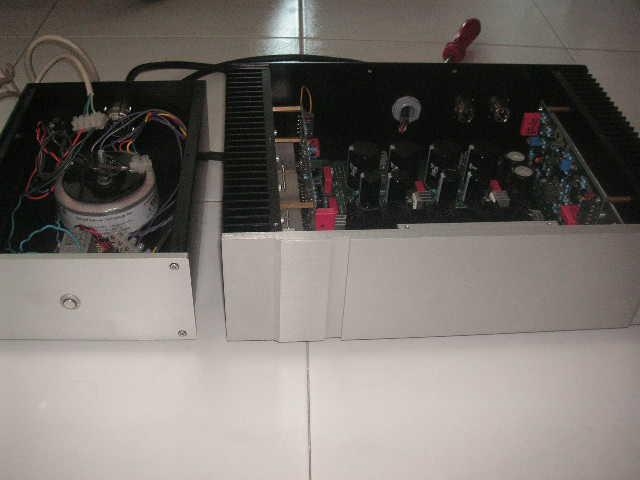

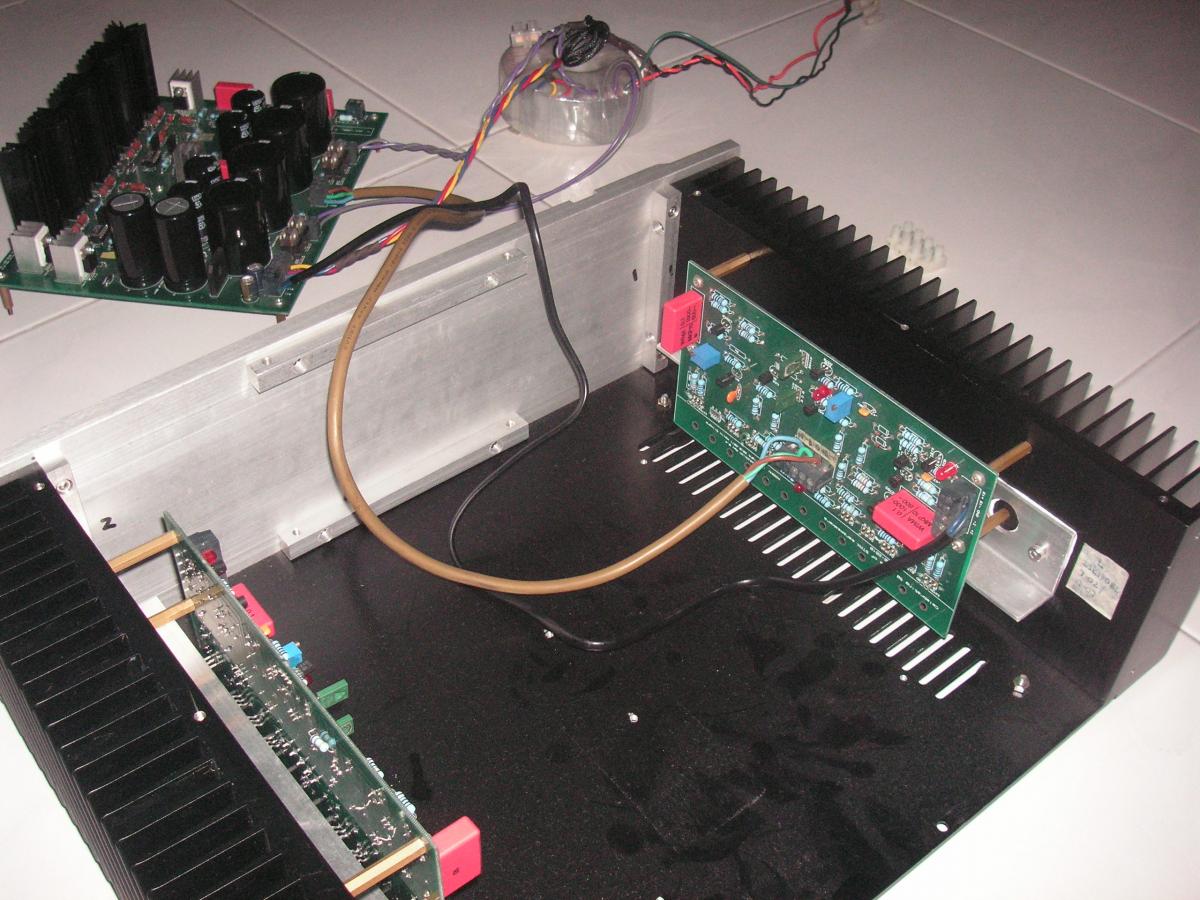

Victor Chew Posted February 1, 2013 Report Share Posted February 1, 2013 (edited) Congratulations on the project completion Wachara! Nice neat and compact. My off board is near completion. It has been a hard build. Lining up the sand to the head sinks has been difficult and not to mention the earlier psu problems. DC offset and balance are ok. Still need to wire and doll it up. Edited February 1, 2013 by Victor Chew Quote Link to comment Share on other sites More sharing options...
chinsettawong Posted February 1, 2013 Report Share Posted February 1, 2013 That's a nice build, Victor. Looking forward to seeing your finished amp. Wachara C. Quote Link to comment Share on other sites More sharing options...
headinclouds Posted February 1, 2013 Report Share Posted February 1, 2013 My KGSSHV is done. The chassis and the heatsinks aren't very good match, but since I have them sitting around, I might as well just use them. It sounds really nice with all my DIY headphones. Thanks Kevin for your wonderful amp design. Wachara C.That is very nice. Well done. I have been toying with that sort of layout for a few days and it is great to see you have it going.I would be interested in how warm your room is and how hot your amp gets. Also what resistor /current have you set in the output stage?Very best wishesAnd I too echo your thanks to Kevin for the circuit and pcb design Quote Link to comment Share on other sites More sharing options...
n_maher Posted February 1, 2013 Report Share Posted February 1, 2013 Well done to both of you! Quote Link to comment Share on other sites More sharing options...
chinsettawong Posted February 1, 2013 Report Share Posted February 1, 2013 I just tested and found that I have a ventilation issue with this layout. As soon as I put the top cover on, the offset and balance shift up. They go up as much as 20+v. No good. I might try to put the PS on the upper part and the amp boards to go below. Quote Link to comment Share on other sites More sharing options...
