schubert Posted December 29, 2012 Report Share Posted December 29, 2012 For the moment, I will have to enter the KGSShv unbalanced (DAC asymetrical outputs only). Is there à way to go balanced before the quad pot : there are some active module with opamps but I'm à bit afraid of quality lost. Is there any advice ? Quote Link to comment Share on other sites More sharing options...
Victor Chew Posted December 30, 2012 Report Share Posted December 30, 2012 Yes, DRV134. http://sjostromaudio.com/pages/ . At unbalanced in my B22, I was not able to get the DC offset down to zero. Infact it was way off. These days, I believe you can get many other alterative devices. Quote Link to comment Share on other sites More sharing options...
eggil Posted December 30, 2012 Report Share Posted December 30, 2012 That sounds like a pain. I would just leave the balanced XLR connectors. Why don't you just use an XLR to SE cable? Quote Link to comment Share on other sites More sharing options...
spritzer Posted December 30, 2012 Report Share Posted December 30, 2012 The DRV134 is a POS and causes far more issues than the slight loss you get with the natural phase splitting in the HV. Just make a RCA-XLR cable with the - grounded. Quote Link to comment Share on other sites More sharing options...
eggil Posted January 10, 2013 Report Share Posted January 10, 2013 (edited) Justin, any news on the 2SA1486's you were selling? By the way, thank you for the SR-009 Edited January 10, 2013 by eggil Quote Link to comment Share on other sites More sharing options...
justin Posted January 10, 2013 Report Share Posted January 10, 2013 Justin, any news on the 2SA1486's you were selling? By the way, thank you for the SR-009 i posted in the T2 thread. i can get a good price on 'real' ones and i can get a better price on 'possibly real' ones. i'm checking them out first. most likely they will be fakes and i'll move on. Quote Link to comment Share on other sites More sharing options...
eggil Posted January 14, 2013 Report Share Posted January 14, 2013 (edited) Thank you Justin. Spritzer, did you use a latching switch in your build? Edited January 14, 2013 by eggil Quote Link to comment Share on other sites More sharing options...
spritzer Posted January 14, 2013 Report Share Posted January 14, 2013 Yup, I always use latching switches on my amps. I like the simplicity of mechanical things... Quote Link to comment Share on other sites More sharing options...
Pars Posted January 14, 2013 Report Share Posted January 14, 2013 Are you still using the latching switches from that computer case place Birgir? If not, what? Quote Link to comment Share on other sites More sharing options...

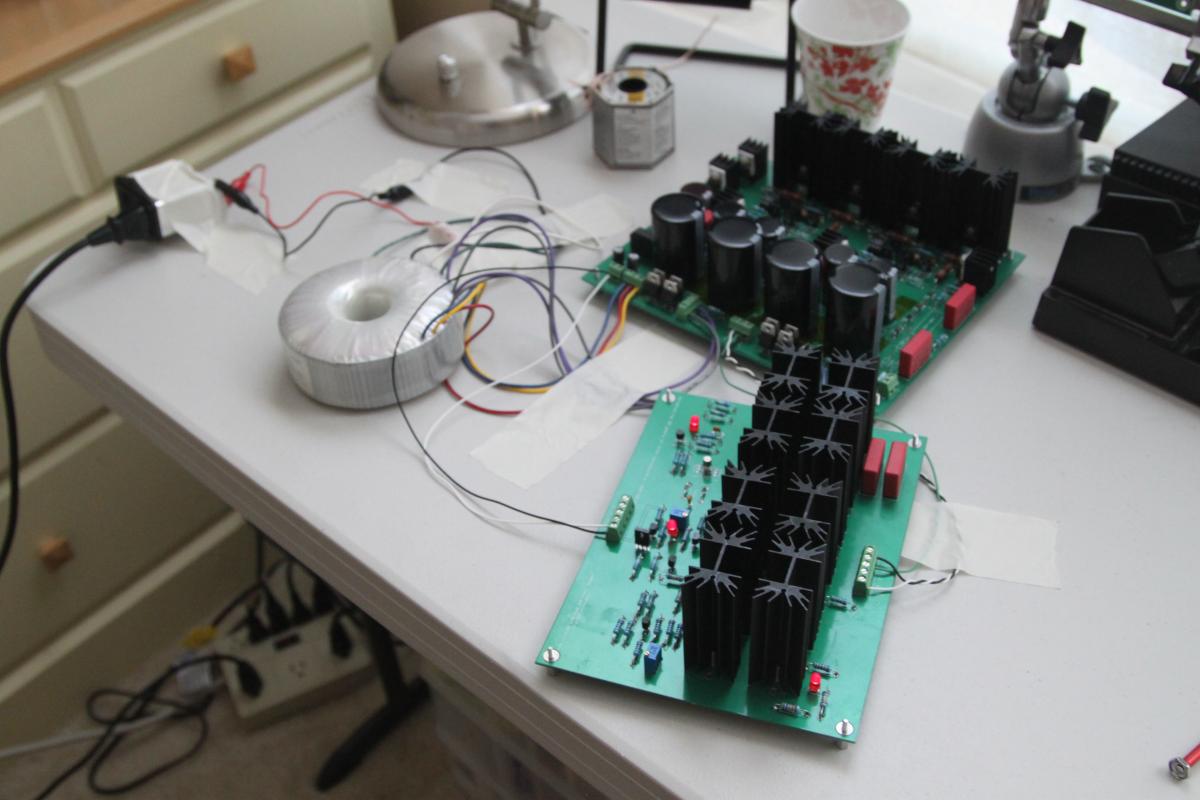

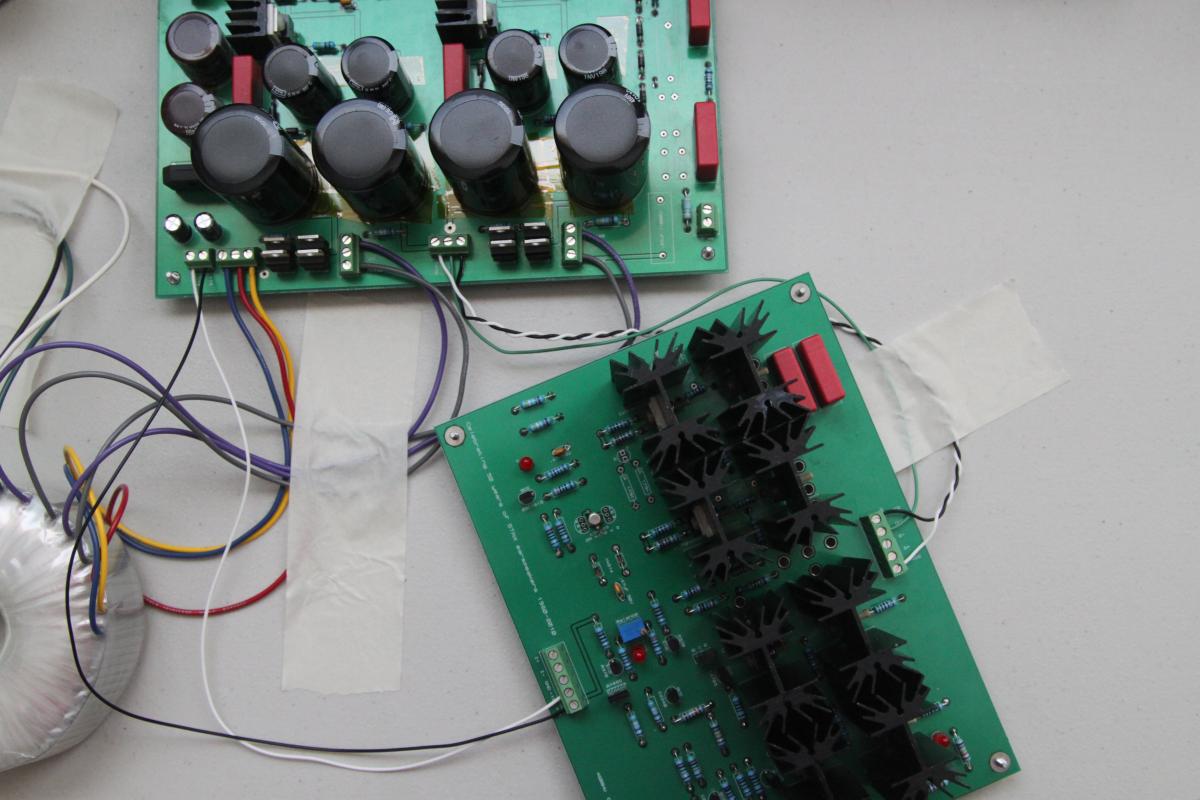

eggil Posted January 14, 2013 Report Share Posted January 14, 2013 (edited) Amp board #1 powered on without any problems. Now to stuff board #2. Edited January 14, 2013 by eggil Quote Link to comment Share on other sites More sharing options...
Victor Chew Posted January 14, 2013 Report Share Posted January 14, 2013 Good job. Quote Link to comment Share on other sites More sharing options...
TMoney Posted January 15, 2013 Report Share Posted January 15, 2013 Congrats! Quote Link to comment Share on other sites More sharing options...
eggil Posted January 15, 2013 Report Share Posted January 15, 2013 I really wish more people would try doing this instead of describing how liquid their amplifier sounds Quote Link to comment Share on other sites More sharing options...
shipsupt Posted January 15, 2013 Report Share Posted January 15, 2013 I am doing my build while living in the UK, but will move back to the US in a few years. I am finalizing my transformer order (Sumr) and was considering getting a dual primary winding. Is there any downside to having the dual windings? Quote Link to comment Share on other sites More sharing options...
Pars Posted January 15, 2013 Report Share Posted January 15, 2013 (edited) Not that I am aware of. I always order dual primaries for any transformer (custom or other). Edited January 15, 2013 by Pars Quote Link to comment Share on other sites More sharing options...
spritzer Posted January 15, 2013 Report Share Posted January 15, 2013 (edited) I always get dual windings as well. I can't see any downside to it.Are you still using the latching switches from that computer case place Birgir? If not, what?Well I bought a pile from them so I still have some but I also bought 50 more from Alibaba. I might have a problem with stockpiling stuff.... I also just ordered some PCB's for these switches to make them easier to use. Built in spot for a resistor to drop DC voltage higher than 12V etc.Now I'll get back to designing the PSU for the single ended Stax amp... Edited January 15, 2013 by spritzer Quote Link to comment Share on other sites More sharing options...
shipsupt Posted January 15, 2013 Report Share Posted January 15, 2013 Thanks. That makes it easy... Quote Link to comment Share on other sites More sharing options...
Victor Chew Posted January 15, 2013 Report Share Posted January 15, 2013 (edited) I always order dual primaries for any transformer (custom or other). I do that as well. Gives us the flexibility to change voltages. Perhaps 115v for the US and 230v for the UK. Edited January 15, 2013 by Victor Chew Quote Link to comment Share on other sites More sharing options...
n_maher Posted January 15, 2013 Report Share Posted January 15, 2013 The only downside to dual primaries is cost. Birgir, how are you implementing the latching switches? I thought that most of these weren't capable of switching the voltage and/or current levels that we need them to. Or am I just over thinking this? [edit]I just looked at the specs of one of the 22mm Bulgin latching switches, clearly I'm wrong since they're rated for 250VAC/5A which should be sufficient on the primary side of most headphone amps. Quote Link to comment Share on other sites More sharing options...
eggil Posted January 15, 2013 Report Share Posted January 15, 2013 Spritzer, will you any boards for sale for the latching switches? Quote Link to comment Share on other sites More sharing options...
spritzer Posted January 15, 2013 Report Share Posted January 15, 2013 Most of these switches can indeed handle 5A/250VAC but sometimes you have to track down the manufacturer and the actual spec sheets. Spritzer, will you any boards for sale for the latching switches? Sure, I bought 100 of them... They were on the expensive side due to the routing required but it wasn't too bad. I also have pcb's for the Alpha pot, pots too and the teflon Stax sockets should anybody need them. Quote Link to comment Share on other sites More sharing options...
eggil Posted January 15, 2013 Report Share Posted January 15, 2013 (edited) I'd like to buy 3 of each (PCB's) if you don't mind. Edited January 15, 2013 by eggil Quote Link to comment Share on other sites More sharing options...
shipsupt Posted January 15, 2013 Report Share Posted January 15, 2013 Is the NTE2588 an acceptable substitute for the Toshiba 2SC4686A, which is near impossible to track down now.... I compared data sheets and they are very close, but there are some subtle differences, but it seems like the major specs match and physically they should fit... I think. Example, the continuous collector current on the NTE is 30mA, the Toshiba is 50. NTE2588 Data Sheet http://www.nteinc.com/specs/2500to2599/pdf/nte2588.pdf 2SC4686A Data Sheet http://www.mouser.com/ds/2/408/7834-30958.pdf Of course if there is another alternative, this is the first I've found and investigated. I'll be doing the same for the 2SA970 and 2SC1815 next... Quote Link to comment Share on other sites More sharing options...
deepak Posted January 15, 2013 Report Share Posted January 15, 2013 I guess it was only a matter of time before Mouser sold out of their stock of 4000 4686a, shame it's been obsoleted by Toshiba Quote Link to comment Share on other sites More sharing options...
spritzer Posted January 15, 2013 Report Share Posted January 15, 2013 The best alternative would be the 2SC4686 which is the same part with a lower voltage rating. Still in production last I heard. I'd like to buy 3 of each (PCB's) if you don't mind. No problem. The switch PCB's should be here in a week or two so drop me a line then. Quote Link to comment Share on other sites More sharing options...
