Pars Posted March 28, 2012 Report Share Posted March 28, 2012 (edited) Everyone working on projects like this should have a set of these (or similar). Those are only rated for 300VDC (or RMS) MAX Edited March 28, 2012 by Pars Quote Link to comment Share on other sites More sharing options...
deepak Posted March 28, 2012 Report Share Posted March 28, 2012 Has anyone that has ordered these Aavid heatsinks verified they work with the onboard amp boards and power supply? Mounting distance of 25.4 mm is identical to the 64E Ohmite (what the BOM I have specifies), but just want to be absolutely sure. (data sheet attached) http://search.digike...2B02500&x=0&y=0530002b02500g.pdf Quote Link to comment Share on other sites More sharing options...
ujamerstand Posted March 28, 2012 Report Share Posted March 28, 2012 I ordered those. They fit well. Quote Link to comment Share on other sites More sharing options...
spritzer Posted March 28, 2012 Report Share Posted March 28, 2012 Yup, they will fit. Everyone working on projects like this should have a set of these (or similar). I use the Hirschmann clip on probes and they are excellent. They don't like 5A passing through them in an instant but that is to be expected... Quote Link to comment Share on other sites More sharing options...
jezz Posted March 28, 2012 Report Share Posted March 28, 2012 I've looked for HV-rated minigrabbers for a long time; not even Agilent makes one rated >300V (their U8201A kit says it's rated for 1kV, but the minigrabbers are still only 300V). There are alligator clips out there at 600V which are an okay replacement, but the minigrabbers seem fine to me when they're setup and not touched while live. Quote Link to comment Share on other sites More sharing options...
spritzer Posted March 28, 2012 Report Share Posted March 28, 2012 The ones I use are rated at 60V but I think it's conservative to say the least. Quote Link to comment Share on other sites More sharing options...
Pars Posted March 28, 2012 Report Share Posted March 28, 2012 I thought I recalled mine as being rated for 60V hands-on, and 300V total. Couldn't find that in Pomona's datasheet now though. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted March 28, 2012 Report Share Posted March 28, 2012 (edited) Pomona are crap compared to ez-hook and they have a HV version. Edit: maybe it's a high temp version. Regardless, they are nice. Edited March 28, 2012 by luvdunhill Quote Link to comment Share on other sites More sharing options...
HeadphoneAddict Posted March 28, 2012 Report Share Posted March 28, 2012 Everyone working on projects like this should have a set of these (or similar). Note - the reviews complain that the seller is only shipping the black lead, and not both the red and black. Quote Link to comment Share on other sites More sharing options...
El_Doug Posted March 29, 2012 Report Share Posted March 29, 2012 (edited) Fun... new board, +/-15v supply is all over the place, and the 500v supply sparked on powerup and blew the fuse... this is just not my build so far any better way to test my transformer other than measuring for shorts, and then measuring the AC voltage? Edited March 29, 2012 by El_Doug Quote Link to comment Share on other sites More sharing options...
eggil Posted March 29, 2012 Report Share Posted March 29, 2012 (edited) Amp 1: got the balance as close to zero as I can get it, fluctuating +- 300 mV or so, the offset fluctuates more but appears stable. Amp 2: D1 LED popped, not sure yet why. It worked fine for a few hours. Edited March 29, 2012 by eggil Quote Link to comment Share on other sites More sharing options...
johnwmclean Posted March 29, 2012 Report Share Posted March 29, 2012 Note - the reviews complain that the seller is only shipping the black lead, and not both the red and black. Well that's what you'd call a negative review ) Quote Link to comment Share on other sites More sharing options...
Beefy Posted March 29, 2012 Report Share Posted March 29, 2012 Well that's what you'd call a negative review ) Oh SNAP. Quote Link to comment Share on other sites More sharing options...
justin Posted March 29, 2012 Report Share Posted March 29, 2012 good to see you guys finding some common ground with Larry Quote Link to comment Share on other sites More sharing options...
swt61 Posted March 29, 2012 Report Share Posted March 29, 2012 And the puns keep coming. Quote Link to comment Share on other sites More sharing options...
eggil Posted March 29, 2012 Report Share Posted March 29, 2012 (edited) Ok, R2 25 ohm resistor was blown and changed it along with D1 LED. R4 1k, R28 5.1 and all other resistors were fine. Should I worry about the 4686's on that side? Edited March 30, 2012 by eggil Quote Link to comment Share on other sites More sharing options...
El_Doug Posted March 30, 2012 Report Share Posted March 30, 2012 Even more fun... FPE called and said they screwed up my panel (great customer service though, they ordered another case on their dime). My build is jinxed Quote Link to comment Share on other sites More sharing options...
ujamerstand Posted March 30, 2012 Report Share Posted March 30, 2012 it's okay, everyone has one or two builds that just never goes well. I'm sure you'll pull through in the end. Quote Link to comment Share on other sites More sharing options...
Victor Chew Posted March 30, 2012 Report Share Posted March 30, 2012 (edited) EL_Doug I am sure things will turn out ok in the end. I am a bit luckier, I have found music after 3 months of hard work. However, my transformer has a slight buzz and I have hum when the voulme is at zero although I followed the suggested grounding plan. Any suggestions to cure them? I am using the dact potentiometer on a 2 box psu/amp build. I will have to thank Ben, Kevin and Birgir for helping me along with the build when I had questions and problems. Kevin thank you very much for designing the KGSShv. For the moment I am really tired spending more than 5 hours of intensive wiring earlier today. I will post a mini review of the sound later on, but for now all I can say is that I can feel the raw power of this amp extracting unbelieveable details, thick sound and big powerfully controlled bass. It is miles ahead of the exStata which I have infront of me on loan. I would also post pictures of the build later, but my quota has run out. Edited March 30, 2012 by Victor Chew Quote Link to comment Share on other sites More sharing options...
TMoney Posted March 30, 2012 Report Share Posted March 30, 2012 Congrats Victor and best of luck, Doug. The reward is more than worth it so stick with it. I had a nice listening session last night and its really amazing how well the HV pairs with the 009s. So clear and so powerful. Quote Link to comment Share on other sites More sharing options...
eggil Posted March 30, 2012 Report Share Posted March 30, 2012 Well, I have a working PSU and 1 amp. The second one has given me grief after it worked for a few hours. My work schedule wont allow me to do much for a few weeks, but no worries, I will make it work. And congratulations Victor! Enjoy many happy listening moments. Quote Link to comment Share on other sites More sharing options...
spritzer Posted March 30, 2012 Report Share Posted March 30, 2012 With a DACT then that would be my first board of call for a fault. If that's not the case then just wire all the grounds to one point in the amp (I used one amp board ground connector for everything) and then it should work flawlessly. Ok, R2 25 ohm resistor was blown and changed it along with D1 LED. R4 1k, R28 5.1 and all other resistors were fine. Should I worry about the 4686's on that side? They are pretty tough so do a diode test and if they pass, try to power it on. Quote Link to comment Share on other sites More sharing options...

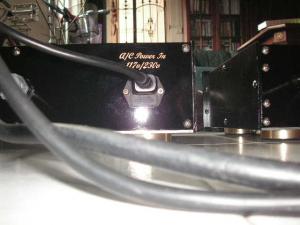

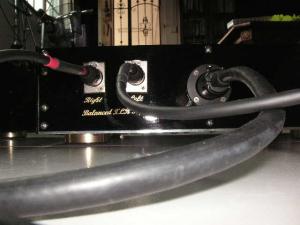

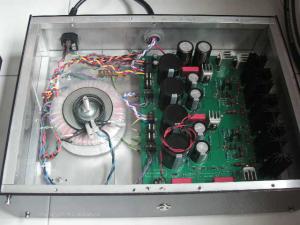

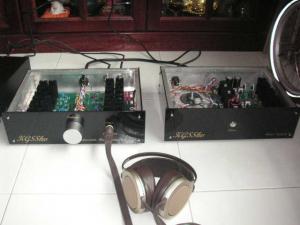

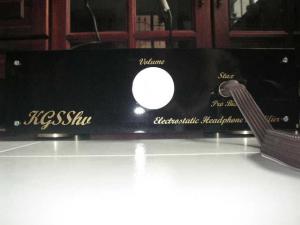

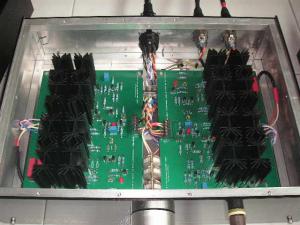

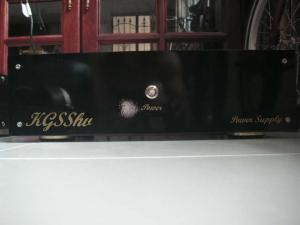

Victor Chew Posted March 31, 2012 Report Share Posted March 31, 2012 (edited) Pictures of my build Spent most of the building time on building the casing. PSU has about 800 holes and Amp has more than 1200 holes for ventilation. All hand drilled. My wife thinks I am crazy. Fortunately it was done in the common area so I did not get any beating from her dirtying the place. Also had to wait 10 day for the lacquer to dry before implanting the boards into them. Edited March 31, 2012 by Victor Chew Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted March 31, 2012 Author Report Share Posted March 31, 2012 Very Nice Quote Link to comment Share on other sites More sharing options...
deepak Posted March 31, 2012 Report Share Posted March 31, 2012 Nice work. Pics of those 1200 holes? Quote Link to comment Share on other sites More sharing options...
