swt61 Posted March 6, 2012 Report Share Posted March 6, 2012 Someone left it behind. I believe it was used as a shroud to hide his ManDate magazine. Quote Link to comment Share on other sites More sharing options...
wink Posted March 6, 2012 Report Share Posted March 6, 2012 "Now if somebody can spot my way of dealing with the 10M90 sinks with only metric screws at hand... " That's what I did. I later thought I could have drilled a hole and tapped it M3 a little higher up the heatsink, but thought the loss of mounting surface on the device would be overly compromised. Quote Link to comment Share on other sites More sharing options...
Kerry Posted March 7, 2012 Report Share Posted March 7, 2012 Nice looking build I'm all about smaller these days so love that it fit it a 2U case. Quote Link to comment Share on other sites More sharing options...

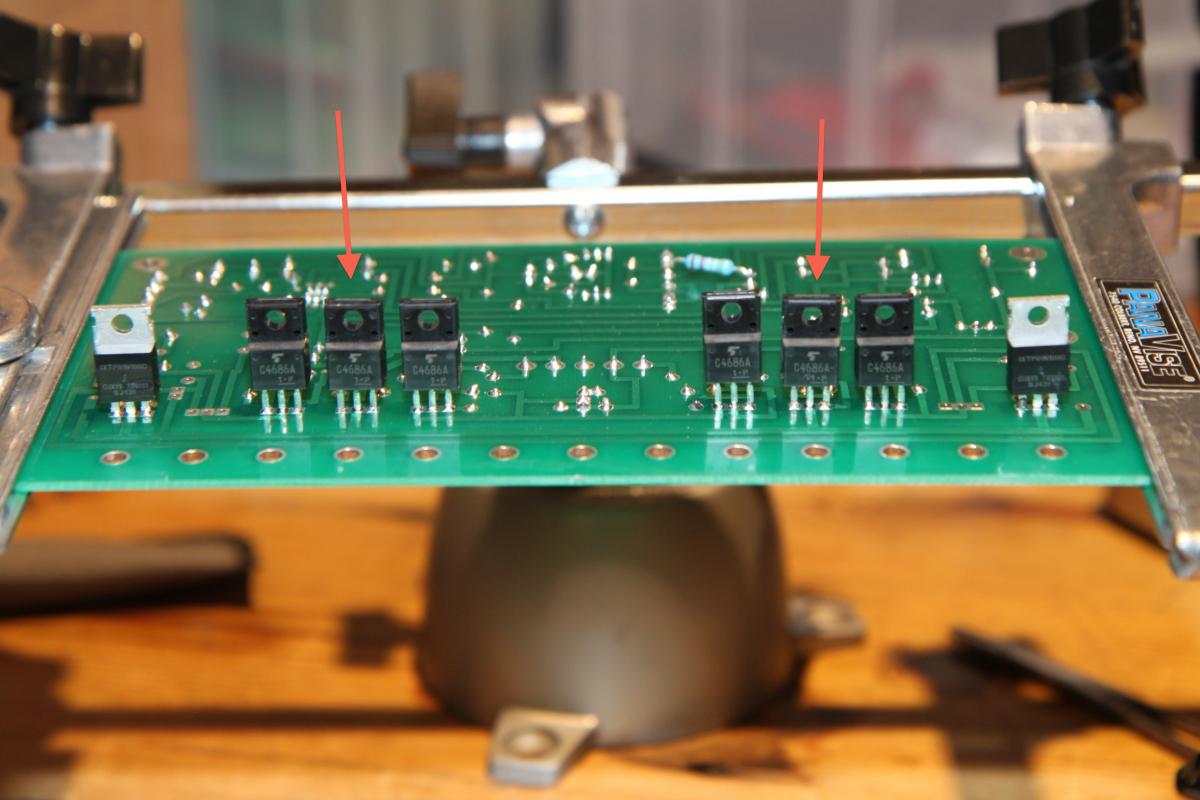

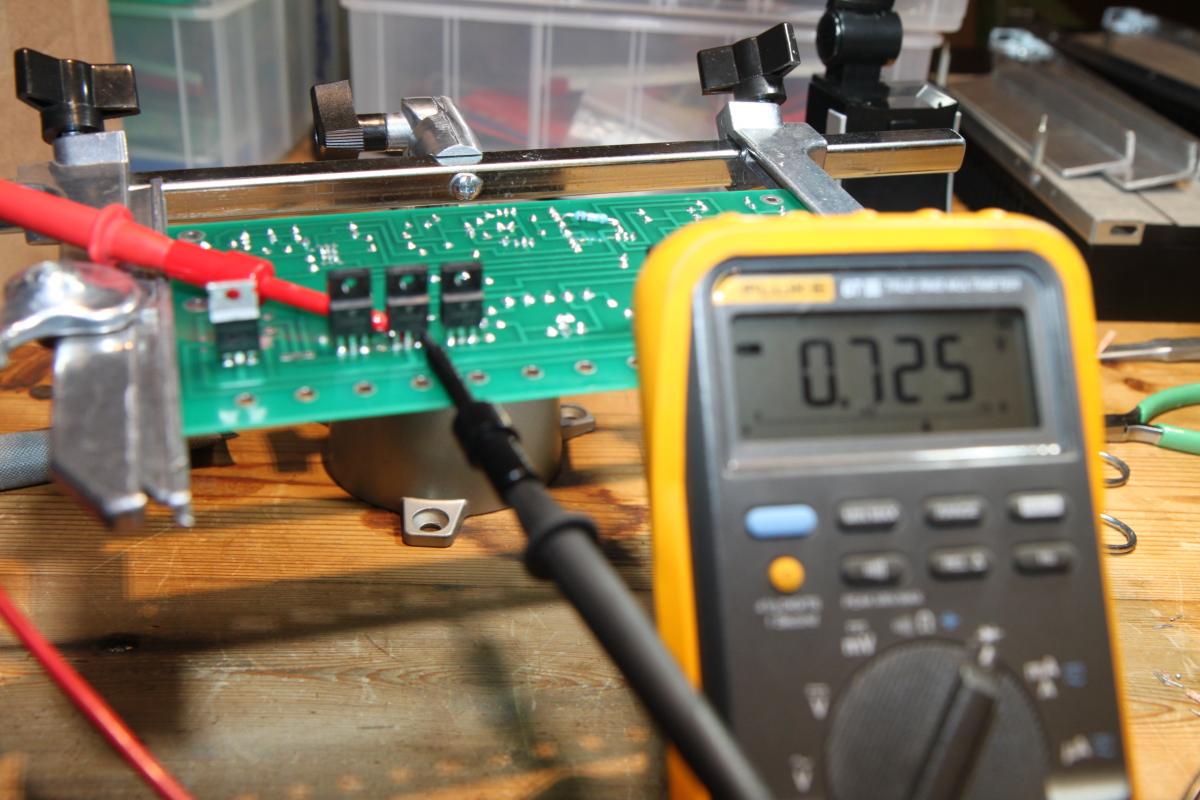

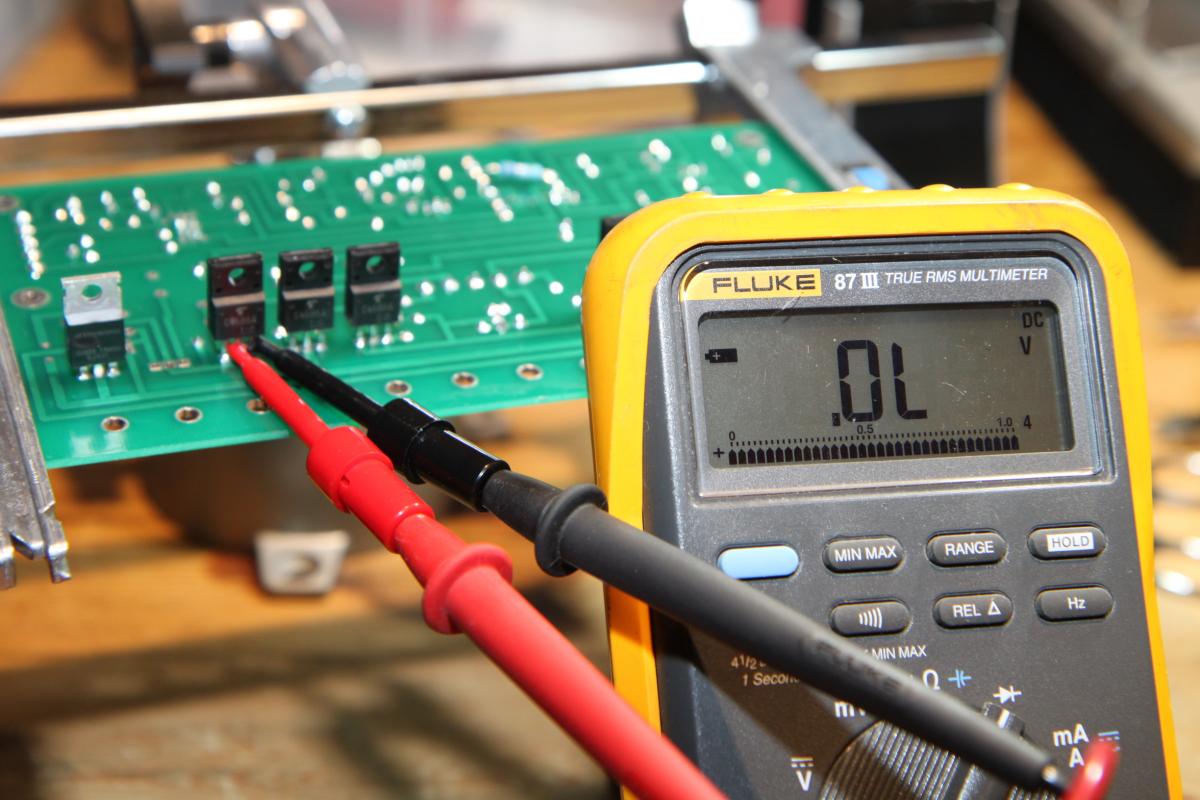

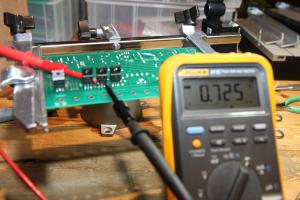

eggil Posted March 7, 2012 Report Share Posted March 7, 2012 When I test the 4686 transistors I get an unexpected reading using my DMM and only with the transistors in the middle (red arrows, and on both boards): Collector to emitter: 0.75 V On the rest of the 4686's: OL Both base-collector and collector-emitter conduct one way only as expected. Why do I get those readings only with the middle ones and not the rest? both boards? At first I thought they were damaged but its to much of a coincidence with the same ones on both boards. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted March 7, 2012 Author Report Share Posted March 7, 2012 Those are the top output transistors, and you can't measure them in circuit that way and get reliable results. Quote Link to comment Share on other sites More sharing options...
eggil Posted March 7, 2012 Report Share Posted March 7, 2012 Thanks. I figured it was because they were in circuit, but wasn't sure why. Quote Link to comment Share on other sites More sharing options...
spritzer Posted March 7, 2012 Report Share Posted March 7, 2012 Measuring anything while in circuit is always a crapshoot. Way too many variables to list. While we are on the subject, the HV sounds fucking amazing!! Who stuck a subwoofer to my 007 Mk1's? Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted March 7, 2012 Author Report Share Posted March 7, 2012 (edited) Yeah Team. Boards at the post office , will pick up tomorrow. prototypes of the multiamp,blackhole and preamp. Will be sending justin his knob tomorrow also, i had better see pictures of it mounted. Edited March 7, 2012 by kevin gilmore Quote Link to comment Share on other sites More sharing options...
swt61 Posted March 7, 2012 Report Share Posted March 7, 2012 Will be sending justin his knob tomorrow also, i had better see pictures of it mounted. Damn! At least make it a challenge for me Kevin! Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted March 8, 2012 Author Report Share Posted March 8, 2012 Sorry, i'm tired and could not be much more creative. Quote Link to comment Share on other sites More sharing options...
Victor Chew Posted March 8, 2012 Report Share Posted March 8, 2012 Eggil, have you powered up yet? Quote Link to comment Share on other sites More sharing options...
eggil Posted March 8, 2012 Report Share Posted March 8, 2012 (edited) No, waiting for the transformer. Will be drilling holes in the heatsink on friday. Edited March 8, 2012 by eggil Quote Link to comment Share on other sites More sharing options...
johnwmclean Posted March 8, 2012 Report Share Posted March 8, 2012 eggil - I’m just curious for my own understanding, wouldn’t soldering those transistors last be preferable? Quote Link to comment Share on other sites More sharing options...

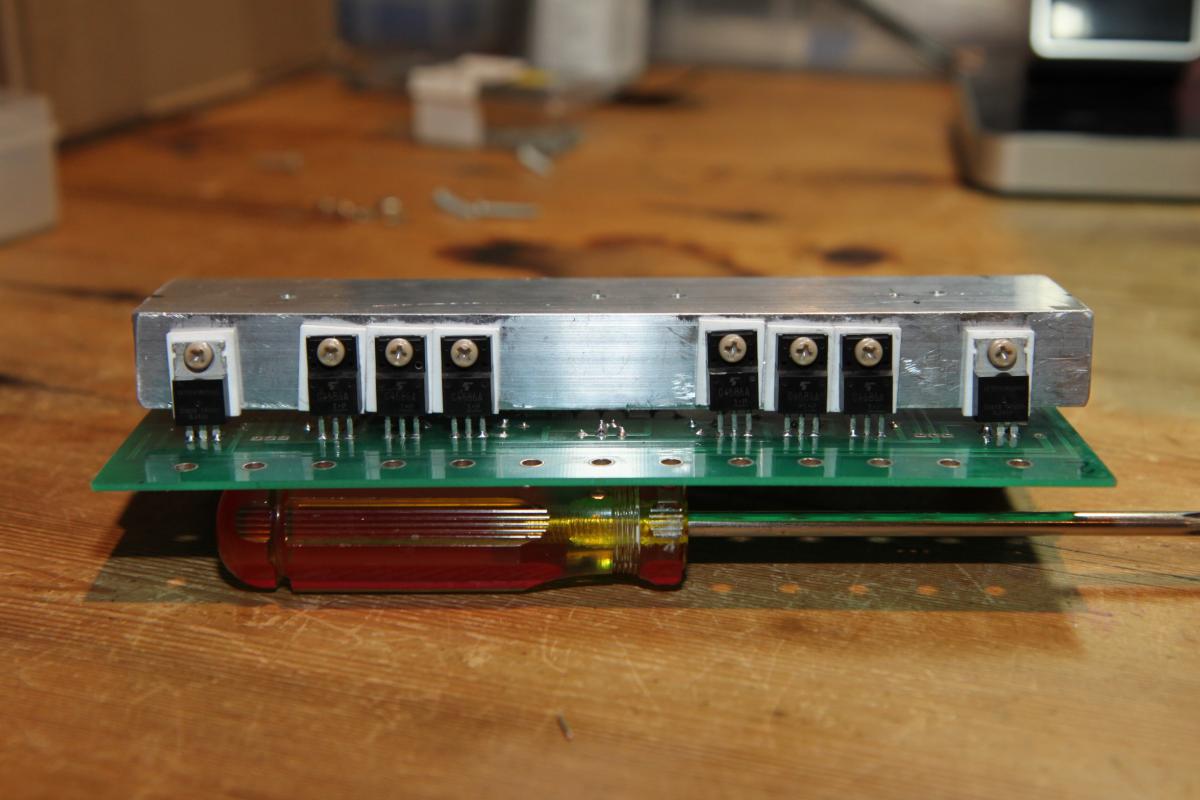

eggil Posted March 8, 2012 Report Share Posted March 8, 2012 I see what you mean, but what I am doing is not that hard. I have not screwed the aluminum plate to the transistors yet. Quote Link to comment Share on other sites More sharing options...
johnwmclean Posted March 8, 2012 Report Share Posted March 8, 2012 (edited) Good luck drilling, I look forward to seeing your amp eggil. Edited March 8, 2012 by johnwmclean 1 Quote Link to comment Share on other sites More sharing options...

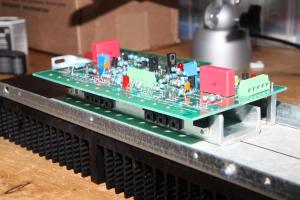

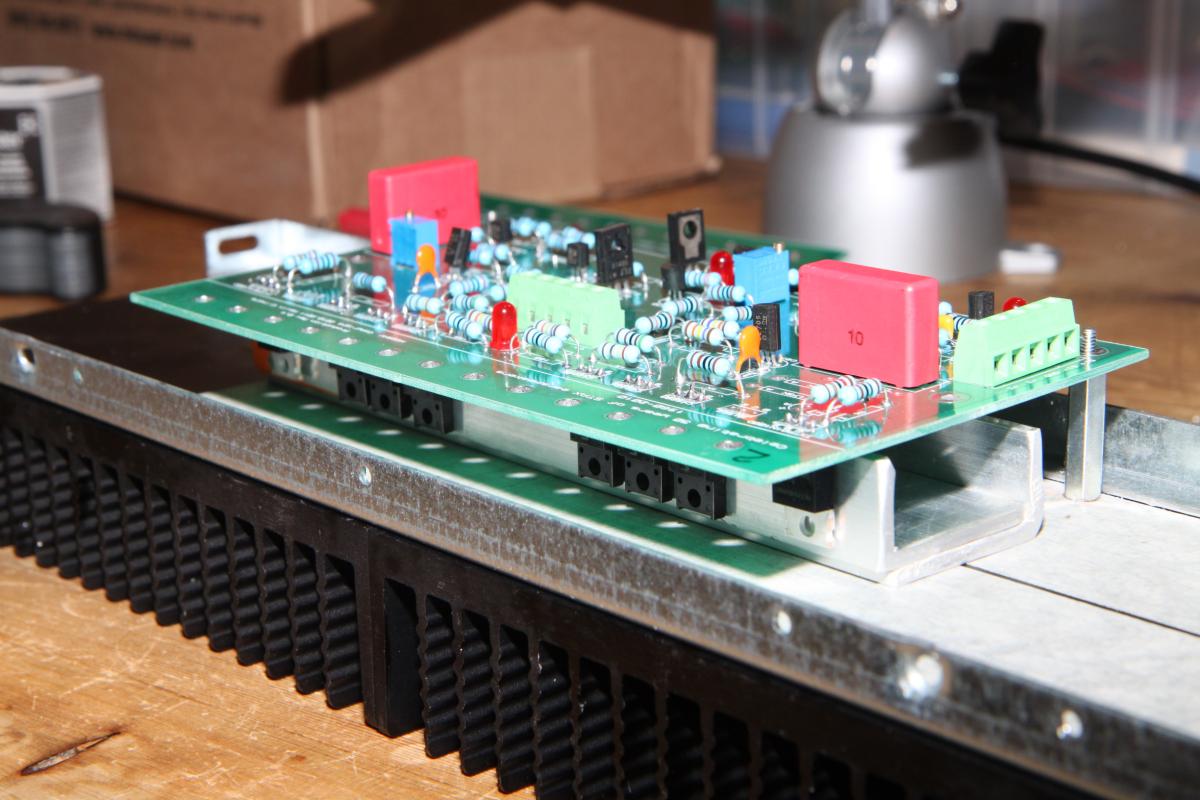

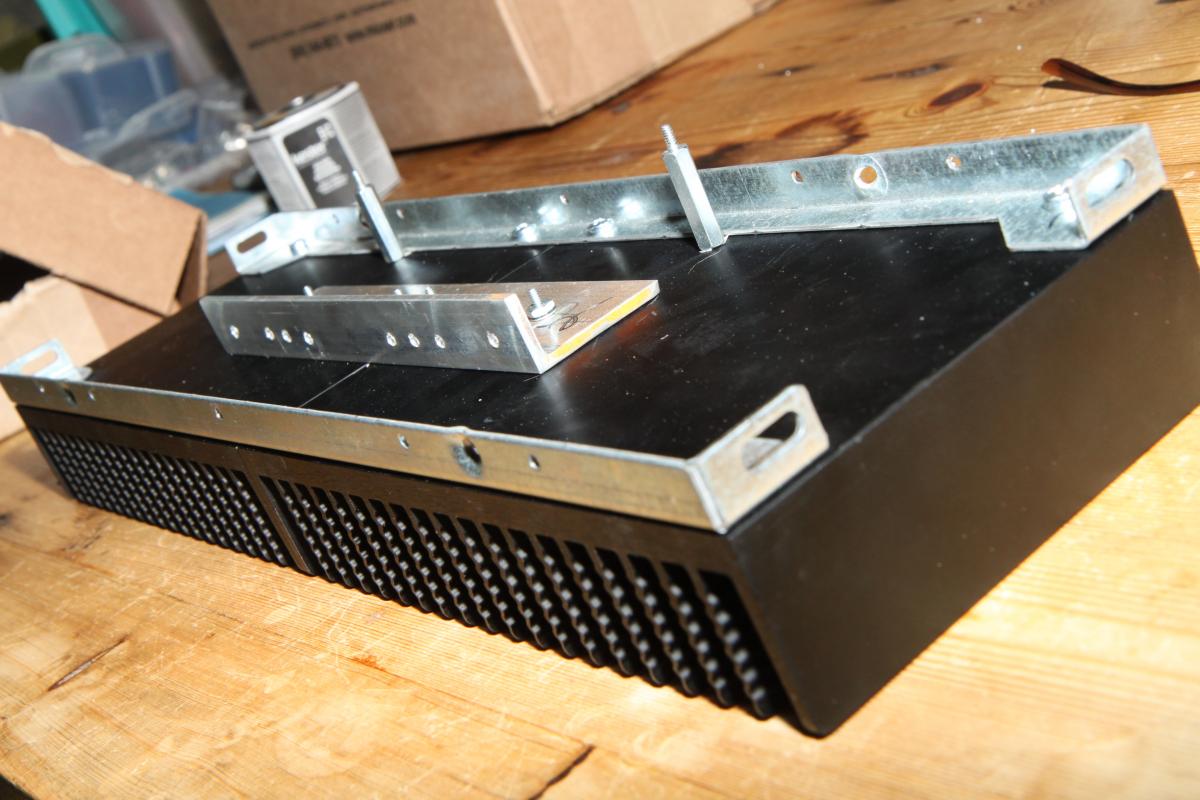

luvdunhill Posted March 9, 2012 Report Share Posted March 9, 2012 Why two layers of angle brackets? Quote Link to comment Share on other sites More sharing options...

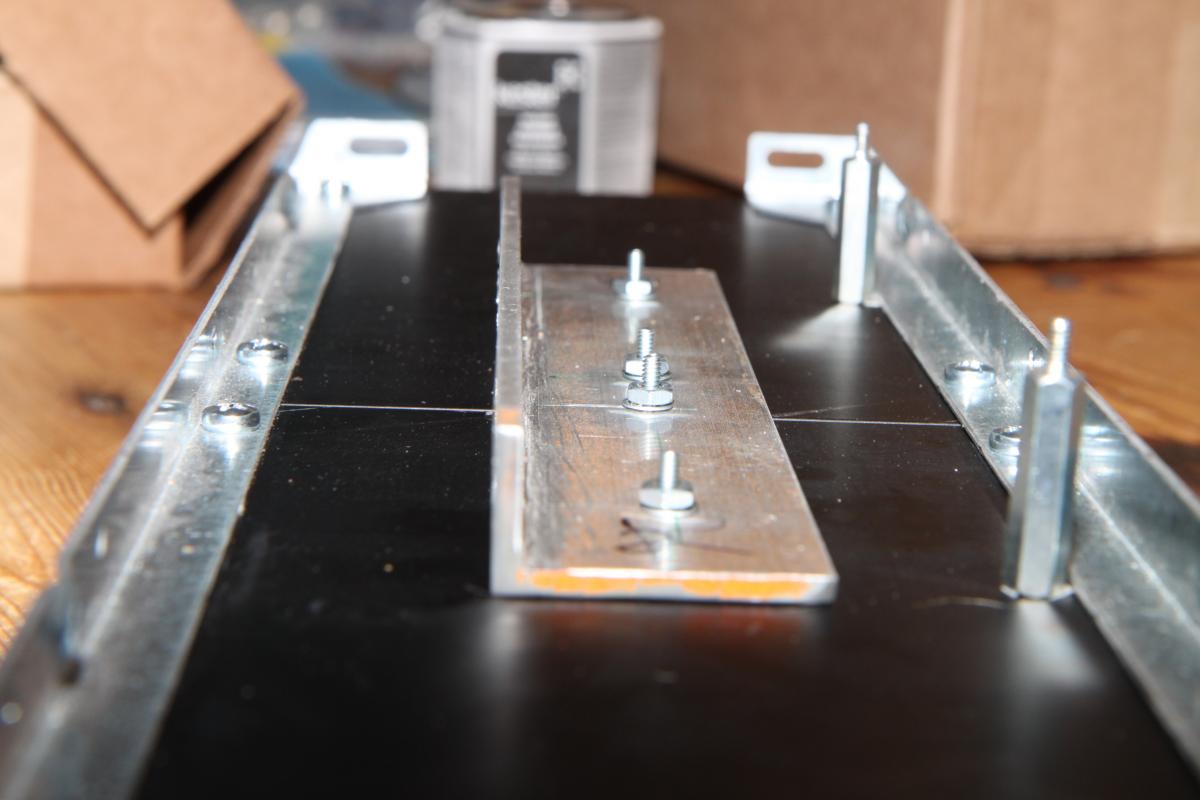

eggil Posted March 9, 2012 Report Share Posted March 9, 2012 Actually it will be only 1. I had 2 in the picture to help me figure out where to drill the holes. Quote Link to comment Share on other sites More sharing options...

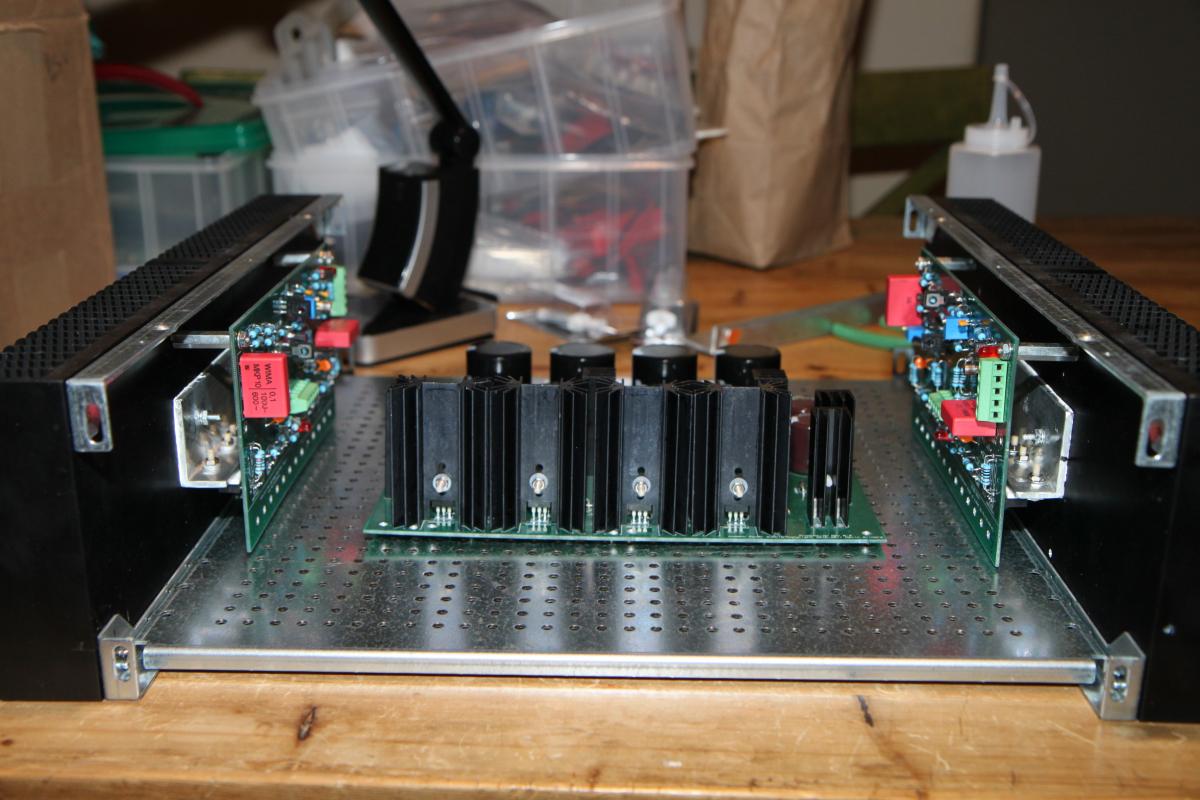

eggil Posted March 10, 2012 Report Share Posted March 10, 2012 (edited) Well, drilling the heatsinks was harder than I thought! Hope didn't screw up anything. Edited March 10, 2012 by eggil Quote Link to comment Share on other sites More sharing options...
Victor Chew Posted March 10, 2012 Report Share Posted March 10, 2012 Nice work eggil. Quote Link to comment Share on other sites More sharing options...
TMoney Posted March 11, 2012 Report Share Posted March 11, 2012 It looks like the same guy who started this train-wreck of a thead over there is actually going forward with his build. Quote Link to comment Share on other sites More sharing options...
El_Doug Posted March 11, 2012 Report Share Posted March 11, 2012 (edited) thats the same guy!? hope he at least figures out how to wire a transformer before it arrives... Edited March 11, 2012 by El_Doug Quote Link to comment Share on other sites More sharing options...
spritzer Posted March 11, 2012 Report Share Posted March 11, 2012 Why are people using CMF60 resistors for the bias ballast? Doesn't anybody read the bloody spec sheets? Quote Link to comment Share on other sites More sharing options...
El_Doug Posted March 11, 2012 Report Share Posted March 11, 2012 I suppose because theyre prettier, and that several companies have made it seem like the Vishay/Dale name automatically makes things better. "So what if theyre only rated for a 500v maximum? Theyre cool!!!" Why are people using CMF60 resistors for the bias ballast? Doesn't anybody read the bloody spec sheets? Quote Link to comment Share on other sites More sharing options...
spritzer Posted March 11, 2012 Report Share Posted March 11, 2012 (edited) Yeah that plus people not knowing what they are doing. Vishay is basically an umbrella for everything now but they do own BC (aka Philips) so that opens up a lot of good stuff. These are the ones I use: http://www.mouser.co...XoJNmZF%2flI%3d Edited March 11, 2012 by spritzer Quote Link to comment Share on other sites More sharing options...
