Inu Posted June 28, 2010 Report Share Posted June 28, 2010 At least someone is looking at it... Please check again for more errors. PS board. Not connected to the GND . > R14(2.2K) & R15(100), C7 & C8 (4,700uF) , R9(300K), U3(7815), U4(7915) Small Quote Link to comment Share on other sites More sharing options...
digger945 Posted June 28, 2010 Report Share Posted June 28, 2010 Wiper should be connected to -500. Same for both channels(same for last post above also) Quote Link to comment Share on other sites More sharing options...
digger945 Posted June 29, 2010 Report Share Posted June 29, 2010 ...and tied to ground somewhere. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted June 29, 2010 Author Report Share Posted June 29, 2010 (edited) Well the ps board was not updated for some reason, all those should be fixed now. The wiper on the pot is the center pin, and as a two wire device it really does not matter which end its tied to ?? The connectons to ground are hard to see in the jpg's. here are the pdf's http://gilmore.chem.northwestern.edu/kgsshvamp3.pdf http://gilmore.chem.northwestern.edu/kgsshvps.pdf Edited June 29, 2010 by kevin gilmore Quote Link to comment Share on other sites More sharing options...
digger945 Posted June 29, 2010 Report Share Posted June 29, 2010 (edited) You are right. What about RV2/R44/R45? Is Rev 0 the correct board? EDIT: correct amp board Edited June 29, 2010 by digger945 Quote Link to comment Share on other sites More sharing options...
wink Posted June 29, 2010 Report Share Posted June 29, 2010 K. Gilmore stated:- 475 volt windings... 2 of them, completely seperated. 39 watts each 30 volts center tapped 10va 475V @ 39 watts is only 8.2mA. ....? Quote Link to comment Share on other sites More sharing options...
mypasswordis Posted June 29, 2010 Report Share Posted June 29, 2010 Don't you mean 82? Quote Link to comment Share on other sites More sharing options...
wink Posted June 29, 2010 Report Share Posted June 29, 2010 mypasswordis posted:- Don't you mean 82 Sorry, must have dyslexic fingers and calculator..... Quote Link to comment Share on other sites More sharing options...

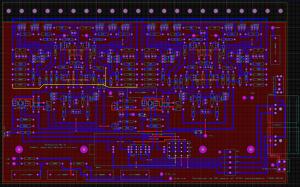

kevin gilmore Posted June 29, 2010 Author Report Share Posted June 29, 2010 You are right. What about RV2/R44/R45? Fixed. new jpg and pdf for the amp board. keep the errors comming please, need it to be perfect the first time. Quote Link to comment Share on other sites More sharing options...
spritzer Posted June 29, 2010 Report Share Posted June 29, 2010 I'd spec the transformer at 100mA for some extra headroom but I like to overbuild... 1 Quote Link to comment Share on other sites More sharing options...

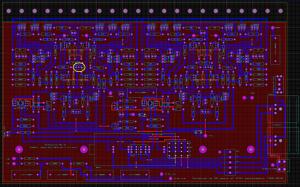

digger945 Posted June 29, 2010 Report Share Posted June 29, 2010 C1 and C2(5pF) missing I forgot, the 170/389 silks and stuff look good(I can't read the DGS but regardless it's correct by the silk) Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted June 29, 2010 Author Report Share Posted June 29, 2010 C1 and C2 were always optional anyway, way back from the start. Never needed them before, hope not to need them now on the board, but might as well have a place for them if needed. Quote Link to comment Share on other sites More sharing options...
wink Posted June 29, 2010 Report Share Posted June 29, 2010 Spritzer posted:- I'd spec the transformer at 100mA for some extra headroom but I like to overbuild... . Way to go, Spritzer. I like it.... More power for the peeples.... Quote Link to comment Share on other sites More sharing options...
Inu Posted June 29, 2010 Report Share Posted June 29, 2010 Missing TKD GND lands. On the schematics. R50 10K > 300ohm Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted June 30, 2010 Author Report Share Posted June 30, 2010 Missing TKD GND lands. On the schematics. R50 10K > 300ohm done and done... Quote Link to comment Share on other sites More sharing options...
Inu Posted July 1, 2010 Report Share Posted July 1, 2010 I have no more issue for the amp board. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted July 4, 2010 Author Report Share Posted July 4, 2010 anyone know where to get the rubber versions of these things https://sdp-si.com/eStore/PartDetail.asp?Opener=Group&PartID=1938&GroupID=545 Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted July 7, 2010 Author Report Share Posted July 7, 2010 So the transformer is going to be 4 inches in diameter. Which means that the inside of the box is going to have to be 13 x 13 inches for a single chassis thing. Heatsinks both sides. Quote Link to comment Share on other sites More sharing options...
digger945 Posted July 7, 2010 Report Share Posted July 7, 2010 anyone know where to get the rubber versions of these things https://sdp-si.com/eStore/PartDetail.asp?Opener=Group&PartID=1938&GroupID=545 Something like this.... or this... From an RC hobby site. Can't find a place to buy them yet, just wondering if it would fit the bill first. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted July 7, 2010 Author Report Share Posted July 7, 2010 yep, that is what i'm looking for. the other ones make noises as they turn. Quote Link to comment Share on other sites More sharing options...
Looser101 Posted July 7, 2010 Report Share Posted July 7, 2010 If you can't find the appropriate rubber ones try sleeving over the joint with silicone tubing. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted July 22, 2010 Author Report Share Posted July 22, 2010 i'm thinking seriously of doing a version of the board with a simplified current source that performs just as good (1000 volt ixys part, thanks marc) and with standup heatsinks. Will make it lots easier and cheaper for people to build it. Power supply will be the same thing. Hopefully will get started on it friday. Will cut the power supply voltages to +/-450 just to make sure the current source has a bit of headroom. if anyone knows of a depletion mode fet that does more than 1000 volts and will run at 1ma, let me know. Quote Link to comment Share on other sites More sharing options...
Inu Posted July 22, 2010 Report Share Posted July 22, 2010 i'm thinking seriously of doing a version of the board with a simplified current source that performs just as good (1000 volt ixys part, thanks marc) and with standup heatsinks. Will make it lots easier and cheaper for people to build it. Power supply will be the same thing. Hopefully will get started on it friday. Will cut the power supply voltages to +/-450 just to make sure the current source has a bit of headroom. if anyone knows of a depletion mode fet that does more than 1000 volts and will run at 1ma, let me know. High voltage depletion mode JFET http://www.semisouth.com/products/uploads/DS_SJDP120R085_rev1.0.pdf#search=%27SJDP120R085%27 but it is too big... Quote Link to comment Share on other sites More sharing options...
nattonrice Posted July 22, 2010 Report Share Posted July 22, 2010 I think there was a group buy for them recently on diya. It might still be on going. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted July 22, 2010 Author Report Share Posted July 22, 2010 its also a jfet. in any case i will try and buy a few and test them. i assume people are using them as current sources, would like to know how they actually perform. Quote Link to comment Share on other sites More sharing options...
