kevin gilmore Posted December 16, 2010 Author Report Share Posted December 16, 2010 I have chips in my kyocera ceramic knives just from the knife hitting pieces of beef or chicken bones. They do break. The macor i use (machinable glass ceramic) works great in compression mode, but absolutely horrible in the other direction. Quote Link to comment Share on other sites More sharing options...
Les_Garten Posted December 16, 2010 Report Share Posted December 16, 2010 I've never seen a ceramic knife break, these are harder than steel, not just a regular ceramic used in planes and bowls. Do you have any Ceramic knives? The insert that comes with them tells all the things you can do to break them. They break easily. Knife steel breaks easily as well if it is too hard. The "harder" a knife is, the easier it is to break. I have a knife by Fallkniven made to address these characteristics. It is a laminate blade with a very hard edge laminated over a softer back bone. Here's the link for anyone who may be interested. PXLim So, the reason why my original question. Ceramic screws would seem easy to break from the shearing forces and even the stretch from Torquing. I'm fascinated by them though. Except for the cost, that part is not fascinating, it's shocking! Quote Link to comment Share on other sites More sharing options...
Les_Garten Posted December 16, 2010 Report Share Posted December 16, 2010 I have chips in my kyocera ceramic knives just from the knife hitting pieces of beef or chicken bones. They do break. The macor i use (machinable glass ceramic) works great in compression mode, but absolutely horrible in the other direction. Thanx for that info(Macor) They make some neat looking things out of that stuff. Quote Link to comment Share on other sites More sharing options...
Craig Sawyers Posted December 16, 2010 Report Share Posted December 16, 2010 So, basically any shoulder washer that has enough length would be just fine? I still a bunch left from my Beta22 build. Wondering if I could use them... Also, would this aluminum oxide insulator work for lower voltage MOSFETs like the ones in the Beta? If it's better, in term of heat transmitting, than the thermasil I'm using, I'll just buy a bunch and replace the thermasil. No idea what shoulder washers for the Beta22 are like, so can offer no opinion. But if you check the thermal resistance of the 4171G you will find it is the same as for thermasil. Alumina has actually got way more thermal conductivity than thermasil, but the 4171G 2mm thick so the numbers balance out. The main thing is that if you draw things out on a piece of paper, you'll quickly see that the breakdown distance is the thickness of the washer, irrespective of the shoulder washer bush length. So although thermasil might have a breakdown potential of 1kV or more, the *actual* breakdown around the hole in the insulator is only a couple of hundred volts. The only way to make use of the native breakdown potenial is to use insulators without a hole, and use a spring clip to hold the transistor at the right pressure. The 4171G has 2mm, which is good for a couple of kV. Don't forget to use heatsink grease. The only screw technology that I know of that will take the torque needed for optimum heat transfer (1.1Nm for TO220 and 0.4Nm for TO126) is steel. Quote Link to comment Share on other sites More sharing options...
wink Posted December 17, 2010 Report Share Posted December 17, 2010 Would the 598-CDV19CF050D03F be a viable substitute for the 75-561R10TCCV50 5pF 1KV cap?. Mica vs Ceramic... Quote Link to comment Share on other sites More sharing options...
Craig Sawyers Posted December 17, 2010 Report Share Posted December 17, 2010 Would the 598-CDV19CF050D03F be a viable substitute for the 75-561R10TCCV50 5pF 1KV cap?. Mica vs Ceramic... Um - Mouser returns a No Results for 598-CDV19CF050D03F Quote Link to comment Share on other sites More sharing options...
Pars Posted December 17, 2010 Report Share Posted December 17, 2010 Shows up on the US site: CDV19CF050DO3F Cornell Dubilier Mica Capacitors If it fits properly, I would think it would work.It appears the lead spacing is 0.344" versus 0.25" for the ceramic. Quote Link to comment Share on other sites More sharing options...
spritzer Posted December 17, 2010 Report Share Posted December 17, 2010 We always used silver mica with the KGSS/BH's so it should be just fine. Quote Link to comment Share on other sites More sharing options...
wink Posted December 22, 2010 Report Share Posted December 22, 2010 75-561r10tccv50 Got some from RS Components. 100uF 50V/63V are hard to come by. Managed to get some from Jaycar. They had both standard and low ESR types. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted December 22, 2010 Author Report Share Posted December 22, 2010 just got an email from mouser that the 5pf caps are 1 year away... will find another one soon. A friend found a source for glass infused peek screws... I think i have to buy 500 of them minimum, but they are only $1 each. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted December 22, 2010 Report Share Posted December 22, 2010 I believe there are 4.7 pF caps available, which should be fine. Quote Link to comment Share on other sites More sharing options...
livewire Posted December 24, 2010 Report Share Posted December 24, 2010 OMG!!! WTF?? KGSSHV PSU UP & NO BBQ FTW!!! Mission Control, we have lift-off! Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted December 24, 2010 Author Report Share Posted December 24, 2010 I love it when a plan comes together. Quote Link to comment Share on other sites More sharing options...
Knuckledragger Posted December 25, 2010 Report Share Posted December 25, 2010 OMG!!! WTF?? KGSSHV PSU UP & NO BBQ FTW!!! Sig-worthy. Quote Link to comment Share on other sites More sharing options...
spritzer Posted December 25, 2010 Report Share Posted December 25, 2010 Arcy-sparky is an optional extra... Quote Link to comment Share on other sites More sharing options...
livewire Posted December 25, 2010 Report Share Posted December 25, 2010 Please! I really dont wanna go there. Besides, this build aint no T2 replete with exposed, finicky hollow-state devices. It is supposed to be relatively easy and somewhat foolproof. Right? Quote Link to comment Share on other sites More sharing options...
spritzer Posted December 25, 2010 Report Share Posted December 25, 2010 About as easy as working with high voltage can be. We could always have missed something though... Quote Link to comment Share on other sites More sharing options...

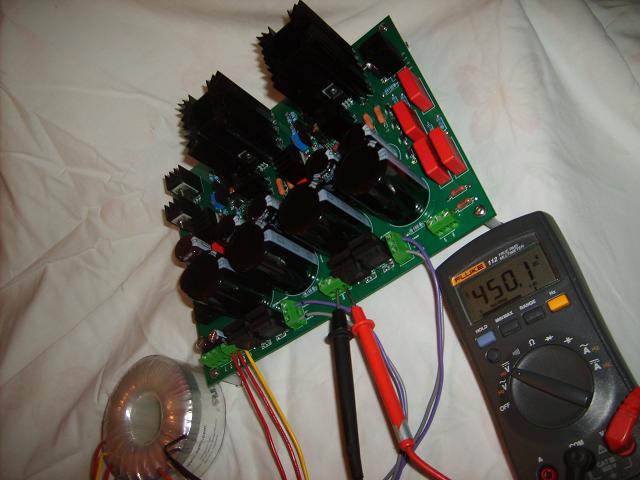

livewire Posted December 26, 2010 Report Share Posted December 26, 2010 Here's a pic of the finished psu after trimming the output. I will check and re-trim once it is hooked to the amplifier pcbs. The pro bias output is at 586VDC, about 1% above nominal. Two things I noted, one - this sucker is HEAVY! I will need to mount some type of center support block under the pcb. Secondly, upon startup the inrush current is substantial. I have not measured it but the transformer makes a loud pulsing hum, like and arc welder would. About a half second later when the caps are charged, the noise stops. I am considering adding a MOV to the hot side supply line. (click or mouse-over to enlarge) [ATTACH=CONFIG]4143[/ATTACH] Quote Link to comment Share on other sites More sharing options...
spritzer Posted December 26, 2010 Report Share Posted December 26, 2010 MOV would be a good idea or you can just add a CL60 thermistor to the transformer which is what Pass does on his amps. Quote Link to comment Share on other sites More sharing options...
Craig Sawyers Posted December 26, 2010 Report Share Posted December 26, 2010 MOV would be a good idea or you can just add a CL60 thermistor to the transformer which is what Pass does on his amps. The alternative, used on old Krell power amps (and many high power pro amps) is to have a power resistor in series with the transformer which is shorted out by a relay after a second or two. Various delay circuits are used, either discrete component or 555 based. It has the advantage, as compared with a thermistor, that the impedance in series with the transformer winding is kept to a minimum. Quote Link to comment Share on other sites More sharing options...
wink Posted December 26, 2010 Report Share Posted December 26, 2010 If you can get a relay with the right voltage coil, it will latch automatically, and drop out when the power is turned off. Or you could put another resistor in series with the coil so that it latches when the voltage rises to about 90% of the rail voltage. Quote Link to comment Share on other sites More sharing options...
livewire Posted December 26, 2010 Report Share Posted December 26, 2010 Thanks for the recommendations guys. Spritzer the CL60 rings a bell. That is what I used on one of my old tube amps in the past. I'll prolly go that route, it worked well before and the current rating is about right. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted December 26, 2010 Author Report Share Posted December 26, 2010 Added an extra mounting hole for the power supply board. May add one or two more if i move a few parts around. The turn on thump is mostly due to the size of the transformer. The T2 actually pulls a bunch more power, but since there are 2 transformers, the thump only lasts about .5 second. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted December 26, 2010 Report Share Posted December 26, 2010 CL60 seems to be to not be properly sized for this transformer. I'd look at a relay solution if I was going to mess with it, but I probably wouldn't. Quote Link to comment Share on other sites More sharing options...
livewire Posted December 31, 2010 Report Share Posted December 31, 2010 Excuse my ignorance, I've never attempted to build a stat amp before. I have a question for the gurus. What is the best way to ground this thing? I want to avoid ground loops and due to the high voltage on the supply rails, I've got the heebee jeebees about connecting the amp / psu grounds directly to chassis ground. Much of my doubt is due to I've noted that unlike other lower voltage circuit board designs, these boards have isolated mounting pads (isolated from the adjacent pcb ground plane). Therefore I've been wondering if the high voltage circuit ground should be isolated from the mains / chassis ground. Lastly, with the balanced XLR input connectors, does the ground (pin3) connect to the chassis (as seen in other designs) or do I connect it to the amp ground on the pcb, or just float it with no ground while running balanced source inputs? Quote Link to comment Share on other sites More sharing options...
