spritzer Posted August 27, 2014 Report Share Posted August 27, 2014 Electrostatics don't care about DC so that's probably not the problem. 3299 or 3296 both work well plus all the alternatives from other manufacturers. Quote Link to comment Share on other sites More sharing options...

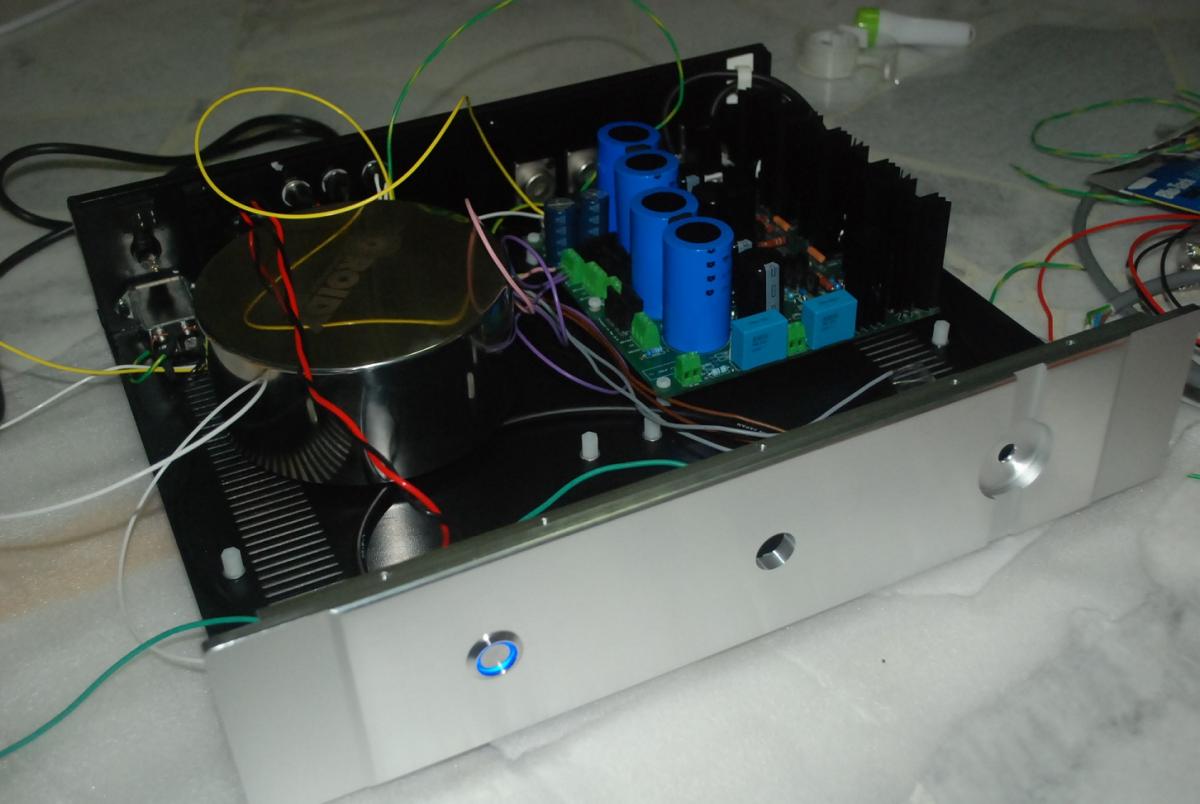

kh90123 Posted August 27, 2014 Report Share Posted August 27, 2014 It's coming...Just finished drilling some screw holes just now. Steel is much harder than I expected. Since I bought a RCA to XLR adapter, I am probably not gonna put in the RCA inputs. Amp boards are working, but I have yet adjusted the offsets without the servo on. From what I have done with the servo enabled, it seems that both L and R channel settle to a 0.3V offset. The amp supports 100V, 115V, and 230V mains voltage, which can be switched by the rotary switch at the back. There's also a series overload sensing circuit breaker at the back, which also acts like a switch. I prefer having green ring on the power switch. But for now I will settle with blue. Surprisingly these come with built in resistors. Maybe if I break it I will go buy the green one. Quote Link to comment Share on other sites More sharing options...
kh90123 Posted August 28, 2014 Report Share Posted August 28, 2014 (edited) I need some help. My power board was working fine but after putting it into the chassis, I heard a spark, and then now the -ve rail is -640V. I dare not let it on for more than a few seconds, but the value seems to go higher and higher. I checked the diodes, and they are not shorted. What could have gone bad? Edit: I measure the output from the diode bridge and it's 640V, so it seems something in between has broken and shorting it to output. Ok found out that the 10m90s is fried. Edited August 28, 2014 by kh90123 Quote Link to comment Share on other sites More sharing options...
kh90123 Posted August 28, 2014 Report Share Posted August 28, 2014 (edited) After I replaced the 10m90s, the -ve rail now drifts to -550V instead of staying at -500V. What else could be broken? Edited August 28, 2014 by kh90123 Quote Link to comment Share on other sites More sharing options...
Inu Posted August 29, 2014 Report Share Posted August 29, 2014 D7,8 & 9 (200V, 200V, 100V ZD) ? Quote Link to comment Share on other sites More sharing options...
kh90123 Posted August 29, 2014 Report Share Posted August 29, 2014 (edited) D7,8 & 9 (200V, 200V, 100V ZD) ? I replaced them and found that all of them were working. I suspect it's one of the 5 transistors, either the 2sa1486 or the ksc5026m. Getting help from someone to work on this. Edited August 29, 2014 by kh90123 Quote Link to comment Share on other sites More sharing options...
mypasswordis Posted August 29, 2014 Report Share Posted August 29, 2014 (edited) It's set by the voltage divider between r6 and r5+r29 compared to the 10V reference in the discrete error amplifier. These are for the positive rail, are you just replacing the parts from the positive rail thinking it's going to change the negative rail? Tbh I think the best solution is to get someone else to build you a working power supply from scratch. You could seriously injure yourself at this rate. Edited August 29, 2014 by mypasswordis Quote Link to comment Share on other sites More sharing options...
nopants Posted August 29, 2014 Report Share Posted August 29, 2014 what he said, I've had a the psu go poof twice on me and it's no less scary the second time around Quote Link to comment Share on other sites More sharing options...
spritzer Posted August 29, 2014 Report Share Posted August 29, 2014 It's good advise to not mess too much with the PSU. One of my amps had the HV- rail go bad and I just scrapped it for parts and threw the rest away. Quote Link to comment Share on other sites More sharing options...
kh90123 Posted August 29, 2014 Report Share Posted August 29, 2014 It's set by the voltage divider between r6 and r5+r29 compared to the 10V reference in the discrete error amplifier. These are for the positive rail, are you just replacing the parts from the positive rail thinking it's going to change the negative rail? Tbh I think the best solution is to get someone else to build you a working power supply from scratch. You could seriously injure yourself at this rate. No, I didn't mean for the misunderstanding. For the -ve rail I know it's set by the voltage divider between R16, R15, and R30. Since I started replacing parts on the board, the through hole contacts have been damaged, especially on those snap in caps. My current board was working fine until I started putting it into the chassis, where a few parts were damaged because the filtering caps lost proper contact. I will be building a new board. The current board is not safe to continue working on it. Thanks for all the advice. Quote Link to comment Share on other sites More sharing options...
spritzer Posted August 29, 2014 Report Share Posted August 29, 2014 Good call to abandon the PSU board. On a more positive note, look what my spare desk looks like these days: Soak test plus seeing how the servo behaves. Finally getting the hang of assembling these though it is still very tricky: These are all reserved but I do have one of these sitting in the US that I really don't want to send back here. 3 Quote Link to comment Share on other sites More sharing options...
eggil Posted August 29, 2014 Report Share Posted August 29, 2014 Those are the best looking KGSSHV's I have ever seen! Quote Link to comment Share on other sites More sharing options...
insanity Posted August 29, 2014 Report Share Posted August 29, 2014 Wonderful work. Congratulations. Seems about half as big as my KGSSHV. Quote Link to comment Share on other sites More sharing options...
johnwmclean Posted August 29, 2014 Report Share Posted August 29, 2014 What a production... very nice Birgir. Quote Link to comment Share on other sites More sharing options...
Kerry Posted August 30, 2014 Report Share Posted August 30, 2014 Beautiful Quote Link to comment Share on other sites More sharing options...
Victor Chew Posted August 30, 2014 Report Share Posted August 30, 2014 Nice work. Quote Link to comment Share on other sites More sharing options...
wink Posted August 31, 2014 Report Share Posted August 31, 2014 How come you don't have KGSSHV emblazoned on the front panel? Perhaps 14mA bias version with "KGSSHV - Mini Case - Max Power" would look good above the Volune control... Quote Link to comment Share on other sites More sharing options...
spritzer Posted August 31, 2014 Report Share Posted August 31, 2014 I've dropped the front labels on most if not all of my amps for a cleaner look. Now the labeling will be on the back: 1 Quote Link to comment Share on other sites More sharing options...
Ali-Pacha Posted August 31, 2014 Report Share Posted August 31, 2014 Can't wait to see such babies with black front plate Ali Quote Link to comment Share on other sites More sharing options...
UFN Posted August 31, 2014 Report Share Posted August 31, 2014 Yep, an all-black version would be great Apart from that - obviously an outstanding job as usual Spritzer //UFN Quote Link to comment Share on other sites More sharing options...
spritzer Posted August 31, 2014 Report Share Posted August 31, 2014 I'll make a couple of black ones though I'm vary of the finishing the chassis maker uses. If I use my normal degreaser then the panels turn green... Quote Link to comment Share on other sites More sharing options...
guzziguy Posted August 31, 2014 Report Share Posted August 31, 2014 Looks good, Birgir. Instead of using 4 3-pin connectors for input and output, wouldn't it be easier (and maybe cleaner) to use 2 4-pin connectors? Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted August 31, 2014 Report Share Posted August 31, 2014 (edited) Looks good, Birgir. Instead of using 4 3-pin connectors for input and output, wouldn't it be easier (and maybe cleaner) to use 2 4-pin connectors?Depends if you have sources that use 4-pin connectors, right? Even then, it wouldn't work. You need 5 pin connectors, so Team 5 Pin represent! Edited August 31, 2014 by luvdunhill Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted August 31, 2014 Author Report Share Posted August 31, 2014 5 pin is the only way Quote Link to comment Share on other sites More sharing options...
spritzer Posted August 31, 2014 Report Share Posted August 31, 2014 It's hard enough for people to accept "no RCA's???" so a custom connector wouldn't be an option. For balanced dynamics 5 pins is the only option though. Quote Link to comment Share on other sites More sharing options...
