s_r Posted May 25, 2013 Report Share Posted May 25, 2013 Well, I swapped all the sand save for the 1968s & 4686s and the board still doesn't work (same behaviour). Would anyone be kind enough to spare some 4686s? I'm building a new amp board at this point since it seems like it might be the output transistors that are the problem (or who knows what). On a positive note I've done all the wiring (feel free to point out any stupids). Quote Link to comment Share on other sites More sharing options...
GeorgeP Posted May 25, 2013 Report Share Posted May 25, 2013 But your 4686s may still be okay. Did you check all your parts prior to stuffing? Though if you still need some I think I may have some extra - send me a pm and I will check tomorrow. You are in Canada, right? Quote Link to comment Share on other sites More sharing options...
s_r Posted May 25, 2013 Report Share Posted May 25, 2013 Probably, they did seem fine when I checked them. I really don't know where the problem is so I'm just going to replace the whole amp board. Quote Link to comment Share on other sites More sharing options...
johnwmclean Posted May 25, 2013 Report Share Posted May 25, 2013 Looking good! Suggest using the DLXs ground contact tabs and do not connect to star ground. Looks like you’ve done both which is a no no. Quote Link to comment Share on other sites More sharing options...
s_r Posted May 25, 2013 Report Share Posted May 25, 2013 (edited) I did follow an old pic of your build to ground the inputs Just attach the ground tab to one of the mounting screws for each DLX then? Edited May 25, 2013 by s_r Quote Link to comment Share on other sites More sharing options...

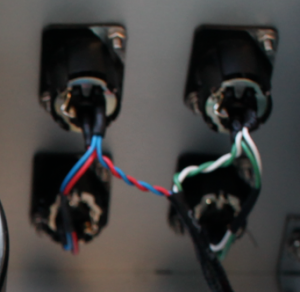

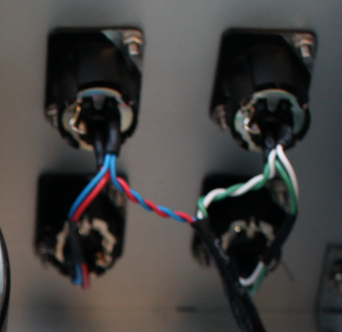

johnwmclean Posted May 25, 2013 Report Share Posted May 25, 2013 (edited) I did follow an old pic of your build to ground the inputs ...and I revised my wiring because of some residual hum see my latest pics in the gallery. But this is the way it should be done, one connection point and shortest path. Just attach the ground tab to one of the mounting screws for each DLX then? No. Pin 1 to tab on each DLX. ... you can file back the anodising at one corner of the connector to ensure a good solid connection. Edited May 25, 2013 by johnwmclean 1 Quote Link to comment Share on other sites More sharing options...
eggil Posted May 25, 2013 Report Share Posted May 25, 2013 (edited) S_R, do you have an extra amp board? I have a couple of LilKnights that went unclaimed. You could pay him if you need one and I could ship it to you. The wiring looks good from your picture but details are hard to see. Edited May 25, 2013 by eggil Quote Link to comment Share on other sites More sharing options...
s_r Posted May 25, 2013 Report Share Posted May 25, 2013 Yea, I have two extra since batchpcb does x2 of whatever amount of boards you order. Once I make those changes to the input grounding tomorrow I'll take a better pic. Quote Link to comment Share on other sites More sharing options...
jwzhan Posted May 25, 2013 Report Share Posted May 25, 2013 Very nice. I grounded the way Birgir suggested. I star grounded everything on the PSU and connected the enclosure to the PSU ground. I haven't heard any hum yet. It'll be a little messier tho, because the limited grounding positions on the PSU board... I have a few 4686s. If you need more, drop me a PM. Quote Link to comment Share on other sites More sharing options...

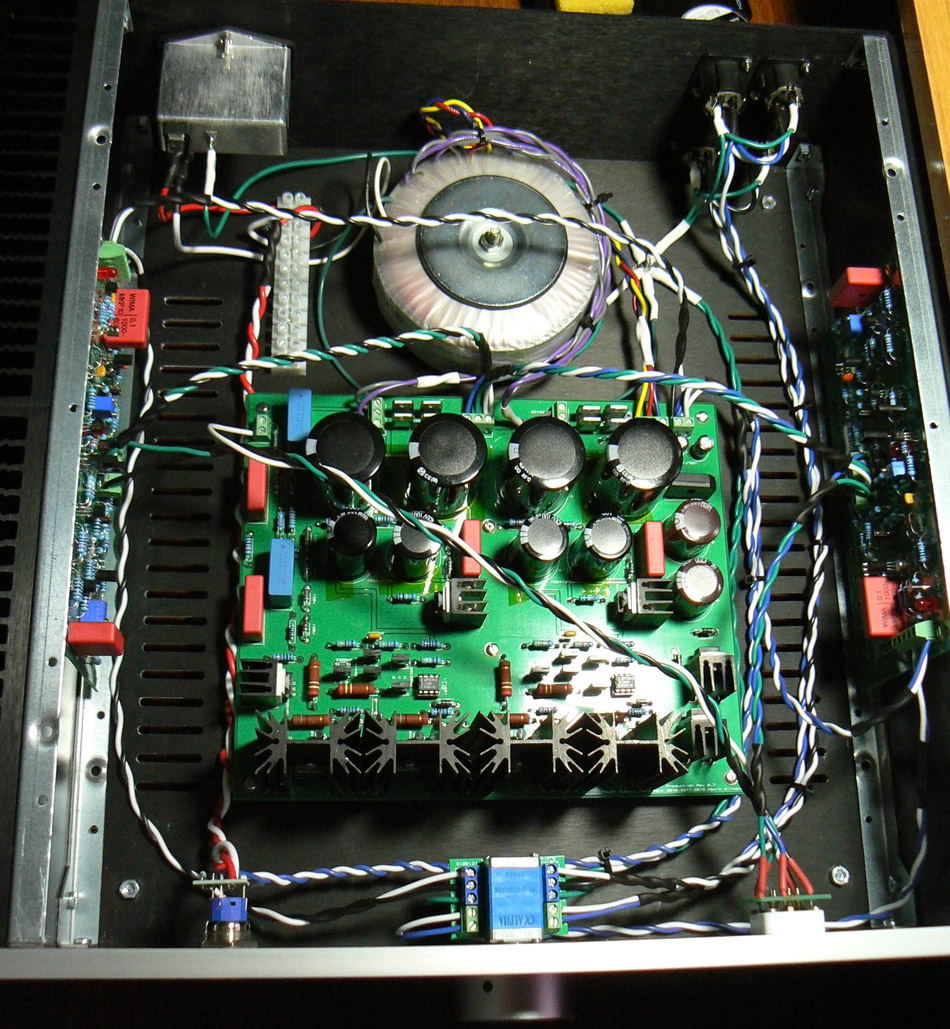

s_r Posted May 26, 2013 Report Share Posted May 26, 2013 Made the changes to the xlr inputs, hopefully the higher res makes details easier to see. Quote Link to comment Share on other sites More sharing options...

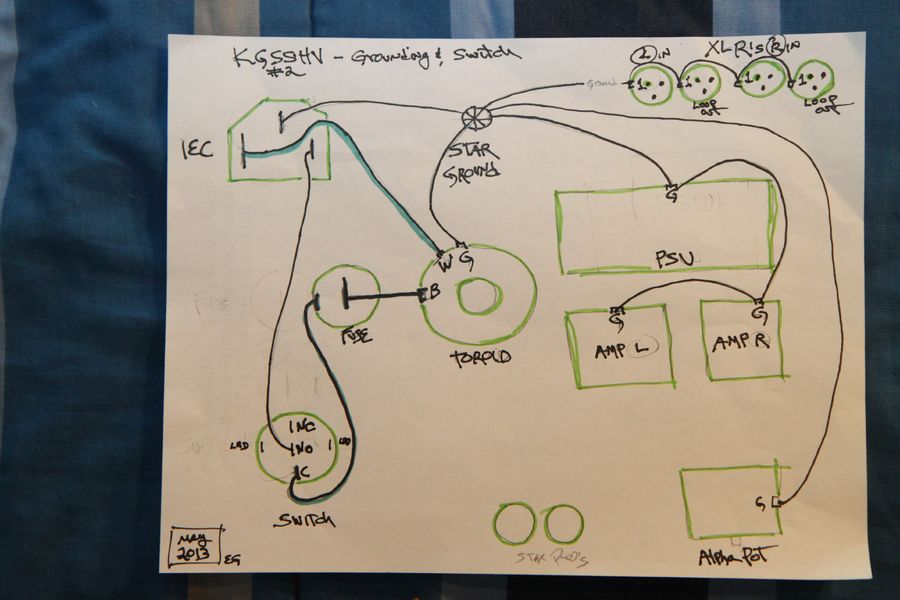

eggil Posted May 26, 2013 Report Share Posted May 26, 2013 (edited) Wiring looks good. This is how I did my second built and it is dead quiet. Edited May 26, 2013 by eggil Quote Link to comment Share on other sites More sharing options...
s_r Posted May 26, 2013 Report Share Posted May 26, 2013 Looks mostly the same as how I did my grounding, save for john's suggestion on the inputs and connecting the amp boards to the psu. Any reason you only used one pin on the alpha pot pcb? Quote Link to comment Share on other sites More sharing options...
eggil Posted May 26, 2013 Report Share Posted May 26, 2013 (edited) They are both connected anyway. I get not even a hint of hum or noise if I briefly max out the volume trying to hear noise without music Edited May 26, 2013 by eggil Quote Link to comment Share on other sites More sharing options...
spritzer Posted May 27, 2013 Report Share Posted May 27, 2013 All the grounds on the Alpha PCB are connected to the ground plane so everything is shared. If you ground the inputs directly into the PSU then one wire to the pot is all you need. Quote Link to comment Share on other sites More sharing options...
Emooze Posted May 27, 2013 Report Share Posted May 27, 2013 It's been a few weeks since I got a chance to work on my PS. I added a second thermistor so there's one per primary winding now. With everything connected, I still blow 3A fast-fuses and I forgot to order more. What I did is just connect the positive rail, and it powers right up to 503V with a 2A fuse. Repeating the same process with the negative rail and it sort of hovers around 200V fluctuating about +/-10V. I swapped the LT1021s and I still get the same issue. Would it possibly be something in my diode chain for the 550V reference? To check that, I'm assuming I would measure the voltage across the whole thing. Quote Link to comment Share on other sites More sharing options...
spritzer Posted May 27, 2013 Report Share Posted May 27, 2013 That smoked on the trainwreck board I'm repairing so it is worth a shot. Quote Link to comment Share on other sites More sharing options...
shipsupt Posted May 28, 2013 Report Share Posted May 28, 2013 Note to self... always double check your Mouser order. I'm not sure I'll ever find a use for these! Oh, and there were 4 in the box that showed up. Quote Link to comment Share on other sites More sharing options...
Voltron Posted May 28, 2013 Report Share Posted May 28, 2013 Door stops. Quote Link to comment Share on other sites More sharing options...
jwzhan Posted May 28, 2013 Report Share Posted May 28, 2013 return them... that's what I did when I ordered like 50 of those TO-220 mounting kits by accidents.. Quote Link to comment Share on other sites More sharing options...
Emooze Posted May 28, 2013 Report Share Posted May 28, 2013 Railgun I've got about 200V across those zeners so it looks like that may be an issue... Quote Link to comment Share on other sites More sharing options...
n_maher Posted May 29, 2013 Report Share Posted May 29, 2013 I think they'd look great in a Cmoy. Quote Link to comment Share on other sites More sharing options...
cetoole Posted May 29, 2013 Report Share Posted May 29, 2013 KGSSHVDX Quote Link to comment Share on other sites More sharing options...
Victor Chew Posted May 29, 2013 Report Share Posted May 29, 2013 (edited) Railgun I've got about 200V across those zeners so it looks like that may be an issue...I would have a look at the 24v zener and the 2n3904. They are part of the protection circuit. Any leak can cause a pull in the current and drop the zener string voltage. Incidentally, I finished building my off board. Made a sound comparison to my on-board and for some reason, the off-board has huge bass (not bloated or loose) and seems to have more power/drive than my on board. Everything is the same except that the off-board uses the alpha port instead of the dact on my on-board. Wires are also different - on-board used copper whilst the off-board uses copper coated with silver. Just an interesting observation I though to share. And as again, thank you to Kevin for the design. Edited May 29, 2013 by Victor Chew Quote Link to comment Share on other sites More sharing options...
justin Posted May 29, 2013 Report Share Posted May 29, 2013 (edited) Note to self... always double check your Mouser order. I'm not sure I'll ever find a use for these! Oh, and there were 4 in the box that showed up. http://www.mouser.com/ProductDetail/Kemet/ALS30A392MJ400N/?qs=%2fha2pyFaduhepXk8cMoit%2fdC8dSkt5VN9dl8WGRRt9zMei29HTiHqA%3d%3d mouser mistakenly has these listed as 3900pF. there's your cause for a refund Edited May 29, 2013 by justin Quote Link to comment Share on other sites More sharing options...
eggil Posted May 29, 2013 Report Share Posted May 29, 2013 (edited) Are you building a power plant? Send them to Kevin so he can design a bigger amp! Edited May 29, 2013 by eggil Quote Link to comment Share on other sites More sharing options...
