Pars Posted July 23, 2019 Report Share Posted July 23, 2019 Anyone have an extra Alps SPUJ190900 input selector switch for a Dyna mini? Just ready to order parts and Mouser is out of them. They do have the SPUJ1901000 in stock at 4x the price; same switch with snap in terminals. Sent from my iPhone using TapatalkEDIT: went ahead and ordered both just in case Quote Link to comment Share on other sites More sharing options...
sbelyo Posted July 25, 2019 Report Share Posted July 25, 2019 On 4/14/2019 at 3:09 AM, mdr30 said: Does anyone possibly have a couple of sj109 to complement my sk389s? I have one... Do you still need them? Quote Link to comment Share on other sites More sharing options...
Hirsch2k Posted July 25, 2019 Report Share Posted July 25, 2019 Quote Perhaps a better moral question would be the horribly flawed EU lead study which resulted in ROHS. Arguably, this has contributed to millions of tons of failed consumer electronics clogging landfills. The US military still does not allow lead-free in its equipment, and I don't use the crap either. ? I am still in the process of sourcing for a KGSSHV Carbon build. Unfortunately I was send one wrong board and I can´t reach the seller any more ? So, if anyone has a KG SiC PSU PCB in Landscape with +15V -15V -400V I am happy for your PM. Additionally if anyone needs a +400V + Bias PSU, feel free to contact me. Edit: I got an 8 Dollar coupon at JLPCB so I thougth paying 8,50 dollar for 5 PCBs is probably worth it. So I will give away 4 of the +-15V -400V PCBs for cost of shipping. I am located in Germany. Quote Link to comment Share on other sites More sharing options...

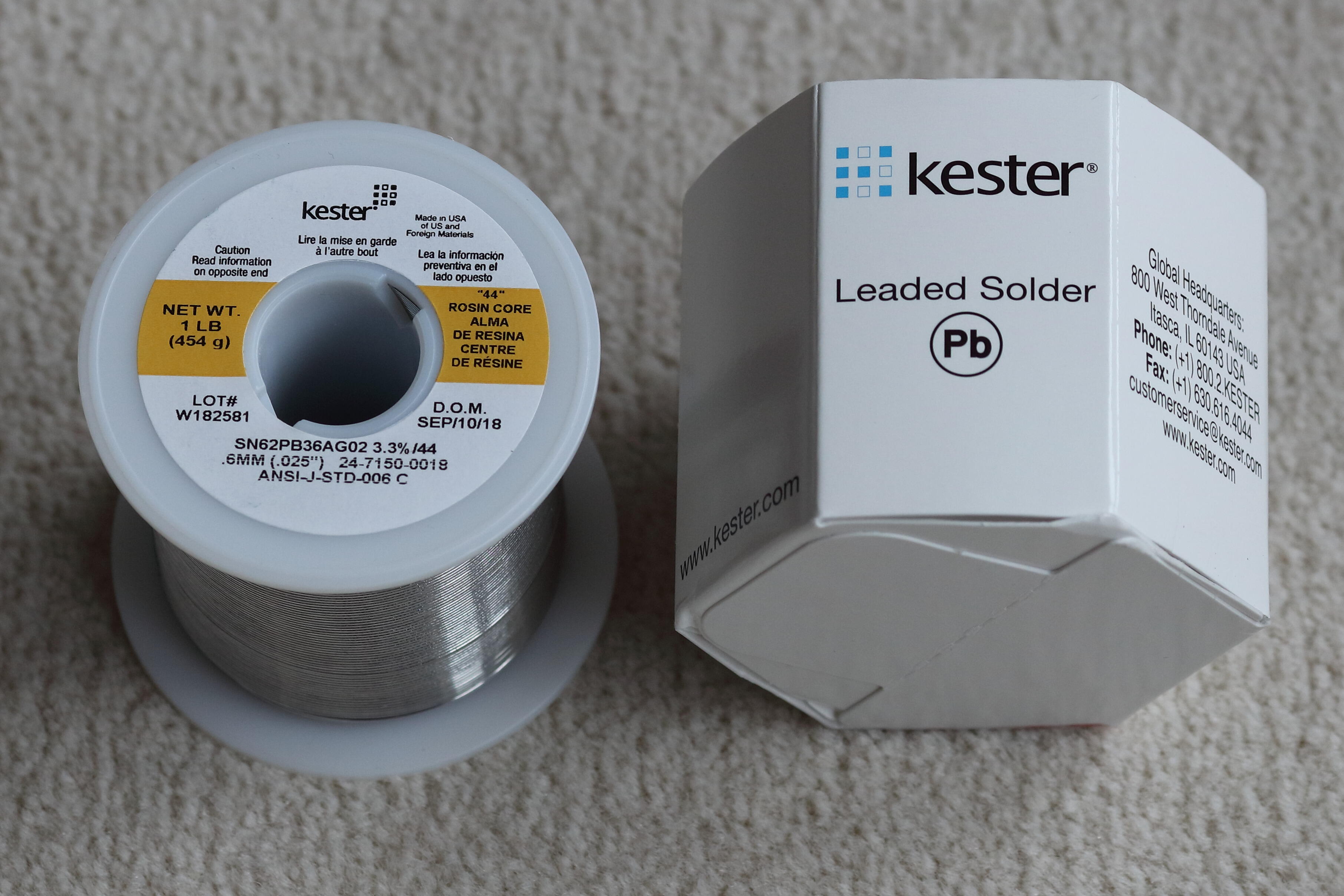

mwl168 Posted February 16, 2020 Report Share Posted February 16, 2020 (edited) In case this is of interest to anyone. Took me a while to find it: Kester 44 Sn62Pb36Ag2 (2% silver eutectic) solder in .025"/.6mm diameter. Very good price too - $55.18USD in 1lb spool. Typically found them at over $100 USD with 25 minimum order. Vendor is Concorde Electronics, part # 24-7150-0018. https://www.concorde-electronics.com/products/kester-24-7150-0018.html Bad news - shipping is $12.26 USD, good news - fast shipping. Got it in 4 days. I set out looking for the one in .02"/.5mm diameter (24-7150-0010) and finally found it at R.S. Hughes with no minimum order and less than $100 USD. Only to be told a few weeks after placing my order that they do not have it in stock. EDIT: I found this .025"/0.6mm diameter solder to be a good compromise between soldering of through-hole components and SMD. It works well for most SMD except those really tiny ones which I still prefer the .02"/0.5mm diameter. But the .02"/0.5mm diameter solder is a bit too small for through hole component soldering. Edited April 28, 2020 by mwl168 2 Quote Link to comment Share on other sites More sharing options...
n_maher Posted April 28, 2020 Author Report Share Posted April 28, 2020 I'm looking for some help/advice on replacing the primary choke in the Menace TC power supply. It's currently an open frame Triad, model C14X (6H/200mA/150ohm) and I'd like something that better matches the electraprint output transformers from an aesthetic perspective. The logical answer is a Hammond something from the 193 series of enclosed/potted chokes and the closest that I can find is the 193H (5H/200mA/63ohm) but that's obviously not that close with both resistance and inductance being different. I'm wondering if the 193J wouldn't be the better choice as more filtering and less voltage drop shouldn't upset things too much. I don't have the ability any more to model this so I'm looking to the folks here to help sanity check my choice. I looked around for other possible alternates and I'm not seeing much short of simply having Electraprint build one, which doesn't looking all that expensive. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted April 28, 2020 Report Share Posted April 28, 2020 Is it possible to just buy some bells for the existing open-frame choke? Perhaps look at Edcor and on eBay. 1 Quote Link to comment Share on other sites More sharing options...
dsavitsk Posted April 28, 2020 Report Share Posted April 28, 2020 The difference between 5H and 6H almost certainly won't be noticed. You can add a 90R resistor in series if you need to make up for the voltage drop, but again, it is difficult to imagine that making much difference. The J is probably an upgrade, so all things equal, I'd use that one. 1 Quote Link to comment Share on other sites More sharing options...

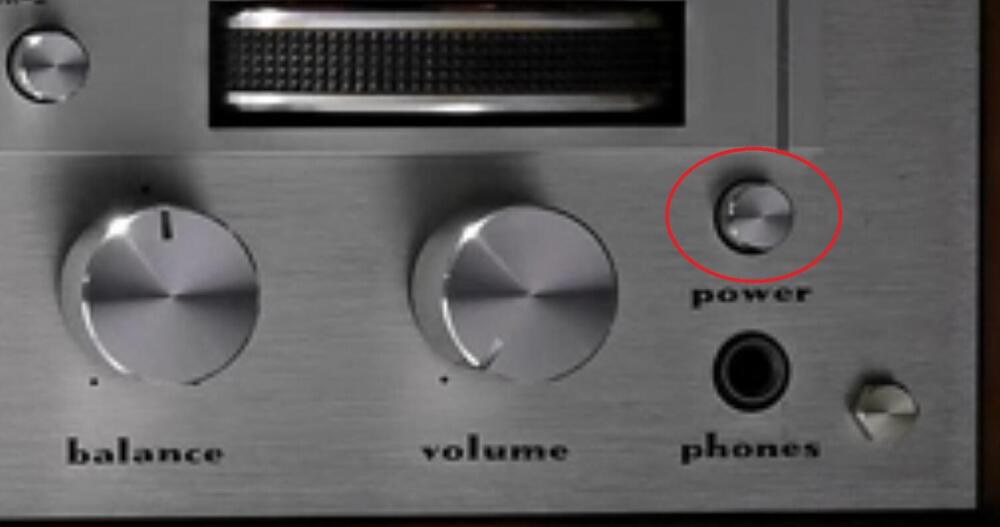

Angst Posted June 9, 2020 Report Share Posted June 9, 2020 Anyone know of a supplier for old school push button power switches? I'm looking for something like the one below. They were everywhere on 70's Japanese consumer electronics. Sansui, Marantz, Kenwood. These latched on-off. Press to turn on. Press again to turn off. You pressed them in about 5 - 10 mm (half-inch) and usually had round aluminum buttons. I still see these used in some new (typically high end) audio gear. But can't find anything at Mouser, Digikey, Arrow, etc. Quote Link to comment Share on other sites More sharing options...
thuytn Posted June 9, 2020 Report Share Posted June 9, 2020 You meant this? The button diameter is either 5mm or 10mm. I got bored of the illuminated switches after using so many of them and changed to this simple switch a while ago. 1 Quote Link to comment Share on other sites More sharing options...
Angst Posted June 9, 2020 Report Share Posted June 9, 2020 Yup, got tired of the illuminated anti-vandal switches that we usually use. Those look like the type of switch I had in mind. Can I ask where you found them? edit: Looks like Mouser and probably others have them. I didn't recognize the switches without the buttons (caps sold separately). How smooth does the model in your photo feel when you press the button? Quote Link to comment Share on other sites More sharing options...
thuytn Posted June 10, 2020 Report Share Posted June 10, 2020 With my own machined aluminum buttons, they are quite smooth. You need to press a bit harder than the illuminated switches though. They also sell plastic buttons but the feeling was not so great. 1 Quote Link to comment Share on other sites More sharing options...
Fitz Posted October 1, 2020 Report Share Posted October 1, 2020 Anyone know a place that might sell a replacement input jack receptacle for a Fluke 189? I was able to find it at Newark and Allied for ~$20, but it's on backorder at both of them. Quote Link to comment Share on other sites More sharing options...
n_maher Posted October 1, 2020 Author Report Share Posted October 1, 2020 Did you try calling Fluke? 1 Quote Link to comment Share on other sites More sharing options...
Fitz Posted October 1, 2020 Report Share Posted October 1, 2020 Not yet, I suppose I should though. Quote Link to comment Share on other sites More sharing options...
Fitz Posted October 1, 2020 Report Share Posted October 1, 2020 Fluke doesn't seem to have it for sale through their parts department, probably because it's not considered a "user replaceable" part. I went ahead and backordered it from Newark instead. Quote Link to comment Share on other sites More sharing options...
Craig Sawyers Posted October 1, 2020 Report Share Posted October 1, 2020 Fitz you're the second person I've heard of (recently) who have had failure of Fluke multimeter input jacks. Quote Link to comment Share on other sites More sharing options...
Fitz Posted October 1, 2020 Report Share Posted October 1, 2020 (edited) 3 minutes ago, Craig Sawyers said: Fitz you're the second person I've heard of (recently) who have had failure of Fluke multimeter input jacks. It's actually a years old intermittent connection that's gotten worse over time, and I'm tired of having to press/wiggle the plugs to get it to work. This meters been treated pretty rough, so I'm not that surprised by it. It was the one I used in the field, so it got banged around six ways to Sunday. Edited October 1, 2020 by Fitz Quote Link to comment Share on other sites More sharing options...

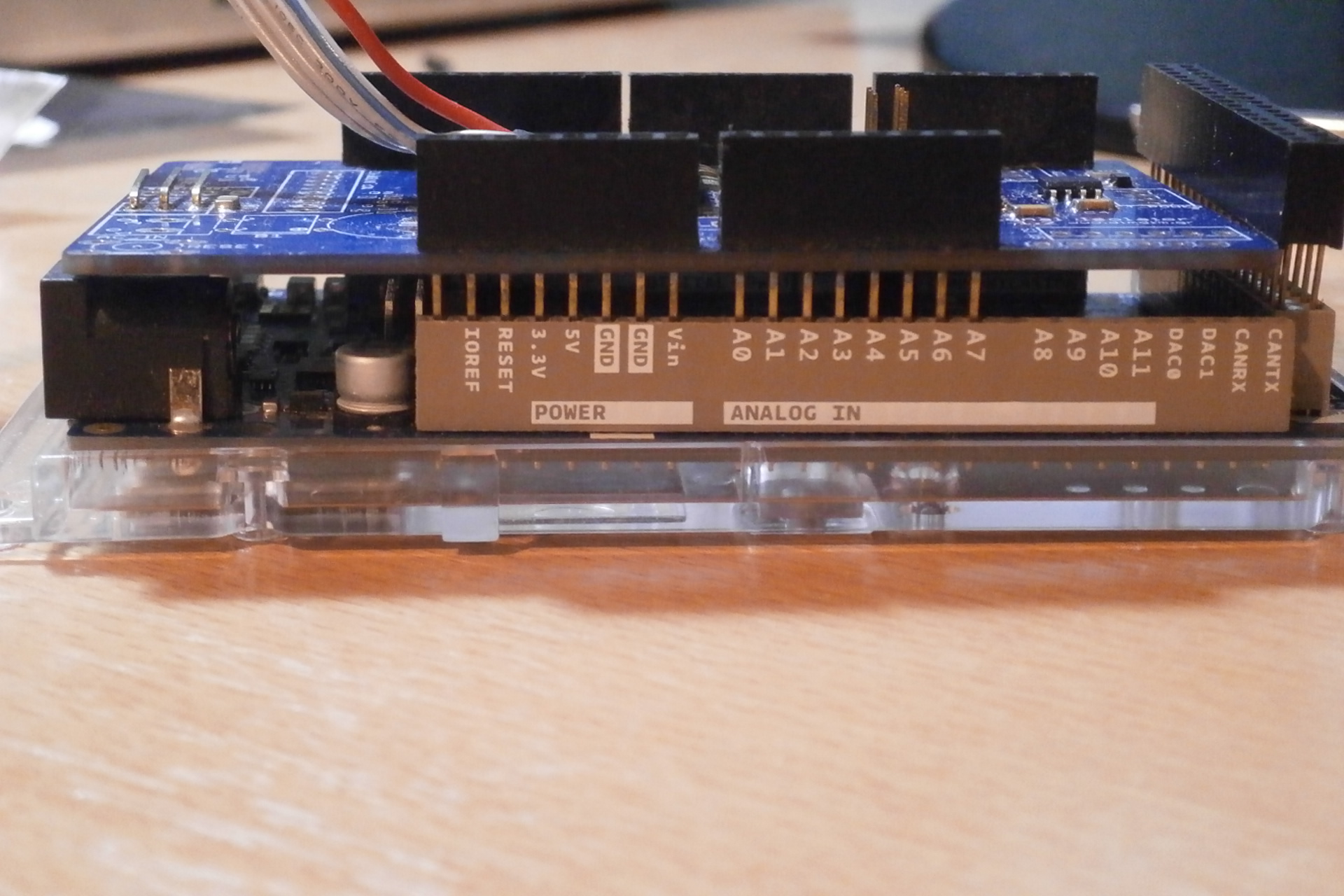

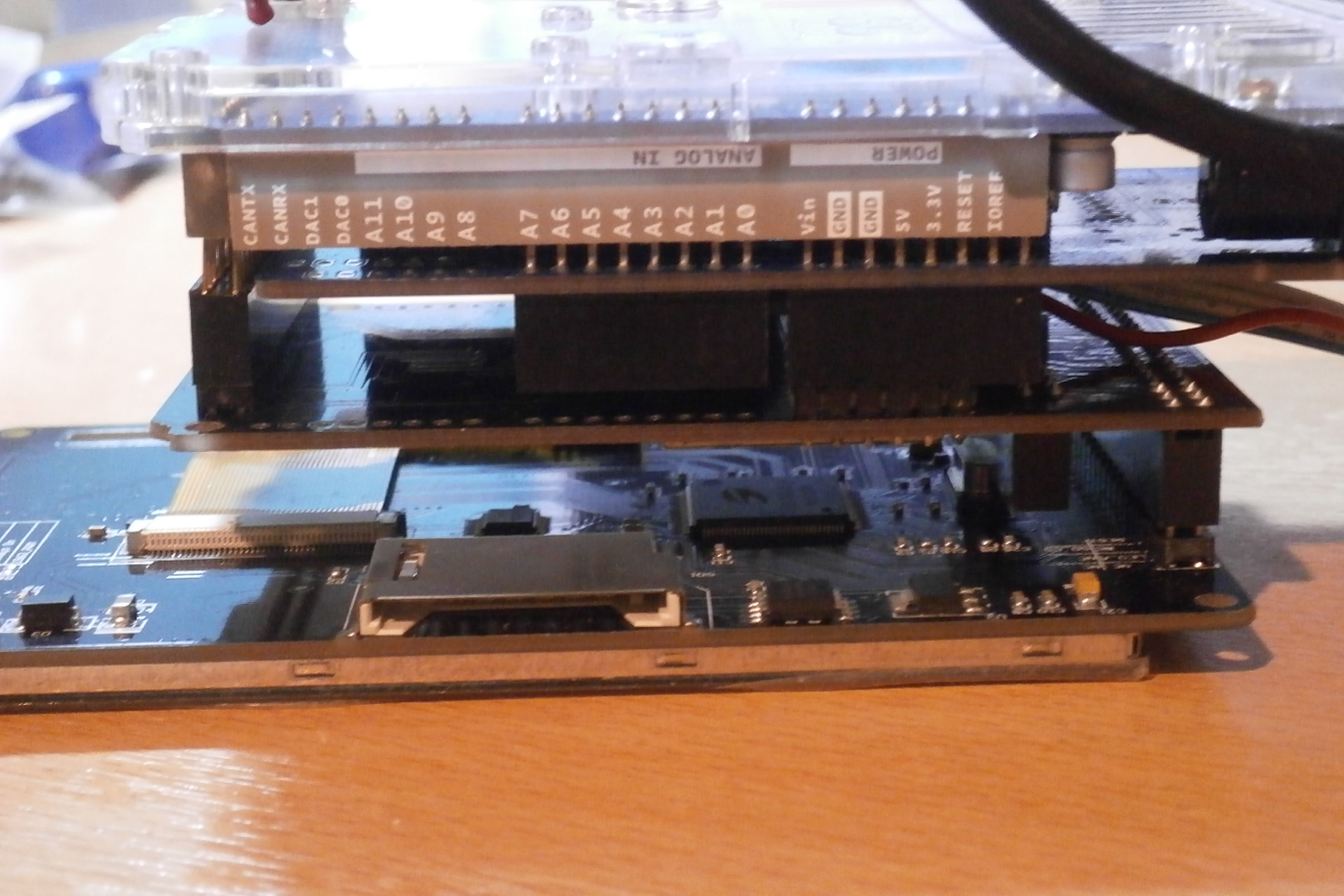

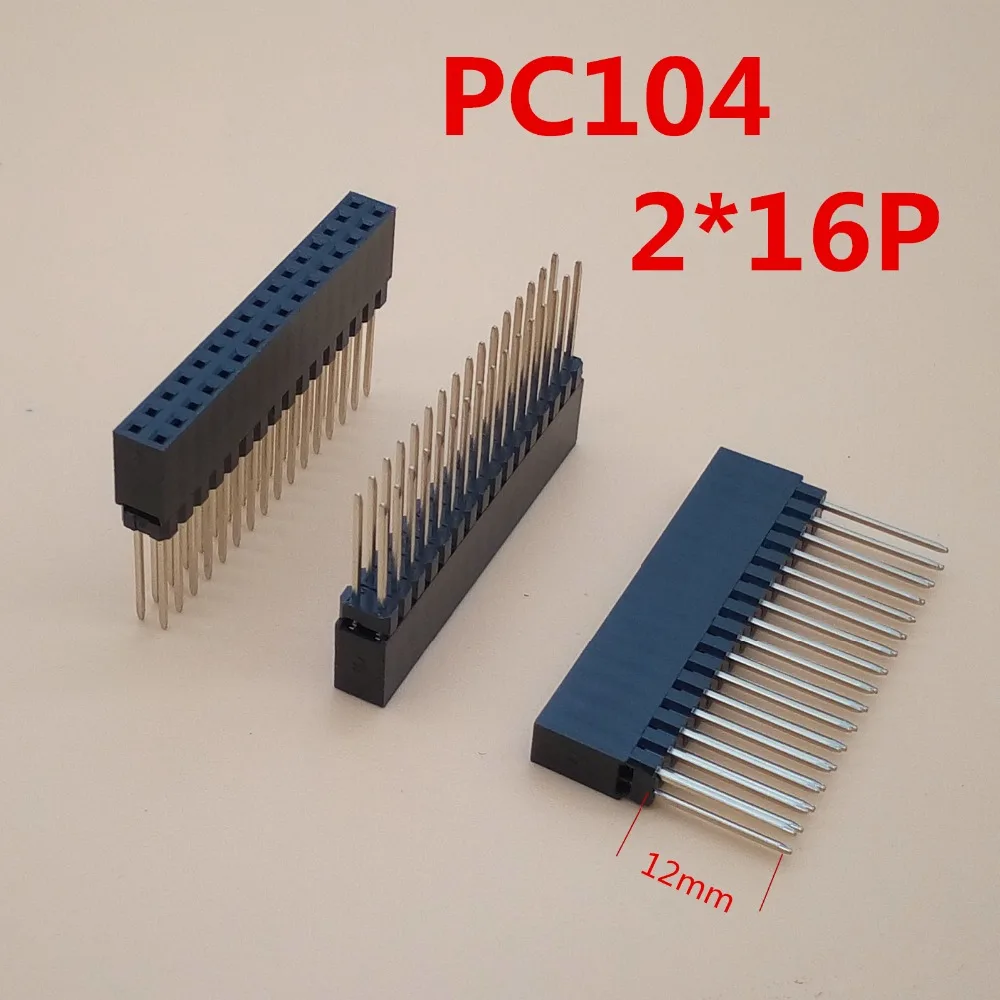

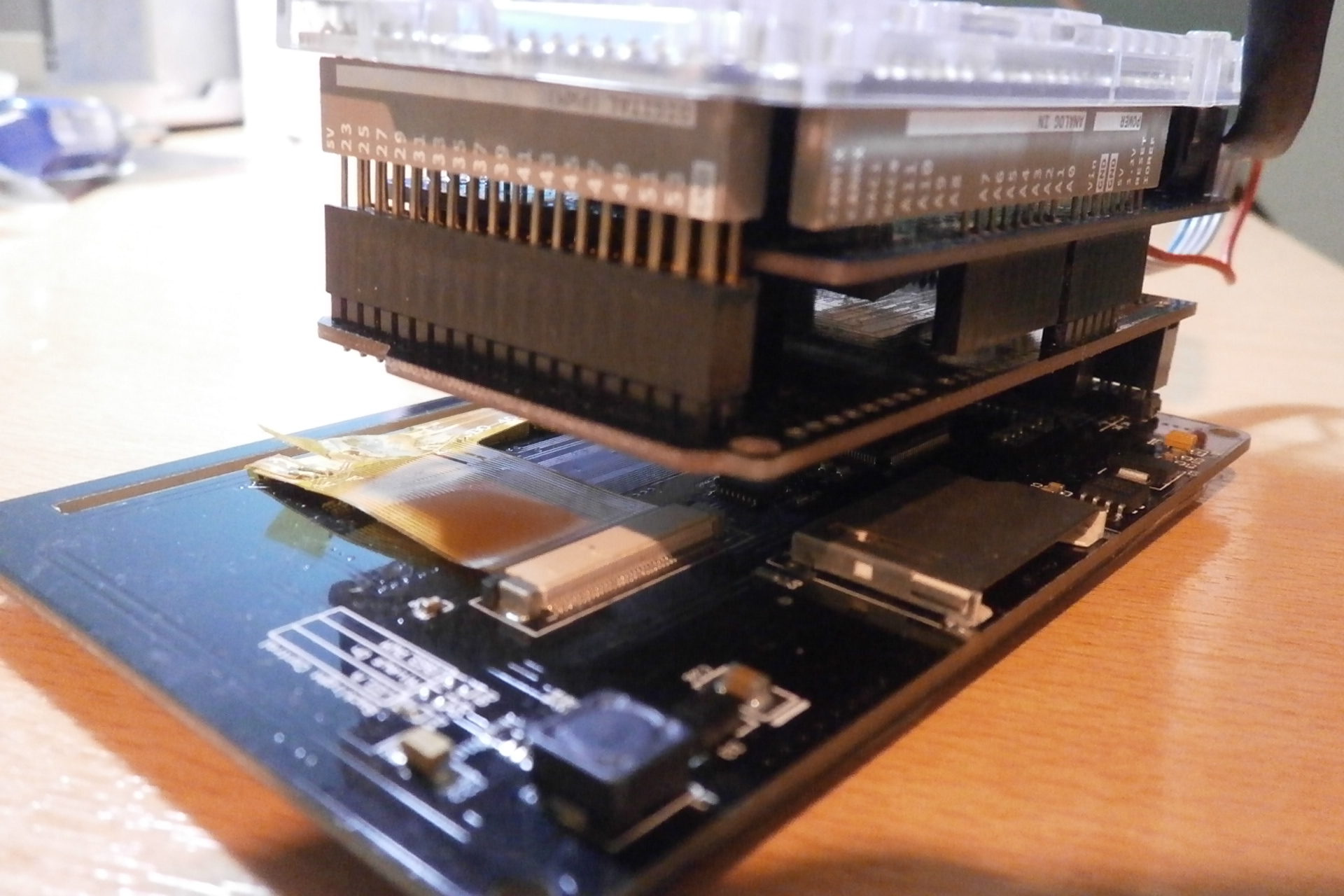

sbelyo Posted October 22, 2020 Report Share Posted October 22, 2020 I need help finding board stacking headers like these. I need to stack a bunch of Arduino shields and a screen together. I can't seem to find them on mouser or digikey but thats probably me not putting in the right info 1 Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted October 22, 2020 Report Share Posted October 22, 2020 They are called board-to-board connectors. Quote Link to comment Share on other sites More sharing options...
sbelyo Posted November 2, 2020 Report Share Posted November 2, 2020 This was the best source for them for me https://www.amazon.com/gp/product/B0756KLNLX/ref=ppx_yo_dt_b_asin_title_o01_s01?ie=UTF8&psc=1 Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted December 11, 2020 Report Share Posted December 11, 2020 Does anyone know of a PCB Mount four conductor jack (2.5mm or 3.5mm is fine) with a panel bushing? Either TH or SMD is fine. Don't need any switched pins. Having trouble finding one and figured this would be a pretty standard part... Quote Link to comment Share on other sites More sharing options...
jamesmking Posted December 12, 2020 Report Share Posted December 12, 2020 (edited) 17 hours ago, luvdunhill said: Does anyone know of a PCB Mount four conductor jack (2.5mm or 3.5mm is fine) with a panel bushing? Either TH or SMD is fine. Don't need any switched pins. Having trouble finding one and figured this would be a pretty standard part... the nearest i can find has no thread for panel mounting but is 3.5mm 4 pole, no switching. https://www.mouser.co.uk/ProductDetail/Kycon/STX-35331-4N-TR?qs=sGAEpiMZZMvlX3nhDDO4ANdBTK25DNHDLDgQvn584hU%3D is a 3.5mm socket, 4 pole (3 signals + ground) smd (the picture shows a thread for panel mounting but the datasheet says no thread)... The datasheet implies there may be a variant with a thread but the STX-35331-4N-TR 4N is 4 pole No thread... datasheet: https://www.mouser.co.uk/datasheet/2/222/STX35331-334673.pdf disclaimer I have not actually used one of these, I just did a mouser search and this might fit your needs. Edited December 12, 2020 by jamesmking Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted December 12, 2020 Report Share Posted December 12, 2020 the nearest i can find has no thread for panel mounting but is 3.5mm 4 pole, no switching. https://www.mouser.co.uk/ProductDetail/Kycon/STX-35331-4N-TR?qs=sGAEpiMZZMvlX3nhDDO4ANdBTK25DNHDLDgQvn584hU%3D is a 3.5mm socket, 4 pole (3 signals + ground) smd (the picture shows a thread for panel mounting but the datasheet says no thread)... The datasheet implies there may be a variant with a thread but the STX-35331-4N-TR 4N is 4 pole No thread... datasheet: https://www.mouser.co.uk/datasheet/2/222/STX35331-334673.pdf disclaimer I have not actually used one of these, I just did a mouser search and this might fit your needs. Yeah same - that means I can’t just use the panel nut to affix the board to the chassis. How odd. Quote Link to comment Share on other sites More sharing options...
jamesmking Posted December 12, 2020 Report Share Posted December 12, 2020 (edited) 3 hours ago, luvdunhill said: Yeah same - that means I can’t just use the panel nut to affix the board to the chassis. How odd. they all seem to be classified and mobile phone stereo connectors..... and I guess module phone manufacturers do not care about socket robustness... I checked radio spares - same selection as mouser however farnell has https://uk.farnell.com/lumberg/1502-02/socket-3-5mm-jack-4way/dp/1368639?st=3.5mm 4 pole its panel mount but not really pcb mount 😞 same with https://uk.farnell.com/pro-signal/mj-079/connector-3-5mm-phono-jack-4pole/dp/1267373?MER=sy-me-pd-mi-alte just go 4 pin XLR..... Edited December 12, 2020 by jamesmking Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted December 13, 2020 Report Share Posted December 13, 2020 10 hours ago, jamesmking said: they all seem to be classified and mobile phone stereo connectors..... and I guess module phone manufacturers do not care about socket robustness... I checked radio spares - same selection as mouser however farnell has https://uk.farnell.com/lumberg/1502-02/socket-3-5mm-jack-4way/dp/1368639?st=3.5mm 4 pole its panel mount but not really pcb mount 😞 same with https://uk.farnell.com/pro-signal/mj-079/connector-3-5mm-phono-jack-4pole/dp/1267373?MER=sy-me-pd-mi-alte just go 4 pin XLR..... Thanks! I ended up just going with a panel jack and wiring. I needed it to fit in an existing toggle switch hole. Just sent boards off to get made - posted the board in another thread... Quote Link to comment Share on other sites More sharing options...
