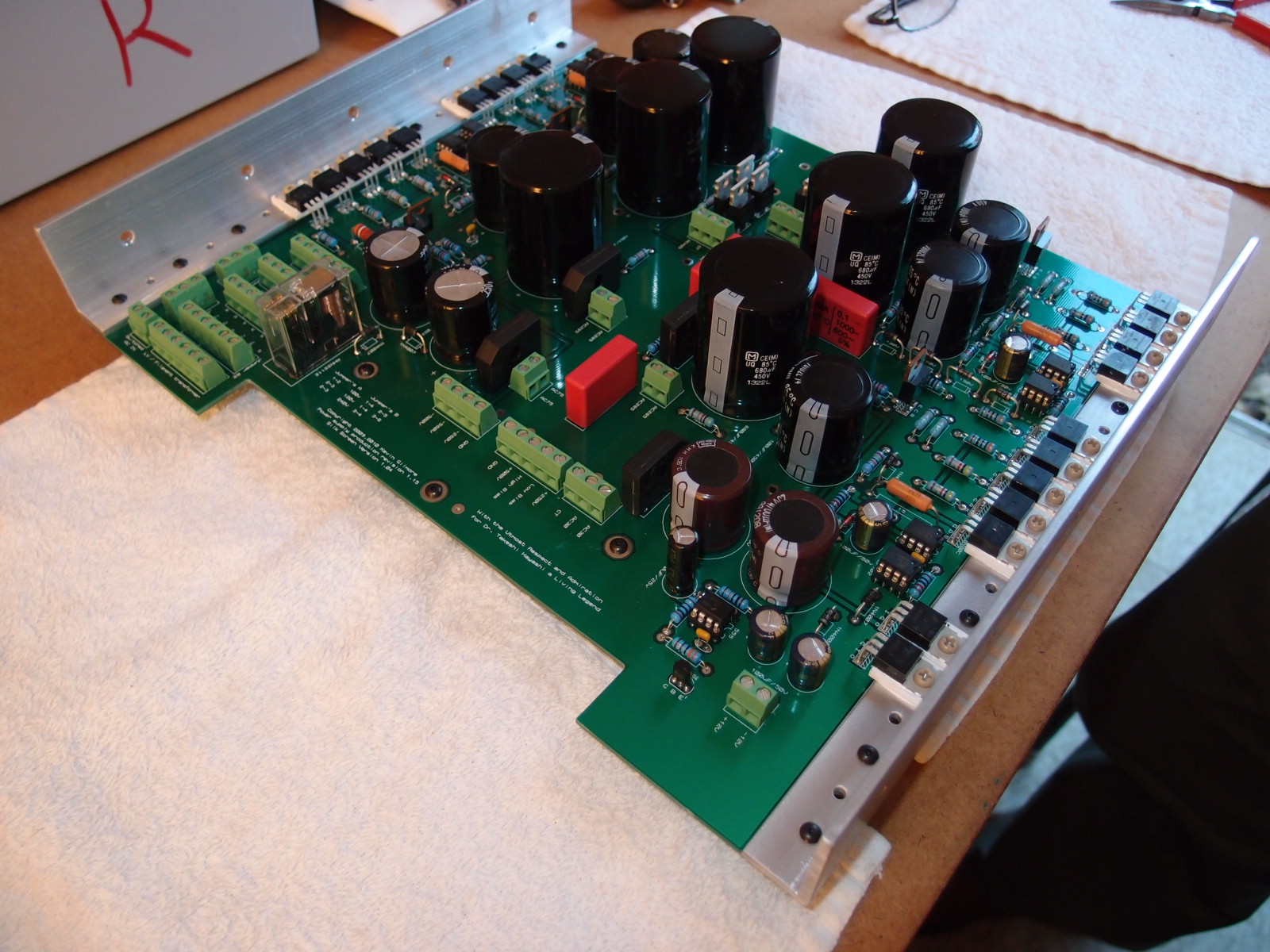

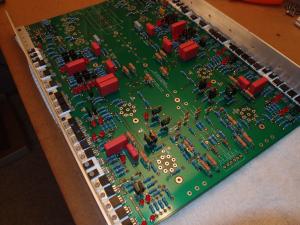

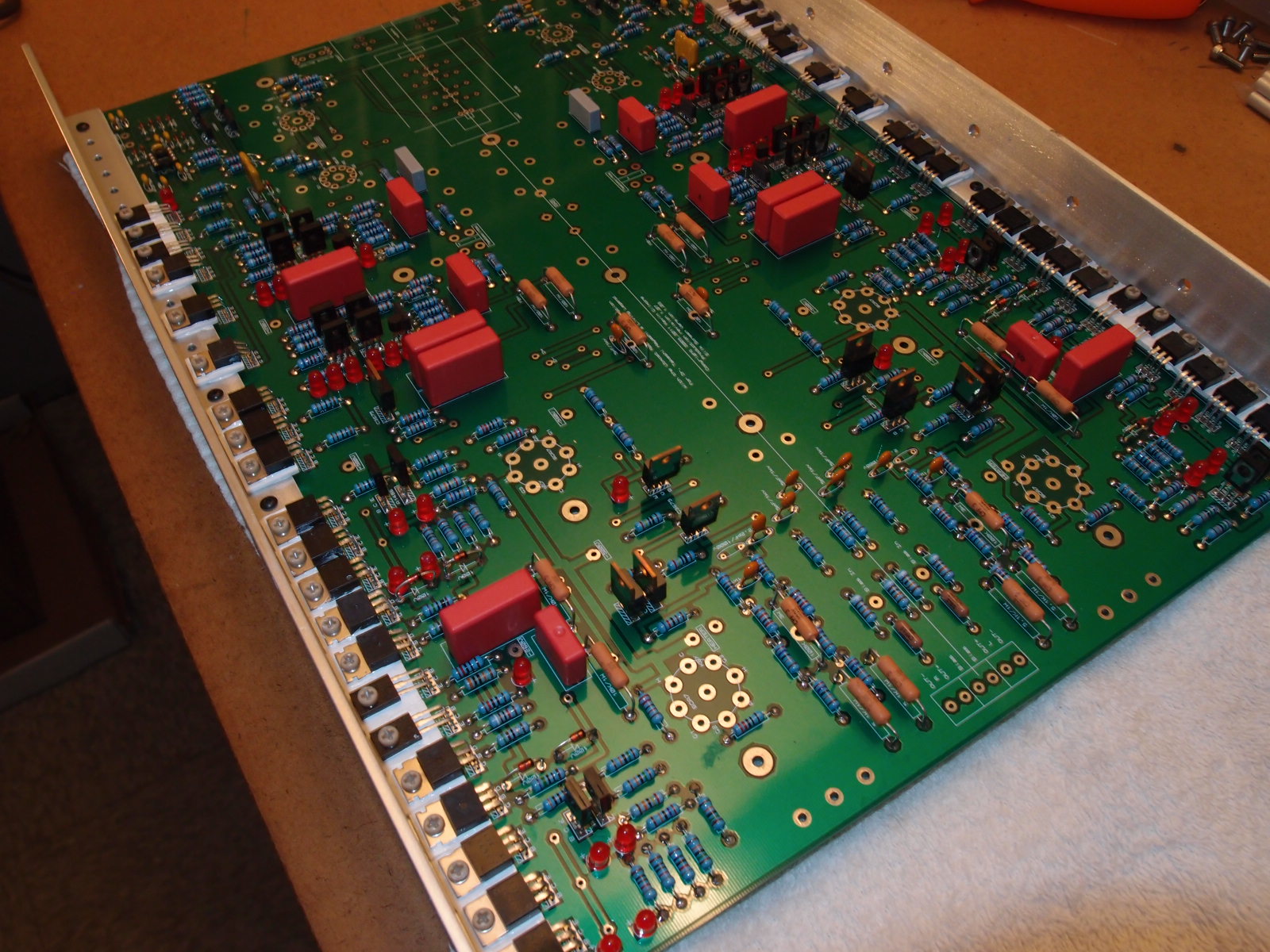

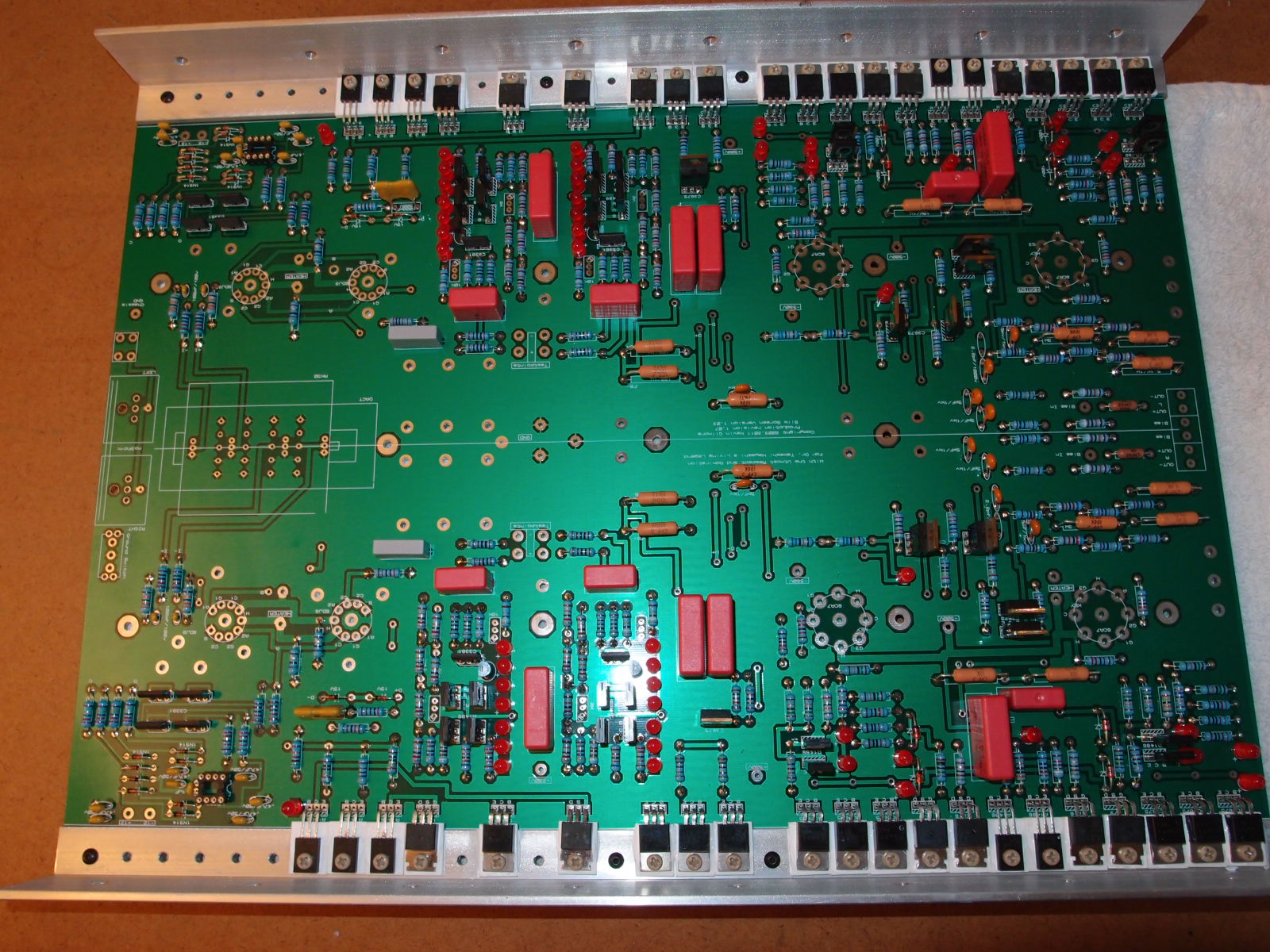

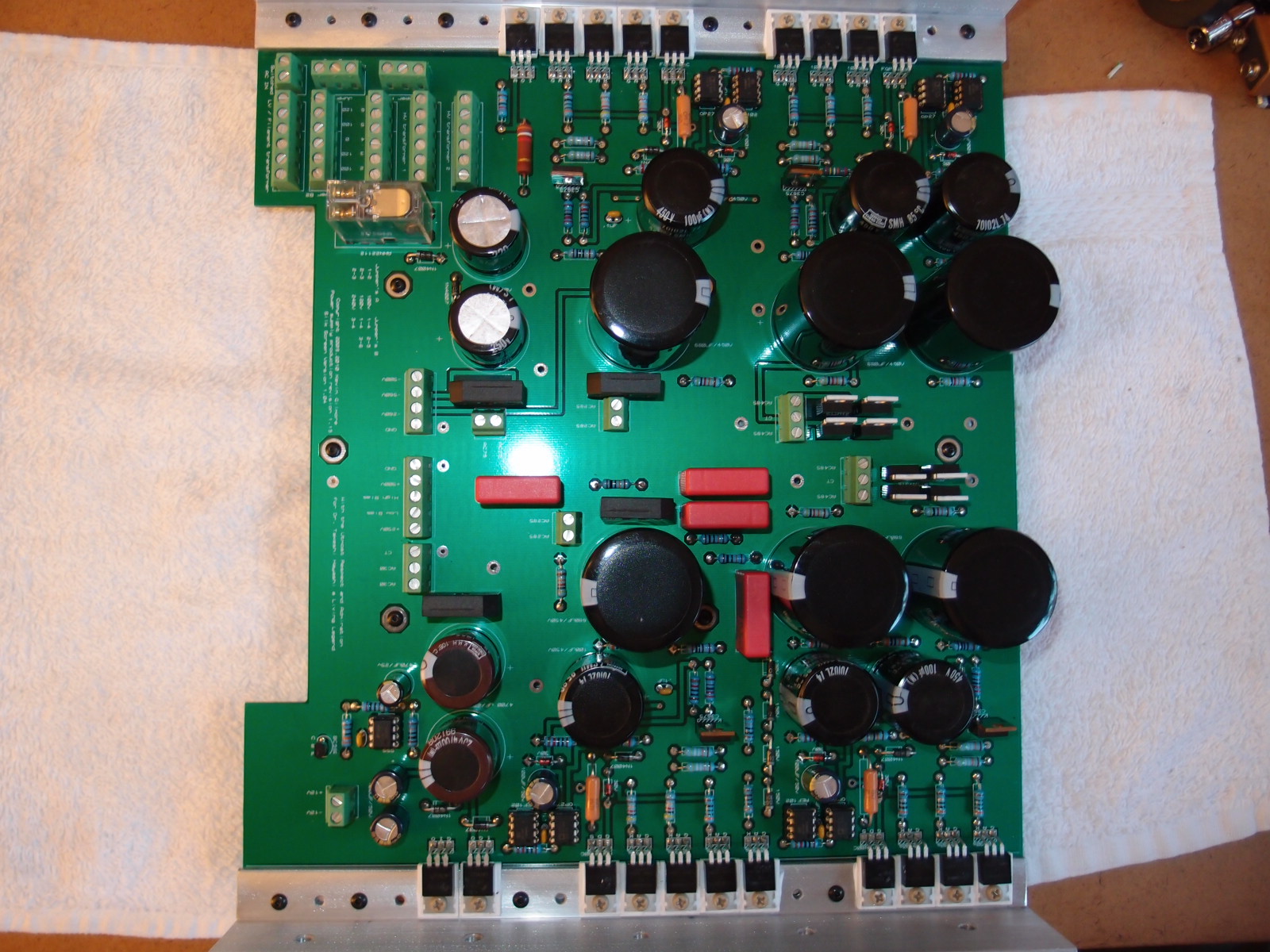

blubliss Posted July 9, 2011 Report Posted July 9, 2011 Transformers came in today so got most of the board work completed now on #2. We may case it up tomorrow.
Voltron Posted July 9, 2011 Report Posted July 9, 2011 Damn, Andy does not fuck around! Looking good.
blubliss Posted July 9, 2011 Report Posted July 9, 2011 Thanks guys, it's my first soldering project. My friend did the soldering on the first one. We put the boards in the cases today and made a bit more progress. Slow and steady. Really glad we tested all the transistors this time because we found one shorted k216. Troubleshooting that would have been a hassle.
ujamerstand Posted July 9, 2011 Report Posted July 9, 2011 Looking good! Double T2 FTW! Did you use some sort of heat transferring compound on the devices?
blubliss Posted July 10, 2011 Report Posted July 10, 2011 More progress today. Fired up the PS and all voltages are on except the +12v is +18.5v. The -12 is correct. I can't remember if this is wrong or not??
luvdunhill Posted July 10, 2011 Report Posted July 10, 2011 What part did you use on the positive rail? You might put it under load a bit to see what happens. Say, 50mA or so.
blubliss Posted July 10, 2011 Report Posted July 10, 2011 I guess you mean the 7812? It is a Fairchild.
luvdunhill Posted July 10, 2011 Report Posted July 10, 2011 I guess you mean the 7812? It is a Fairchild. I believe the On parts were recommended at some point in the thread, as the ones in the BOM that Kevin posted were not good. Check Inu's posts.
blubliss Posted July 10, 2011 Report Posted July 10, 2011 (edited) Yes, I remember it was said to stay away from the ST part, but I think Fairchild is all right? That's what I used in the first one. Edit: Actually, it was the 7912 from ST that was the problem. Edited July 10, 2011 by blubliss
luvdunhill Posted July 10, 2011 Report Posted July 10, 2011 (edited) Ah, my memory is fading I'd probably put it under a load and see what the voltage does. Also, check the voltage right after the first cap, check to make sure the ripple voltage isn't insane. Check the same after the regulator. Compare to the other rail. Edited July 10, 2011 by luvdunhill
luvdunhill Posted July 10, 2011 Report Posted July 10, 2011 Also, you could try swapping the two windings to see what happens...
blubliss Posted July 10, 2011 Report Posted July 10, 2011 Thanks, I will do some seeking, maybe just replace the 7812 too.
spritzer Posted July 10, 2011 Author Report Posted July 10, 2011 Did you reverse the diode next to the 7812? That could cause something like this...
luvdunhill Posted July 10, 2011 Report Posted July 10, 2011 Did you reverse the diode next to the 7812? That could cause something like this... well, they follow the silk on the PCB at least
kevin gilmore Posted July 10, 2011 Report Posted July 10, 2011 blubliss has the new power supply board with the silkscreen fixed. The one diode in wrong was in the minus supply anyway.
blubliss Posted July 11, 2011 Report Posted July 11, 2011 Working PS now, seems like it was a bad solder joint on the 7812 ground pin.
wink Posted July 11, 2011 Report Posted July 11, 2011 Don't ya love when it's that easy?. Don't ya love it when it takes a while to find it.........
blubliss Posted July 11, 2011 Report Posted July 11, 2011 Don't ya love when it's that easy? For sure, and that little section only had about 8 parts, compared to all the other sections that have a kajillion parts to choose from. Phew.
blubliss Posted July 13, 2011 Report Posted July 13, 2011 Getting very close now, only sockets, pots, and knob to finish. I am so happy about completing it, I'm reluctant to turn it on and deal with the potential to sour my mood if it is not perfect.
livewire Posted July 13, 2011 Report Posted July 13, 2011 (edited) Awesome shit dude! I'll be crossing my fingers for ya. Here's to hoping it plays beautifully. Edited July 13, 2011 by livewire
