Inu Posted December 11, 2010 Report Share Posted December 11, 2010 I think I've been the only one with 2SC3675 troubles - and that is restricted to the one in the voltage source batteries. Formally that part is sailing very close to the wind - the spec sheet says that at 5mA collector current second breakdown happens for Vce greater than 600V. Depending on the LED in the current source Q30 the current is closer to 4mA or less. At 3mA it should just about do 750V. Now spec sheets are always conservative, but the statistical spread of characteristics must have put my batch just about where the spec sheet says. They went short in both channels, which is classic second breakdown failure. This happened spontaneously once in my class A Krell - that generated a hell of a lot of smoke! Failure of the 3675 took out two LED's in the anode current sources, a pair of 100V zeners (they glowed briefly!), and all four 2SK216's. That it happened on both channels identically indicates that it is not a stuffing issue (I checked that first), dry joint, or probing mistake - which points the finger at the 2SC3675. So once I get the hot stick out, I'm going non-authentic 2SC4686A (KG's suggestion). They should be good for 1200V at up to 8mA. We'll see if that cures the problem. FYI I measured hfe for all transistors before use on the T2. 2SC3675 Measured: 74pcs @Ic=10mA Lowest = 43 Highest =74 Average = 58 I used hfe=57@10mA for 4xQ23 2SC4686A Measured: 50pcs Lowest = 22 Highest =31 Average = 27 I did not use because of low hfe. Quote Link to comment Share on other sites More sharing options...
blubliss Posted December 13, 2010 Report Share Posted December 13, 2010 What are you guys doing for the feet? Quote Link to comment Share on other sites More sharing options...
livewire Posted December 13, 2010 Report Share Posted December 13, 2010 This. [ATTACH=CONFIG]4089[/ATTACH] Quote Link to comment Share on other sites More sharing options...
nattonrice Posted December 14, 2010 Report Share Posted December 14, 2010 Justin had a group buy a little while back on some feet from china. Now the feet are awesome but the configureable packing foam cubes that he boxed mine in are a new level. Quote Link to comment Share on other sites More sharing options...
wink Posted December 14, 2010 Report Share Posted December 14, 2010 Yep, they were great feet - not a sign of tinea or ingrown toenails amongst them....... Quote Link to comment Share on other sites More sharing options...
Craig Sawyers Posted December 14, 2010 Report Share Posted December 14, 2010 FYI I measured hfe for all transistors before use on the T2. 2SC3675 Measured: 74pcs @Ic=10mA Lowest = 43 Highest =74 Average = 58 I used hfe=57@10mA for 4xQ23 2SC4686A Measured: 50pcs Lowest = 22 Highest =31 Average = 27 I did not use because of low hfe. That is very helpful information. The low hfe of the 2SC4686A is certainly a concern, but I need to find a robust solution for the fact that my 2SC3675's die through second breakdown. So I either need to use a darlington configuration, or a higher current in the differential pair (by reducing the emitter resistor). Not very original, of course - but in the batteries I'm not massively concerned. Quote Link to comment Share on other sites More sharing options...
pedefede Posted December 16, 2010 Report Share Posted December 16, 2010 Hi All If others europeans also are sourcing parts - I can recommend to also look at the danish site: PC ELEKTRONIK (Site is in danish, but send an email ... or use "s Quote Link to comment Share on other sites More sharing options...

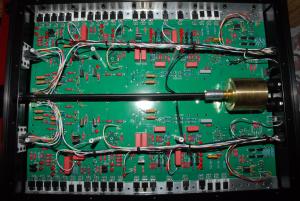

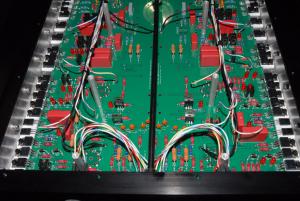

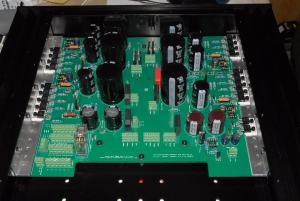

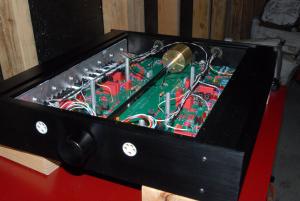

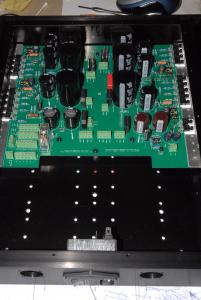

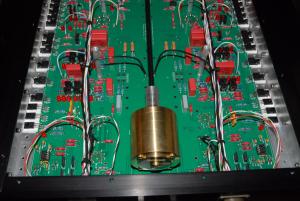

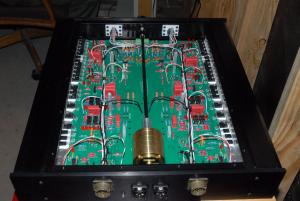

blubliss Posted December 18, 2010 Report Share Posted December 18, 2010 Amp section done, just waiting on the transformers now. [ATTACH=CONFIG]4116[/ATTACH][ATTACH=CONFIG]4115[/ATTACH][ATTACH=CONFIG]4114[/ATTACH][ATTACH=CONFIG]4112[/ATTACH] [ATTACH=CONFIG]4111[/ATTACH][ATTACH=CONFIG]4113[/ATTACH][ATTACH=CONFIG]4117[/ATTACH] Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted December 18, 2010 Report Share Posted December 18, 2010 Nice! Might as well pop in the ICs into the PSU sockets and do the jumpering on the PSU as well. You might find some solderable test points to be useful, or just make some loops with wire for the grabber probes to attach to. Quote Link to comment Share on other sites More sharing options...
spritzer Posted December 18, 2010 Author Report Share Posted December 18, 2010 Looks nice Andy!! Quote Link to comment Share on other sites More sharing options...
n3rdling Posted December 19, 2010 Report Share Posted December 19, 2010 Quote Link to comment Share on other sites More sharing options...
Pars Posted December 19, 2010 Report Share Posted December 19, 2010 x2, looks great. You've been a busy boy Quote Link to comment Share on other sites More sharing options...
Torpedo Posted December 19, 2010 Report Share Posted December 19, 2010 Nice? Great? That looks foockin' awesome Andy, I wish I had the time, place, knowledge and skills to do that. Congratulations Quote Link to comment Share on other sites More sharing options...
blubliss Posted December 19, 2010 Report Share Posted December 19, 2010 Thanks all, the hard stuff was done by my friend steve (stv1756). I helped a bit; it has been fun. The transformers are at my local post office but i missed the closing time by 1 hour today. I coulda had it running by now maybe , or fried Quote Link to comment Share on other sites More sharing options...
Voltron Posted December 19, 2010 Report Share Posted December 19, 2010 Very cool Andy! Get it running and bring it up to Mayberry. Not sure when Terry will have time to work on mine. Quote Link to comment Share on other sites More sharing options...
blubliss Posted December 19, 2010 Report Share Posted December 19, 2010 I would love to come, and I will make an effort. Quote Link to comment Share on other sites More sharing options...
Kerry Posted December 19, 2010 Report Share Posted December 19, 2010 Nice job on the bulid Andy. It's always very thrilling to power up for the first time. Good luck and enjoy! I'm looking forward to getting this build moving I've got a reasonably good feeling for the circuit and once I have an inventory of parts I can start moving on pulling everything together. Quote Link to comment Share on other sites More sharing options...
Craig Sawyers Posted December 19, 2010 Report Share Posted December 19, 2010 The 2SC3675 problem is solved. I hauled my Tek 577 curve tracer out with the aim of measuring the hFE of my batch of 2SC4686A. The answer was 25 +/-10%. So I thought I'd try out a 2SC3675 just for comparison. The one I connected up gave the answer ... 10. Say what? So I grabbed another and this was was 70. Another was 10. Then I spotted that there were two batches that looked quite different. One lot has an hFE of 10, the other was in the range 50 to 70. A picture of the two types is here http://www.tech-enterprise.com/tekstuff/2SC3675.jpg . If you zoom in you will see the markings on the packages. The one on the left gives the correct high value hFE, and the one on the left has a puny hFE of 10. All remaining ten samples of the right hand one have a gain of 10. The remaining four of the left hand one have gains of 50 to 70. Of course I have a random selection stuffed into my T2. And the ones that have failed in the batteries are (surprise surprise) the low gain ones. In forty years of designing and building electronics, this is a first for me. The right hand ones in the picture are either a faulty batch, or counterfeit. The duff ones are marked iSC, and may come from this outfit isc,inchange Semiconductor Company Limited Welcome You , and clearly Chinese crap. I'm going to order another batch of these sods, and check every last one before I replace the defective ones in my T2 lock stock and barrel. Quote Link to comment Share on other sites More sharing options...
justin Posted December 19, 2010 Report Share Posted December 19, 2010 i have a bunch of 2SC3675 that measure a hFE of 4. They're the only ones I've had that say Sanyo on them.. Quote Link to comment Share on other sites More sharing options...
Craig Sawyers Posted December 19, 2010 Report Share Posted December 19, 2010 i have a bunch of 2SC3675 that measure a hFE of 4. They're the only ones I've had that say Sanyo on them.. Bloody hell. Your and my experience with this should sound warning klaxons to all T2 builders - measure any 2SC3675 that you are planning on using! Quote Link to comment Share on other sites More sharing options...
Craig Sawyers Posted December 19, 2010 Report Share Posted December 19, 2010 And just to add to eveyone's 2SC3675 paranoia, Sanyo are disconintuing the part: SANYO Transistor: 2SC3675 Only 1200 left in Sanyo's inventory. After that - nothing. Anyone in the US up for a group buy of 200 or more (200 is the MOQ) at 86c each? You could certainly count me in for a T2's worth of them (34) plus a bunch of spares. Quote Link to comment Share on other sites More sharing options...
spritzer Posted December 19, 2010 Author Report Share Posted December 19, 2010 I've got some dodgy C3675's as well but I haven't tested them. They did come from Farnell or rather their distributor here. Some of us already had a group buy for the now obsolete parts (2SA1968 and 2SC3675) so count me out. I have enough to last me a long, long time. Quote Link to comment Share on other sites More sharing options...
Voltron Posted December 19, 2010 Report Share Posted December 19, 2010 Nice job on the bulid Andy. It's always very thrilling to power up for the first time. Good luck and enjoy! I'm looking forward to getting this build moving I've got a reasonably good feeling for the circuit and once I have an inventory of parts I can start moving on pulling everything together. That honestly wasn't meant as a hint Kerry. I just assume it will be awhile before you are able to even get started. Plus I just noticed my iPhone auto-corrected your name to Terry. Andy's pics also reminded me that I need an RK50 so if anyone has a good source please let me know. Quote Link to comment Share on other sites More sharing options...
spritzer Posted December 19, 2010 Author Report Share Posted December 19, 2010 Justin should be able to help with the RK50. Quote Link to comment Share on other sites More sharing options...
digger945 Posted December 19, 2010 Report Share Posted December 19, 2010 Justin should be able to help with the RK50. Yea, his website is the first place i looked. Can't remember if I saw one there. Quote Link to comment Share on other sites More sharing options...
