G600 Posted December 6, 2015 Report Share Posted December 6, 2015 I have just checked KG's gerber files, and they don't have the trace. Waiting for the master's input before modifing anything. "Better safe than sorry" Quote Link to comment Share on other sites More sharing options...

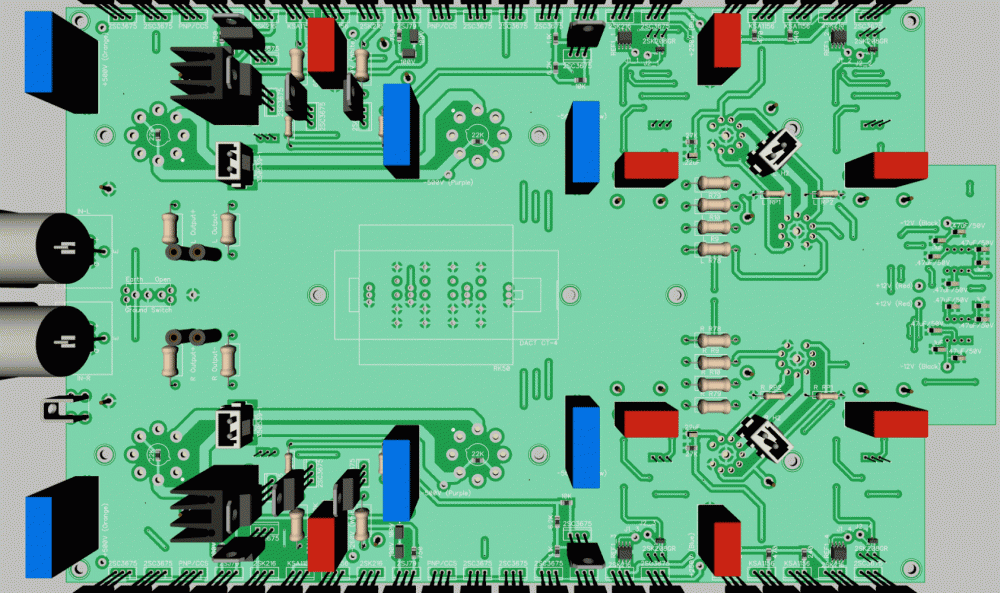

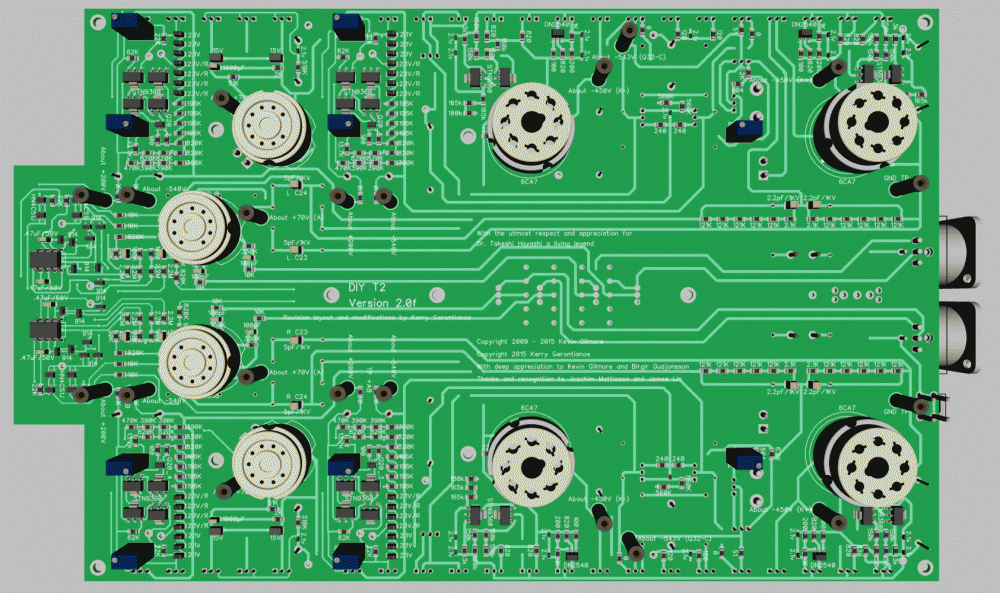

Kerry Posted December 6, 2015 Report Share Posted December 6, 2015 I'm just waiting to get these back. They are my shrunk down boards. The chassis is going to be 12" x 14.3" x 3.3". This will be the same as the power supply. Most everything is SMD now and I'm looking forward to stuffing this in a couple of weeks (I've got all the parts). The boards support two styles of batteries (jfet/LED or LT1021-10). Also they support both the original CSS as well as the 10m90s / DN2540 (thanks to JimL). I have to give props to Kevin and Birgir who did the original layouts. This thing is a beast with over 540 components. 2 Quote Link to comment Share on other sites More sharing options...
wink Posted December 6, 2015 Report Share Posted December 6, 2015 (edited) G600, Methinks it would also be a good idea to remove the flux from the board as a matter of concern. At these voltages, it's very advisable to limit the chances of leakage between connections caused by the flux. Edited December 6, 2015 by wink Added addressee Quote Link to comment Share on other sites More sharing options...
G600 Posted December 6, 2015 Report Share Posted December 6, 2015 (edited) I have removed near all of it, this picture is several months old. And crappy as usual. Kerry, that is a massive achievement, cheers ! Edited December 6, 2015 by G600 Quote Link to comment Share on other sites More sharing options...
sorenb Posted December 6, 2015 Report Share Posted December 6, 2015 1 hour ago, G600 said: Sorry, maybe I wasn't clear. I can't understand why I don't have a trace here : If you look at the schematic, one resistor string reference O+ whereas the other reference O- Quote Link to comment Share on other sites More sharing options...

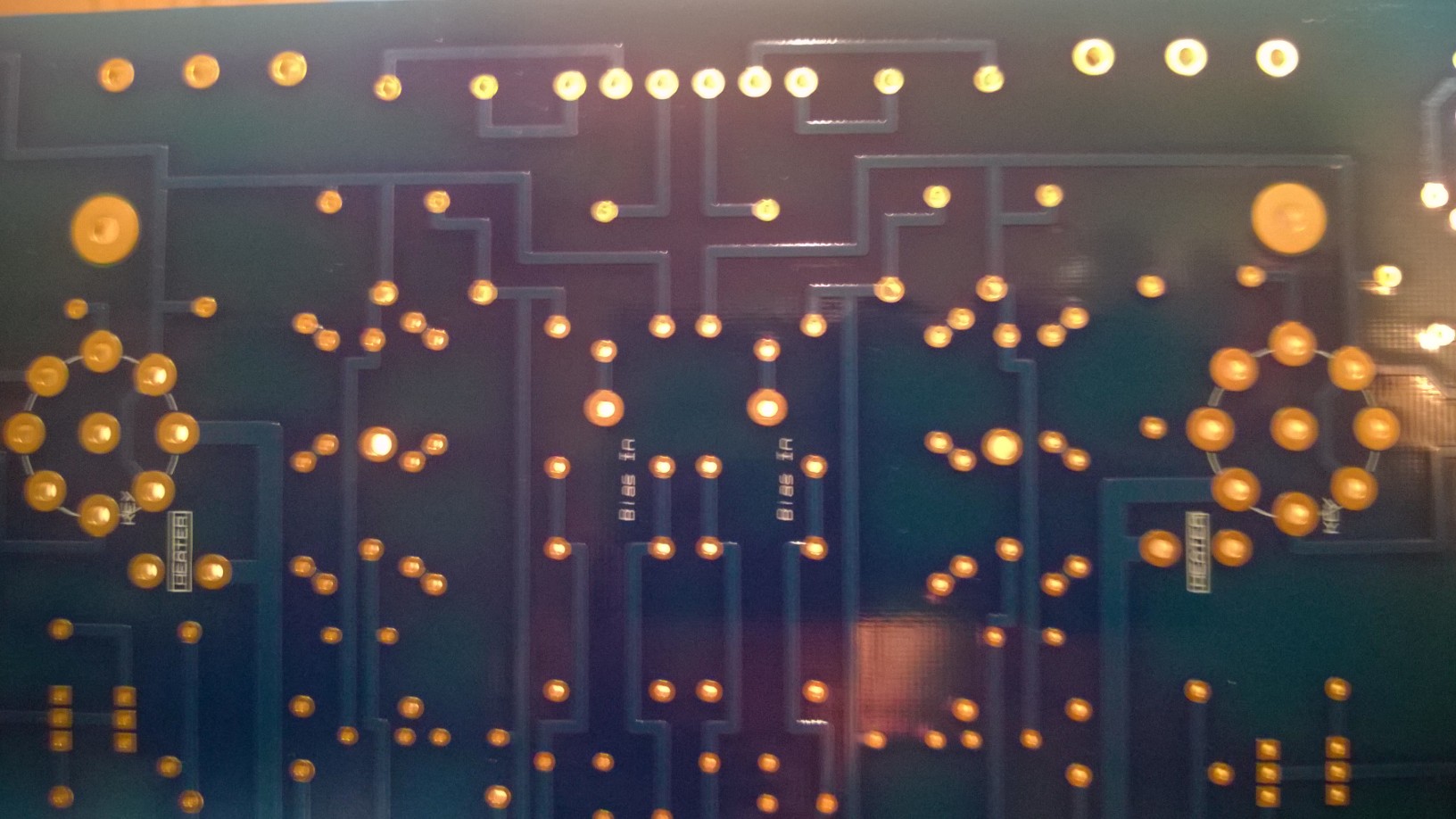

GeorgeP Posted December 7, 2015 Report Share Posted December 7, 2015 3 hours ago, G600 said: I have just checked KG's gerber files, and they don't have the trace. Waiting for the master's input before modifing anything. "Better safe than sorry" Here is a pic of a board I have: Quote Link to comment Share on other sites More sharing options...
G600 Posted December 7, 2015 Report Share Posted December 7, 2015 Adding a wire fixed the odd behaviour of that particular output. Now everything tests fine. But if I'm correct the gerber files need correction. Quote Link to comment Share on other sites More sharing options...
Craig Sawyers Posted December 7, 2015 Report Share Posted December 7, 2015 Coming back to this thread a bit late in this particular discussion - but what version of the board are we talking here? The original one, or some later version or update? Quote Link to comment Share on other sites More sharing options...
sorenb Posted December 7, 2015 Report Share Posted December 7, 2015 looks like the T2Shrunk Quote Link to comment Share on other sites More sharing options...
nopants Posted December 8, 2015 Report Share Posted December 8, 2015 I was in the middle of cleaning my psu pcb when I saw this score/break for the first time. does anyone else have this on their boards? should I be worried? it's right at the point where the angle bracket ends. Quote Link to comment Share on other sites More sharing options...
Pars Posted December 8, 2015 Report Share Posted December 8, 2015 Having a layout tied to a schematic for circuit validation would be a good thing here... Quote Link to comment Share on other sites More sharing options...
GeorgeP Posted December 8, 2015 Report Share Posted December 8, 2015 It's not just a silk line? Quote Link to comment Share on other sites More sharing options...
nopants Posted December 8, 2015 Report Share Posted December 8, 2015 there seems to be a physical indentation, albeit very shallow. it only crosses two nets. the other corresponding side has a silk line on the top of the board Quote Link to comment Share on other sites More sharing options...
G600 Posted December 22, 2015 Report Share Posted December 22, 2015 s_r, any news on your noise problem ? Quote Link to comment Share on other sites More sharing options...
G600 Posted December 26, 2015 Report Share Posted December 26, 2015 Gentlemen, it's christmas obviously. Today my T2 is making its first playback. I have just received a Birgir modified 007A. Yes, I haven't owned anything from Stax since today. It sounds so effortless and so wonderful... and weired noise free even with my 95 % Takman build (no Xicons, Inu's style). After 10 months of careful building, it's alive. Maybe the first KGT2 in France ? If there is a Xmas magic, I must have tasted it today. 3 Quote Link to comment Share on other sites More sharing options...
Kerry Posted December 26, 2015 Report Share Posted December 26, 2015 Congrats! You have certainly jumped into the world of Stax in pure style What a great Christmas present to yourself. Quote Link to comment Share on other sites More sharing options...
GeorgeP Posted December 26, 2015 Report Share Posted December 26, 2015 Great work, Jean-Denis! And just confirming for others that you flush mounted your takman resistors without any noise issues. Could help future builders. Quote Link to comment Share on other sites More sharing options...
chinsettawong Posted December 26, 2015 Report Share Posted December 26, 2015 Congratulations! Quote Link to comment Share on other sites More sharing options...
iwik Posted December 26, 2015 Report Share Posted December 26, 2015 Congratulations also Quote Link to comment Share on other sites More sharing options...

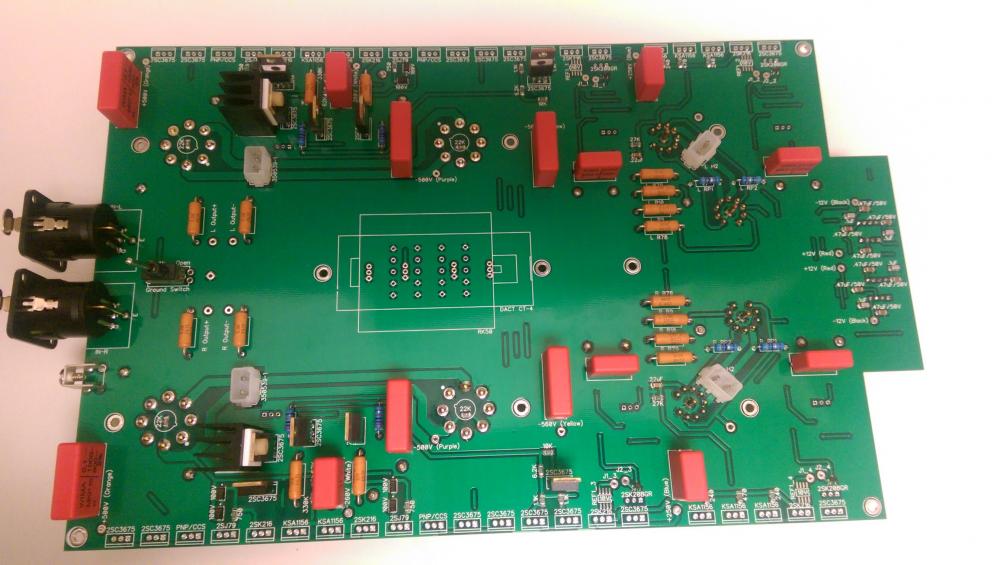

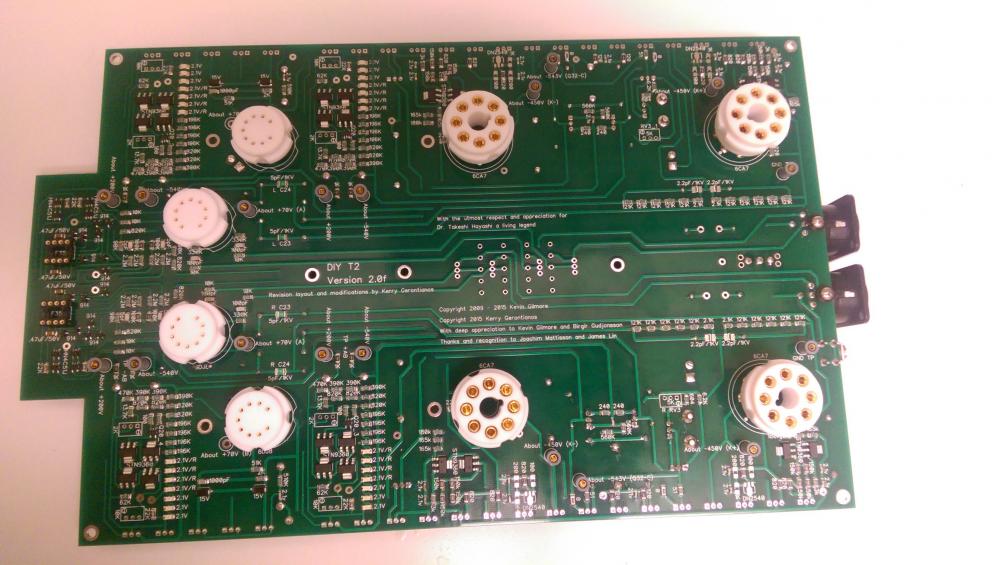

Kerry Posted December 27, 2015 Report Share Posted December 27, 2015 Got the boards back and finished stuffing most of it. Here's some pics (forgive the phone pics and bad lighting). 8 Quote Link to comment Share on other sites More sharing options...
johnwmclean Posted December 27, 2015 Report Share Posted December 27, 2015 G600 congratulations, wonderful news indeed. Kerry - that is bloody beautiful work right there. Quote Link to comment Share on other sites More sharing options...
chinsettawong Posted December 27, 2015 Report Share Posted December 27, 2015 Wow! Sent from my SM-N9005 using Tapatalk Quote Link to comment Share on other sites More sharing options...
G600 Posted December 27, 2015 Report Share Posted December 27, 2015 Thank you gents. A very bold attention to K. Gilmore, Birgir, "from overseas" George, Kubo and all the ones behind the project. Kerry, your iteration is nothing short of sexy. Almost to the point of building one ! Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted December 27, 2015 Report Share Posted December 27, 2015 t2shrunk2 updated. definitely missing the one land. not sure how that happened. Quote Link to comment Share on other sites More sharing options...
8street Posted December 30, 2015 Report Share Posted December 30, 2015 On 27.12.2015 at 8:29 AM, Kerry said: Got the boards back and finished stuffing most of it. Here's some pics (forgive the phone pics and bad lighting) What is the type of green resistors in batteries? Quote Link to comment Share on other sites More sharing options...
