JimL Posted December 10, 2014 Report Share Posted December 10, 2014 Interesting question, I was wondering that myself. The T2 current sources are pretty sophisticated, but without measuring their dynamic impedance I don't know if using cascoded MOSFETs would give a higher dynamic impedance, which would be the reason for making a substitution. My bias is that the closer the current source/load is to a perfect current source the less it should contribute to the sound. Quote Link to comment Share on other sites More sharing options...
s_r Posted December 17, 2014 Report Share Posted December 17, 2014 I've been looking to get some of the original T2 boards made for myself (in 3oz copper & 2mm thick). It looks like the only way to do it at a reasonable price would be to do a run of boards. So I've been talking with headinclouds about doing it through his PCB supplier and at 10 sets it'd be about £100. At 20 sets it'd be about £80. This doesn't include shipping or paypal fees. Still have to work out exact details, but under $200 is definitely possible at 10 sets. Anyway, pm me with your interest. Quote Link to comment Share on other sites More sharing options...
chiguy Posted December 18, 2014 Report Share Posted December 18, 2014 (edited) Are these the boards using updated sand? Sorry, I not sure which original board you're referring to. Edited December 18, 2014 by chiguy Quote Link to comment Share on other sites More sharing options...
s_r Posted December 18, 2014 Report Share Posted December 18, 2014 It'd be for the boards with the old sand. 1 Quote Link to comment Share on other sites More sharing options...
G600 Posted December 18, 2014 Report Share Posted December 18, 2014 I'd be in for Joamat's T2 if there is a run. Quote Link to comment Share on other sites More sharing options...
spritzer Posted December 18, 2014 Author Report Share Posted December 18, 2014 Those boards aren't ready for full release and I doubt we are going to clean them up. I also have my reservations about the mod going too far in some aspects so I will rather work on the new T2 version for Kevin and I. Quote Link to comment Share on other sites More sharing options...
G600 Posted December 19, 2014 Report Share Posted December 19, 2014 Sounds good Birgir. As long as they use actual sand... Quote Link to comment Share on other sites More sharing options...
JoaMat Posted December 19, 2014 Report Share Posted December 19, 2014 (edited) / Edited November 11, 2015 by JoaMat Quote Link to comment Share on other sites More sharing options...
spritzer Posted December 19, 2014 Author Report Share Posted December 19, 2014 Mostly to do with the 10M90 CCS. Works just fine but I fear it might change too much how the amp performs over the stock CCS. As I have thousands of 2SC4686A's and 2SA1486's using it isn't a problem. Quote Link to comment Share on other sites More sharing options...
GeorgeP Posted December 19, 2014 Report Share Posted December 19, 2014 Would the 4686's be in place of 3675? Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted December 20, 2014 Report Share Posted December 20, 2014 yes the 4686A parts would be in place of the 3675. And since they are isolated, they are easier to mount. The only parts that would not be isolated are the j29 and k216. In a couple of places the 1486 can be replaced with the ksa1156 because they are used at only 250v. And those are fully isolated too. Quote Link to comment Share on other sites More sharing options...
nopants Posted December 20, 2014 Report Share Posted December 20, 2014 lower cob than the 3675 if the sheets are to be believed Quote Link to comment Share on other sites More sharing options...
spritzer Posted December 20, 2014 Author Report Share Posted December 20, 2014 One of the CCS 3675's shorting to the heatsink was what killed my T2 so they aren't welcome. Quote Link to comment Share on other sites More sharing options...
JoaMat Posted December 20, 2014 Report Share Posted December 20, 2014 (edited) / Edited November 13, 2015 by JoaMat Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted December 20, 2014 Report Share Posted December 20, 2014 not sure those are real, the price is way to cheap. I paid about $1 each for the real ones from mouser. Quote Link to comment Share on other sites More sharing options...
JoaMat Posted December 23, 2014 Report Share Posted December 23, 2014 (edited) There have been some posts lately about cascaded current source. With reference to JimL's srx schematic and the srx layout made by Kevin - I made a couple of small boards, surface mounted dn2540 along with some resistors and replaced the two 10m90s resistors. Edited November 12, 2015 by JoaMat 1 Quote Link to comment Share on other sites More sharing options...
chinsettawong Posted December 23, 2014 Report Share Posted December 23, 2014 (edited) Wow! Nice! Edited December 23, 2014 by chinsettawong Quote Link to comment Share on other sites More sharing options...
JimL Posted December 24, 2014 Report Share Posted December 24, 2014 JoaMat, Very nice adaptation One caveat, the 10M90S is designed as a current source, so I presume that the choosing the current setting resistor can be done using the graph in the data sheet. However the DN2540 is not specifically designed as a current source, so I have found there is more variability in the current from one sample to the next if you're using the same value resistor. This is why in my schematic I use a pot for fine-tuning the current, and also a current sensing resistor (10 or 100 ohms) to set the pot to the desired current. I would also be interested in hearing about any subjective changes you hear after the mod, since in my SRX mod I never tried the 10M90S by itself. Quote Link to comment Share on other sites More sharing options...

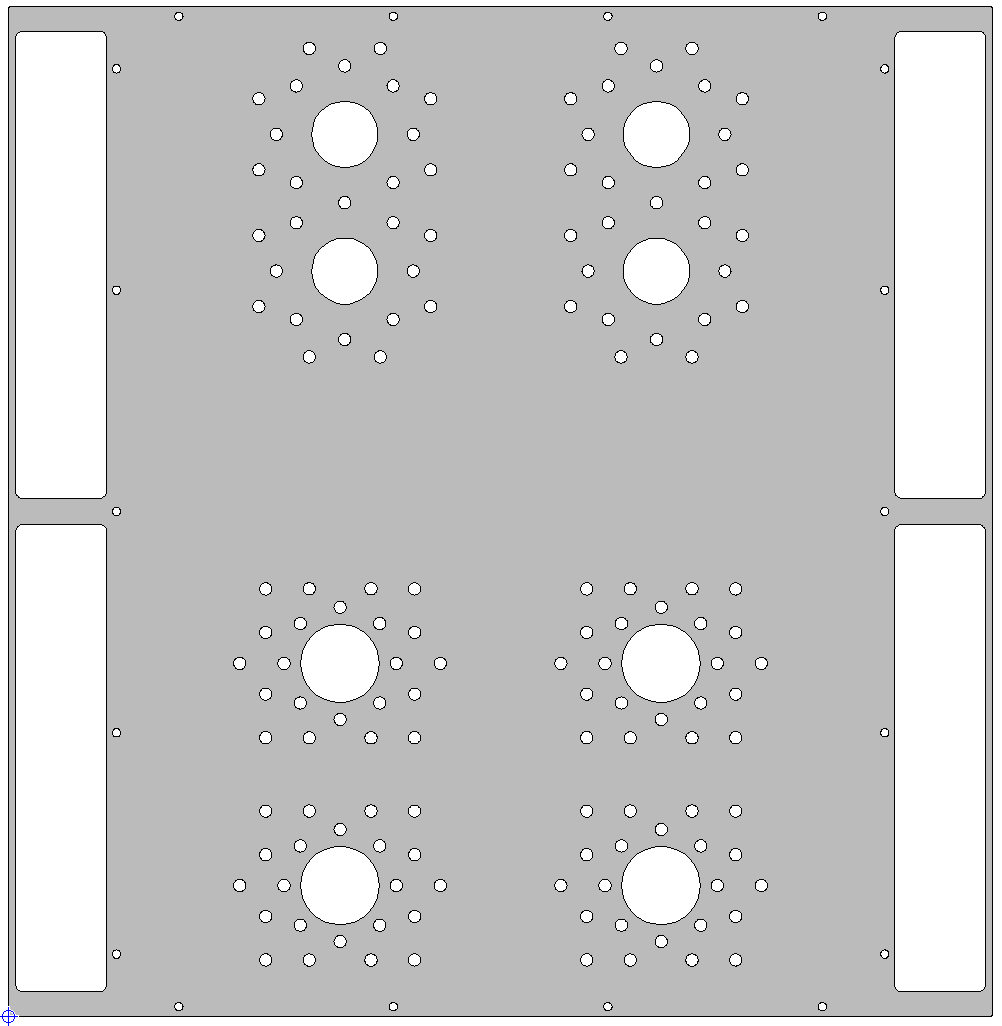

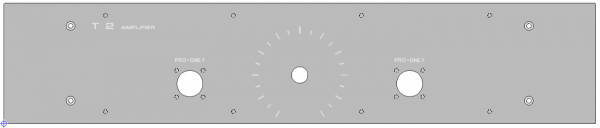

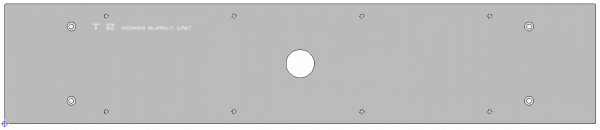

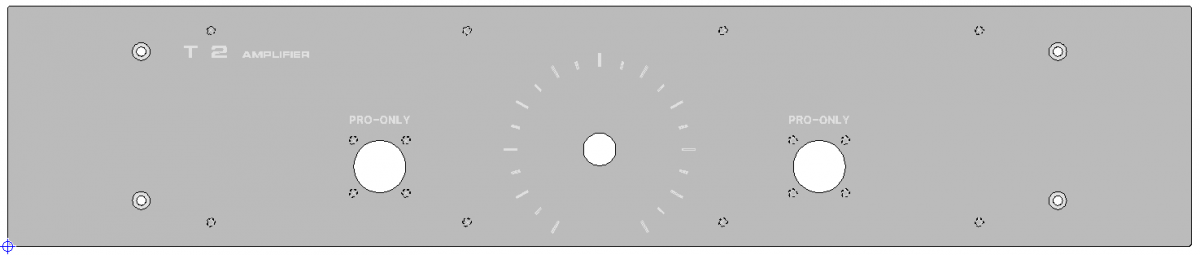

s_r Posted January 2, 2015 Report Share Posted January 2, 2015 I've been drawing up some panels recently, figured some others might be interested. Still have to triple check things, but I'm pretty sure I have all the critical measurements right. Some folks have expressed interest in another small board run, but not quite enough though. I'd like to avoid fronting the money myself & selling extras later if possible. So unless someone has a boardset (amp v1.07/psu v1.15) they'd be willing to sell I'll have to figure out what to do about PCBs later. Anyway, would anyone be interested in some quad RK50's? onlinecomponents.com has a decent discount on them if at least 5 are ordered. 1 Quote Link to comment Share on other sites More sharing options...
nopants Posted January 2, 2015 Report Share Posted January 2, 2015 I like it, but doesn't the top panel imply you want to do something specific for the sinks? Quote Link to comment Share on other sites More sharing options...
s_r Posted January 2, 2015 Report Share Posted January 2, 2015 The closest in dimension to the original heatsinks I've been able to find (cheaply) were from conradheatsinks. So there'd be a seam from joining two 200mm heatsinks, and I'd have to cheat a little with some spacers on either side of them to get the required 16.2" inside length. I drew the top cover to hide those seams, really. That and I happen to like how how the vitus amps look. Quote Link to comment Share on other sites More sharing options...
spritzer Posted January 2, 2015 Author Report Share Posted January 2, 2015 (edited) Good luck getting any reply from Conrad as they have gone into full radio silence mode. Edited January 2, 2015 by spritzer Quote Link to comment Share on other sites More sharing options...
GeorgeP Posted January 2, 2015 Report Share Posted January 2, 2015 Are there no off the shelf solutions that do custom lengths greater than 400mm? Quote Link to comment Share on other sites More sharing options...
iwik Posted January 2, 2015 Report Share Posted January 2, 2015 S_r, I have a set of these boards, if interested pm me. Les Quote Link to comment Share on other sites More sharing options...
bravi Posted January 2, 2015 Report Share Posted January 2, 2015 New member here. Pl pm me if anyone has a set of boards. Upgrading to SR009 after living with 407/SRMT1 combo for 7 years. Quote Link to comment Share on other sites More sharing options...
