luvdunhill Posted September 9, 2008 Author Report Share Posted September 9, 2008 Ferrari perhaps? Quote Link to comment Share on other sites More sharing options...
Pars Posted September 9, 2008 Report Share Posted September 9, 2008 Some other thoughts on switches (from post pics of your builds on HF): Delrin Vandal Resistant Illuminated Switch Black - Red Ring Products Model: VSW-BK-RING-RD [VSW-BK-RING-RD] : Performance-PCs.com, ... sleeve it and they will come and these APEMs that Steinchen used (forgot about these). Head-Fi: Covering Headphones, Earphones and Portable Audio - View Single Post - Post pics of your builds.... Quote Link to comment Share on other sites More sharing options...
swt61 Posted September 9, 2008 Report Share Posted September 9, 2008 I stand corrected. Ferrari uses but one LED on his lighted volume knobs I believe. Looks very nice, quite impressive. Blue? Quote Link to comment Share on other sites More sharing options...
n_maher Posted September 9, 2008 Report Share Posted September 9, 2008 One quick thought on vandal-style momentary switches, 16mm is pretty small. I got a few lighted 16mm momentary switches and found that they're just too tiny for my fat fingers and would have quickly become annoying to use. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted September 9, 2008 Author Report Share Posted September 9, 2008 One quick thought on vandal-style momentary switches, 16mm is pretty small. I got a few lighted 16mm momentary switches and found that they're just too tiny for my fat fingers and would have quickly become annoying to use. good point. I imagine I would use the remote 90% of the time, but who knows. All good suggestions guys, thanks! Quote Link to comment Share on other sites More sharing options...

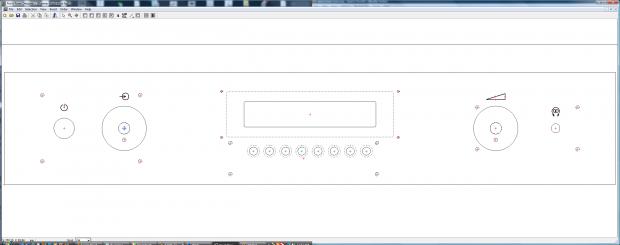

luvdunhill Posted October 20, 2008 Author Report Share Posted October 20, 2008 well, long story short is that a very large case from FPE is very, very expensive. The top alone was going to be around $200... so, I had to improvise. The case I got is a bit of a because, it is too deep to fit in my rack, or probably anyone's rack. That being said, here's what I've decided for the front panel: Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted October 20, 2008 Author Report Share Posted October 20, 2008 problem is, that the pre-made panel I will be processing is only 2.5mm thick, and it has extrusions that are required for the case assembly. I'm hoping I will be able to get enough thread from the blind holes in the rear to mount the 4 PCBs needed on the back.. Quote Link to comment Share on other sites More sharing options...
n_maher Posted October 20, 2008 Report Share Posted October 20, 2008 Why only 2.5mm? Is it to accommodate other panel mounted accessories? If so, I'd be nervous about having less than 2mm of thread depth. That might be enough to get two or three threads on a 4-40 screw but I wonder how many turns you'd get with a blind tap? That'd be one of those things I'd want to test before ordering an entire (expensive) panel. It might be easier to provide recessed areas for panel mounted components that can't handle a thicker panel. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted October 20, 2008 Author Report Share Posted October 20, 2008 Why only 2.5mm? Is it to accommodate other panel mounted accessories? If so, I'd be nervous about having less than 2mm of thread depth. That might be enough to get two or three threads on a 4-40 screw but I wonder how many turns you'd get with a blind tap? That'd be one of those things I'd want to test before ordering an entire (expensive) panel. It might be easier to provide recessed areas for panel mounted components that can't handle a thicker panel. sorry, I wasn't clear. The front panel has some extrusions to support the case assembly. I think it might be possible to get the entire panel fabricated at FPE, but I'd have to really think hard about it as I'd need to work in some angle brackets and a flange for the case lid. Too much to think about at the moment, as I'm really really wanting to get this baby singing soon. I totally agree about the thread. In fact, the VFD I'm using requires 2.5mm screws to mount, so I'm consider going with M2.5 or a fine threaded screws everywhere to get more threads. Think this might work out? The FPE bottoming taps or whatever they use are very nice and there is very little wasted space. That being said, there is not much to work with so .... Quote Link to comment Share on other sites More sharing options...
n_maher Posted October 20, 2008 Report Share Posted October 20, 2008 How bad would it look to use counter-sunk fasteners through the front panel and avoid the whole headache? Me, I like fasteners so I don't mind it when they're exposed sometimes if they serve a clear purpose. Granted, I think I was the one that suggested using blind taps in a thread somewhere around here. Bottom line, maybe it's worth a call to FPE to see what they think about the hole depth vs. fastener size? They're the experts. Quote Link to comment Share on other sites More sharing options...
Pars Posted October 20, 2008 Report Share Posted October 20, 2008 I would be really worried with a blind threaded bore in material this thin... it is only aluminum after all. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted October 20, 2008 Author Report Share Posted October 20, 2008 How bad would it look to use counter-sunk fasteners through the front panel and avoid the whole headache? Me, I like fasteners so I don't mind it when they're exposed sometimes if they serve a clear purpose. Granted, I think I was the one that suggested using blind taps in a thread somewhere around here. Bottom line, maybe it's worth a call to FPE to see what they think about the hole depth vs. fastener size? They're the experts. yeah, I agree with the both of you. Problem is, they won't be symmetrical... gah, I dunno what to do. I'll talk to FPE. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted October 22, 2008 Author Report Share Posted October 22, 2008 insanity... FPE can go down to 0.5mm material remaining without marring the front. Add on another 0.5mm that is unusable due to the tap. That leaves a hair over 1.5mm remaining. Cue up some M2.5x.45 standoffs at Mouser that I'll use. I should get 3 useful threads. yay! Quote Link to comment Share on other sites More sharing options...

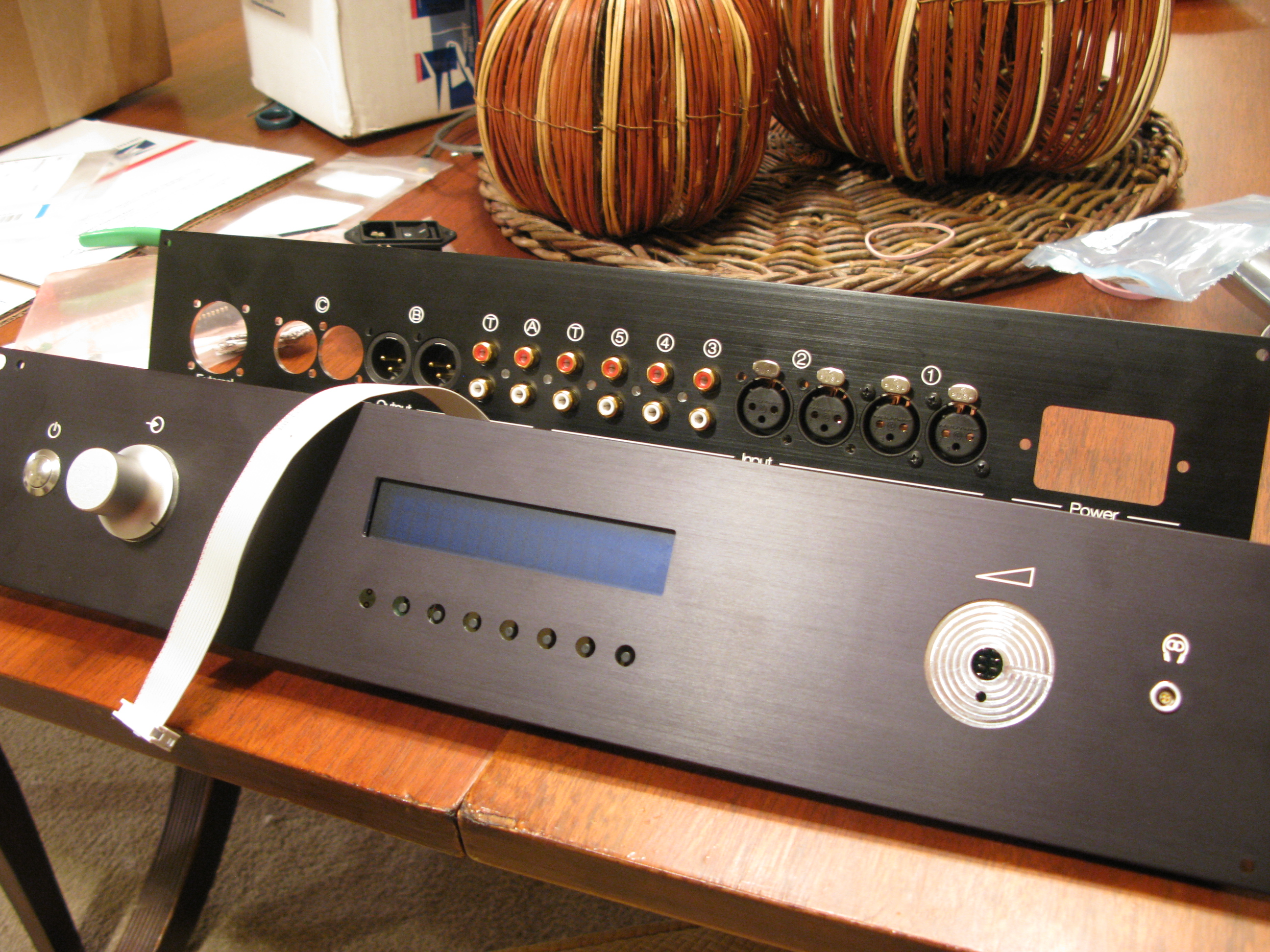

luvdunhill Posted November 11, 2008 Author Report Share Posted November 11, 2008 getting closer. Just need to decide what type of screws to use on the rear panel.. need to figure out how to mill the buttons now, as you can see the actuators in the picture. I went with a slight countersink on the rear as discussed above, so I need some "top hat" shaped buttons.. Also, I'm looking for a "smooth" Alps rotary decoder for the volume. Quote Link to comment Share on other sites More sharing options...
n_maher Posted November 11, 2008 Report Share Posted November 11, 2008 Wow, looking good! I got some panels in today as well but I can't publish them yet. Quote Link to comment Share on other sites More sharing options...
swt61 Posted November 11, 2008 Report Share Posted November 11, 2008 Wow, looking good! I got some panels in today as well but I can't publish them yet. I'm sorry, if you're not going to post pics you simply cannot bait us with the knowledge that you received any panels at all! Yeesh! Talk about your faux pas. Now Marc on the other hand did post pics of his new panels, and I want to say how absolutely yummy they look! We just have no way of knowing if Nate's are yummy too, or look like dog poo. Quote Link to comment Share on other sites More sharing options...
Pars Posted November 11, 2008 Report Share Posted November 11, 2008 Looks good Marc. Sorry but fail Nate! Quote Link to comment Share on other sites More sharing options...
n_maher Posted November 11, 2008 Report Share Posted November 11, 2008 Fine, fine ya' bunch of angry bastards. My lawyer tells me that's all I can show you for now. Quote Link to comment Share on other sites More sharing options...
swt61 Posted November 11, 2008 Report Share Posted November 11, 2008 Oh that's much better! The dreaded Red X that just sits there when clicked upon. Thanks a lot! Oops, I spoke too soon. In the immortal words of Rosanne Rosanna Danna... "Never Mind". Quote Link to comment Share on other sites More sharing options...
swt61 Posted November 11, 2008 Report Share Posted November 11, 2008 Fine, fine ya' bunch of angry bastards. My lawyer tells me that's all I can show you for now. Very HeadAmpish, which is an alltogether good thing! Quote Link to comment Share on other sites More sharing options...
n_maher Posted November 11, 2008 Report Share Posted November 11, 2008 Very HeadAmpish, which is an alltogether good thing! Not really intentional but Justin and I seem to share a similar appreciation for the clean approach to panels/design. I also certainly take that comment as a compliment. Quote Link to comment Share on other sites More sharing options...
tyrion Posted November 11, 2008 Report Share Posted November 11, 2008 It will fit right in with my other gear. You should see what the middle and the other side look like. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted November 11, 2008 Author Report Share Posted November 11, 2008 hmmm... ends with an "O".... let's see.... Quote Link to comment Share on other sites More sharing options...
n_maher Posted November 11, 2008 Report Share Posted November 11, 2008 hmmm... ends with an "O".... let's see.... Bingo? Quote Link to comment Share on other sites More sharing options...
Pars Posted November 11, 2008 Report Share Posted November 11, 2008 Not really intentional but Justin and I seem to share a similar appreciation for the clean approach to panels/design. I also certainly take that comment as a compliment. I certainly would! Ends with an "o".... Sluggo? Quote Link to comment Share on other sites More sharing options...
