Do any of you experts have thoughts on minimum board length for the planer. My new one shows 6ā€ in the specifications which is much shorter than I would expect.Ā

I will probably just use the drum sander for the short ones 10ā€ so I do not get 3HP worth of Sapele in the gut.Ā

Link to comment
Share on other sites

Yeah I guess it all come down to comfort level. At the moment I am still in setup mode as getting a perfectly flat table and wings has been a bitch and I either have feed rollers too low or pressure on their springs too high as the boards do a nice little hop when they come out from under the outfeed roller.Ā

Edited by VPI
Link to comment
Share on other sites

No snipe whatsoever as it jumps when it comes off the out feed roller, well past the cutter head.Ā
Ā

The rear rollers were off a bit (low) so they are set now to .020ā€ below the cutterhead and the chip breaker was down .015ā€ (supposed to be .040ā€ from the cutterhead so I am hoping those combined were creating the weirdness.Ā
If that doesnā€™t work I am going to lower the spring tension on the feed rollers or drop the table rollers.Ā

Edited by VPI
Link to comment
Share on other sites

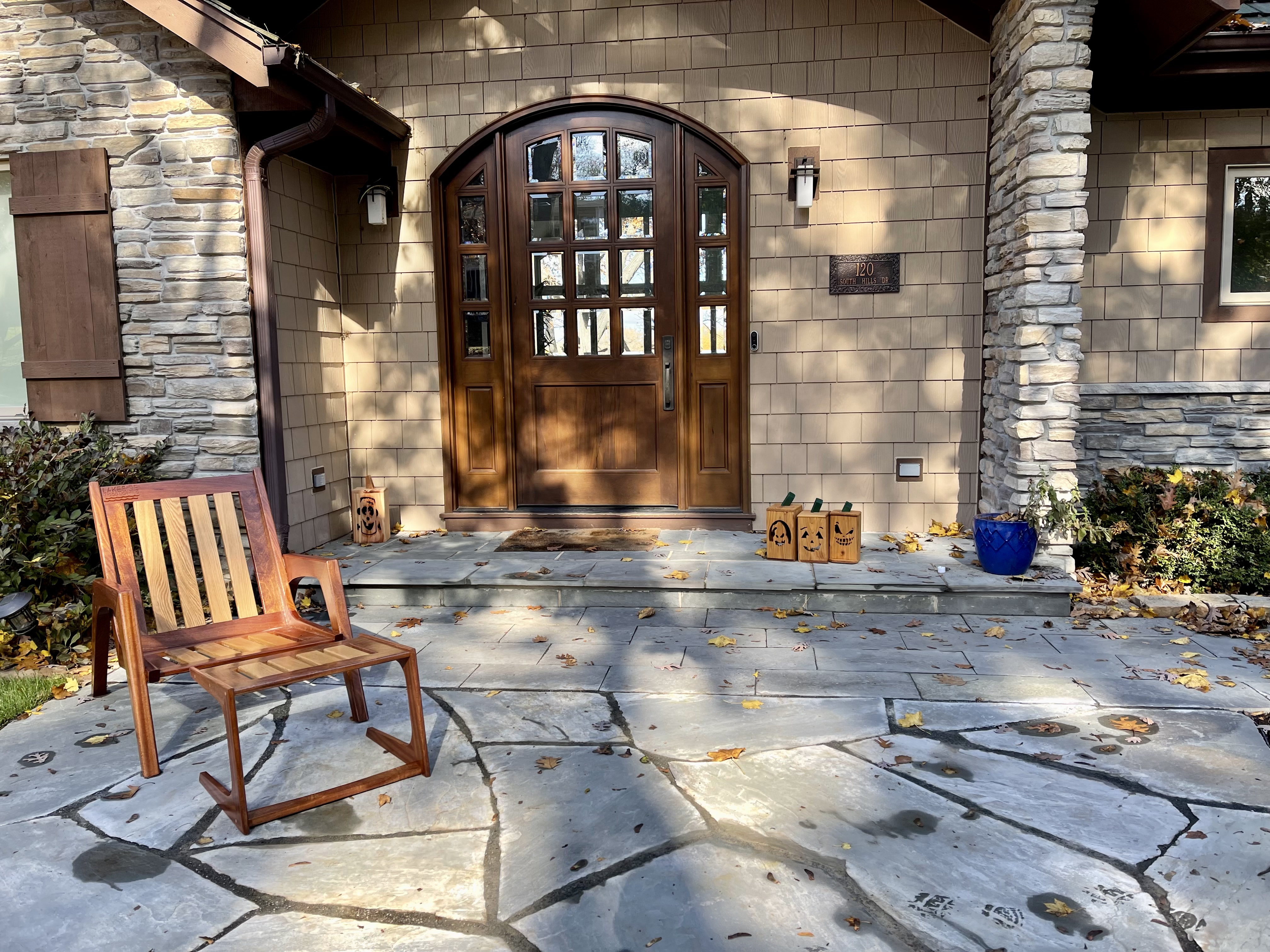

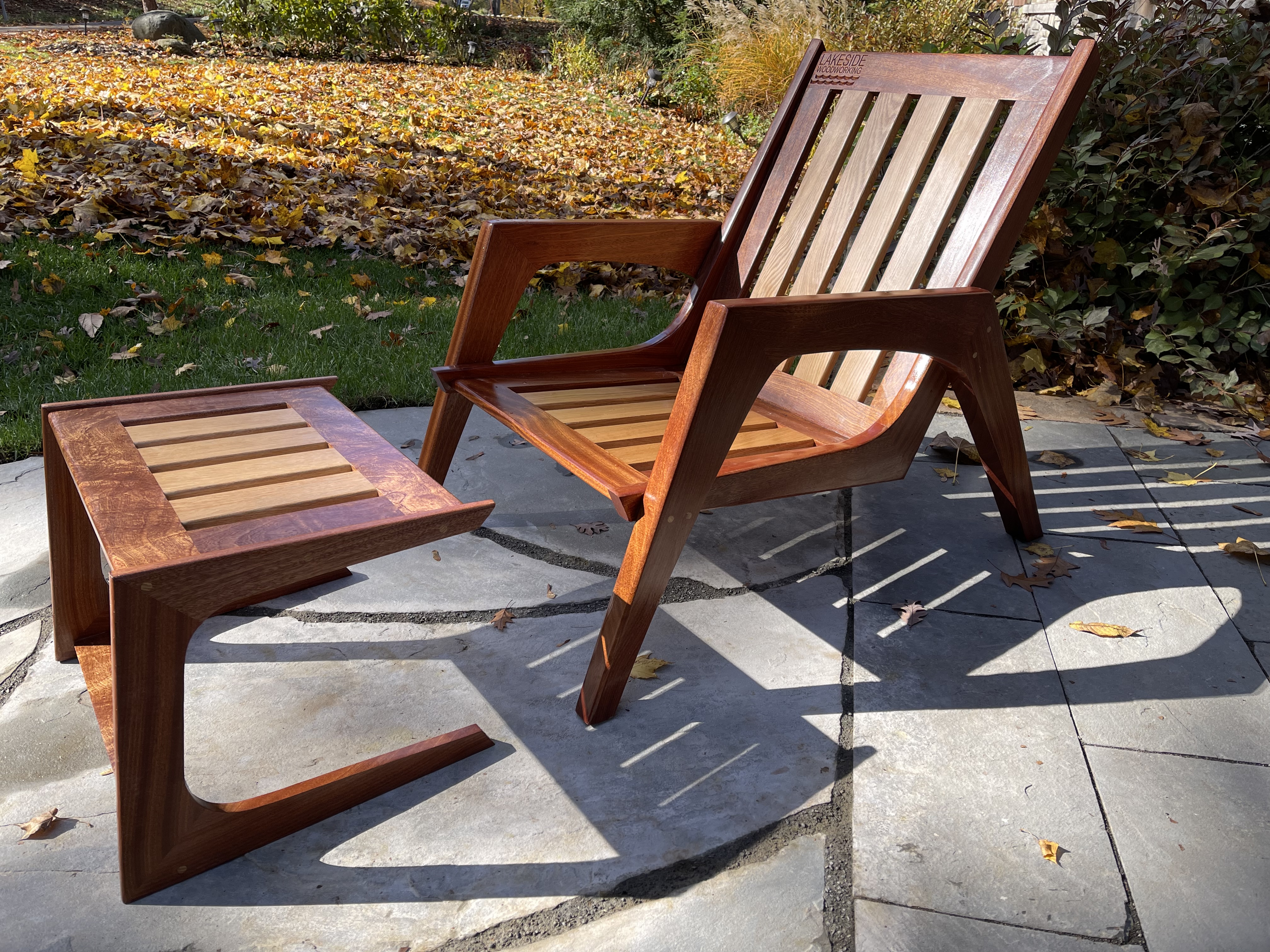

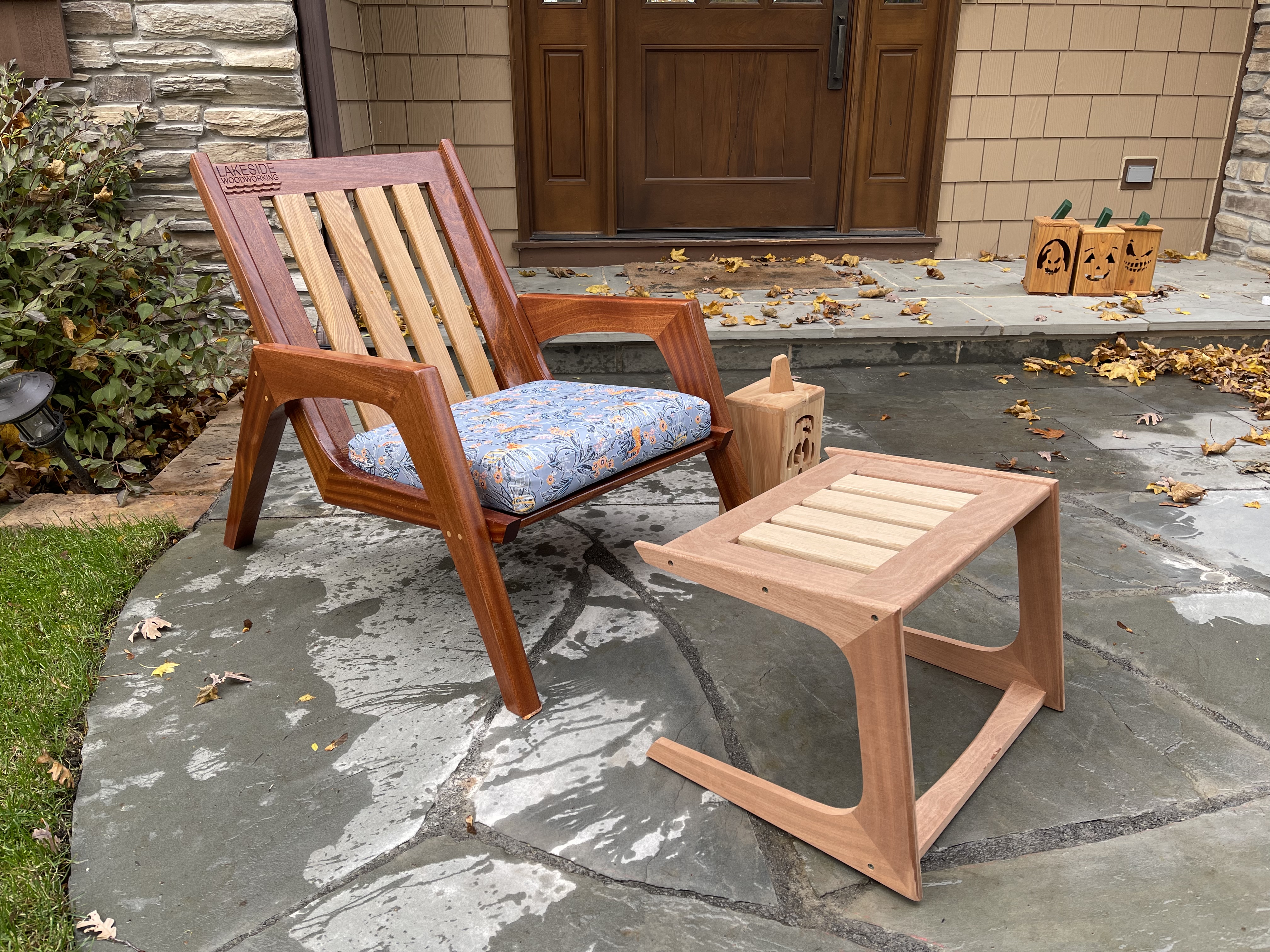

Was able to nail together the ottoman for the lounge chair setup out front. My Total Boat Wood Sealer I used on the chair has gelled up on me so I tried to thin it down as the stuff is out of stock everywhere.

Hopefully it behaves in it thickish oil current format.Ā
Ā

Ā



  • Like 4
Link to comment
Share on other sites

What thickness do you use for coasters? I need to make some for the outside tables and need them to be substantial enough not to cup, if possible.Ā
Ā

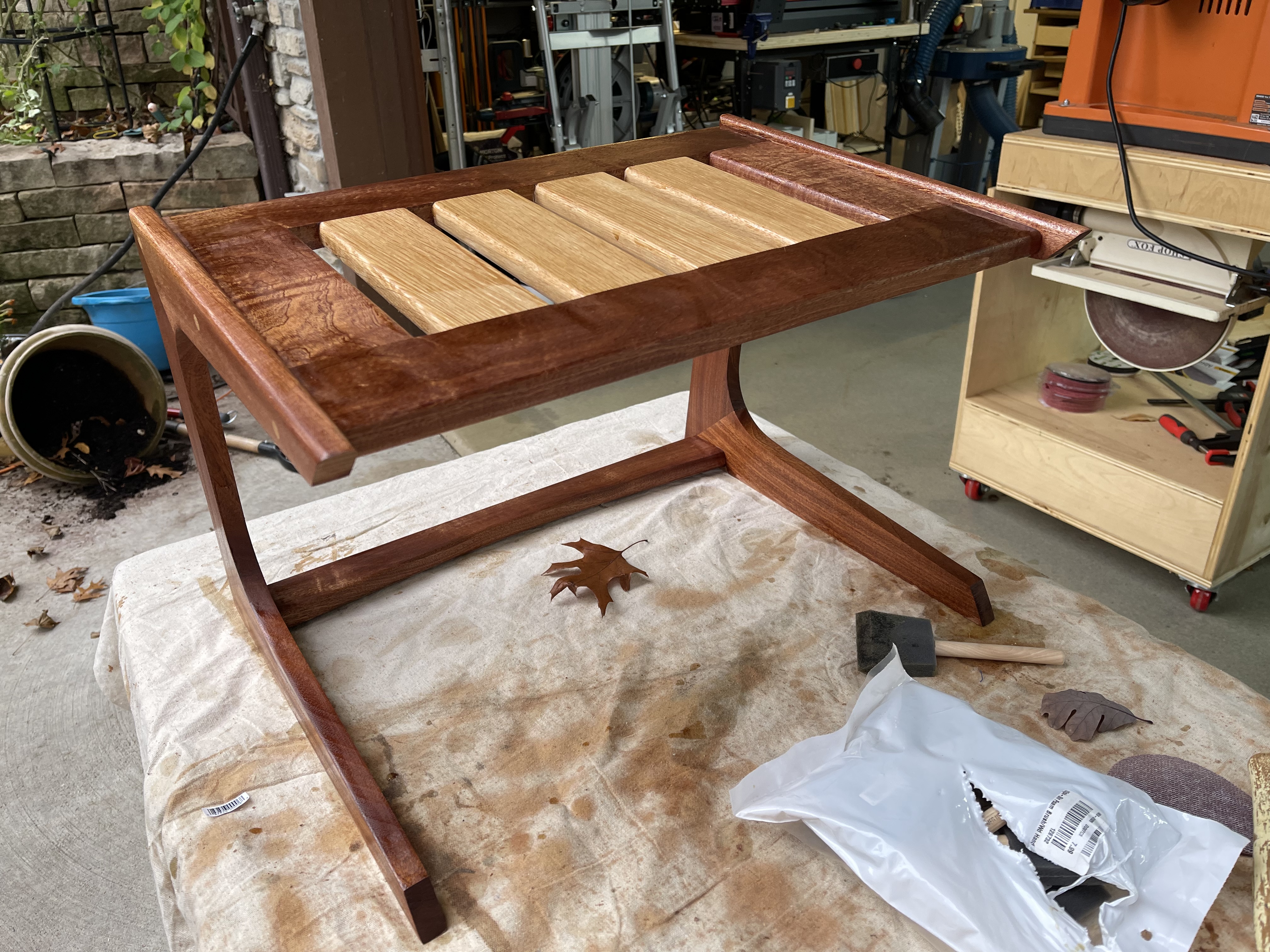

Also, finished the awful finishing process. I need to just spray everything. Brushing sucks.Ā




  • Like 5
Link to comment
Share on other sites

The chair looks great!

2 hours ago, VPI said:

What thickness do you use for coasters? I need to make some for the outside tables and need them to be substantial enough not to cup, if possible.

I don't think there is a thickness that won't warp, but using quartersawn wood of any thickness will help a lot.

  • Like 3
Link to comment
Share on other sites

4 hours ago, VPI said:

What thickness do you use for coasters? I need to make some for the outside tables and need them to be substantial enough not to cup, if possible.Ā
Ā

Also, finished the awful finishing process. I need to just spray everything. Brushing sucks.Ā




Ā

1 hour ago, dsavitsk said:

The chair looks great!

I don't think there is a thickness that won't warp, but using quartersawn wood of any thickness will help a lot.

Ā


I agree with Doug about quarter sawn wood. But if you can't do that, be sure to coat all sides with the same finish. Not finishing the bottom or gluing a different species of wood on one side will almost certainly make them cup. Whatever you do to the top, do to the bottom.Ā

The Titan is IMO the best HVLP on the market.

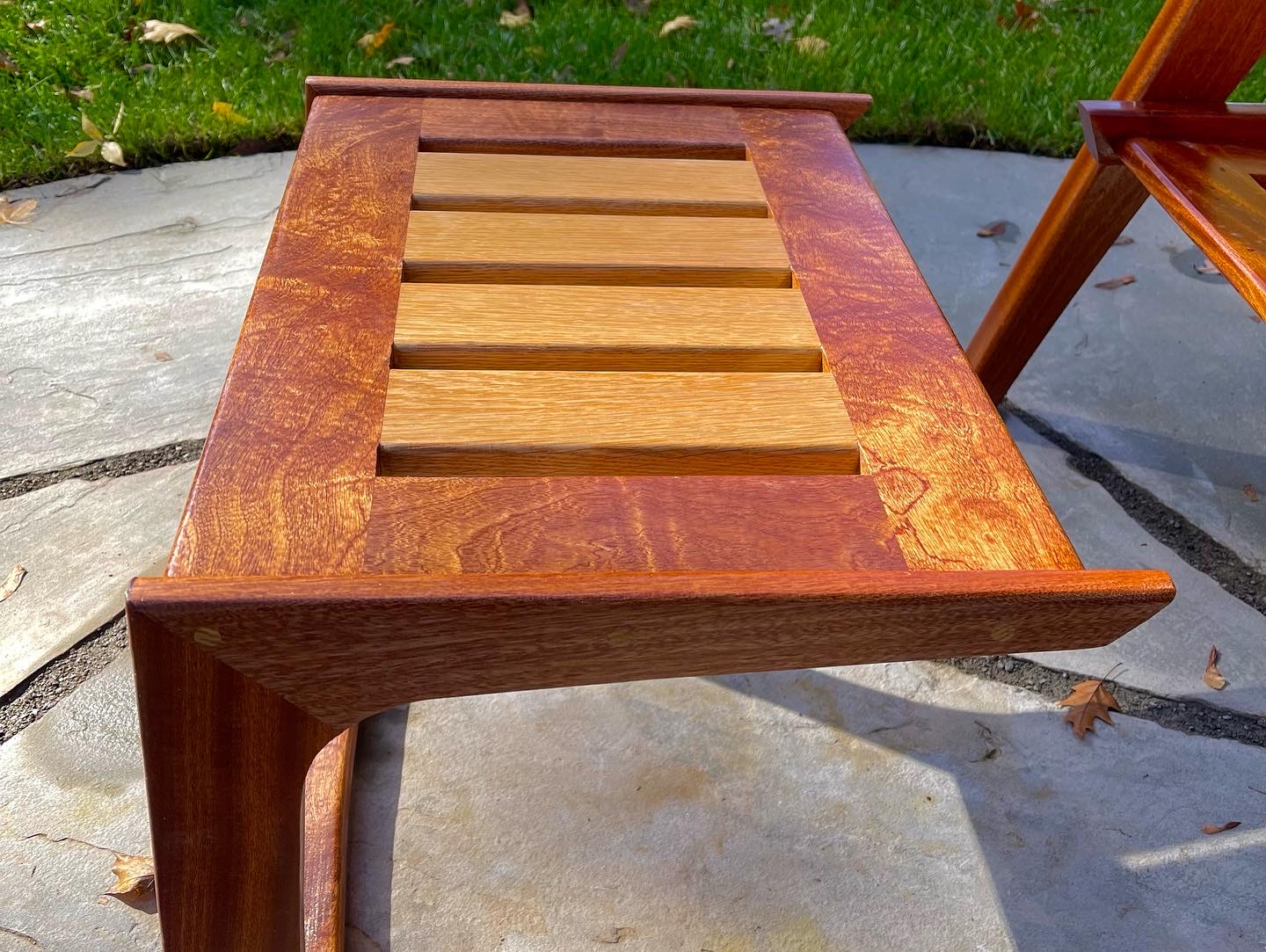

That Bubinga grain just dances. Absolutely gorgeous!

  • Like 1
Link to comment
Share on other sites

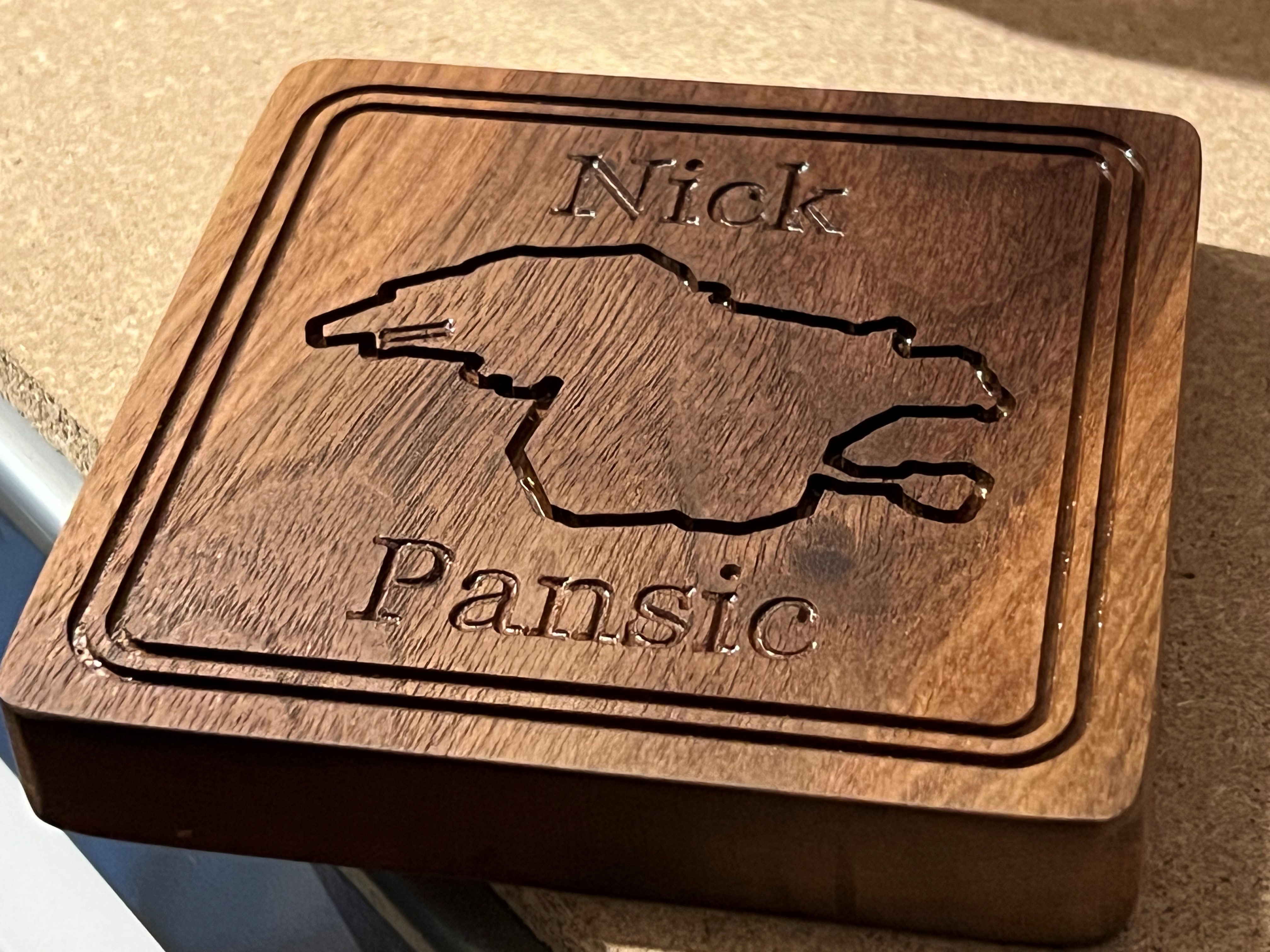

@VPIĀ - like Doug and Steve recommended, even coating and allowing for even drying will be your best defense against cupping. Ā For aesthetic purposes I usually go thinner for coasters than the above piece but that stock started 7/8ā€ thick and I could only bring myself to surface it down to 1/2ā€ (roughly) to get proportions close to what I wanted without feeling totally wasteful. Ā And if you want some super weather resilient exterior coasters with designs on them just let me know and we can laser etch some glass for you.

  • Like 2
Link to comment
Share on other sites

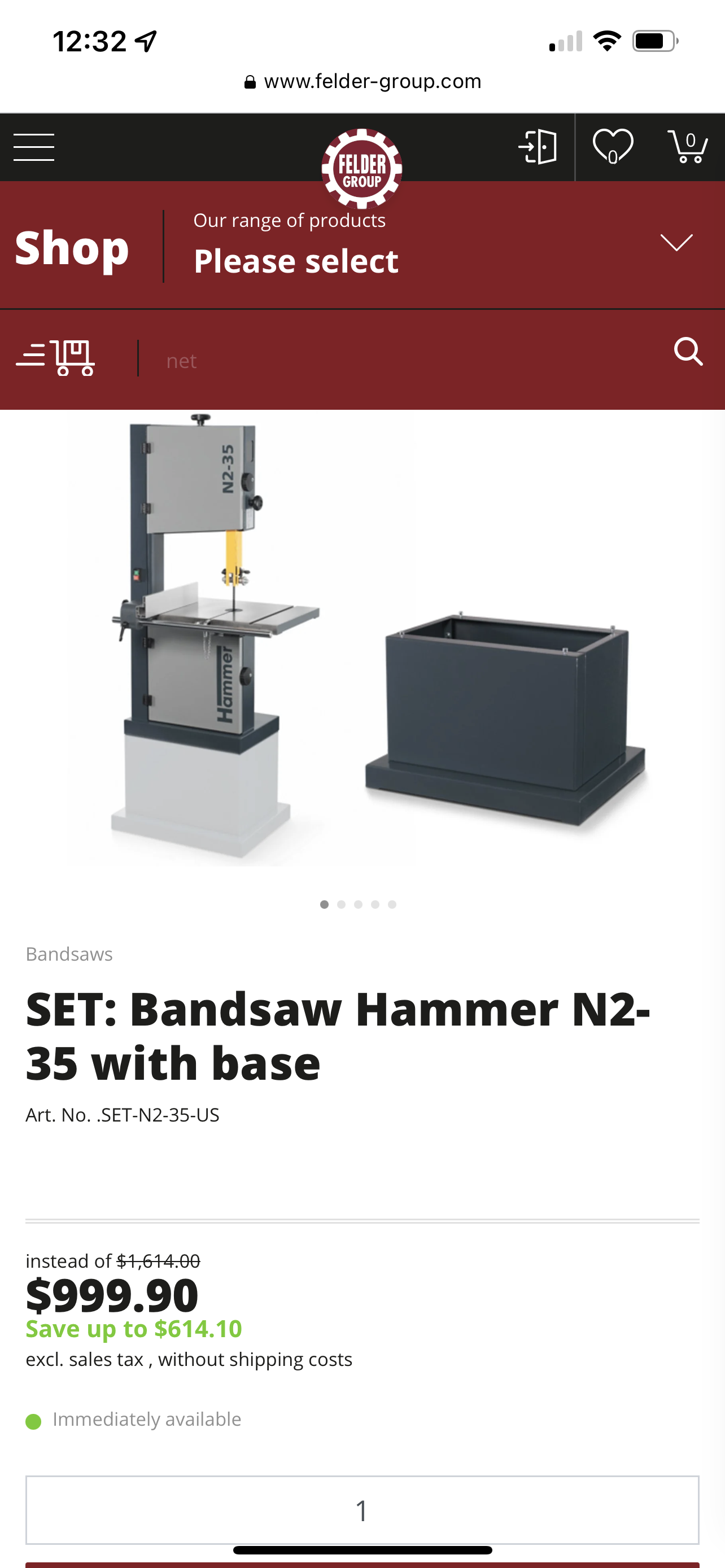

Felder has a hell of a deal on the N2-35 bandsaw. If I could come up with the room I might add it to the collection to have a resaw bandsaw and a curvy bandsaw. Bandsaw with base for $999, or without base for $1350????

Ā


Edited by VPI
  • Like 3
Link to comment
