Hints on maintaining / improving my Stax SRM-T1S

[plaurids]

Hi y'all,

Got my entry ticket into the Stax world in the beginning of 2018 with a Lambda Signature SR-407 earspeakers / SRM-T1S energizer combo. Got them from a Japanese seller and therefore I'm having to use a 100V step-down transformer for Japanese electronics here in Brazil (power outlets at home are 127V, 60 Hz). Only recently got the nerve to open the energizer to remove some dust and check the components (a bit scared of touching those big-ass 100 uF caps, but an anti-static brush and a lens cleaning blower sort of did the job).

As far as I could see, all components seem original:

• The tubes are Gold Aero 6CG7's, Stax Signature selection. I understand that Gold Aero is not really a tube brand, but they rather select NOS tubes from various different brands. The only info I could get from the tube rear is that they are 6CG7's (not the equivalent 6FQ7) made in USA. (Edit) Comparing the remaining original lettering's shape in the tube rear with pictures from Ebay tube listings pointed to the tubes having in fact been made by Sylvania, most likely in the 1950's. For example, this 1956 6CG7 tube made by Sylvania for Zenith looks exactly the same (apart from the Zenith red print replaced in my case with the Gold Aero print, of course), particularly on the inside:

  https://www.ebay.ca/itm/1956-Sylvania-Zenith-6CG7-Test-NOS-Grey-Plates-Silver-Shield-Serious-Tubes-L398/174307174026

  The tubes have grey plates with a silver center shield and a copper grid.
• The four, big 100 uF caps at the bottom right are Hitachi (CE W 85oC, 400V), but they baffle me somehow - the exact same cap brand / model looks very different in other people's SRM-T1S's pictures (usually black with aluminum / black top, unlike the bronze "unibody" ones in mine), so I wonder whether there is something special about them or if the different looks are only due to the period they were made.
• I've noticed that the Alps potentiometer is sometimes mounted in the opposite orientation elsewhere (with the PCB facing up instead of down as in mine).

My listening so far showed nothing wrong with the combo (apart from a grounding issue - see 5. below) and I've really enjoyed the experience so far - my only previous contact with electrostatics was listening to Martin Logan ESL's, but the technology has always fascinated me. However, I worry about the long-term maintenance of the energizer, considering its age and my distance from the manufacturer, so I eventually need to learn to fix it myself. I may also consider modding the energizer in the future to improve it if it stops working properly. This leads me to the following questions:

1. How do I identify tube / cap failure, apart from the glowing of the tubes? I have no experience at all in that (in due time: all 4 red LED's inside the energizer are glowing, including the one beneath the Alps potentiometer);
2. Should I need to replace the tubes in the future, which brands are most recommended for my combo? I've seen several people here in the forum recommending prioritizing Japanese brands for a better match - how do they compare to my Gold Aero (Sylvania)s?
3. Should I need to replace the electrolytic caps in the future, which brands are most recommended for my combo?
4. Do I need to worry about the long-term wearing of other components (resistors, diodes, input MOSFETs)?
5. Most likely due to the use of the step-down transformer and the fact that my apartment's power outlets are not grounded (sorry, old building), the energizer suffers from occasional humming when no signal is being fed (I use the balanced XLR inputs from a Fiio X7II DAP, which happens to have balanced output). Any ideas? Would modding the power supply help?



Edited October 9, 2020 by plaurids
added tube info, typos corrected

[thebrunx]

is there no voltage changer jumper build in your amp? normally at the back panel, or on the bottom from inside.

[thebrunx]

it has a small arrow indicating the selected voltage, you can pull the jumper out and flip it around to select the right voltage for your country.

[plaurids]

On 9/25/2020 at 9:49 AM, thebrunx said:

is there no voltage changer jumper build in your amp? normally at the back panel, or on the bottom from inside.

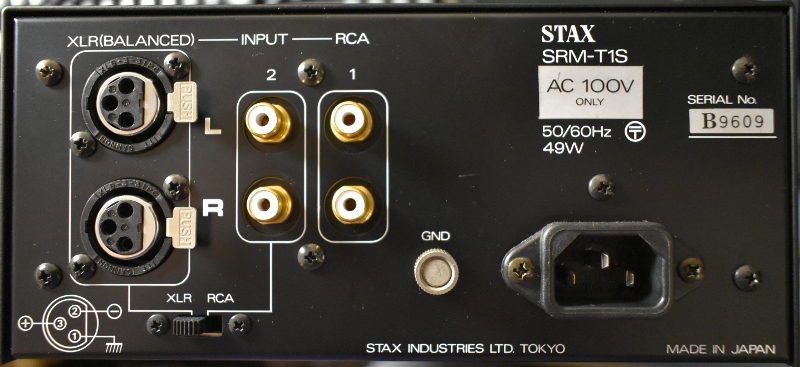

Thanks for the reply. Unfortunately, my SRM-T1S has no voltage change jumpers at all. The back panel clearly states "100V only" (50/60Hz). I wasn't expecting otherwise when I bought it (even though the manual PDF available on the internet describes a variant where voltage changes are indeed possible), so I bought the step-down transformer right after I ordered the unit. Good thing I did that...

[spritzer]

I've never seen a T1 or T1S without the voltage selector.  Have you removed the bottom panel and looked?

[plaurids]

15 hours ago, spritzer said:

I've never seen a T1 or T1S without the voltage selector.  Have you removed the bottom panel and looked?

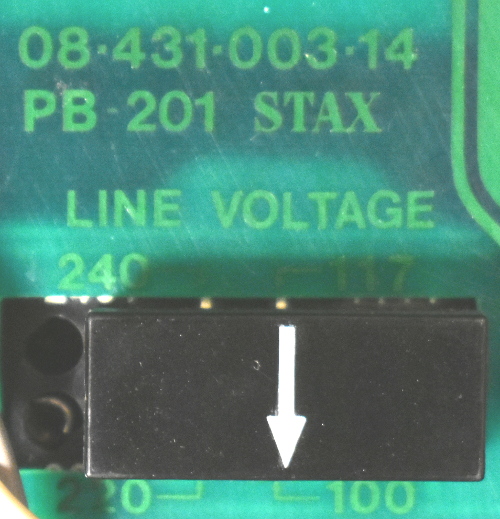

Well, what do you know? It did have a voltage selection jumper behind the bottom panel... I hadn't bothered to check the first time due to the warning in the back panel, I'd inferred it would be a fool's errand. Moreover, the manual PDF doesn't describe how to reach the voltage selection jumper. Thanks thebrunx and spritzer!

In due time: is it safe to change the jumper to (say) 117v and drop the step-down transformer for use with a 127V power outlet? Is changing the jumper enough, despite the warning at the back panel (it seems to be just a sticker on the metal back plate, but even so)? The manual says the unit has a 10% power voltage tolerance, so in my situation it seems safe to do as above, but I need to be sure.

[spritzer]

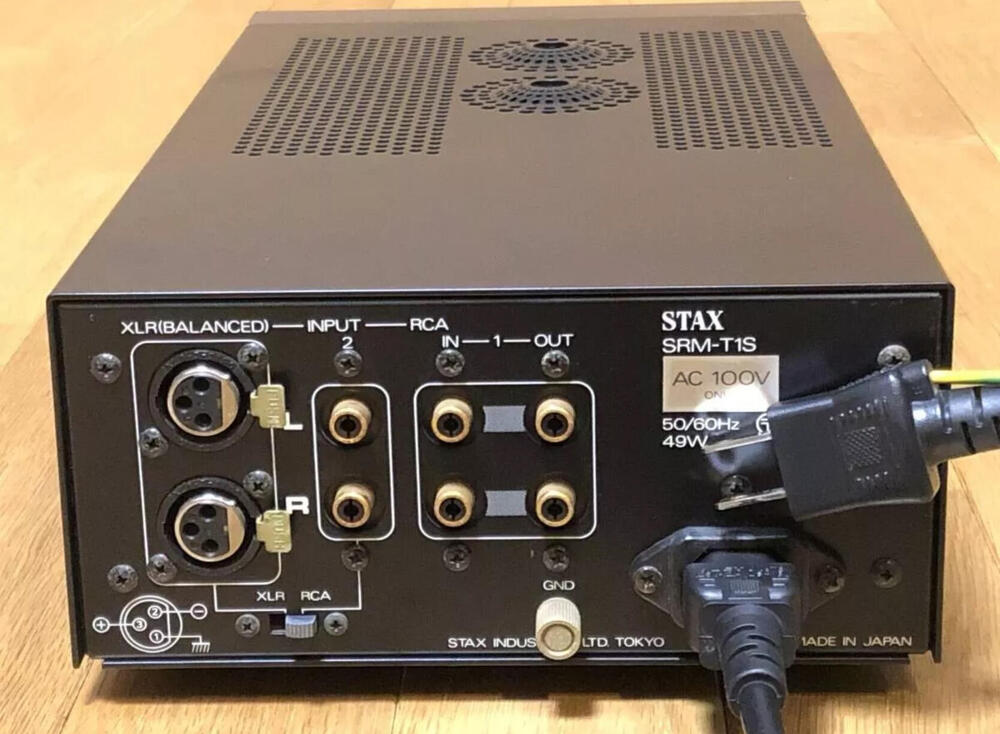

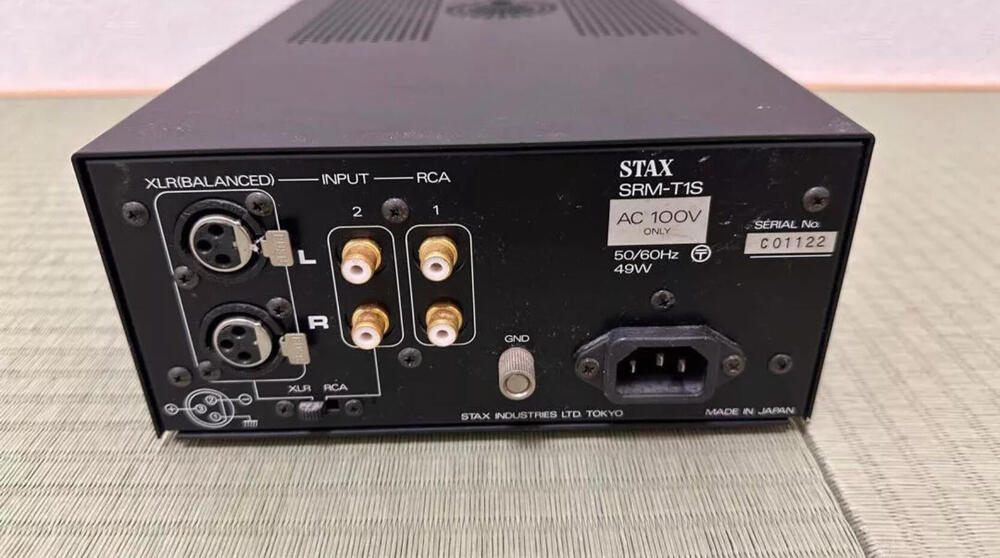

Yup, pull it out and set it to 117V and it will work perfectly.  Also, top tip... remove that 100V sticker and see what is underneath...



[plaurids]

8 hours ago, spritzer said:

Yup, pull it out and set it to 117V and it will work perfectly.  Also, top tip... remove that 100V sticker and see what is underneath...



Thanks spritzer, I think I figured out what's beneath the 100V sticker by now even without removing it, just by looking at the manual... 😁

I wonder why Stax did that... Is it because the unit was meant for sale in Japan and therefore it was pointless to provide other voltage options, but at the same time to strip the voltage selection feature from the power supply was not worth it in terms of production cost (that is, it's cheaper to slap a tiny sticker on the back of units meant for sale in Japan than to produce units with two different power supply designs)?

I understand why they kept the voltage jumper hidden under the bottom panel, though... I saw that in older SRM-T1 and SRM-T1S units this jumper was in the back (as thebrunx mentioned in his first reply above), but in this case at least a couple of the jumper slots are always exposed, which is dangerous, not to mention the possibility that the jumper may fall off or be kicked out by accident. A better solution would have been to hide the jumper behind a smaller panel, so you don't have to expose a lot of unrelated circuitry when changing voltage... I guess Stax decided to go cheap with this.

I also find a bit amusing that, from all the things I asked in the OP, this is what caught people's attention...

[spritzer]

Why Stax does anything... is always up for debate but now they have gone into full bastard mode with 100V only transformers being sold in Japan.  Not impossible to swap out the transformers but an utter pain.

[JimL]

For the electrolytic caps, if they are original they should be replaced as they are nearing, if not at the end, of their life. The most important things are the voltage rating needs to be the same or higher than the originals, and the size and lead spacing has to be similar so they will fit in the space. The brand is not really important as long as the electrical and physical parameters are similar. In some cases (i.e. the four big power caps) you can find caps with higher capacity that will fit in the same space, which can be an upgrade.

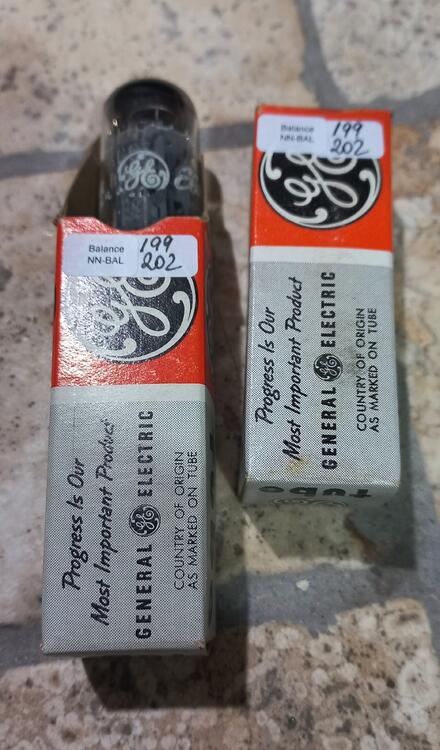

In terms of tube replacement, both Hirsch and spritzer have recommended Japanese short plate tubes as the "best" sounding. No idea how they compare with Gold Aero. You can recognize the short plates as they physically occupy slightly more than half of the glass envelope, as opposed to most 5CG7/6FQ7 tubes where the plate occupies most of the glass envelope.



Also, if you are into DIY at all, a good modification is to replace the 8 plate output resistors (the pinkish banded round cylindrical things in front of the power transformer) with 4 constant current loads. This will more than double the effective output power by eliminating the signal current wastage in the output resistors, tighten the bass, extend the highs and lower distortion.

Edited September 28, 2020 by JimL

[plaurids]

2 hours ago, JimL said:

For the electrolytic caps, if they are original they should be replaced as they are nearing, if not at the end, of their life. The most important things are the voltage rating needs to be the same or higher than the originals, and the size and lead spacing has to be similar so they will fit in the space. The brand is not really important as long as the electrical and physical parameters are similar. In some cases (i.e. the four big power caps) you can find caps with higher capacity that will fit in the same space, which can be an upgrade.



In terms of tube replacement, both Hirsch and spritzer have recommended Japanese short plate tubes as the "best" sounding. No idea how they compare with Gold Aero. You can recognize the short plates as they physically occupy slightly more than half of the glass envelope, as opposed to most 5CG7/6FQ7 tubes where the plate occupies most of the glass envelope.



Also, if you are into DIY at all, a good modification is to replace the 8 plate output resistors (the pinkish banded round cylindrical things in front of the power transformer) with 4 constant current loads. This will more than double the effective output power by eliminating the signal current wastage in the output resistors, tighten the bass, extend the highs and lower distortion.

Thanks for the reply JimL. How do I know (apart from sheer age) that the electrolytic caps are reaching the end of their lifespan, particularly in terms of sound quality? Moreover, if I replace some (or all) of the electrolytic caps, do I need to rebias the tubes, even if I manage to keep the capacitances and voltage ratings the same for the new components?

As for the tubes, the manual says that the end of service life of the output vacuum tubes is signaled by a decrease in output volume at the same volume knob adjustment. In other words, you start to feel the need to turn the volume knob to a higher level in order to reach the same volume. Is this correct? Are there other signs of tube wear?

By "short plate" tubes, do you mean like these?

https://www.ebay.com/itm/Tests-NOS-Matched-Pair-Realistic-Lifestyle-Japan-6CG7-6FQ7-2-Grey-Plate-Tubes-/123718196207

It would be interesting to know how these recommended tubes compare to the Gold Aeros (barring the brand variation within the latter)...

Finally, regarding your suggested mod (something for the future if/when the amp starts to fail on me, as I'm more of an "if it ain't broken, don't fix it" kind of guy), I reckon it's (at least related to) this one of yours...? Indeed by looking at the PCB trails it's clear that these plate output resistors are on 4 series of two resistors each.

By the way, where do you get that aluminum heat sink and those spacers? They look really nice...

Once again, thanks for the help!

[JimL]

As electrolytic caps age they have a gradual decrease in capacitance and an increase in series resistance, but it is unlikely that you can tell that by listening. At some point as it approaches its end of life, the risk of the capacitor shorting out will increase, but again until it happens I don't know of any way to determine exactly when it will happen. That's why I recommend just replacing them all as routine maintenance. Kind of like replacing the oil in your car at specified maintenance intervals. If you don't do this, you are risking a catastrophic failure if the capacitor shorts out. Better to just put in new caps - it's cheap insurance. The parts cost for replacing all the electrolytic caps is less than $50 and you don't have to worry about it again for 10-20 years. So, stop f**king around and just do it. If you don't know how to solder get an electronics technician to do it. You shouldn't have to rebias the tubes unless the caps were already going bad and the power supply voltages were already going south.



As far as the tubes go, yes, when they start to wear out, you will need to turn up the volume. Another way to tell is that you will need to adjust the bias to keep the output voltage near zero. The tubes you showed are examples of the short plate.

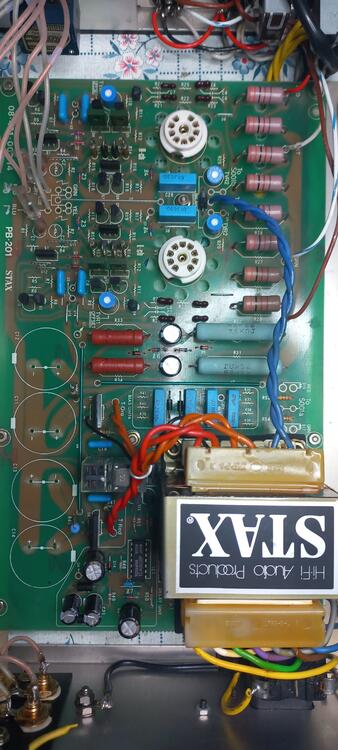

The photo does show the CCS mod. The metal spacers in the photo are available from Mouser, as are all the electronic parts including the electrolytic caps and MOSFETs. The heatsink was bought on eBay for less than $10 and was cut down to a size that would fit the space available. Note that if you do the CCS mod you likely will have to rebias the tubes - there are instructions on how to do this on the internet.

[plaurids]

44 minutes ago, JimL said:

As electrolytic caps age they have a gradual decrease in capacitance and an increase in series resistance, but it is unlikely that you can tell that by listening. At some point as it approaches its end of life, the risk of the capacitor shorting out will increase, but again until it happens I don't know of any way to determine exactly when it will happen. That's why I recommend just replacing them all as routine maintenance. Kind of like replacing the oil in your car at specified maintenance intervals. If you don't do this, you are risking a catastrophic failure if the capacitor shorts out. Better to just put in new caps - it's cheap insurance. The parts cost for replacing all the electrolytic caps is less than $50 and you don't have to worry about it again for 10-20 years. So, stop f**king around and just do it. If you don't know how to solder get an electronics technician to do it. You shouldn't have to rebias the tubes unless the caps were already going bad and the power supply voltages were already going south.



As far as the tubes go, yes, when they start to wear out, you will need to turn up the volume. Another way to tell is that you will need to adjust the bias to keep the output voltage near zero. The tubes you showed are examples of the short plate.



The photo does show the CCS mod. The metal spacers in the photo are available from Mouser, as are all the electronic parts including the electrolytic caps and MOSFETs. The heatsink was bought on eBay for less than $10 and was cut down to a size that would fit the space available. Note that if you do the CCS mod you likely will have to rebias the tubes - there are instructions on how to do this on the internet.

I see... If that's the case I have no problem with (de)soldering components on a PCB and I do have the necessary tools (fine soldering iron, standard multimeter). Do you have any particular brand/model recommendation for the electrolytic caps, apart from your previous voltage rating / size / lead spacing instructions? For instance, are the choices made in this particular recap example OK? (granted it's a SRM-T1, not a SRM-T1S, but it's also a B-type serial number like mine and the PCB arrangement looks similar - I'll have to check my precise cap parameters, of course)

https://www.head-fi.org/threads/stax-srm-t1-repair-re-cap-mod.796058/

You've also mentioned that the four big power caps (100uF / 400V) can nowadays be found with higher capacitances but with the same physical size. Is it safe to do such an upgrade? What kind of benefits may I get from using these?

By the way, a safety tip request: for how long should I keep the amp turned off in order to sufficiently discharge the caps so it's safe to touch the circuit?

Regarding the tube wear signs, does this mean that if I check the tube bias without changing any components the bias should drift from zero over time? If that's the case, I suppose it's good form to at least check the tube bias a few times along a certain time period (days? weeks?) after recapping. I've found instructions on how to rebias the SRM-T1(S) here:

https://www.head-fi.org/threads/biasing-stax-srm-t1.324155/

Finally, as for your CCS mod, in the thread I quoted in my previous post you and others discuss possible improvements to it. What is the current status of the circuit over your July 2017 AudioXpress article, and where can I find the last version's schematics?

Anyway, thanks again!

[JimL]

No particular brand recommendations. It is safe to install a larger capacitance as long as the voltage and size specifications are maintained. Larger capacitance is similar to slightly stabilizing the power supply voltages and allows the circuit to work a bit better.



The amp should be off long enough to discharge the power supply caps, which you can check by measuring the residual voltages on the power supply caps - as long as there are only a few volts left you are fine.



Note that because of variations in the AC line voltage and heat drift, there is going to be some change in the output voltage on the order of a few volts over a few minutes time.



The circuit is pretty stable and designed for long tube life, so checking the bias a couple times a year is probably adequate.



The CCS mod is fine as published, the only changes are additions of 5.1 megohm safety resistors to the bias outputs after the last bias capacitor, which was left out of the original article.

[plaurids]

On 9/29/2020 at 5:59 PM, JimL said:

No particular brand recommendations. It is safe to install a larger capacitance as long as the voltage and size specifications are maintained. Larger capacitance is similar to slightly stabilizing the power supply voltages and allows the circuit to work a bit better.



The amp should be off long enough to discharge the power supply caps, which you can check by measuring the residual voltages on the power supply caps - as long as there are only a few volts left you are fine.



Note that because of variations in the AC line voltage and heat drift, there is going to be some change in the output voltage on the order of a few volts over a few minutes time.



The circuit is pretty stable and designed for long tube life, so checking the bias a couple times a year is probably adequate.



The CCS mod is fine as published, the only changes are additions of 5.1 megohm safety resistors to the bias outputs after the last bias capacitor, which was left out of the original article.

OK, so for example, if I replace the four big 100 uF, 400V, 85oC power caps by, say, 330uF, 400V, 105oC caps with compatible physical dimensions, the amp should be fine, yes? Does the same apply to the other electrolytic caps?

Another thing: I've noticed on the Mouser website that some cap brands (e.g. Nichicon) have so-called "audio grade" capacitors:

https://br.mouser.com/ProductDetail/Nichicon/LKX2G181MESA50?qs=TI%2F9gtmDCEEsSiejfUzVag%3D%3D

Is there any real sonic advantage in using these, or is it just marketing? What I can tell is that the "audio grade" caps usually have smaller leakage / ripple currents and smaller dissipation factors than their similarly spec'd, non-"audio-grade" counterparts (and are more expensive, of course).

Regarding the safety resistors, the last bias capacitors for each channel would be the two middle blue ones right in front of the transformer, correct? If so, this means these safety resistors could be put e.g. at the PCB tips of the blue / gray wires (which in my unit leave the PCB from its bottom), as it seems to be done in this (German) implementation of your CCS mod:

http://blog.prof-x.de/2018/08/08/stax-vacuum-tube-driver-teil-2-technische-ueberholung/

By the way, here the author also includes 5.11 kOhm 350V 2W safety resistors at the outputs, which is another improvement you suggested here:

https://www.head-fi.org/threads/stax-srm-t1-repair-re-cap-mod.796058/page-2#post-14276400

Can these safety resistors be included into the circuit with benefit independently of the CCS mod, or should both mods be done together? I'm asking you this because adding the safety resistors seems simple enough, whereas doing the CCS mod will take me some time, especially because I'm still quarantined due to COVID-19 and doing this without ordering a custom PCB will be messy. Something I may try to do is to use a small perforated PTFE plate and hand connect everything with PTFE-insulated silver wire to withstand the heat coming from the MOSFETs, but this will probably take even longer.

[plaurids]

By the way, if one of the TVR pots goes bad during rebiasing and needs replacement, which are the part characteristics (power rating, tolerance, etc.), apart from having 2k Ohms (total) resistance (according to the schematic)? Thanks

[Pars]

I'd steer clear of the "audio" grade caps and go for good 105C rated ones (Panasonic, Nichicon, UCC, etc.). I can't help with your other questions.

[Fitz]

My experience with "audio grade" electrolytic capacitors is they've been intended for circuits where they're directly in the signal path as coupling capactiors, which is avoided in the first place with a good design.

[plaurids]

17 hours ago, Fitz said:

My experience with "audio grade" electrolytic capacitors is they've been intended for circuits where they're directly in the signal path as coupling capactiors, which is avoided in the first place with a good design.

That makes sense... I'm (clearly) not that familiar with power amplifier designs (something I'm currently trying to overcome) but I did help my father build a couple of passive loudspeaker crossovers back in the day, and electrolytic caps were a big no-no in such devices if you sought quality sound (he used big polyester / polypropylene caps). I guess this is a general principle...

As far as I could understand from the SRM-T1(S)'s schematic, all of its electrolytic caps are in the power supply stage. So no such cap is used in this design for coupling, right? On the other hand, I've also seen "audio grade" electrolytic caps explicitly meant for use in (audio equipment) power supplies (e.g. the four big 400V ones). Do these make any difference in the sound quality?

[JimL]

The safety resistors are a good idea even without the CCS mod. The easiest place to put them is at the PCB board - just de-solder the wire going to the output socket at the PCB and interpose the safety resistor between the PCB hole and the wire.



Agree with Pars and Fitz comments re electrolytic caps. Replacing 100 uf caps with 330 uf caps should be fine as long as they physically fit - that includes the lead spacing, since the power supply caps are right up against the PCB so the lead spacing has to be the same. The brand shouldn't make a significant difference in sound unless they are defective.

[plaurids]

5 hours ago, JimL said:

The safety resistors are a good idea even without the CCS mod. The easiest place to put them is at the PCB board - just de-solder the wire going to the output socket at the PCB and interpose the safety resistor between the PCB hole and the wire.



Agree with Pars and Fitz comments re electrolytic caps. Replacing 100 uf caps with 330 uf caps should be fine as long as they physically fit - that includes the lead spacing, since the power supply caps are right up against the PCB so the lead spacing has to be the same. The brand shouldn't make a significant difference in sound unless they are defective.

Thanks again JimL, I've measured the lead spacing of the big snap-in power caps (100 uF, 400V) and it seems to be 12,5mm, but I've seen people saying that in this particular case snap-in caps with 10mm lead spacing should also fit because the holes in the PCB are wide enough to allow for such lead spacing (indeed, there is a lot of solder in those holes). I don't think the other dimensions will be a problem.

Do you know the remaining specs of the bias adjustment trimpots (power rating, tolerance) apart from its maximum resistance (2 kOhm)? I couldn't find that in the schematic, and I need to know which part to buy in case one of them goes bad during rebiasing.

[thebrunx]

when I changed the caps on my T1 (not T1S), I remember the original caps did not have the leads symmetrically center oriented like the caps they make nowadays (Weird). Because of this, I needed caps with a smaller diameter than the original for them to all fit in together.

[plaurids]

2 hours ago, thebrunx said:

when I changed the caps on my T1 (not T1S), I remember the original caps did not have the leads symmetrically center oriented like the caps they make nowadays (Weird). Because of this, I needed caps with a smaller diameter than the original for them to all fit in together.

Hmm... Do you mean just the four big snap-in caps, or all ten of them?

[JimL]

The required wattage for the bias trimpots can be calculated easily. For the trimpots, the current is approximately 10 mA (approximately 5 mA per tube section), and the resistance is 2 kilohms, so the maximum power through them is I*I*R = (.01)*(.01)*2k = 0.2 watts. Using the rule of thirds, this means that any trimpot that is rated at 0.6 watts or more is fine.

Edited October 3, 2020 by JimL

[plaurids]

1 hour ago, JimL said:

The required wattage for the bias trimpots can be calculated easily. For the trimpots, the current is approximately 10 mA (approximately 5 mA per tube section), and the resistance is 2 kilohms, so the maximum power through them is I*I*R = (.01)*(.01)*2k = 0.2 watts. Using the rule of thirds, this means that any trimpot that is rated at 0.6 watts or more is fine.

Ok, indeed I didn't know the current through the bias trimpots either... Thanks!
