Pars Posted September 16, 2016 Report Share Posted September 16, 2016 (edited) No. Footprint isn't close to the CP2500. Edit: BTW, anyone have a datasheet for the quad RK27? Can't find one, and Alps barely acknowledges they do a quad version of the RK27 (RK27114). Edited September 16, 2016 by Pars Quote Link to comment Share on other sites More sharing options...
UFN Posted September 17, 2016 Report Share Posted September 17, 2016 http://www.familygate.eu/alps/PDF/RK27114_10KDX4.pdf //UFN Quote Link to comment Share on other sites More sharing options...
Pars Posted September 17, 2016 Report Share Posted September 17, 2016 (edited) hanks UFN! I did a layout that supports all 3 pots (4CP601, 4CP2500 and Alps RK27114). Similarly to Birgir's layout, this one would allow cutting to support a stereo pot if desired. 46.5 x 35.2 dimension Edited September 18, 2016 by Pars dimensions, new image 1 Quote Link to comment Share on other sites More sharing options...
Pars Posted September 22, 2016 Report Share Posted September 22, 2016 (edited) Still waiting for seeed to get back to Michael or I regarding any problems with the board, but based on some feedback/suggestions on an eagle support forum, this should be close to final. I placed the Molex/Phoenix jacks right on top of one another, which is the way I do it when I add these to an existing board. Slots are now filled rectangles rather than hollow rectangles, so should be easier for seeed to figure them out. For the bad pin overlap on row 3 of the Alps and row 4 of the CP601 center pins, I added a milled round slot and rectangular pads to top/bottom. For the overlap on row 1 center pins of the CP2500/Alps RK27, I added a milled slot. Board is 46.6 x 35.4 mm. I also redid the 4CP601 only board with the overlapping connectors. Of course I'm probably the only one who cares about these far superior connectors Edited September 22, 2016 by Pars Quote Link to comment Share on other sites More sharing options...
mwl168 Posted September 22, 2016 Author Report Share Posted September 22, 2016 We will offer this new board along side the 4CP601-only and 4CP601/4CP2500 boards as a third option if there is enough interest. Please state your interest here in the thread and I'll ask MLA to add another column to the spreadsheet if necessary. Quote Link to comment Share on other sites More sharing options...
sbelyo Posted September 22, 2016 Report Share Posted September 22, 2016 (edited) Since this does all three, I'm in. I started a group buy that included KG's alpsquad3 board so I'll cancel/drop that board if this gets offered. I need 4 as well as one other person needing 2 so that makes 6 I wish I was thinking about this last month, I could've got in on the pots... Dang, maybe someone will sell me one or there will be a second round. One can only hope Edited September 22, 2016 by sbelyo Quote Link to comment Share on other sites More sharing options...
Pars Posted September 23, 2016 Report Share Posted September 23, 2016 (edited) I'm still waiting to hear from seeed regarding any issues with the slots and drill holes. I really don't know why someone would want the 2 TKD pot only board when the one that does all 3 is the same size/price. Also, I haven't updated that board in a few days. As for channel / gang mapping on the pots, this version only swaps gangs 3 and 4 on the RK27 (ch 3 goes thru gang 4, ch 4 thru gang 3 of the pot). Otherwise, straight ch # to gang #. Edited September 23, 2016 by Pars Quote Link to comment Share on other sites More sharing options...
cspirou Posted September 23, 2016 Report Share Posted September 23, 2016 I'm too late for the pots but I would like to join in for the boards including the RK27. I tried to add my name to the sheet but it wouldn't allow me to edit. Could @MLA add my name in and interest for 3 of the three pot boards? Quote Link to comment Share on other sites More sharing options...
MLA Posted September 24, 2016 Report Share Posted September 24, 2016 (edited) Will do but travelling at the moment, so will fix that when I get to a proper computer.... Update: Done. Edited September 25, 2016 by MLA Done Quote Link to comment Share on other sites More sharing options...
sbelyo Posted September 24, 2016 Report Share Posted September 24, 2016 (edited) On 9/22/2016 at 11:05 PM, Pars said: As for channel / gang mapping on the pots, this version only swaps gangs 3 and 4 on the RK27 (ch 3 goes thru gang 4, ch 4 thru gang 3 of the pot). Otherwise, straight ch # to gang #. If using the RK27 do I need to wire anything differently? I'm thinking it doesn't really matter right? What are the chances of doing a second round on the pots. From what I read on them, I want to try them Edited September 24, 2016 by sbelyo Quote Link to comment Share on other sites More sharing options...
Pars Posted September 24, 2016 Report Share Posted September 24, 2016 Nope. Wire as labeled on the board I1-I4, so normally L+/L-/R+/R-. O1-O4 go to the board inputs in the same manner. Or be different and do R/L Quote Link to comment Share on other sites More sharing options...
Pars Posted September 25, 2016 Report Share Posted September 25, 2016 After confirming the pinout of the Alpha 4-gang pot, I don't see any way of integrating this into the 3-pot board. The 2nd row of pins (tap) from the left are electrically active, so cannot touch any existing pad on the board. No way to do it in my playing around with the board, short of giving it its own space on the board. Add to this the difficulty in sourcing the part. I am going to go with what I have, and will generate what I hope are the final gerbers in the next couple of days. Seeed has not responded to my email, so hopefully they are fine with the slots for the 16 pins on the 4CP2500, and fine with the additional 2 slots to mitigate drill overlaps. Slots should be cut before any other steps on the board, including drilling. All slots need to be thru-plated, so Michael, please note that to Seeed when you place the order(s). Quote Link to comment Share on other sites More sharing options...
mwl168 Posted September 26, 2016 Author Report Share Posted September 26, 2016 Will do. Hopefully Seeed will respond to your e-mail now that weekend is over. Quote Link to comment Share on other sites More sharing options...
sbelyo Posted September 29, 2016 Report Share Posted September 29, 2016 I'm in for three of Pars's boards. Can you edit the spreadsheet when you have a chance Quote Link to comment Share on other sites More sharing options...
gwrskien Posted September 29, 2016 Report Share Posted September 29, 2016 Please put me down for 3 Pars pcb`s also. Is there a price estimate for theese? Quote Link to comment Share on other sites More sharing options...

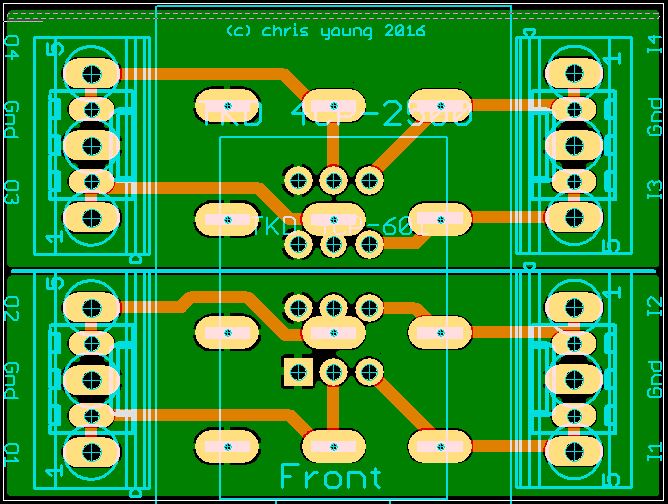

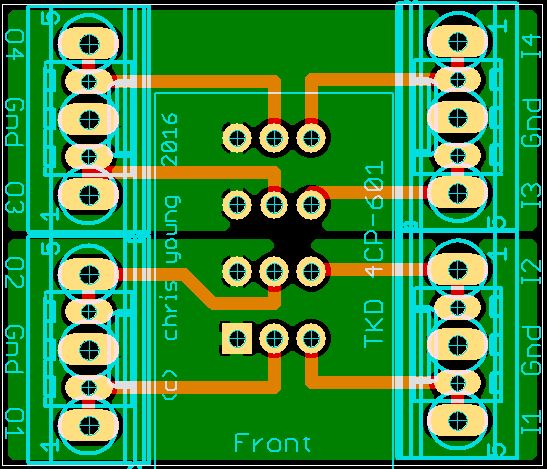

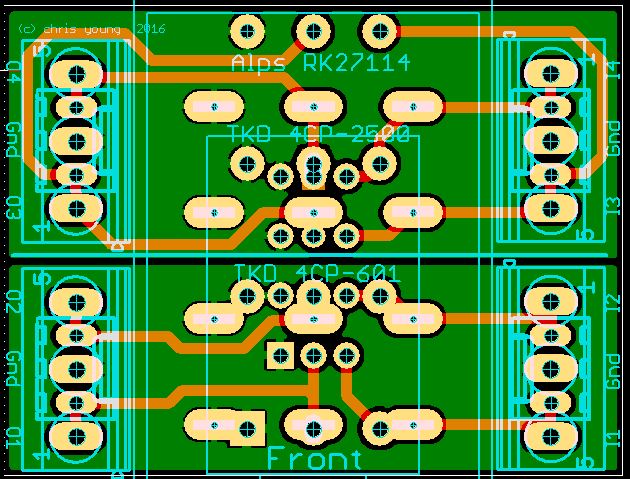

mwl168 Posted September 30, 2016 Author Report Share Posted September 30, 2016 Update on the PCB part of this GB: Pars has sent me final versions of the three boards (4CP601-only, 4CP601/4CP2500 and 4CP601/4CP2500/Als RK27). We are both waiting for Seeed's response to our inquiries of the rectangular plate-through holes. I plan to place the order for the boards to be made next week. Please use the spreadsheet in the 2nd post on this thread from MLA to specify your interest. below are the images of the boards: Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted October 1, 2016 Report Share Posted October 1, 2016 pcbway supports plated slots. Quote Link to comment Share on other sites More sharing options...
palchiu Posted October 1, 2016 Report Share Posted October 1, 2016 Spreadsheet is locked. May MLA help to unlock it? Quote Link to comment Share on other sites More sharing options...
MLA Posted October 1, 2016 Report Share Posted October 1, 2016 (edited) On 2016-09-29 at 2:48 PM, sbelyo said: I'm in for three of Pars's boards. Can you edit the spreadsheet when you have a chance Spreadsheet now has more editable lines. I've put your HC id in, so please add your number to the board type you want in the spreadsheet. On 2016-09-29 at 10:37 PM, gwrskien said: Please put me down for 3 Pars pcb`s also. Is there a price estimate for theese? I've put your HC id in the spreadsheet, so please put your 3 in the board column you prefer. No exact price estimate yet, but 3-4 USD a piece would be a guess... 2 hours ago, palchiu said: Spreadsheet is locked. May MLA help to unlock it? Your HC id is in now, too, so please fill in board type and numbers. For others who want boards; the name column will remain locked since I don't want to mess up the pot part of the GB in the spreadsheet. If you want boards, just send me your HC id and I'll add you to the name column, after which you can state type and number in the board columns. Edited October 1, 2016 by MLA Quote Link to comment Share on other sites More sharing options...
gwrskien Posted October 1, 2016 Report Share Posted October 1, 2016 It seems i can`t edit colum "h", "f" and "g" are good, and i can edit there.. And i am listed twice.. Quote Link to comment Share on other sites More sharing options...
MLA Posted October 1, 2016 Report Share Posted October 1, 2016 Interesting... Will fix when I get home tonight, editing google docs on the phone is obviously not my thing Quote Link to comment Share on other sites More sharing options...
Pars Posted October 1, 2016 Report Share Posted October 1, 2016 Yep, same here. Can edit f and g, but not h. Put me down for 3 of the all 3 pcbs (column h) Quote Link to comment Share on other sites More sharing options...
MLA Posted October 1, 2016 Report Share Posted October 1, 2016 13 hours ago, gwrskien said: It seems i can`t edit colum "h", "f" and "g" are good, and i can edit there.. And i am listed twice.. Now column H should be possible to edit, and I've removed your unintended twin 2 hours ago, Pars said: Yep, same here. Can edit f and g, but not h. Put me down for 3 of the all 3 pcbs (column h) Done. Quote Link to comment Share on other sites More sharing options...
cspirou Posted October 4, 2016 Report Share Posted October 4, 2016 I'm sure most people here know but if you missed out on this GB I have my own I am organizing here. If there is a TKD product that isn't listed just let me know and I'll add it. Quote Link to comment Share on other sites More sharing options...
mwl168 Posted October 6, 2016 Author Report Share Posted October 6, 2016 Pars has sent me final versions of the three boards (4CP601-only, 4CP601/4CP2500 and 4CP601/4CP2500/Als RK27). We are both waiting for Seeed's response to our inquiries of the rectangular plate-through holes. I plan to place the order for the boards to be made next week. I am opting for the 1.6mm thick and 2oz copper boards as previously stated. Pars shrank the board size since early on so now all the boards will be $3 USD each. Please update/finalize your board quantities on the spreadsheet before end of this coming weekend. I will be placing our order next week. Please PayPal me the board cost using the account below and remember to include PayPal fee if you choose not to use the PayPal gift option. Quote Link to comment Share on other sites More sharing options...
