mwl168 Posted August 11, 2016 Report Share Posted August 11, 2016 (edited) Hi All: I inquired TKD Japan directly about their 4-gang volume pot 4CP-601 and they referred me to their US distributor. Long story short, looks like I can get the 10K pot for $65 a piece plus shipping. The cost may be slightly lower if total quantity is high. I am still working out some detail information. Any interest? Edited August 23, 2016 by mwl168 Quote Link to comment Share on other sites More sharing options...
MLA Posted August 11, 2016 Report Share Posted August 11, 2016 (edited) For those new to the thread: there is enough interest, so a GB will take place. State you interest in the GB INTEREST SPREADSHEET (link below) https://docs.google.com/spreadsheets/d/1O_LNaSDBViihkC0dNcYe46SqjOwteiTFmRmuXMRY4fA/edit?usp=sharing The POTs section of this GB is now officially closed. Entries for pot boards (type and quantity) can still be updated and edited. Edited September 2, 2016 by MLA Closing time for GB Quote Link to comment Share on other sites More sharing options...
mwl168 Posted August 11, 2016 Author Report Share Posted August 11, 2016 1 hour ago, MLA said: If there is interest, bulk ordering from Sweden and then shipping out might be an option... I think this will be the way to go if there are enough interest in the US. TKD Japan did not give me the option to buy directly from them probably because they now have an US distributor. According to the US distributor, we cannot even get close to the $42 unit price even with 100 units. Quote Link to comment Share on other sites More sharing options...
chiguy Posted August 11, 2016 Report Share Posted August 11, 2016 I'd be interested in some if a group buy comes together. Quote Link to comment Share on other sites More sharing options...
gepardcv Posted August 11, 2016 Report Share Posted August 11, 2016 (edited) I'm interested, too. (Though I don't need very many — probably 3 or so.) I paid something like 4500 JPY apiece when I ordered these from Japan about a year ago, but (1) the JPY rose by like 20% since then against the USD, (2) that doesn't include shipping or the deputy service commission. At today's exchange rate, 65 USD without shipping but including commission looks about right. Edit: One more thing — I only want 10k pots, but maybe other people want 50k? Edited August 11, 2016 by gepardcv Quote Link to comment Share on other sites More sharing options...
Pars Posted August 11, 2016 Report Share Posted August 11, 2016 I'd be interested in 1 in 10K, maybe more. Quote Link to comment Share on other sites More sharing options...
s_r Posted August 12, 2016 Report Share Posted August 12, 2016 Interested as well. Possibly only a few 10k pots though. Quote Link to comment Share on other sites More sharing options...
Laowei Posted August 12, 2016 Report Share Posted August 12, 2016 Interested in one 10K. Quote Link to comment Share on other sites More sharing options...
MLA Posted August 12, 2016 Report Share Posted August 12, 2016 (edited) 8 hours ago, gepardcv said: I'm interested, too. (Though I don't need very many — probably 3 or so.) I paid something like 4500 JPY apiece when I ordered these from Japan about a year ago, but (1) the JPY rose by like 20% since then against the USD, (2) that doesn't include shipping or the deputy service commission. At today's exchange rate, 65 USD without shipping but including commission looks about right. Edit: One more thing — I only want 10k pots, but maybe other people want 50k? Interesting, I paid 3200 JPY a piece in April this year, plus another 2900 for the shipping. 10K would be my preference. Edited August 12, 2016 by MLA Quote Link to comment Share on other sites More sharing options...
judo Posted August 12, 2016 Report Share Posted August 12, 2016 one 10k too Quote Link to comment Share on other sites More sharing options...
mwl168 Posted August 12, 2016 Author Report Share Posted August 12, 2016 Are people also interested in having a custom PCB for mounting the volume pot if we proceed with a GB? Quote Link to comment Share on other sites More sharing options...
GeorgeP Posted August 12, 2016 Report Share Posted August 12, 2016 yes. Unless you use connectors (3-pin or 2-pin do fit perfectly), you don't want to directly solder these. Quote Link to comment Share on other sites More sharing options...
eggil Posted August 12, 2016 Report Share Posted August 12, 2016 (edited) I am interested in 2 units as well as the PCB units, similar to the ones Spritzer has sold before, I assume? Edited August 12, 2016 by eggil Quote Link to comment Share on other sites More sharing options...
s_r Posted August 12, 2016 Report Share Posted August 12, 2016 PCBs to go along with the pots would certainly make sense. I'd prefer the type of PCB with a separate ground pin for each channel. Makes wiring slightly easier (although it is a bit larger than the PCBs spritzer is selling now). Quote Link to comment Share on other sites More sharing options...
mwl168 Posted August 13, 2016 Author Report Share Posted August 13, 2016 I think we have enough interest to warrant a GB. I am working with MLA to confirm availability and cost. Re: the PCB, I think we should make it versatile in utility, minimizing the board size would be the second priority. Does anyone have the means and know-how to layout the PCB and create the Gerber file? Below is the link to the datasheet which includes the dimension information. http://www.tkd-corp.com/products/att/pdf/cp600as-e.pdf Quote Link to comment Share on other sites More sharing options...
DefQon Posted August 13, 2016 Report Share Posted August 13, 2016 If you are able to get some 50k and even 100k I'm interested. Quote Link to comment Share on other sites More sharing options...
Pars Posted August 13, 2016 Report Share Posted August 13, 2016 2 hours ago, mwl168 said: I think we have enough interest to warrant a GB. I am working with MLA to confirm availability and cost. Re: the PCB, I think we should make it versatile in utility, minimizing the board size would be the second priority. Does anyone have the means and know-how to layout the PCB and create the Gerber file? Below is the link to the datasheet which includes the dimension information. http://www.tkd-corp.com/products/att/pdf/cp600as-e.pdf I could do it. That way I would get my 0.100" Molex connector footprints as well 1 Quote Link to comment Share on other sites More sharing options...
mwl168 Posted August 13, 2016 Author Report Share Posted August 13, 2016 21 minutes ago, Pars said: I could do it. That way I would get my 0.100" Molex connector footprints as well Thanks Pars! That would be great. Quote Link to comment Share on other sites More sharing options...
UFN Posted August 14, 2016 Report Share Posted August 14, 2016 Tentatively interested in 2 or 3 pcs. 10k. //UFN Quote Link to comment Share on other sites More sharing options...
gepardcv Posted August 14, 2016 Report Share Posted August 14, 2016 On August 12, 2016 at 5:50 PM, mwl168 said: Re: the PCB, I think we should make it versatile in utility, minimizing the board size would be the second priority. Why not use alpsquad2 or alpsquad3 from Kevin's site? I don't know the difference between those two, but they fit the Alps RK27 and the TKD 4CP-601. (The one on Birgir's DIY supplies page is smaller and TKD-only, but I don't think Gerbers for it are available.) Quote Link to comment Share on other sites More sharing options...

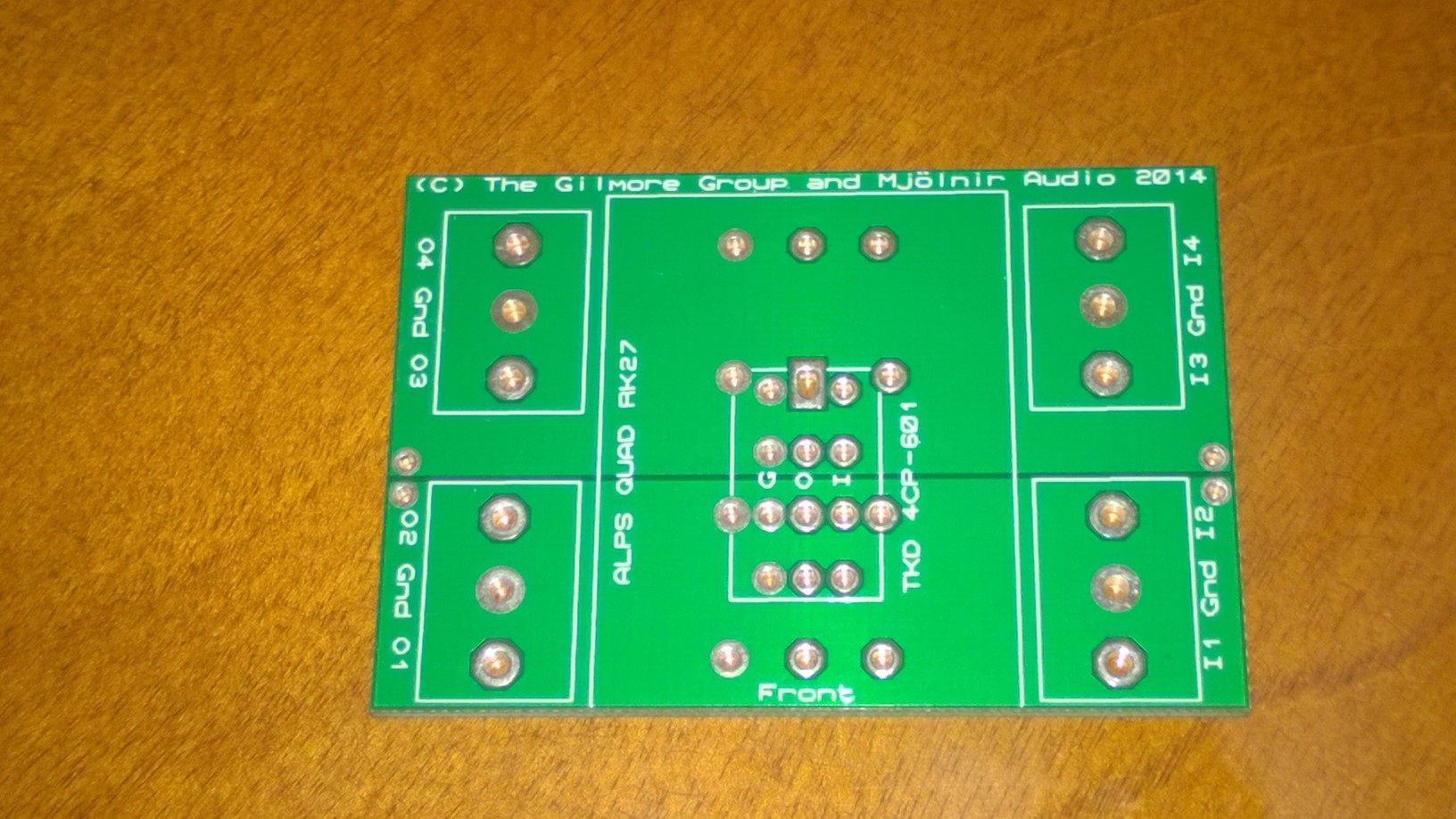

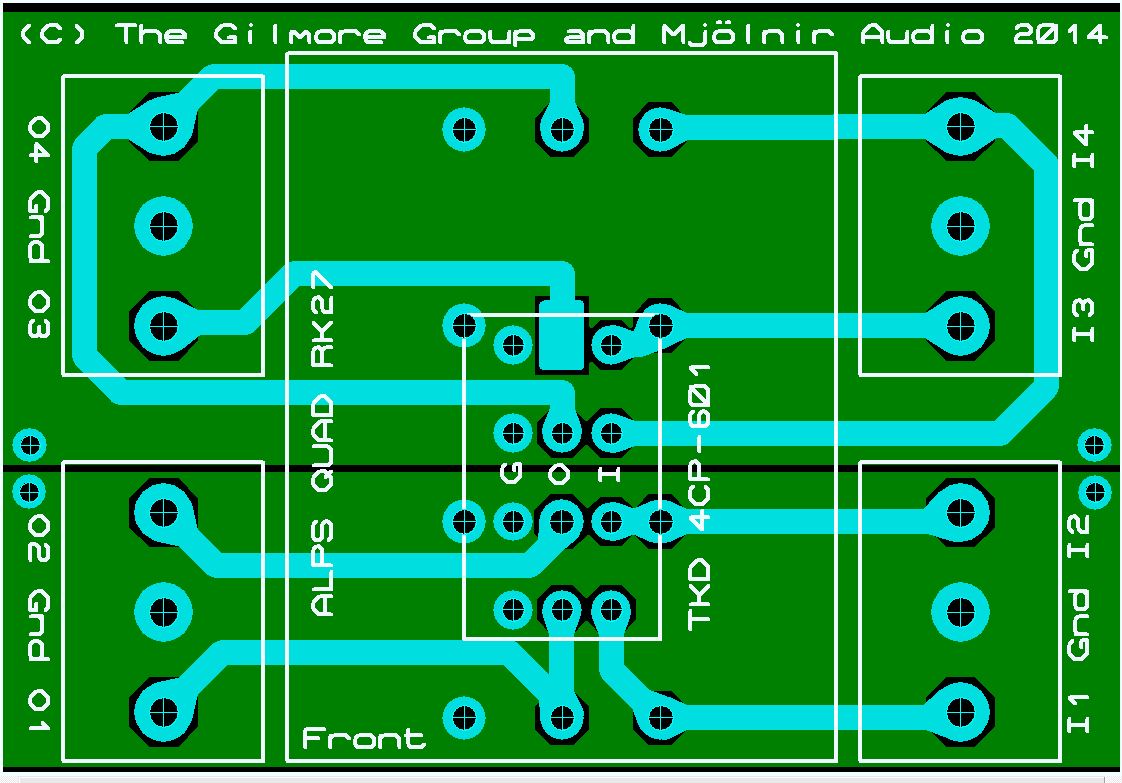

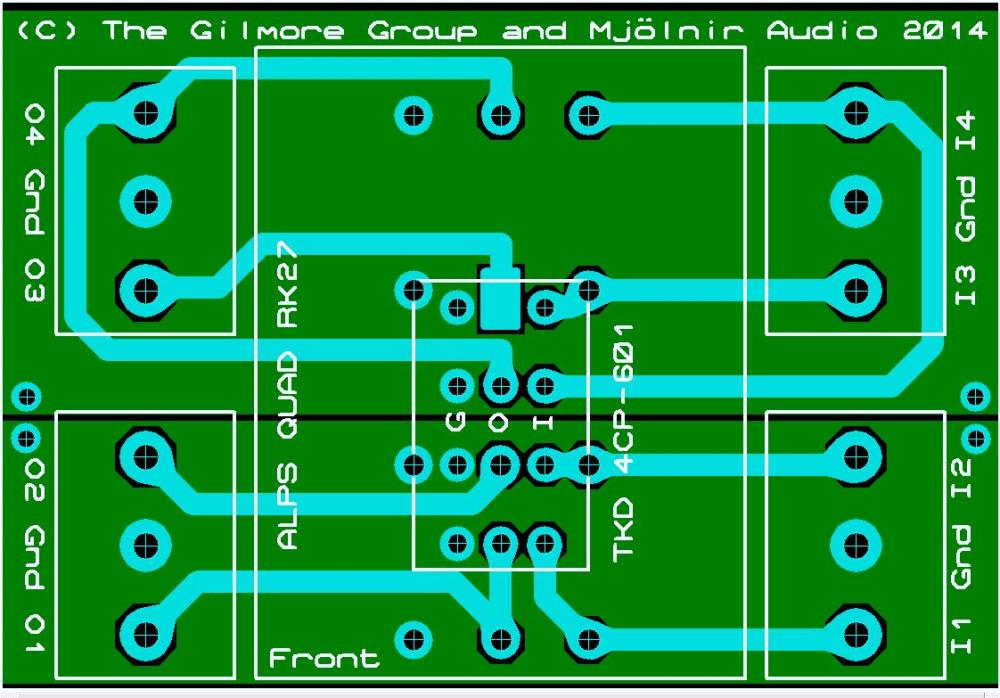

GeorgeP Posted August 14, 2016 Report Share Posted August 14, 2016 2 hours ago, gepardcv said: Why not use alpsquad2 or alpsquad3 from Kevin's site? I don't know the difference between those two, but they fit the Alps RK27 and the TKD 4CP-601. (The one on Birgir's DIY supplies page is smaller and TKD-only, but I don't think Gerbers for it are available.) I can confirm it fits (assuming it is the one pictured below), though a bit on the large size - maybe the alternate spacing could be changed to fit the 4cp-2500 instead of the Alps. It has a separate ground for each channel and can be cut in half for stereo mode without cutting through any traces. Maybe Pars could add his molex connectors to the existing gerbers. Quote Link to comment Share on other sites More sharing options...
Arthrimus Posted August 14, 2016 Report Share Posted August 14, 2016 (edited) I'd be in for a couple. Edited August 14, 2016 by Arthrimus Quote Link to comment Share on other sites More sharing options...
mwl168 Posted August 15, 2016 Author Report Share Posted August 15, 2016 (edited) I did not know Kevin already laid out a Gerber for volume pots. Thanks to gepardcv and GeorgeP for pointing it out and confirming it. I did not see an alpsquad2 but found a alpsquad3 Gerber file on Kevin's site and looked at it through a Gerber file viewer and it looks exactly like the photo GeorgeP posted. I second the motion to alter and fit the TKD 4CP-2500 series given that RK27 does not seem to have a good reputation for sound quality. Edited August 15, 2016 by mwl168 Quote Link to comment Share on other sites More sharing options...
Pars Posted August 15, 2016 Report Share Posted August 15, 2016 That one has both the RK27 and 4CP on it. Did you want one with only the 4CP pot on it? From the one above, the Phoenix connectors will dominate size-wize. Also, if minimum board size is desired, did you want it done like Birgir's so the pot sits up off the board, partially on the Phoeinx connectors? I would guess the Molex KK connectors will fit just fine regardless. Quote Link to comment Share on other sites More sharing options...
GeorgeP Posted August 16, 2016 Report Share Posted August 16, 2016 I think Michael was suggesting we keep it the same and if not too much trouble to make it compatible with the TKD 4CP-2500 instead of the Alps. Obviously we are in your hands in that regard as neither of us have the know-how. Quote Link to comment Share on other sites More sharing options...
