Kerry Posted November 27, 2019 Report Share Posted November 27, 2019 Thanks Nate Quote Link to comment Share on other sites More sharing options...
dsavitsk Posted November 27, 2019 Report Share Posted November 27, 2019 (edited) On 11/24/2019 at 3:56 AM, Craig Sawyers said: Particularly as he was totally unaware that these small diode lasers produce enough power to cause real damage. Are you suggesting that this isn't a great idea? That Amazon would sell something unsafe? Shocking! It comes with safety glasses. Also worth mentioning that you need a good ventilation and filter system with these things. The usual course of laser cutting emits some nasty smoke and whatnot, but some materials (PVC, ABS, etc.) can emit chlorine, cyanide, etc. when cut. Edited November 27, 2019 by dsavitsk Quote Link to comment Share on other sites More sharing options...
Craig Sawyers Posted November 27, 2019 Report Share Posted November 27, 2019 (edited) Also worth noting you can just buy a 5.5W laser module for less than UKP100 https://www.amazon.co.uk/Engraving-Control-Adjustable-Focusable-Engraver/dp/B07VW9YSSQ/ref=sr_1_49?crid=ACLL7JBCVN4C&keywords=diode+laser&qid=1574845348&sprefix=diode+las%2Caps%2C137&sr=8-49 You get a pair of googles thrown in. 'triffic. Back in the day when such lasers occupied a fair sized lab and cost a fortune, we were required to attend a laser safety course before we were let loose. That was sufficiently long ago that you could show live monkeys being subjected to laser light into their eyes. At least it pushed home the point that a high power laser was not something to be treated lightly. There was also a guy who said "I served in Vietnam. And nothing prepared me for viewing the world through my blood filled eyeball" We wore goggles every day. Fully sealed around the eye. They were hot and inconvenient - but so is a hole in the retina. And 5W is sufficient to boil whatever humour is closest to the retina before you can blink. The doors were all interlocked, with a light on outside. If the door was opened, the laser power supply shut down, and a shutter closed as a fail safe. Now you can buy such a laser for pocket money and hold it in your hand. So there is a complete decouple between the physical thing, and what it can do. Edited November 27, 2019 by Craig Sawyers Quote Link to comment Share on other sites More sharing options...
Skooby Posted November 27, 2019 Report Share Posted November 27, 2019 Always want to get a laser engraver/cutter for my Stepcraft CNC rig. This seems to be a good idea. But don't know how turn the laser on (or off), via g-code? Quote Link to comment Share on other sites More sharing options...
Pars Posted November 27, 2019 Report Share Posted November 27, 2019 (edited) 8 hours ago, Craig Sawyers said: Also worth noting you can just buy a 5.5W laser module for less than UKP100 https://www.amazon.co.uk/Engraving-Control-Adjustable-Focusable-Engraver/dp/B07VW9YSSQ/ref=sr_1_49?crid=ACLL7JBCVN4C&keywords=diode+laser&qid=1574845348&sprefix=diode+las%2Caps%2C137&sr=8-49 You get a pair of googles thrown in. 'triffic. Back in the day when such lasers occupied a fair sized lab and cost a fortune, we were required to attend a laser safety course before we were let loose. That was sufficiently long ago that you could show live monkeys being subjected to laser light into their eyes. At least it pushed home the point that a high power laser was not something to be treated lightly. There was also a guy who said "I served in Vietnam. And nothing prepared me for viewing the world through my blood filled eyeball" We wore goggles every day. Fully sealed around the eye. They were hot and inconvenient - but so is a hole in the retina. And 5W is sufficient to boil whatever humour is closest to the retina before you can blink. The doors were all interlocked, with a light on outside. If the door was opened, the laser power supply shut down, and a shutter closed as a fail safe. Now you can buy such a laser for pocket money and hold it in your hand. So there is a complete decouple between the physical thing, and what it can do. Same here when I worked as a tech for a semiconductor manuf. probe floor. We had Teradyna and ESI lasers which would do repairs to memory chips (blowing links to remove and patch in redundant cells). All of the laser bays had interlocked doors with lights outside when we were doing maintenance on them. Opening a door would cut power to the laser. Goggles required. Also had my retinas photographed, which was a good time. Don't fuck around with these as Craig mentioned. Edited November 27, 2019 by Pars Quote Link to comment Share on other sites More sharing options...
robm321 Posted November 27, 2019 Report Share Posted November 27, 2019 Interesting, I used to sell ESI lasers back in the day. Actually, it was New Wave Research which ESI acquired. Quote Link to comment Share on other sites More sharing options...
Craig Sawyers Posted November 27, 2019 Report Share Posted November 27, 2019 I'd forgotten about the retina examination - thanks for reminding me. They put drops in to open the iris wide open. So when you walked away you could focus on absolutely nothing for the best part of an hour, and everything was super bright. Found another one on Amazon - 20W (!!!) at 450nm for UKP122 including the power supply. And this one did not even come with free goggles. Anything more than 500mW is a Class 4 laser - the highest and most hazardous class. So that 20W unit is deep into Class 4. The flash blindness (ie long afterimages even at the 1/4 second blink reflex) distance is >10 miles from this 20W laser. It is extremely irresponsible for Amazon to sell these things at all, let alone for pocket money. Quote Link to comment Share on other sites More sharing options...
dsavitsk Posted December 2, 2019 Report Share Posted December 2, 2019 If anyone is laser shopping, here's a deal: http://lagunatoolsoutlet.com/product/check-back-soon-6/ 1 Quote Link to comment Share on other sites More sharing options...
Emooze Posted December 3, 2019 Report Share Posted December 3, 2019 I would also point out that some, mostly the type that engrave metals, of lasers do not trigger a blink response because they are in the deeper bands of IR. So all you will notice is your sudden lack of depth perception, or vision at all. I found this horrifying quote from Wikipedia: "A pop or click noise emanating from the eyeball may be the only indication that retinal damage has occurred i.e. the retina was heated to over 100 °C resulting in localized explosive boiling accompanied by the immediate creation of a permanent blind spot." And seriously, a $300 pair of safety goggles can cover a wide swath of potential lasers, chump change to the several thousand most of the good machines cost. 1 Quote Link to comment Share on other sites More sharing options...
Grahame Posted December 3, 2019 Report Share Posted December 3, 2019 (edited) Bear in mind ...https://www.vice.com/en_us/article/gvyj4b/how-the-us-quietly-field-tests-blinding-laser-weapons And remember Edited December 3, 2019 by Grahame 1 Quote Link to comment Share on other sites More sharing options...

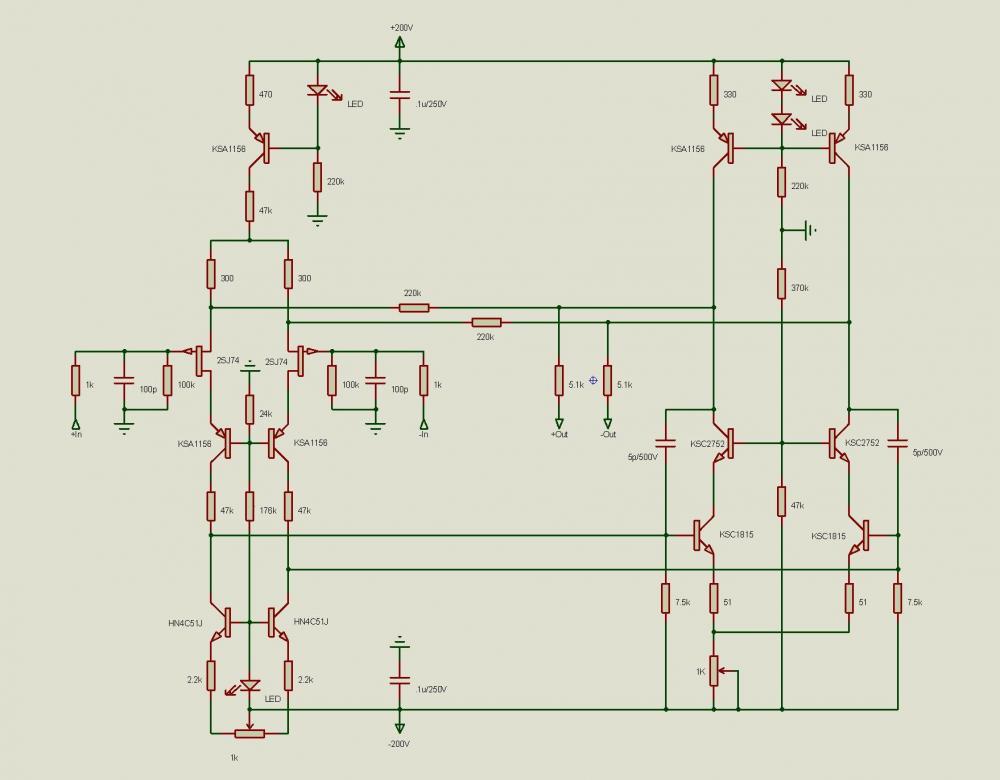

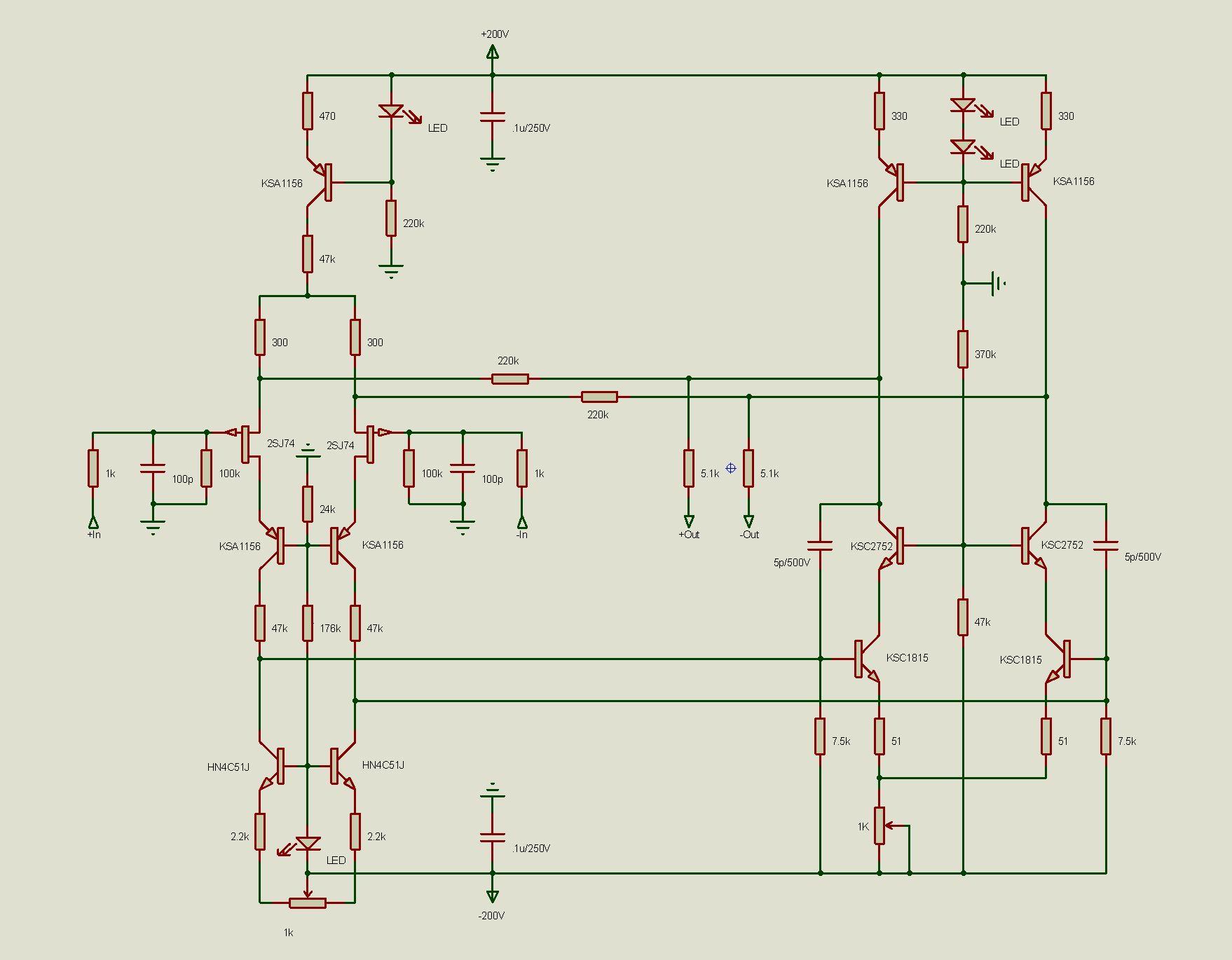

JoaMat Posted January 17, 2020 Report Share Posted January 17, 2020 A gentleman told me about the electrostatic amplifier Sirrah designed by Andreas Rauenbuehler. See http://www.high-amp.de/ . Inspired by Sirrah I draw this sketch……20 mA per channel. Accompanied with small GRHV regulators and 50VA transformer - could be built in a small box for the bedside table? maybe it won't work at all. 4 Quote Link to comment Share on other sites More sharing options...
mwl168 Posted January 17, 2020 Report Share Posted January 17, 2020 I have a bunch of the obsolete 2SC1815 on hand. I can send some to you if you decide to build it ? Quote Link to comment Share on other sites More sharing options...
JoaMat Posted January 17, 2020 Report Share Posted January 17, 2020 Thank you, Michael. Working on a layout... we'll see what happens. Quote Link to comment Share on other sites More sharing options...

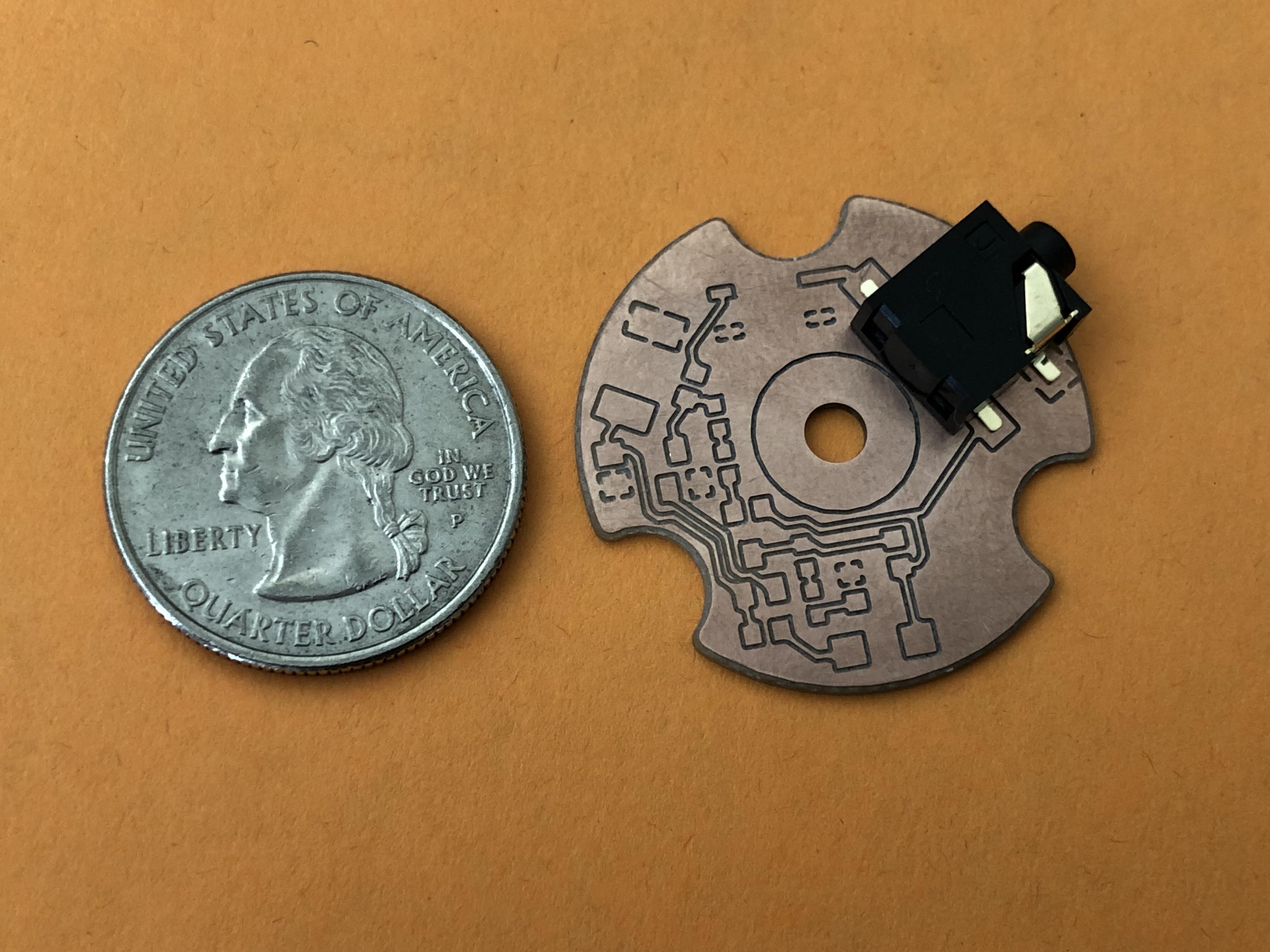

Kerry Posted March 1, 2020 Report Share Posted March 1, 2020 I just milled this board for a CNC probe I’m working on. Those are .01” slots. I’m surprised I could do this 7 1 Quote Link to comment Share on other sites More sharing options...
JoaMat Posted March 1, 2020 Report Share Posted March 1, 2020 Looks nice! What tool did you use? I use 15th end mill but as I understand V shaped tools are more commonly used. Quote Link to comment Share on other sites More sharing options...
Kerry Posted March 1, 2020 Report Share Posted March 1, 2020 (edited) I used a 10 mil flat end mill. You need a really short flute. Length of cut should be about 15 mils. I did several passes since the board wasn’t completely level. Fun stuff Edit: I’ve had no luck with v shaped tools. Edited March 1, 2020 by Kerry Quote Link to comment Share on other sites More sharing options...
JoaMat Posted March 1, 2020 Report Share Posted March 1, 2020 (edited) Good to know that 10th worked for you. I didn’t dare to buy smaller than 15th even it’s a short flute. When I did my digital attenuator I had 10th clearance so I had to make a conventional chemical etching. Same here, no luck with the V shaped things – probably only for the pros. Edited March 1, 2020 by JoaMat 2 Quote Link to comment Share on other sites More sharing options...

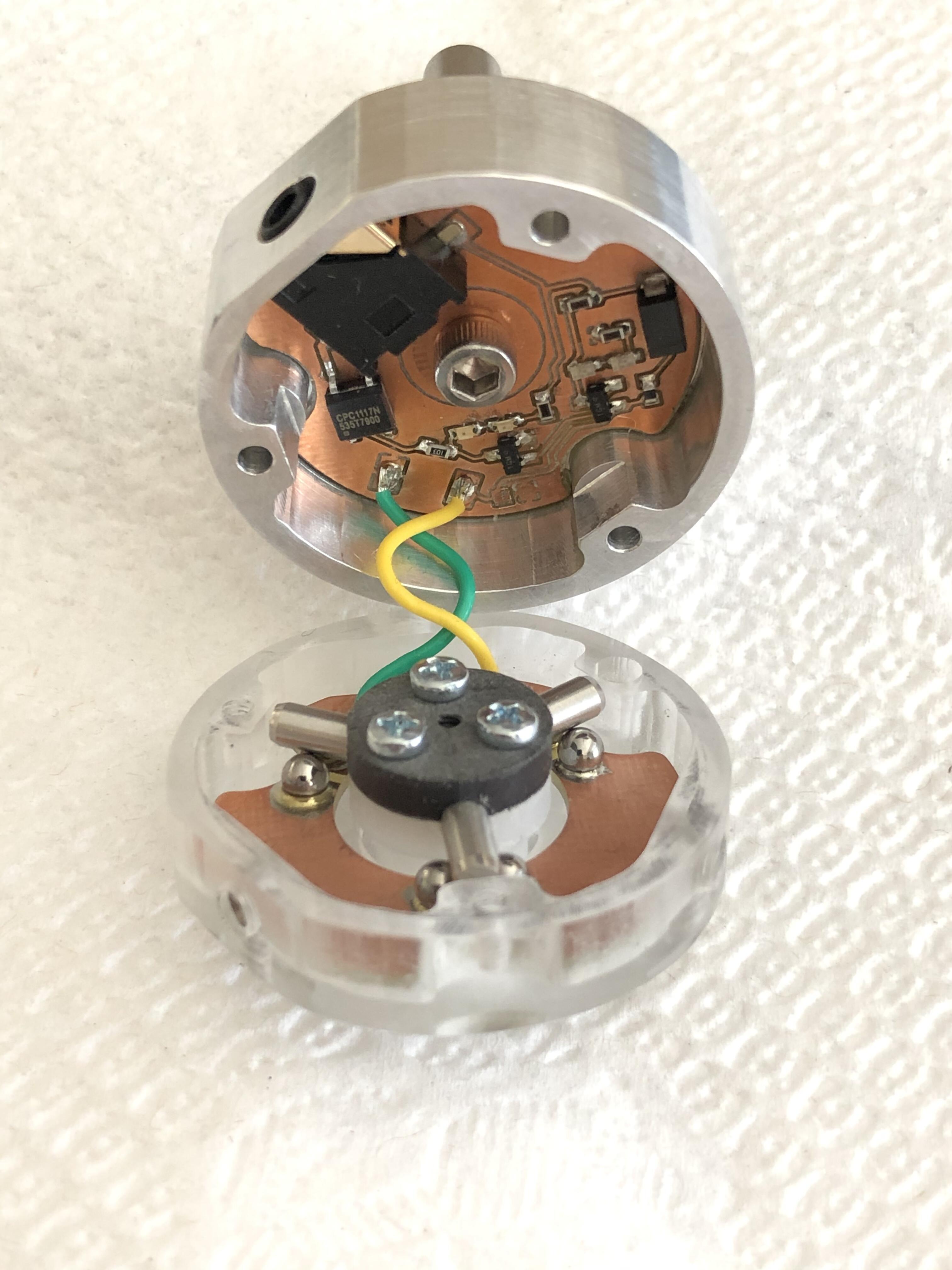

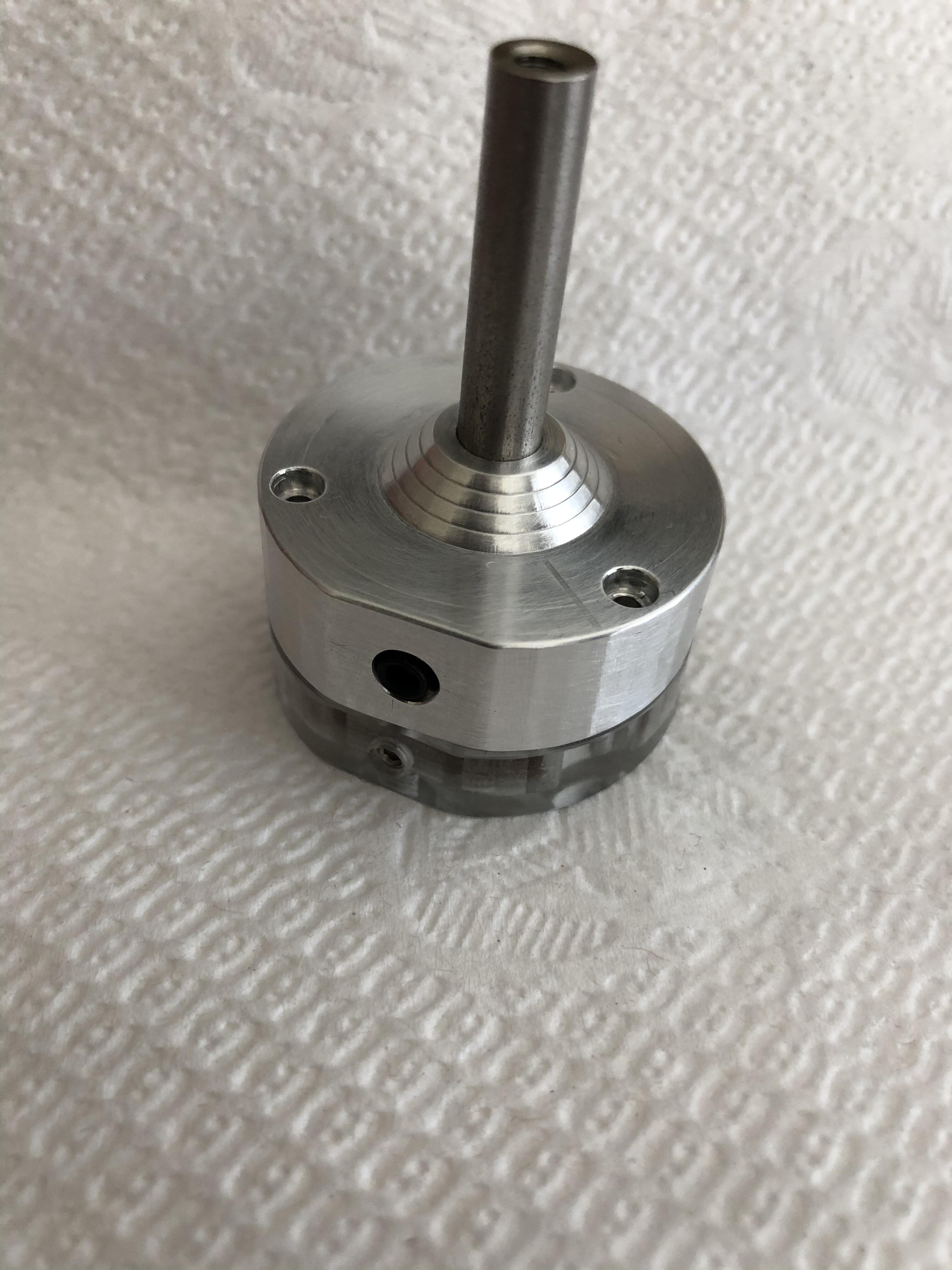

Kerry Posted March 3, 2020 Report Share Posted March 3, 2020 Here’s the board mounted in the probe. 6 Quote Link to comment Share on other sites More sharing options...
JoaMat Posted March 3, 2020 Report Share Posted March 3, 2020 Looks even nicer today. But my brain is about to overheat – how does the probe work? Quote Link to comment Share on other sites More sharing options...
Kerry Posted March 3, 2020 Report Share Posted March 3, 2020 (edited) It’s based on this project... 3D Probe I had to re-do all of the models to fit my needs. Edited March 4, 2020 by Kerry Quote Link to comment Share on other sites More sharing options...
hyperma Posted March 30, 2020 Report Share Posted March 30, 2020 Not making anything yet, but planning. After the Carbon I guess Megatron will be the next,so... A Megatron on more Old school style...not finished yet Quote Link to comment Share on other sites More sharing options...

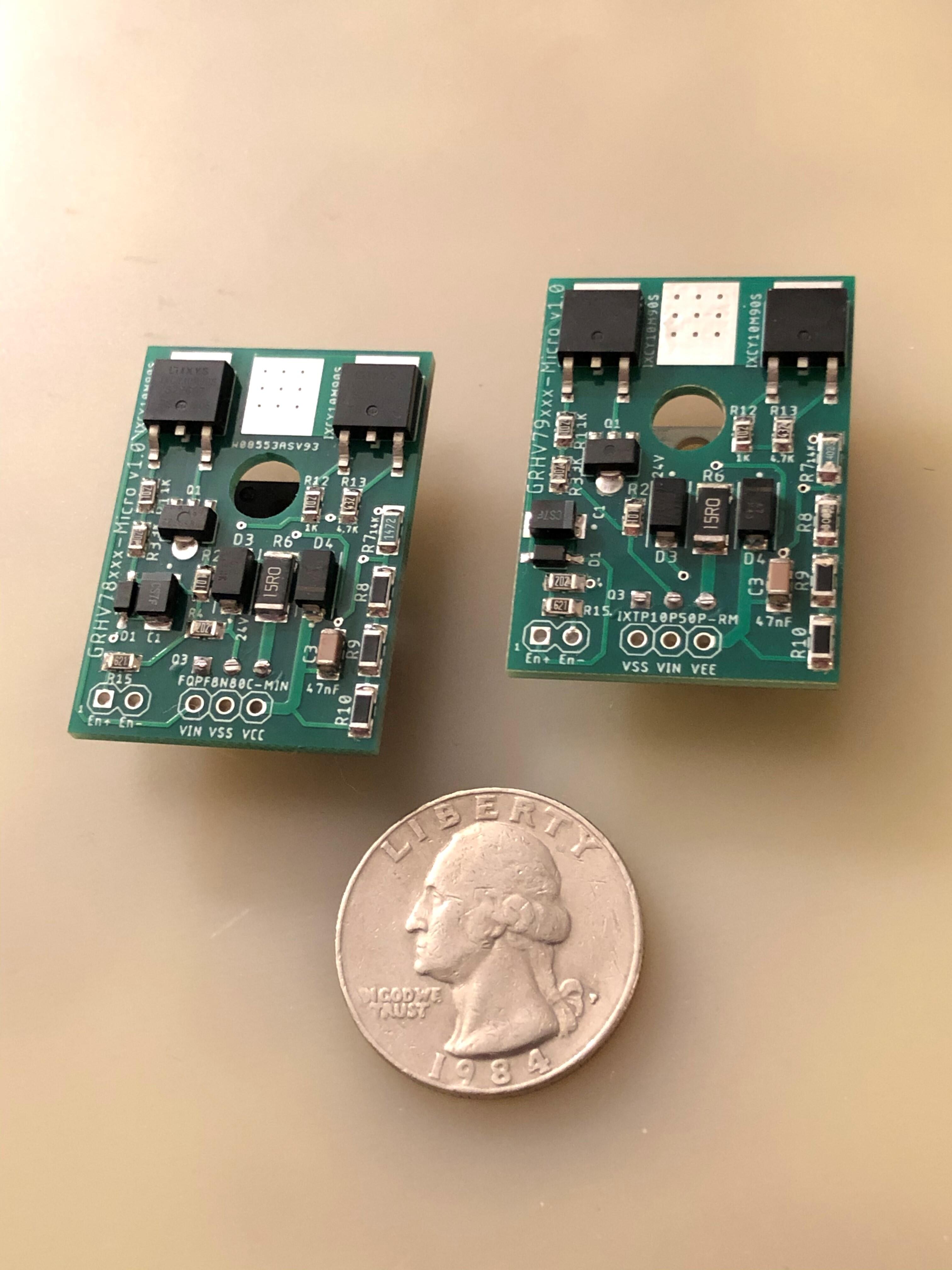

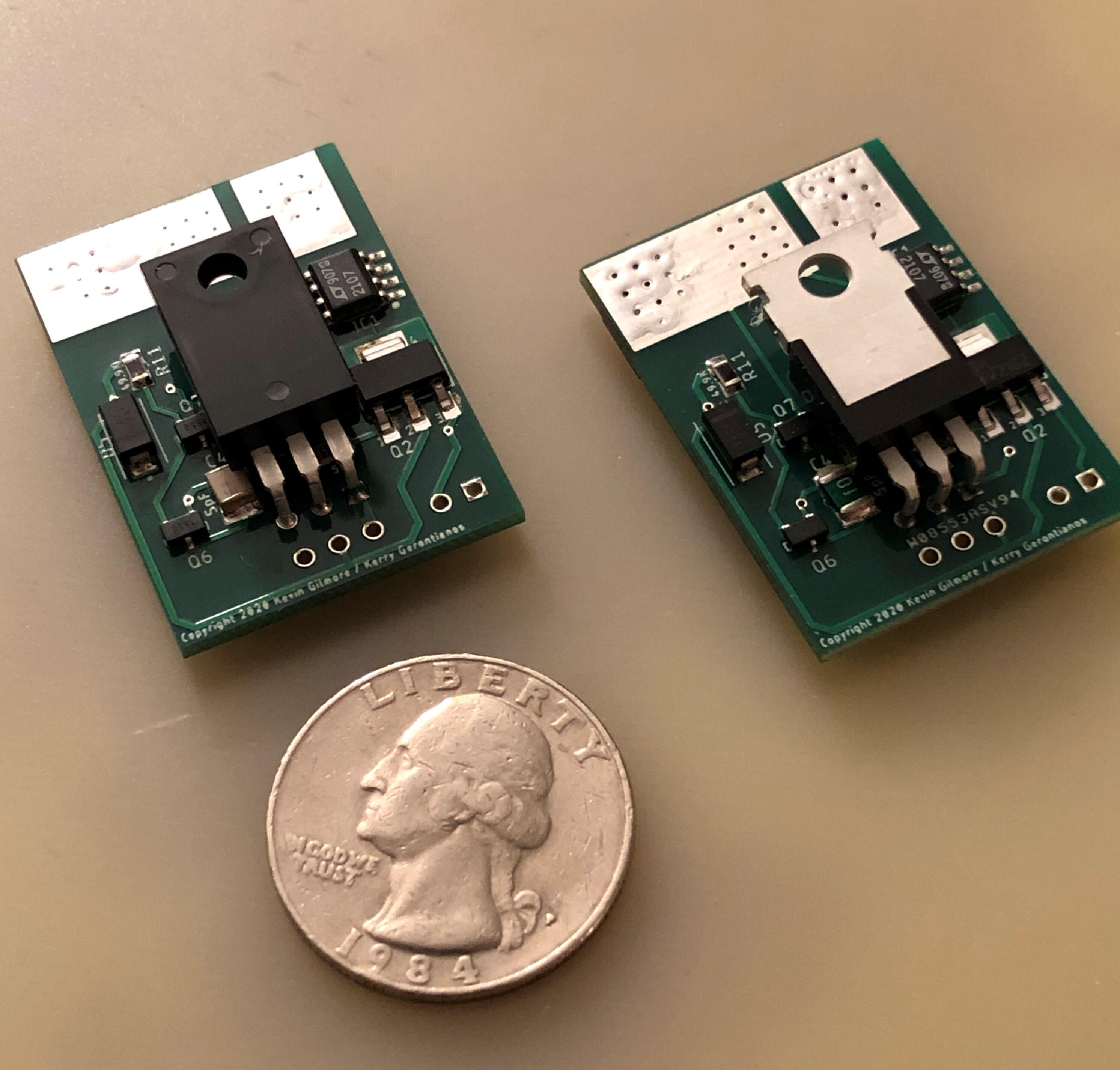

Kerry Posted April 1, 2020 Report Share Posted April 1, 2020 I'm playing with a new project and I needed to shrink the GRHV and also build the negative supply. Here's the positive and negative supplies. I'm going to test them tomorrow 🤞 9 2 Quote Link to comment Share on other sites More sharing options...
JoaMat Posted April 1, 2020 Report Share Posted April 1, 2020 Looks very nice. I like the negative regulator. Milled today. Board has 13 vias and I think I've found a good way to make it in our kitchen (turnaround time is an hour or so (more likely a couple of hours)).STN9360 is too big for this board. STR2550 is much smaller and there is room for four of them plus LT1021, 10M90S, HN4C51J and a few other components on the other side. 1 Quote Link to comment Share on other sites More sharing options...

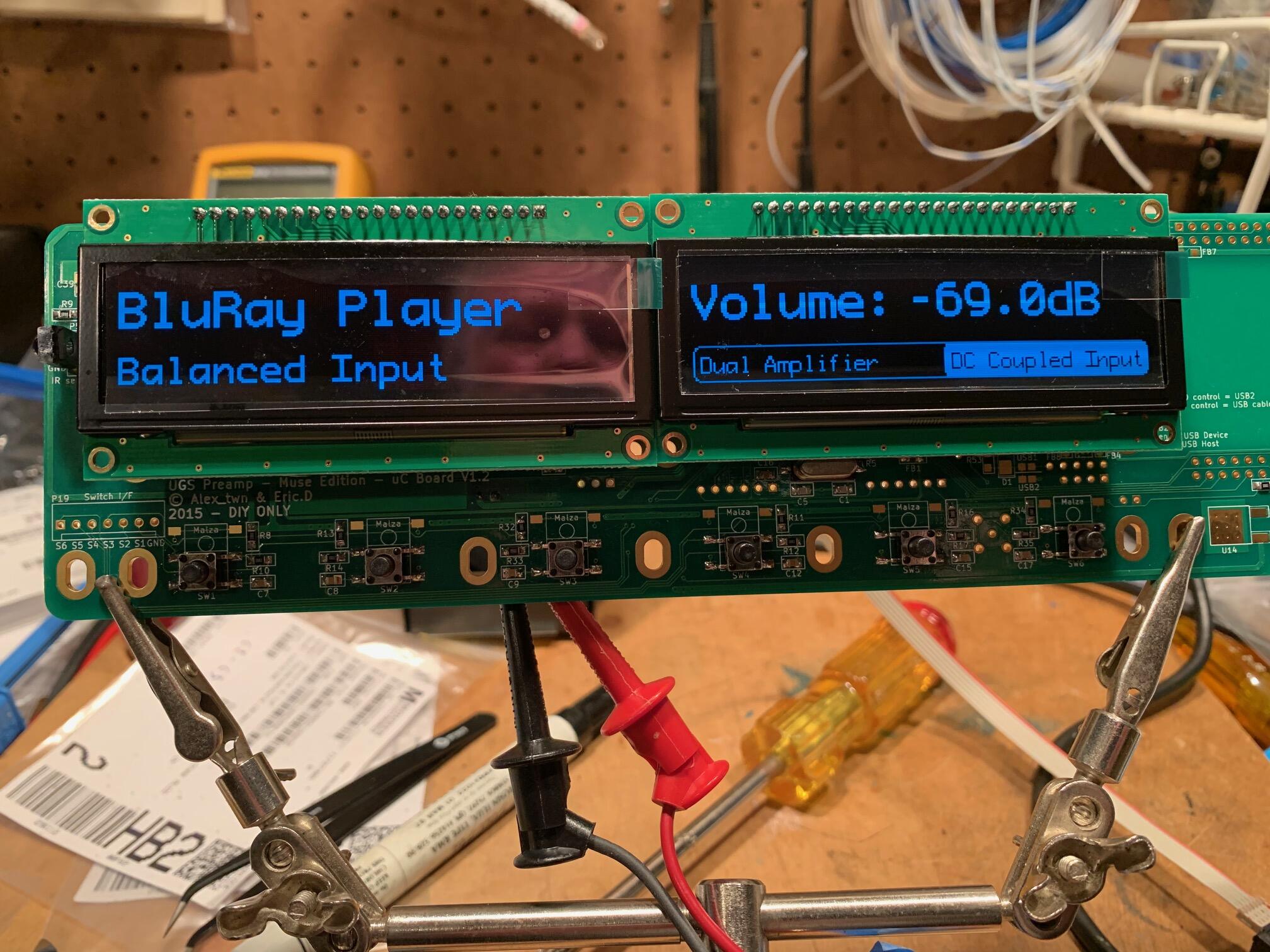

Pars Posted April 2, 2020 Report Share Posted April 2, 2020 (edited) OLEDs in the house. UGS Muse preamp (x2). This one is for HC user DrizztDo (who I am building the Carbon for and previously built an SS Mini Dynalo for). The previous processor pic(s) were from my board (in the mini T2 build thread I believe). The 0.5mm 100 pin LQFP-100 package caused me to buy a USB microscope to see what the fuck I was doing... Jose had posted one in that thread. Edited April 2, 2020 by Pars 8 Quote Link to comment Share on other sites More sharing options...
