Pars Posted October 28, 2018 Report Share Posted October 28, 2018 I guess I might as well post this here: I have a pair of HifiMan HE4XX (Massdrop) which use the 2.5mm connectors on each headphone. These are crap, and cut out if I move my head the wrong way, etc., so I was toying with replacing them with something better. I was wondering what other connector types people use, either with experience on commercial headphones, or DIY, and how they like them. I have tried the Mr. Speakers Hirose connectors (on a pair of Aeons) and liked them, but wanted to ask around as there might be something better that I am unaware of. I have also used a Switchcraft mini-XLR 4 pin on my modded Fostex T50s, but for the HifiMan wanted to stick to separate cables to each cup as they are stock. Plus for something that is around the same diameter as the 2.5mm jacks currently in the headphone cups. Quote Link to comment Share on other sites More sharing options...
n_maher Posted October 28, 2018 Report Share Posted October 28, 2018 Are the plugs/jacks available that Senn uses on the HD800? EDIT: seems like they might be. https://www.amazon.com/Replacement-repair-connector-Sennheiser-Headphones/dp/B074SK4KYN Quote Link to comment Share on other sites More sharing options...
Pars Posted October 29, 2018 Report Share Posted October 29, 2018 Thanks Nate. I ll consider those, but a bit pricey since i would also need the plugs... Quote Link to comment Share on other sites More sharing options...
nopants Posted October 29, 2018 Report Share Posted October 29, 2018 I think those are just lemo connectors right? Should be easy to tally up what you need from mouser Quote Link to comment Share on other sites More sharing options...
Craig Sawyers Posted October 29, 2018 Report Share Posted October 29, 2018 Could be Lemo's competitor, Fischer. The are tantalizingly close in appearance and incompatible. Quote Link to comment Share on other sites More sharing options...
spritzer Posted October 29, 2018 Report Share Posted October 29, 2018 They are made by ODU I believe, same as the HE-1 connectors. As for cheaper options, what about the fake Lemo stuff from China? They are very well made and pretty cheap... Quote Link to comment Share on other sites More sharing options...
Pars Posted October 30, 2018 Report Share Posted October 30, 2018 The Lemo stuff always looked kind of long for a headphone connector on the cups, but I've never used them. Also very expensive, think I saw one that was $110 ea. Which fake China stuff have you used? I'll have to measure and see what I can get away with diameter-wise. I was also looking at SMC connectors, but they might actually be too small in diameter. Quote Link to comment Share on other sites More sharing options...
Whitigir Posted October 30, 2018 Report Share Posted October 30, 2018 (edited) Oops! Anyways, I use furutech from authorized places is a great way to avoid counterfeit Edited October 30, 2018 by Whitigir Quote Link to comment Share on other sites More sharing options...
mwl168 Posted October 30, 2018 Report Share Posted October 30, 2018 Hmm, I thought the HD800 connectors are Senn’s own proprietary ones. I bought mine off eBay (Chinese counterfeits) when I built my own cable. If they are Lemo parts, anyone has the part number? Quote Link to comment Share on other sites More sharing options...
spritzer Posted October 30, 2018 Report Share Posted October 30, 2018 (edited) They are ODU parts, not LEMO. Can't remember the part number but you can find it on HF. Senn is using similar parts for the HE-1 connectors. As for the fake Lemo, I used something like this: https://www.ebay.com/itm/1Set-2Pin-Push-Pull-Circular-Aviation-Connector-Compatible-LEMO-0B-FGG-EGG-Serie/171989556108?hash=item280b605b8c:g:Z48AAOSwhcJWOhal:rk:1:pf:1&frcectupt=true Standard 0B series but they might be a bit long. Edited October 30, 2018 by spritzer Added link for ODU 3 Quote Link to comment Share on other sites More sharing options...
Whitigir Posted October 30, 2018 Report Share Posted October 30, 2018 Thanks @spritzer, I am corrected Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted November 22, 2018 Author Report Share Posted November 22, 2018 A somewhat of a Franken-Pass. 6 Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted November 23, 2018 Author Report Share Posted November 23, 2018 Installed the front end buffer boards. I will have to adjust DC offset outside of the circuit as the trimmers aren’t oriented the right way to be able to get at in situ.Now to track down a ground loop :/ (or what I am perceiving as one, based on frequency response graph) 1 Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted November 24, 2018 Author Report Share Posted November 24, 2018 Yay, found the problem. Tomorrow will be listening day! 8 Quote Link to comment Share on other sites More sharing options...
swt61 Posted November 24, 2018 Report Share Posted November 24, 2018 What's it gonna power Marc? Quote Link to comment Share on other sites More sharing options...
lkong Posted January 28, 2019 Report Share Posted January 28, 2019 Got my Voron 2.1 printer somewhat put together. Voron2.1 - Imgur.mp4 1 Quote Link to comment Share on other sites More sharing options...

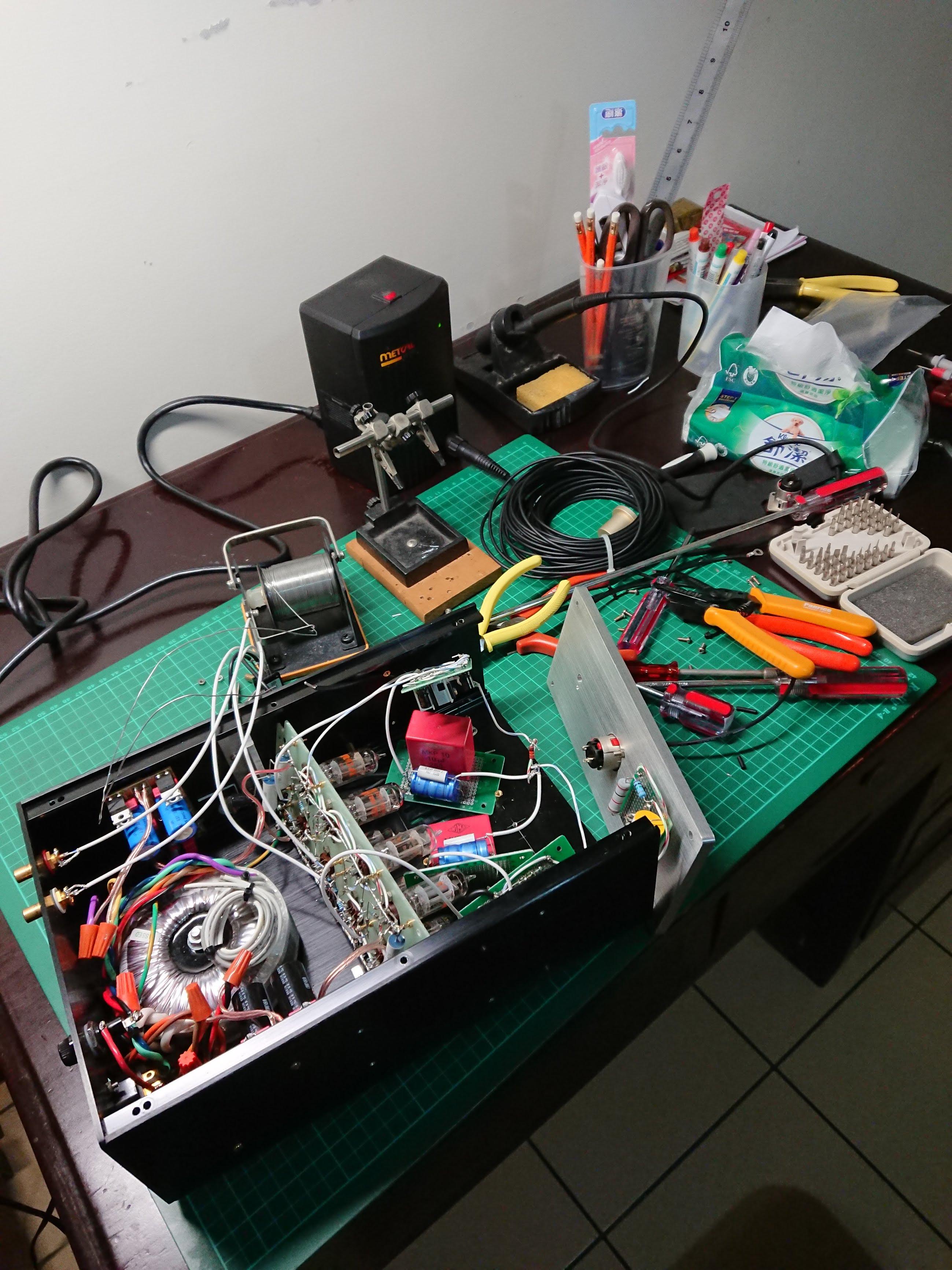

Peleus Posted February 2, 2019 Report Share Posted February 2, 2019 It's done ! It's low B+ voltage version Aikido Hybrid headphone amp designed by John Broskie. However, I replaced the tube, 6GM8, with 12FM6, due to the price of the former is so high to me. Now, I still fight for terrible hum issue ! Quote Link to comment Share on other sites More sharing options...
spritzer Posted February 3, 2019 Report Share Posted February 3, 2019 Well step one for hum issues, keep the input wiring well away from the transformer and its winding's. Quote Link to comment Share on other sites More sharing options...
muskyhuntr Posted February 3, 2019 Report Share Posted February 3, 2019 Step two, some wire twisting wouldn't hurt. Step three, transformer way too close to amp board. Did you try your project before you boxed it up. Me Quote Link to comment Share on other sites More sharing options...
n_maher Posted February 3, 2019 Report Share Posted February 3, 2019 As the others have said, I'd try getting the xfmr out of that box entirely to see if it helps. If it does, welcome to the fun of a 2 box solution and the complications that go along with that. Quote Link to comment Share on other sites More sharing options...
spritzer Posted February 3, 2019 Report Share Posted February 3, 2019 Yup and earth the chassis. I would never leave anything like this floating. Quote Link to comment Share on other sites More sharing options...
MLA Posted February 3, 2019 Report Share Posted February 3, 2019 To ask away on top of the above What’s your grounding scheme? Inputs look floating, is pot floating too? Amp board and psu? A small diagram would be very helpful in troubleshooting. Also, do you have some form of virtual ground or elevated reference for the heater voltage? Quote Link to comment Share on other sites More sharing options...

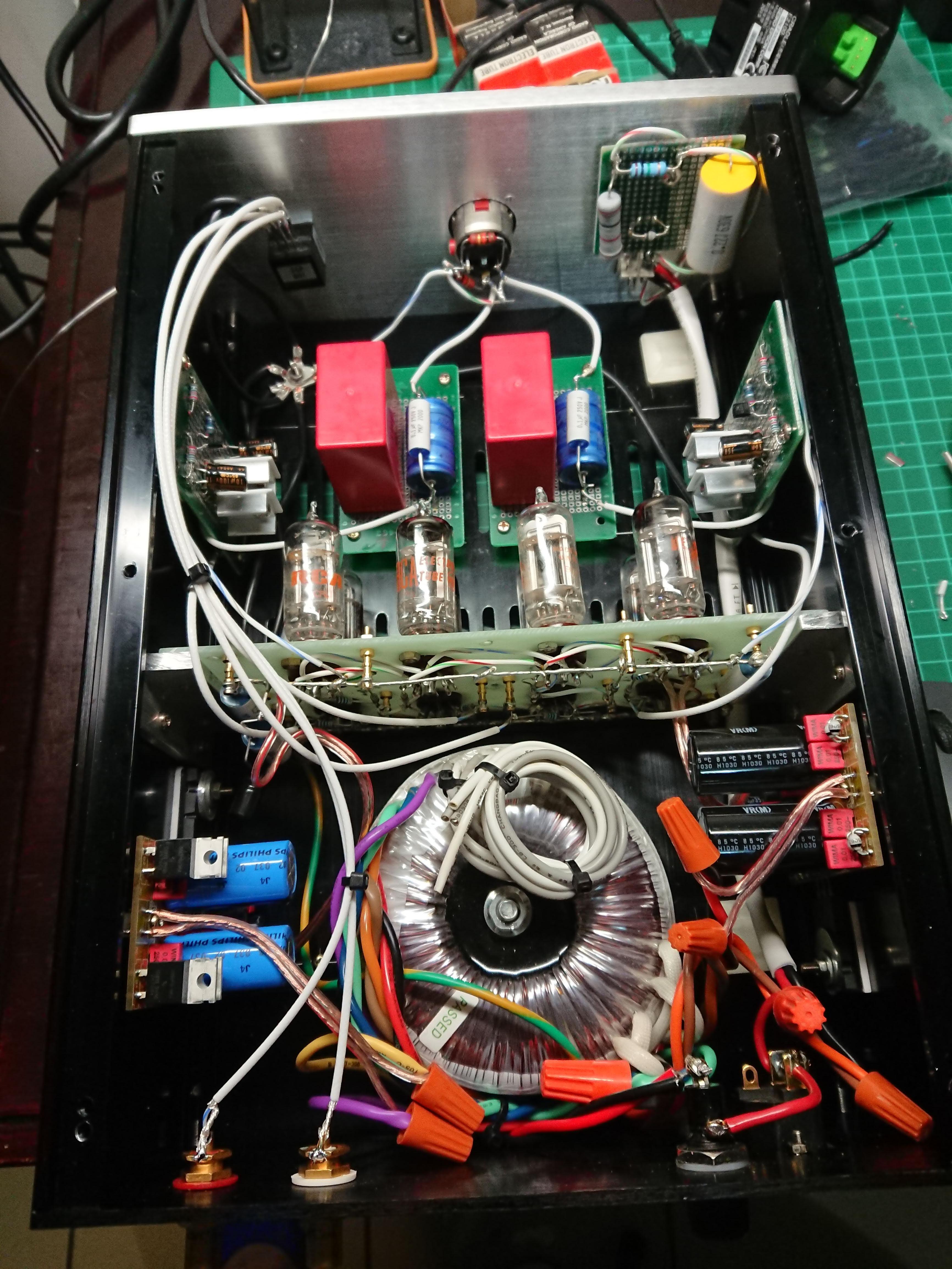

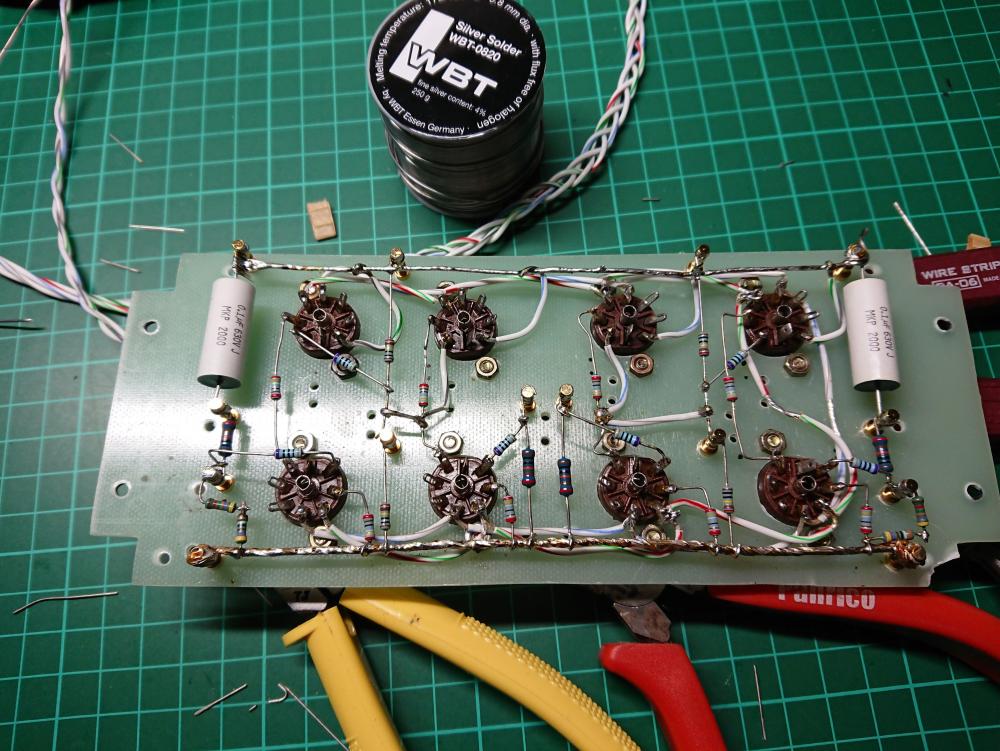

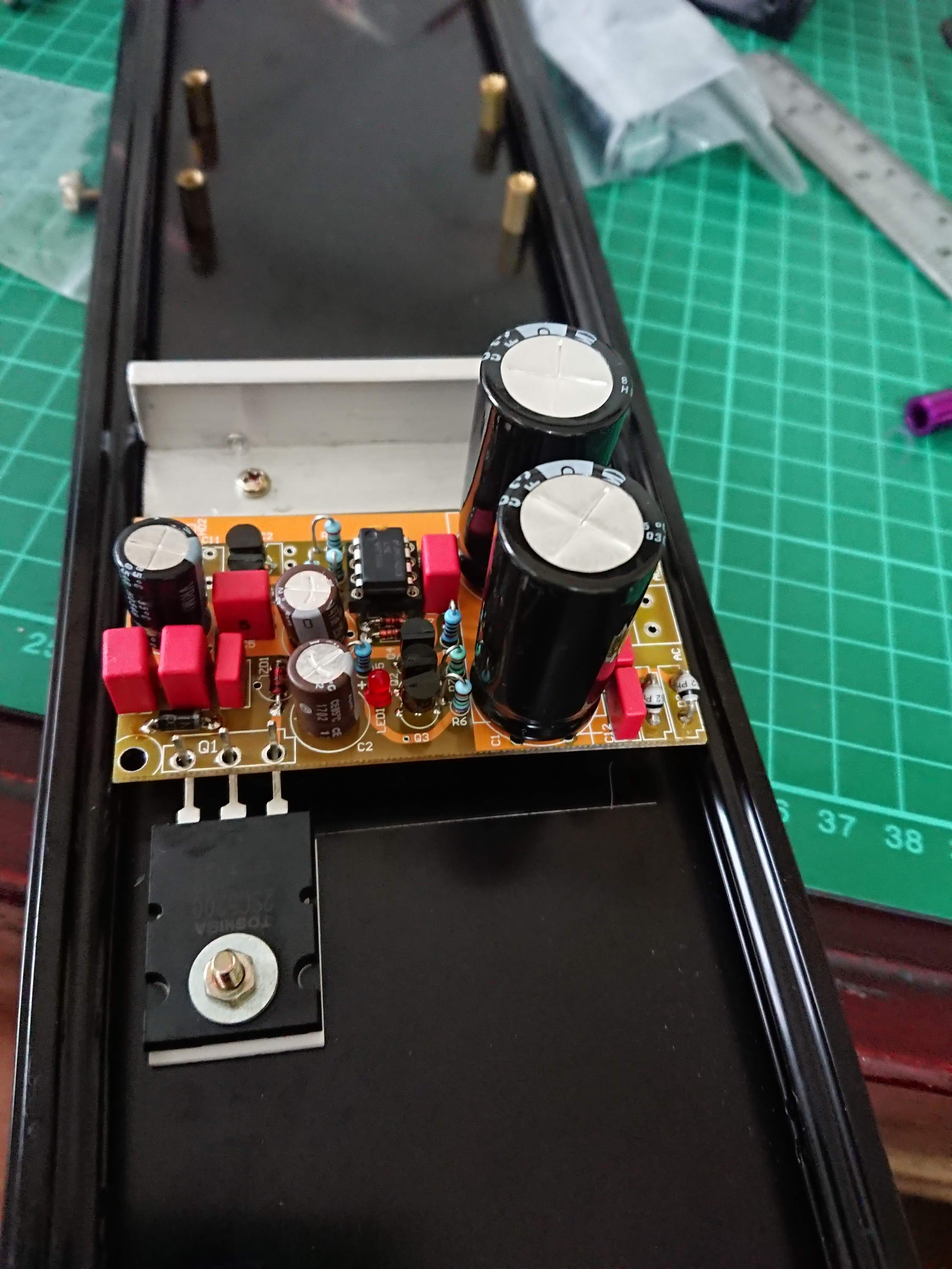

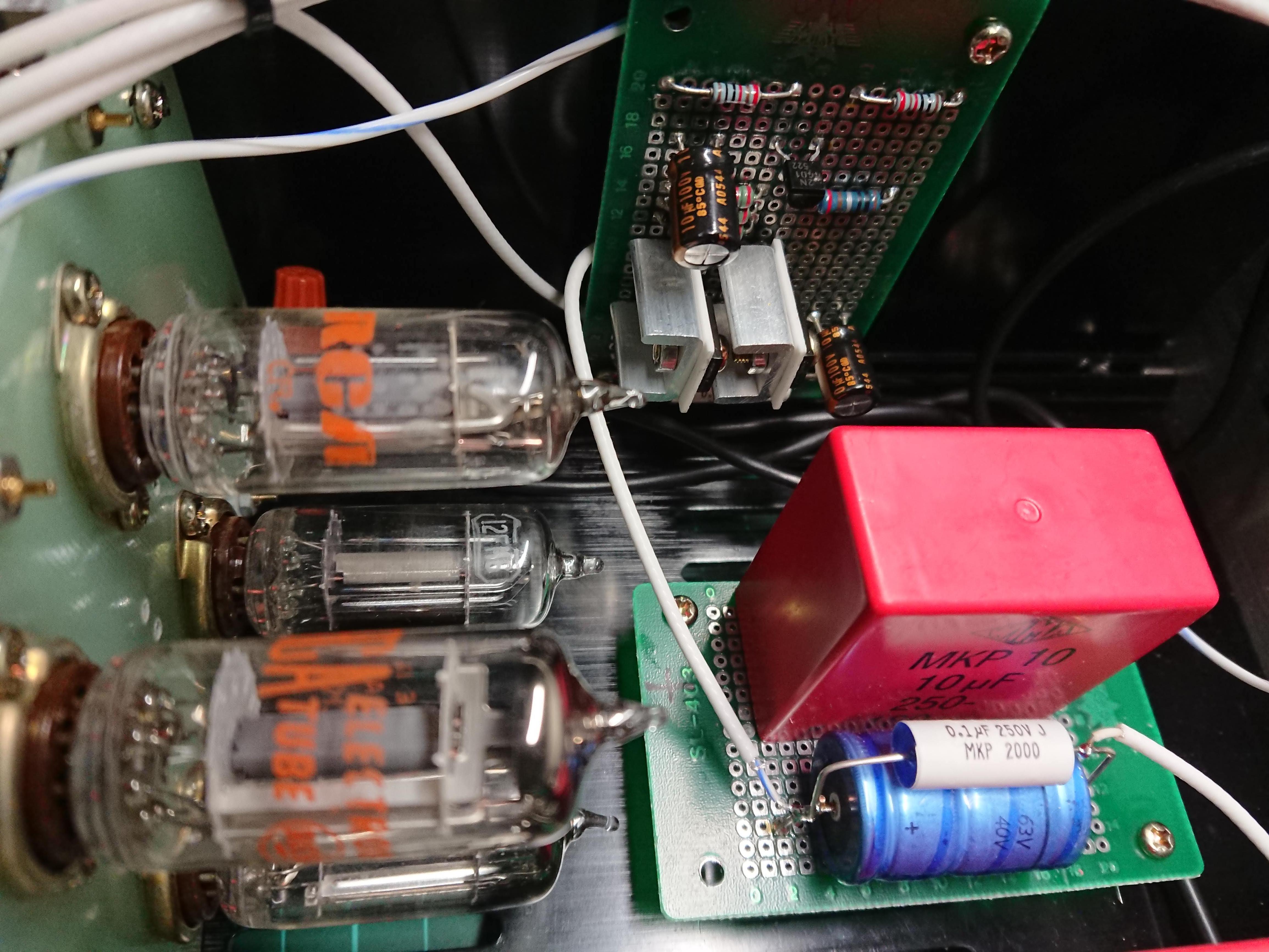

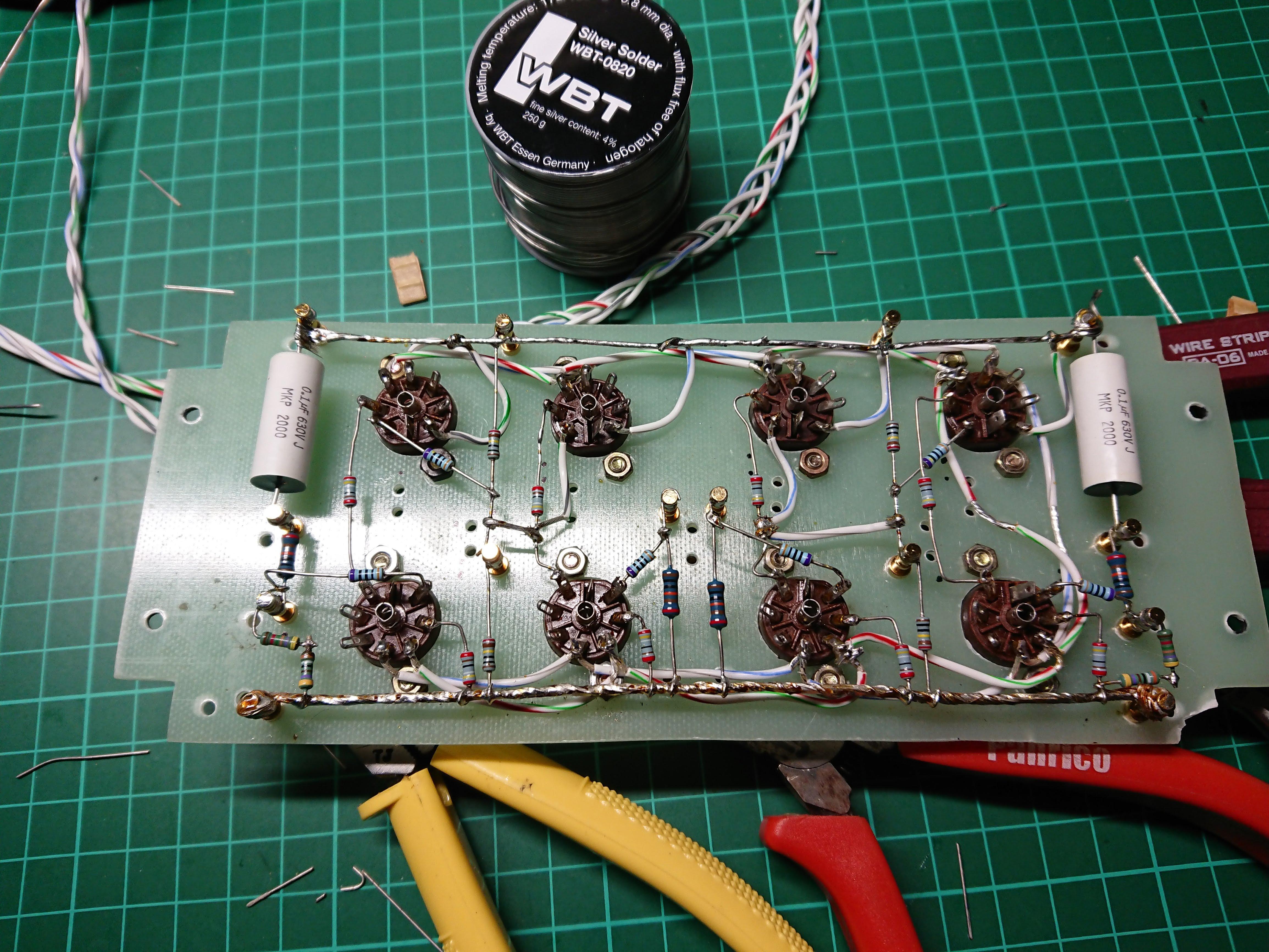

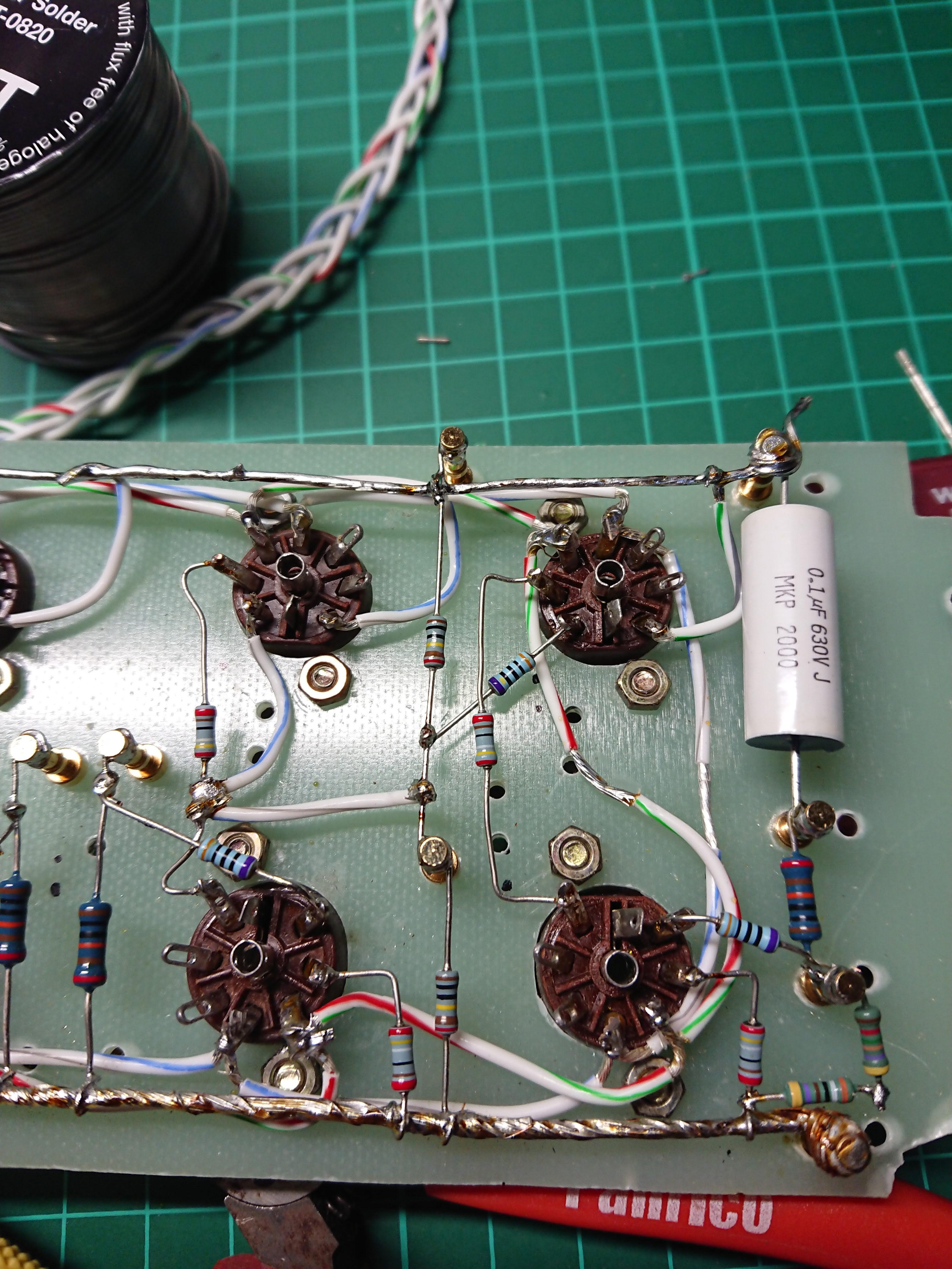

Peleus Posted February 3, 2019 Report Share Posted February 3, 2019 Hi, guys, Thanks for all your advises and suggestions. Our global audio diy community is always warm and encouraged. Maybe I provide too little pictures of the amp to give you clear picture of the amp. It's not virtual grounding, It is designed as single-end amp. And, I made a star grounding in the up-left corner of the above picture. It's may not clearly to look the grounding due to I used the black wire as grounding line. After a day working, The Neutrik phone socket may have contacting problem, the sound of one channel is unstable. The layout of grounding wiring will be changed. Two boxes? It is not may original making idea. I need a small headphone amp, not a huge and expensive one. Now, it is Chinese New Year in Taiwan. So, I don't have time to work on this amp. The more pictures may help your guys to understand, here it is... Quote Link to comment Share on other sites More sharing options...
rumina Posted February 4, 2019 Report Share Posted February 4, 2019 if the case is high enough you can try to mount the transformer standing up, base parallel to the back plate (or mount it direct to the back plate). i would remove the screw of the trafo, turn it up whitout fix mounting to test if the hum is less (if less thats a least one part of the problem). Quote Link to comment Share on other sites More sharing options...
Peleus Posted February 4, 2019 Report Share Posted February 4, 2019 Hi, After 3 hrs hard work, I rewired the ground loop. Will, it is still not work!!!! I found this amp is good for the on-ear headphone, although the Huge hum. For the over-ear phone with high resistance, the power is not enough, but no Hum at all. I...give up, and plan to tear down the tubes part, and to re-layout, from lay-down form to stand-up form. And, don't forget to earth the chassis. What a mess! Quote Link to comment Share on other sites More sharing options...
