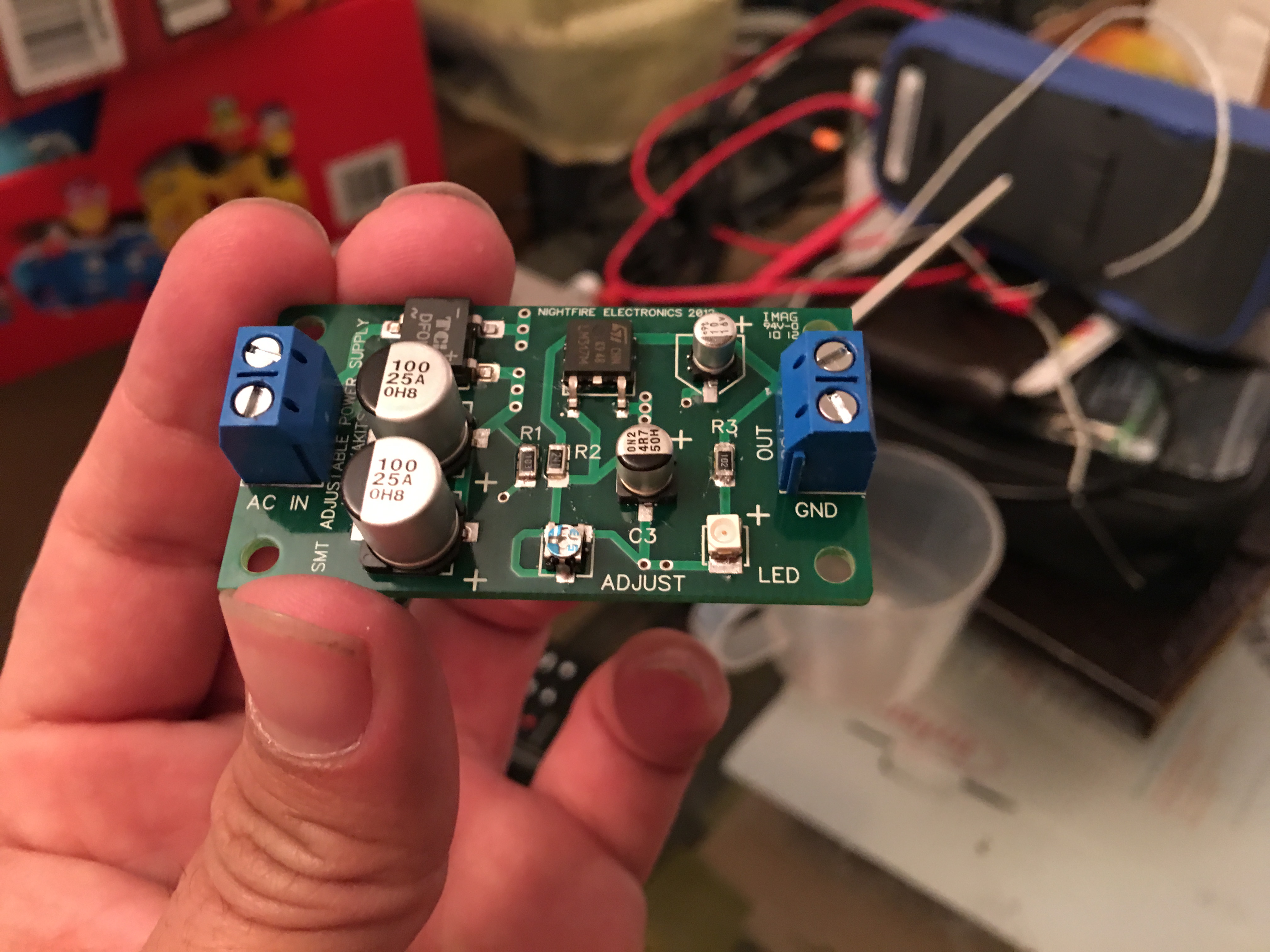

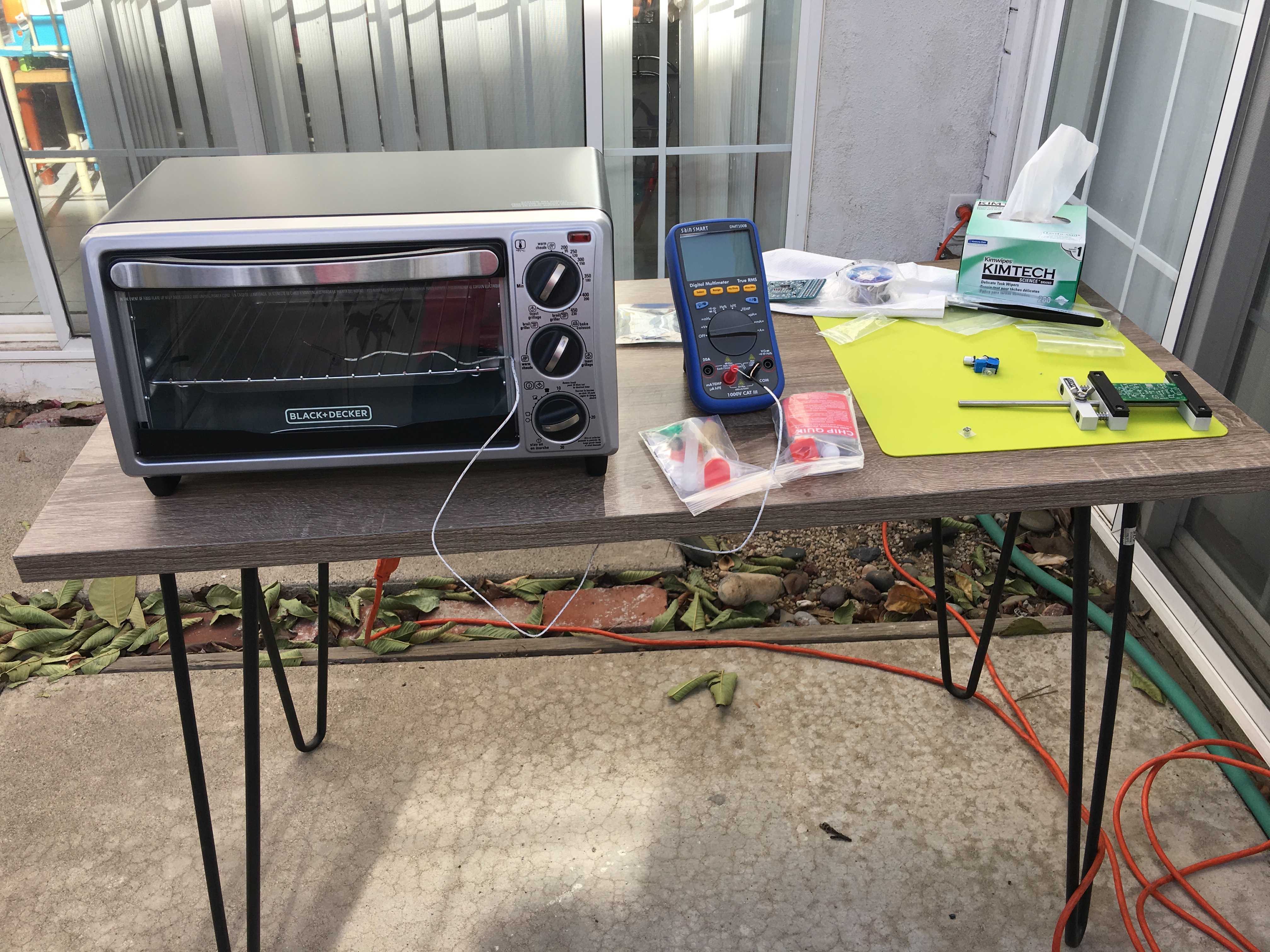

cspirou Posted December 9, 2017 Report Share Posted December 9, 2017 (edited) So I thought I would try out reflow oven soldering with a toaster oven. The AMB regulators for the Dynalo Mini are $40 whereas the toaster oven was practically free. I figured trying to solder with the toaster would be worth a try. It would also help with all the other SMD projects I have. I don't have a controller for now so I did it manually. As a test I bought an SMT adjustable power supply kit from Nightfire electronics. I had a little too much solder for the LM317 and one resistor didn't self-center but I'm pretty satisfied with the result. I'm thinking about using this for the R2R attenuator board. Anyone know what the procedure is for doing reflow on 2 sided boards? Edited February 28, 2018 by cspirou 3 Quote Link to comment Share on other sites More sharing options...
JoaMat Posted December 9, 2017 Report Share Posted December 9, 2017 Nice, manual control seems to work well. 1 Quote Link to comment Share on other sites More sharing options...
jose Posted December 21, 2017 Report Share Posted December 21, 2017 While I wait trafos for my CFA today I was playing with my Pass M2 HA prototype. Quote Link to comment Share on other sites More sharing options...
iFi Audio Posted December 21, 2017 Report Share Posted December 21, 2017 On 9.12.2017 at 6:35 PM, cspirou said: So I thought I would try out reflow oven soldering with a toaster oven. The AMB regulators for the Dynalo Mini are $40 whereas the toaster oven was practically free. I figured trying to solder with the toaster would be worth a try. It would also help with all the other SMD projects I have. I don't have a controller for now so I did it manually. As a test I bought an SMT adjustable power supply kit from Nightfire electronics. I had a little too much solder for the LM317 and one resistor didn't self-center but I'm pretty satisfied with the result. I'm thinking about using this for the R2R attenuator board. Anyone know what the procedure is for doing reflow on 2 sided boards? Nice work. 1 Quote Link to comment Share on other sites More sharing options...

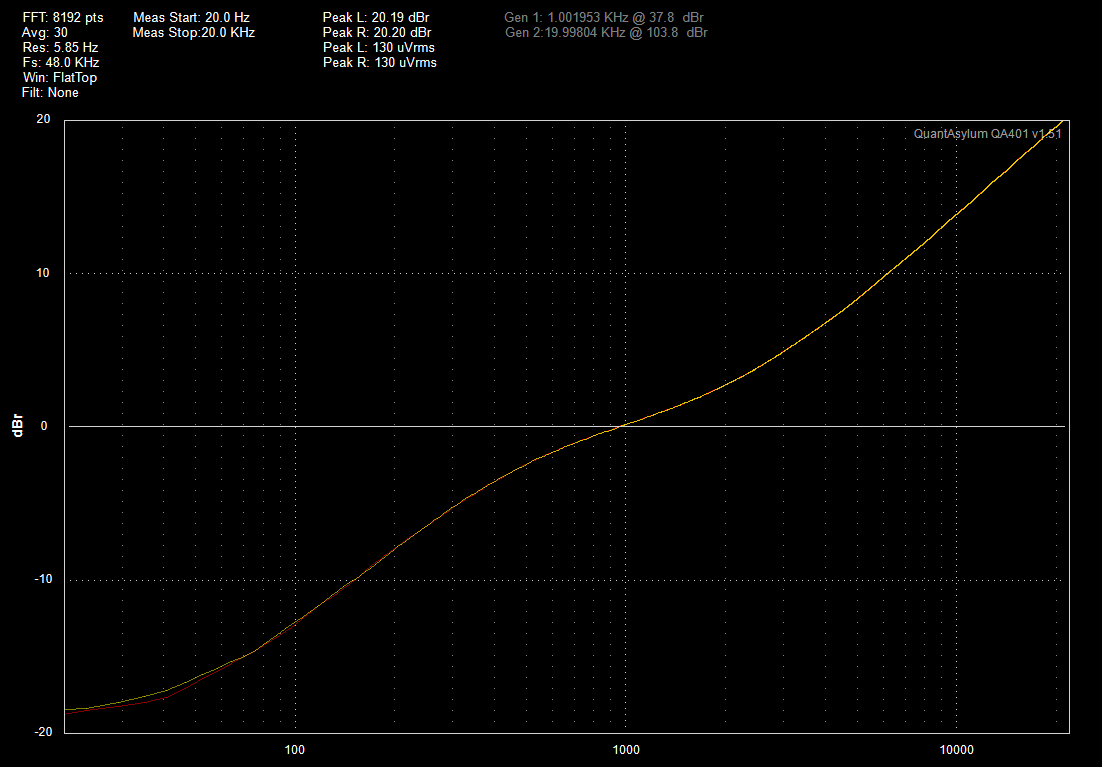

luvdunhill Posted December 22, 2017 Author Report Share Posted December 22, 2017 (edited) Inverse RIAA filter (have some extra PCBs, if anyone is interested) Edited December 22, 2017 by luvdunhill 4 Quote Link to comment Share on other sites More sharing options...

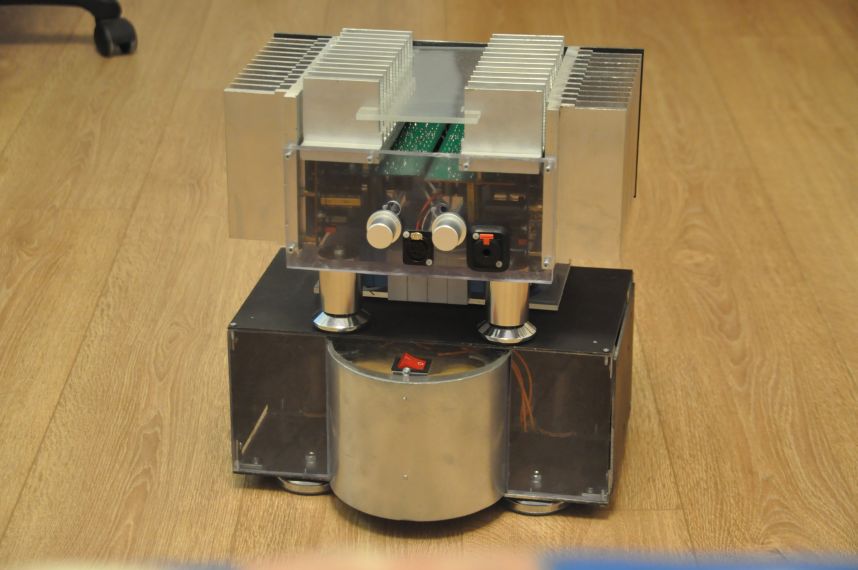

bbest Posted January 5, 2018 Report Share Posted January 5, 2018 Were made 2 years ago. But wanted to post it here. Balanced Beta22. Weight ~ 22kg. More photos on https://cloud.mail.ru/public/HozE/Ap7NVDRwo 1 Quote Link to comment Share on other sites More sharing options...
gepardcv Posted January 6, 2018 Report Share Posted January 6, 2018 That looks like an adorable robot. Quote Link to comment Share on other sites More sharing options...
bbest Posted January 8, 2018 Report Share Posted January 8, 2018 On 1/6/2018 at 5:43 AM, gepardcv said: That looks like an adorable robot. On Ti Kan forum wrote Quote A Russian military style built! Unusual and cool. This amp will never overheat. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted January 15, 2018 Author Report Share Posted January 15, 2018 Built up a second frontend for a power amplifier I am working on. Biasing one channel as we speak! 7 Quote Link to comment Share on other sites More sharing options...

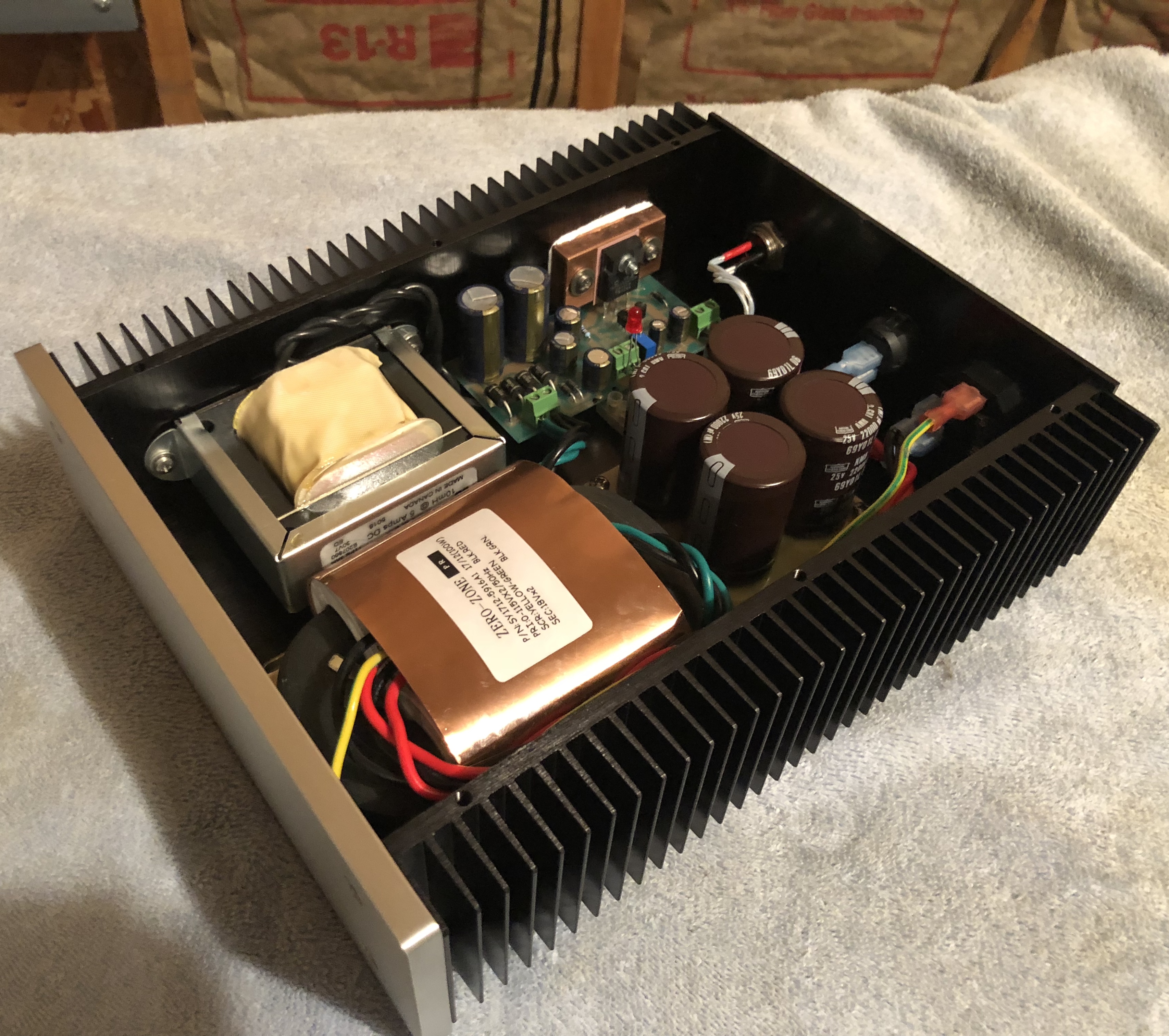

Laowei Posted January 15, 2018 Report Share Posted January 15, 2018 Mostly a packaging job. Had around an old Paul Hynes PR-3HD 18.5VDC voltage regulator and 2x 18VAC Rcore transformer I bought years ago to use in powering an old Mac mini. It’s capacitor input. Wanted remake as a 12VDC supply and was able to adjust it to design. Bought a bare case off eBay. Added a inductor and capacitor bank to use as choke input expecting ~35% rectified DC voltage drop. Powers up no-load OK. Need to now get some power resistors to stress test at 5A to see if drop out is exceeded and starves the regulator. Might have to go to a 2x 22VAC. 3 Quote Link to comment Share on other sites More sharing options...
mypasswordis Posted January 17, 2018 Report Share Posted January 17, 2018 @Laowei wow someone measured a few times before putting everything into the chassis Nice Finally about to finish up a solenoid driver board to send out. Was gonna make it smaller but got too lazy 3 Quote Link to comment Share on other sites More sharing options...
mypasswordis Posted January 27, 2018 Report Share Posted January 27, 2018 What are peoples' thoughts on PCB mount transformers? Pros/cons/pitfalls? I thought it'd be nice to not have to bolt/mount a bunch of toroids (or any, if at all possible) to a case. Yes, the silkscreen flying off the edge means the transformer is slightly wider than the PCB, but I had specific size requirements for this board. 2 Quote Link to comment Share on other sites More sharing options...
UFN Posted January 27, 2018 Report Share Posted January 27, 2018 One thought of mine was a steady stream of swear words upon realising that the footprints of PCB mount transformers aren't always 100% identical between manufacturers I waited a couple of weeks for boards only to realise that the secondary side footprints were off by 0.2" because I chose a different manufacturer, but the physical size of the transformer was identical. This obviously doesn't apply to e.g. the Talema PCB mount toroids, but it's worth remembering to always check the manufacturers datasheets Other than that I think it is a great idea for transformers under 30VA or so, because PCB mounting is more flexible than bolt mounting IME 1 Quote Link to comment Share on other sites More sharing options...

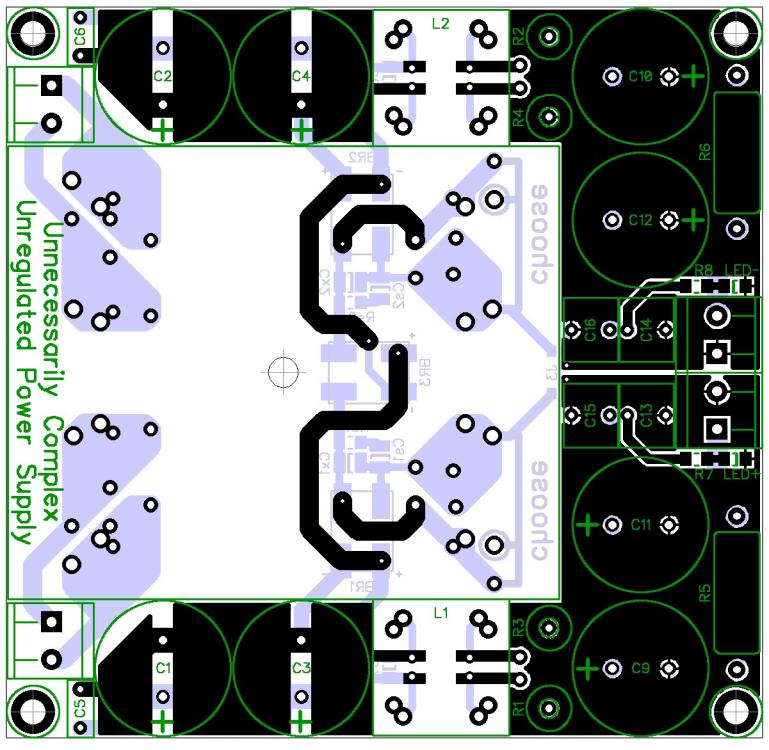

luvdunhill Posted January 28, 2018 Author Report Share Posted January 28, 2018 (edited) 15 hours ago, UFN said: One thought of mine was a steady stream of swear words upon realising that the footprints of PCB mount transformers aren't always 100% identical between manufacturers [emoji57] I waited a couple of weeks for boards only to realise that the secondary side footprints were off by 0.2" because I chose a different manufacturer, but the physical size of the transformer was identical. This obviously doesn't apply to e.g. the Talema PCB mount toroids, but it's worth remembering to always check the manufacturers datasheets [emoji4] Other than that I think it is a great idea for transformers under 30VA or so, because PCB mounting is more flexible than bolt mounting IME [emoji4] I have a nearly universal footprint. It pretty much confirms that every vendor is slightly different. The board looks like crap - plenty of nearly overlapping drill hits. Edited January 28, 2018 by luvdunhill 2 Quote Link to comment Share on other sites More sharing options...
mypasswordis Posted January 28, 2018 Report Share Posted January 28, 2018 Cool, do you have a list of which ones fit the board? Looked at the Talema units but Digikey doesn't have the one I want in stock :/ went with a Triad. I assume it works well with no noise or EMI issues? Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted January 28, 2018 Author Report Share Posted January 28, 2018 Triad, Hammond, Talema, Block and whatever else I had. Seems to work well. I might have a few transformers and boards left? I will look next week. 1 Quote Link to comment Share on other sites More sharing options...
mypasswordis Posted January 28, 2018 Report Share Posted January 28, 2018 Thanks for the offer, but the board I'm using needs to have very exact dimensions so it doesn't look like I'd be able to use your board anyway. Mine is also regulated with a tl1963 on the backside. Might look into switchers as well. 1 Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted January 29, 2018 Author Report Share Posted January 29, 2018 Thanks for the offer, but the board I'm using needs to have very exact dimensions so it doesn't look like I'd be able to use your board anyway. Mine is also regulated with a tl1963 on the backside. Might look into switchers as well. Maybe try Jan Didden’s SilentSwitcher? The DIYA store sells them now. Quote Link to comment Share on other sites More sharing options...
mypasswordis Posted January 29, 2018 Report Share Posted January 29, 2018 Interesting, thanks. I should keep up with diya more often. I can't tell if the intention for all those holes is via stitching or via shielding... doesn't really look like either at first glance. In any case, pretty sure LT isn't going to like that their trademark of Silent Switcher is being infringed upon. Time to do some research and cook up something for myself. Quote Link to comment Share on other sites More sharing options...
cspirou Posted January 29, 2018 Report Share Posted January 29, 2018 Those DIYA switchers look like they use TSP7A regulators, just like the Dynalo Mini 1 Quote Link to comment Share on other sites More sharing options...
mypasswordis Posted February 4, 2018 Report Share Posted February 4, 2018 I've been shitting bricks at figuring out whether or not everything would actually fit in the case these past few weeks and it turns out it does (or at least it should in theory), just barely. There is no empty space at all in this thing. 3 Quote Link to comment Share on other sites More sharing options...
joehpj Posted February 5, 2018 Report Share Posted February 5, 2018 Whoa. Is this a power amp? 1 Quote Link to comment Share on other sites More sharing options...
swt61 Posted February 5, 2018 Report Share Posted February 5, 2018 No, it's a cage for his hamster collection. 1 Quote Link to comment Share on other sites More sharing options...
lkong Posted February 5, 2018 Report Share Posted February 5, 2018 I paused my SS Dynalo project for almot 2 years because I'm too lazy to drill holes on the base plate, and moved cross country for a new job. Now I'm back, still dont want to drill holes, so I 3d printed adapter plates for everything. Quote Link to comment Share on other sites More sharing options...

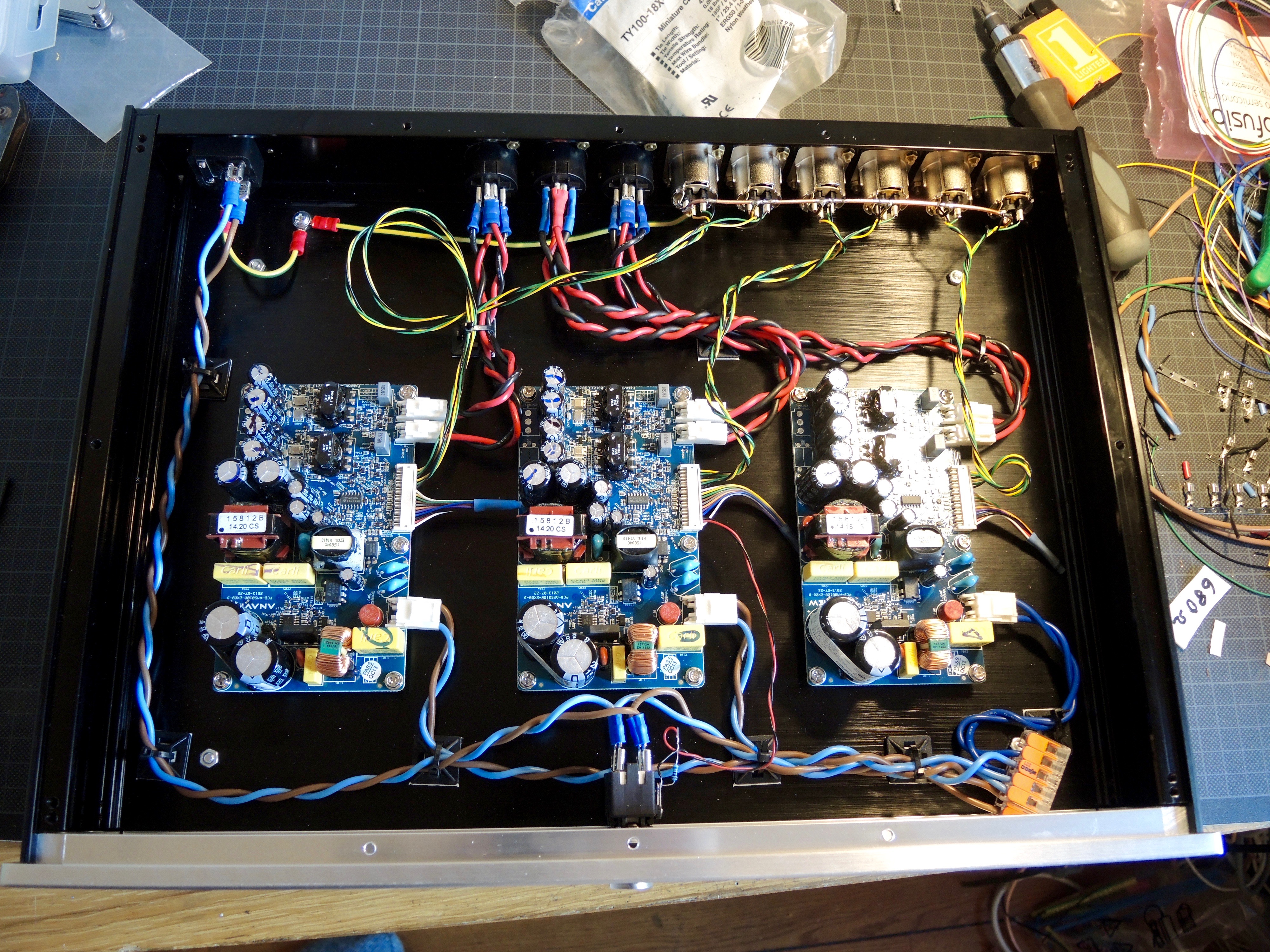

bjarnetv Posted February 5, 2018 Report Share Posted February 5, 2018 Finished up a 6 channel Anaview AMS0100 to use with my horns, as the old amps were to noisy. A pretty plug and play build by DIY-standards, but since it was my first try that suited me just fine. Only had the time to plug it in and check the channel routing using test noises, so i haven't tried playing music on it yet, but hopefully everything will be ok when i try it out later today. I still have a Holton NXV500 to build, which is a bit more difficult, so having this as a warmup to get rid of my cabinet-drilling fright was perfect 1 Quote Link to comment Share on other sites More sharing options...
