johnwmclean Posted May 9, 2021 Report Posted May 9, 2021 There are 2 different gerber files for the carbon version .6G kgsshvcarbonv6ground and kgsshvcarbonv6ground2 I see clear differences with the traces, does anyone know why?
hhobeika Posted May 10, 2021 Report Posted May 10, 2021 (edited) 7 hours ago, johnwmclean said: There are 2 different gerber files for the carbon version .6G kgsshvcarbonv6ground and kgsshvcarbonv6ground2 I see clear differences with the traces, does anyone know why? I am having the same question as well as the PCBs I have for my next build are made as per the "kgsshvcarbon6ground2" file. From what I could see, comparing the 2 gerber files, the main change from kgsshvcarbonv6ground to kgsshvcarbonv6ground2 consists of moving the low level feedback signal trace for the servo from passing next to the output and high voltage supply Phoenix connector to passing much further away across the top of the PCB. Any feedback on this will be much appreciated. Edited May 10, 2021 by hhobeika
hhobeika Posted May 11, 2021 Report Posted May 11, 2021 On 5/10/2021 at 10:55 AM, kevin gilmore said: you want the ground2 file. Thank you.
sweetleaf Posted May 19, 2021 Report Posted May 19, 2021 Making progress with the carbon build, I always enjoy SMD Here is how the SMD Carbon boards look loaded, still some parts to come and I was short on 2K trimmers on my order. Some components were mounted underside to make things easy. 6
sweetleaf Posted May 21, 2021 Report Posted May 21, 2021 Here are the mostly finished Carbon boards for Sebdti and myself Plus a look at the all in one PSU and R-core by James Transformers. The R-core is one hefty beast. The 15V rails from the PSU are regulated with DEXA UWB discrete regs https://i.ibb.co/gvVjRFG/IMG-2832.jpg 2 1
Sebtdi Posted May 21, 2021 Report Posted May 21, 2021 Any suggestions for a sick looking front panel switch light other than the typical 19mm light on most builds? Looking for a change just don't know what to look for
johnwmclean Posted May 22, 2021 Report Posted May 22, 2021 (edited) I use momentary switches, they have a nice tactile feel, something like this works well: https://au.mouser.com/ProductDetail/Schurter/124166311120000?qs=lNltUIKtpkeBG%2Br9r7bWEA%3D%3D I really dislike the the tarty, latching and overused illuminated switches. So then you can use a a solo LED for the power indicator, I find it helps your amp from not looking like a door bell. You’ll need a driver switch circuit of some sorts with a relay, but well worth the effort. Edited May 22, 2021 by johnwmclean
Beefy Posted May 23, 2021 Report Posted May 23, 2021 12 hours ago, johnwmclean said: I really dislike the the tarty, latching and overused illuminated switches. Oi! I resemble that remark! I recently went even bigger than the usual 19mm with these 22 mm jobbies for a couple of builds. It sits alongside one of the enormous 39 mm polished silver knobs from Hifi2000. It's gaudy, it's pretentious, by any reasonable standard it's awful, but I f'en love it. 4
Pars Posted May 23, 2021 Report Posted May 23, 2021 I'm sorry, but I still like the blue ring illuminated vandal switches... banish me to the corner Perhaps it is because I have rarely gotten around to casing any of my shit (yet), so I haven't gotten tired of living with them... 3
johnwmclean Posted May 23, 2021 Report Posted May 23, 2021 8 minutes ago, Pars said: banish me to the corner I think I’m the minority here, maybe I should have some time in the corner. Just don’t get me started on the dot illuminated variety... 🤮 ... to add fuel to the fire and to further rant aimlessly, I’ve rarely seen any commercial audio companies using these switches, I just can’t see the likes of Accuphase or Audio Note banging one of these bad boys on the front of their products. But hey this tots my personal pref, just throwing it out there 3

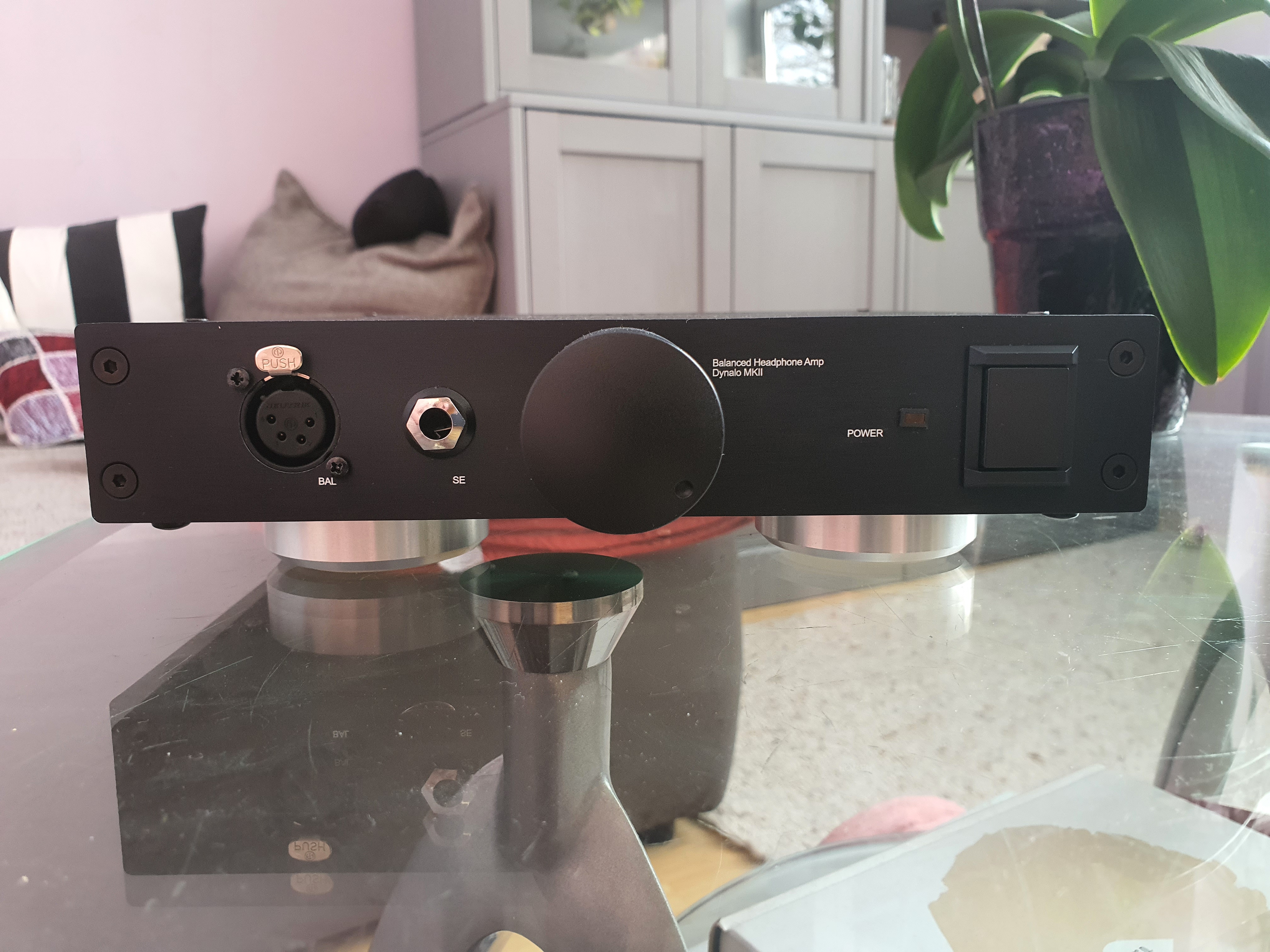

RudeWolf Posted May 24, 2021 Report Posted May 24, 2021 I'm not too big on anti-vandal switches. Always wanted to find that elusive black anodized + orange LED latching, but they're always out of stock. Recently used this switch in a build to great effect. Offset prints for the effin lose. 4
Beefy Posted May 24, 2021 Report Posted May 24, 2021 Yeah, that switch is gorgeous for that overall styling. Very nice! 1
muskyhuntr Posted May 25, 2021 Report Posted May 25, 2021 "Always wanted to find that elusive black anodized + orange LED latching, but they're always out of stock." Try.. performance-pcs.com They have them in 16 and 22 mm. Me 1
RudeWolf Posted May 25, 2021 Report Posted May 25, 2021 Thanks! Looks pretty good. Metalworking and switch woes are the worst part of all of my builds. Even if I get luck with the looks of a switch, no datasheet will ever tell me how's the feel.
Beefy Posted May 25, 2021 Report Posted May 25, 2021 (edited) 5 hours ago, muskyhuntr said: "Always wanted to find that elusive black anodized + orange LED latching, but they're always out of stock." Try.. performance-pcs.com They have them in 16 and 22 mm. Me Only problem with those is the low power rating on the switch, 24 V @ 50 mA. Should be plenty to drive a relay, but you can't use it directly for power switching. That's why I liked the e-switch model I linked above, rated for 3A at 250V, good enough for direct power control of anything but a big power amp. Unfortunately, the selection of stocked colors at Mouser, Digikey and Newark are pretty limited. (I also notice the switch Rudewolf linked is good for 250 V @ 10 A resistive loads. Proper, genuine power switch that one!) Edited May 25, 2021 by Beefy
RudeWolf Posted May 25, 2021 Report Posted May 25, 2021 1 hour ago, Beefy said: big power amp It's actually way easier with big power amps. There you need to use a soft-start and dinky momentary switches become viable. 1
sweetleaf Posted June 3, 2021 Report Posted June 3, 2021 A look at Sebdti's finished Carbon boards - Seb wanted to mount these flat against the heatsink so the L-brackets in the pic are just to help position the transistors precisely and protect during transport. Here is one of my own Carbon boards set for horizontal mounting (Joachim, the DN2540's are mounted underneath the PCB ) Also the completed PSU. For anyone who is interested - I'm using the 1200V Wolfspeed SiC's - https://www.digikey.co.uk/products/en?keywords=1697-C3M0350120D-ND 2
Sebtdi Posted July 1, 2021 Report Posted July 1, 2021 Hello folks Mostly finished the Carbon this week, powers up fine, no smoke! Can someone please help with instructions to adjust the 4 trim pots - assuming 2 are for offset and balance and correct measurements. Could not find a thread on this easily https://drive.google.com/file/d/1z83YoTnJOXTKziHwB6r9UzUBBfMHnOyq/view?usp=drivesdk
jamesmking Posted July 1, 2021 Report Posted July 1, 2021 (edited) - Edited July 1, 2021 by jamesmking
JoaMat Posted July 1, 2021 Report Posted July 1, 2021 (edited) Nice work, Sebtdi! Here is a schematic for the amplifier boards Sebtdi and sweetleaf are using. Main difference to above schematic (kgsscarbonproduction.pdf) is the offset servo. The adjusting procedure for this is like any other Carbon. Balance is set by the trimmer close to the LED and offset balance is set by the trimmer close to output connector. For setting the output current use the two most outward trimmers. It might be bit tricky to measure the voltage cross the resistor (R21 and R22 in your case) on a live amplifier. Myself, I always check the current with help of a low voltage supply and a multimeter in mA DC mode cross the constant current source. Below sorenb tells how to do. I guess a 9V battery for low voltage will work just fine. On 3/9/2017 at 1:17 PM, sorenb said: You can trim the CSS's using only LV and a DMM in mA mode (assuming AMP board is not connected to anything): Connect LV+ -> AMP HV+ Connect LV- -> DMM (Common) Connect DMM.(+) -> the probe put the probe to the tail of the CSS (the Drain of the Sics (middle leg)) Now you'll have the CSS current reading directly on the meter, and the CSS can be trimmed to what ever current < 27mA you have sinks for (one might shoot a mA lower as the current grows a bit at higher voltage and heat). Edited July 1, 2021 by JoaMat 2
mwl168 Posted July 1, 2021 Author Report Posted July 1, 2021 If your Carbon board has the offset servo, you need to deactivate the servo before making the offset adjustment. Then activate the servo afterwards. I don’t remember the detail steps but that information is in this thread somewhere. 2
JoaMat Posted July 1, 2021 Report Posted July 1, 2021 Take look at the schematic. The offset servo can’t be disabled!
