palchiu Posted March 3, 2016 Report Posted March 3, 2016 5 hours ago, Pars said: Did you have a particular SMD cap package in mind? Let me know and I will add it. 6032 for 10uF maybe easier, but 47uF only 7343 package maybe more difficult? Quote
Pars Posted March 4, 2016 Report Posted March 4, 2016 (edited) The cap value is right on the board... 0.022uf, or 22nf... this is for the diode bridge replacement board. 1 cap, small. The values you have listed suggest you think this is the PSU board itself. Edited March 4, 2016 by Pars Quote
Skooby Posted March 8, 2016 Report Posted March 8, 2016 If use GR for Carbon with 15VDC out, what's the best/optimal AC in (minimize heat/voltage drop)? I currently have 25VAC source but that will be too much heat dissipation to drop to 15VDC? Quote
Laowei Posted March 8, 2016 Report Posted March 8, 2016 1 hour ago, Skooby said: If use GR for Carbon with 15VDC out, what's the best/optimal AC in (minimize heat/voltage drop)? I currently have 25VAC source but that will be too much heat dissipation to drop to 15VDC? That will work fine. You may have to add small heat sinks to the pass transistors. Quote
Skooby Posted March 8, 2016 Report Posted March 8, 2016 Ok, thanks...I actually can change the trafo windings to get any VAC value. If 25VAC works, no need to hassle then; hope not too much heat to dissipate. Quote
Kerry Posted March 8, 2016 Report Posted March 8, 2016 At 25VAC that's a dc drop of 20 volts less the bridge. At about 10mA+ that's a bit too much heat. I would change the windings. 18VAC is more than enough. Quote
FallenAngel Posted March 15, 2016 Report Posted March 15, 2016 (edited) Looks like MJW21193 is out of stock in Digikey and Mouser Are there alternative components or alternative places to get these parts? EDIT: Grabbed some off eBay. Edited March 15, 2016 by FallenAngel Quote

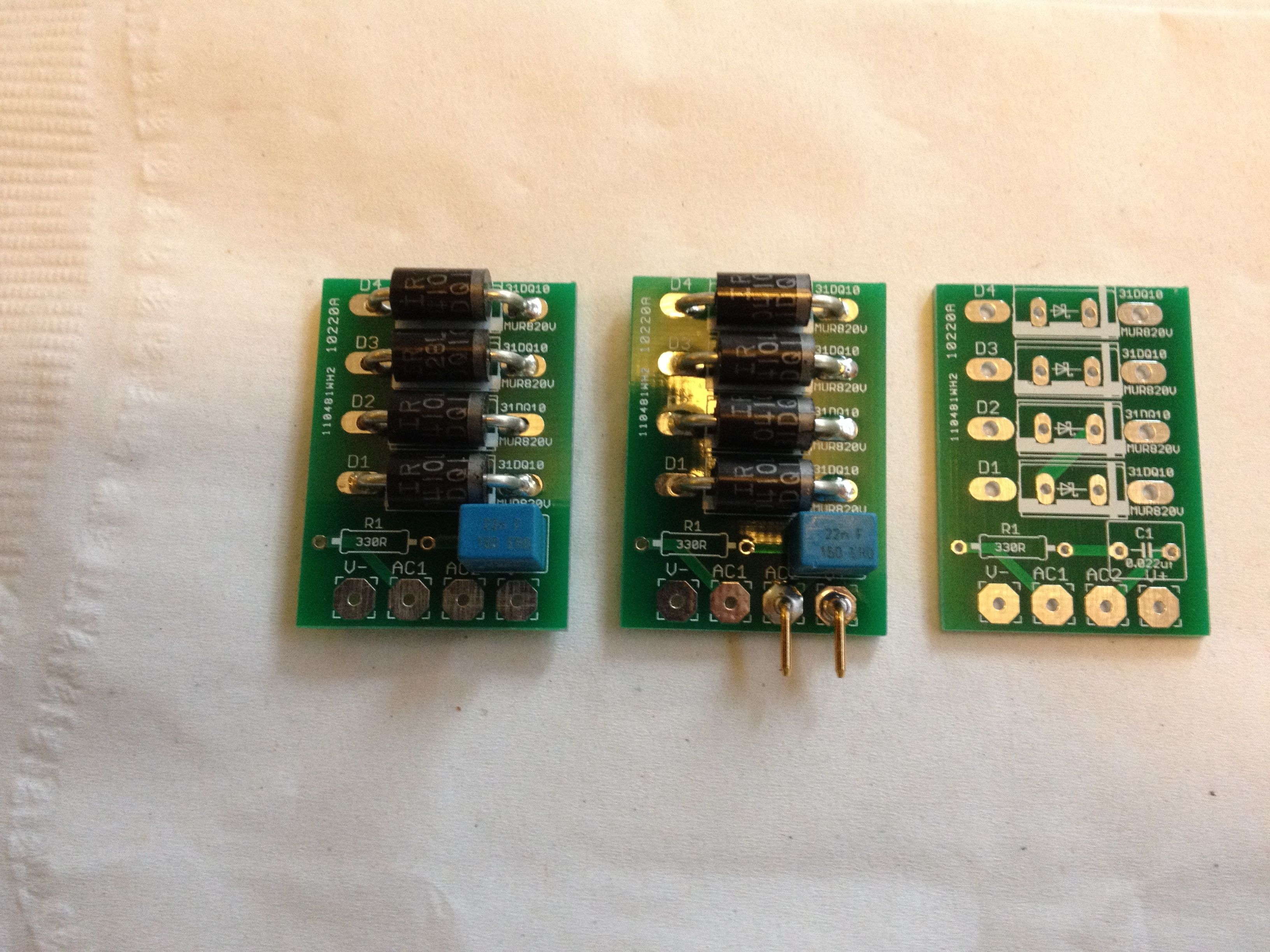

Pars Posted March 20, 2016 Report Posted March 20, 2016 On 1/29/2016 at 0:25 PM, Pars said: I had mentioned using Schottky rectifiers for this. I think I am going to have a few of these made: These are setup to take either a D201 axial diode (31DQ10 or equivalent), or also accept a TO220 package like an MUR820. I know the TO220s should probably be oriented 90 degrees from how I have them for airflow, but my intent was the axial Schottky diodes on these. I home-etched a pair of these and used them in my original Dynalo (headamp board). I used some Mill-Max right angle pins on those (3301-2-14-21-00-00-08-0), and plugged them right into the RS402 bridge holes on the PCB. If anyone with appropriate facilities wanted to compare these noise-wise to the packaged rectifiers, I could send them a pair to test. EDIT: Added John Swenson snubber across AC primary I had a few of these run by SeeedStudio... I think they turned out well. I even had 8 31DQ10s left over, and a couple of the pins. I'll need to get some part orders in, and don't have my GRLV nearly ready yet. I did have to flip two of the 10 ohm resistors on the GRLV to the bottom for these to fit, but I'm satisfied. 1 Quote
mtoc Posted April 23, 2016 Report Posted April 23, 2016 On 2016年2月28日 at 9:57 PM, kevin gilmore said: pre-reg driver on the uber2 output board Lol, I type the wrong words above, almost forget to revist here. Truly sorry... Here's my question, If I wanna a build a linear PSU, like a 350w linear PSU, with golden reference and a 350w tranny (maybe a 350w tranny ain't big enough?), and I only need the +30v, what should I do? I know the -30V output can be ignored (if I only need the +30v), but this makes the components of the -30V wasted. The original ucc has the +voltage version. Does the pre-reg stage also should be slightly modified in this case? Quote
mtoc Posted April 23, 2016 Report Posted April 23, 2016 I've found this, my bad, my bad. http://gilmore.chem.northwestern.edu/boards/goldenreference7plus.zip Still don't know what pre-reg is, I guess it's the unbal / bal / cast to bal board. Quote
kevin gilmore Posted April 23, 2016 Author Report Posted April 23, 2016 goldenreference is only good for about 1.5 amps when you need a lot more than that, you have to add an extra set of pass transistors. like the ones on the uber2amp board. And they have to be mounted to a large heatsink Quote
sorenb Posted April 23, 2016 Report Posted April 23, 2016 8 minutes ago, kevin gilmore said: goldenreference is only good for about 1.5 amps when you need a lot more than that, you have to add an extra set of pass transistors. like the ones on the uber2amp board. And they have to be mounted to a large heatsink Does that still apply if the pass transistors on the GRLV are mount onto a proper heatsink? Quote
kevin gilmore Posted April 23, 2016 Author Report Posted April 23, 2016 never tested fully. but probably base drive current may not be enough for 2+ amps Quote
mwl168 Posted April 27, 2016 Report Posted April 27, 2016 (edited) Did some testing on my GRLV PS. For +/- 20 VDC regulated output, the drop out voltage is about 3 VDC. Very impressive to me for such a high performing regulator. Edited April 29, 2016 by mwl168 Quote
chiguy Posted April 28, 2016 Report Posted April 28, 2016 (edited) Can the R7, R8, R9, R10 resistors be changed to get a specific output voltage or is it only advisable to change R8 and R9? Trying to work around out of stock (or not available) resistor values at Mouser... Edited April 28, 2016 by chiguy Quote
sorenb Posted April 28, 2016 Report Posted April 28, 2016 you probably already figured out that there needs to be 10V across R7 and R10 (or equal voltage to whatever voltage ref you use) ... Kevin later change the string from ~3k to 4k, see here Quote
luvdunhill Posted April 28, 2016 Report Posted April 28, 2016 KG: can I get a link to the most up to date schematic? Quote
kevin gilmore Posted April 29, 2016 Author Report Posted April 29, 2016 pretty sure the goldenreference.pdf is the latest version Quote
luvdunhill Posted April 29, 2016 Report Posted April 29, 2016 Has anyone done analysis of the circuit to see if any the semiconductors could be replaced with SMD and what resistor power ratings could be used? I would target 1A output at +/-23VDC output using a 20VAC transformer as input. Quote
Kerry Posted April 29, 2016 Report Posted April 29, 2016 I've started on that. I've got a spice model I can you you're interested. Quote
Laowei Posted April 29, 2016 Report Posted April 29, 2016 Looking for anyone who could part (for a price) with a pair of separate plus minus GR-LV boards. It would help clean up the packaging on the KGSSHV-Carbon I'm slowly putting together. The bipolar boards I have are a wee bit too big for the space allocated. Thanks. Quote
luvdunhill Posted April 29, 2016 Report Posted April 29, 2016 I've started on that. I've got a spice model I can you you're interested. Cool, I would be glad to start the layout. I have a specific width in mind though, and would not have the rectifiers or bulk capacitance on the board, so we might have slightly different use cases. That being said, sure, I would love the models (and any answers you have arrived at) Quote
mtoc Posted April 30, 2016 Report Posted April 30, 2016 Walt made a new thing, but it's only 2.5v http://www.waltjung.org/waltsblog/whats-new/gled431-an-ultra-low-noise-led-reference/ Quote
mdr30 Posted May 7, 2016 Report Posted May 7, 2016 Leds close to big caps light up, then dies. Same thing when powering up once again. Other leds unaffected. Amp boards OK (Dynalo). Any ideas what it could be? Quote
mypasswordis Posted May 7, 2016 Report Posted May 7, 2016 Most likely the LT1021 or opa134, make sure they are working and you don't have them in wrong. Don't connect a psu to an amp until you know it's working... Quote
