gepardcv Posted August 13, 2015 Report Share Posted August 13, 2015 It's totally fine to run +20V over on the bias, probably quite a bit more. I'm asking more out of curiosity. FWIW, I use a DY294 to pick zeners with the closest tolerances, and replace 100V with 91V versions, but that's my OCD talking more than any real need. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted August 13, 2015 Report Share Posted August 13, 2015 typical high voltage zeners are +/-3% no matter what the specs arethe el-cheapo meter works great for hand picking parts Quote Link to comment Share on other sites More sharing options...
mwl168 Posted August 13, 2015 Author Report Share Posted August 13, 2015 I placed our order of the boards with PCBnet today and received order confirmation. The boards should be ready to deliver to me by August 27 or sooner. I am going to start working on preparation for packaging and shipping in the next few days. I will keep you all posted 1 Quote Link to comment Share on other sites More sharing options...

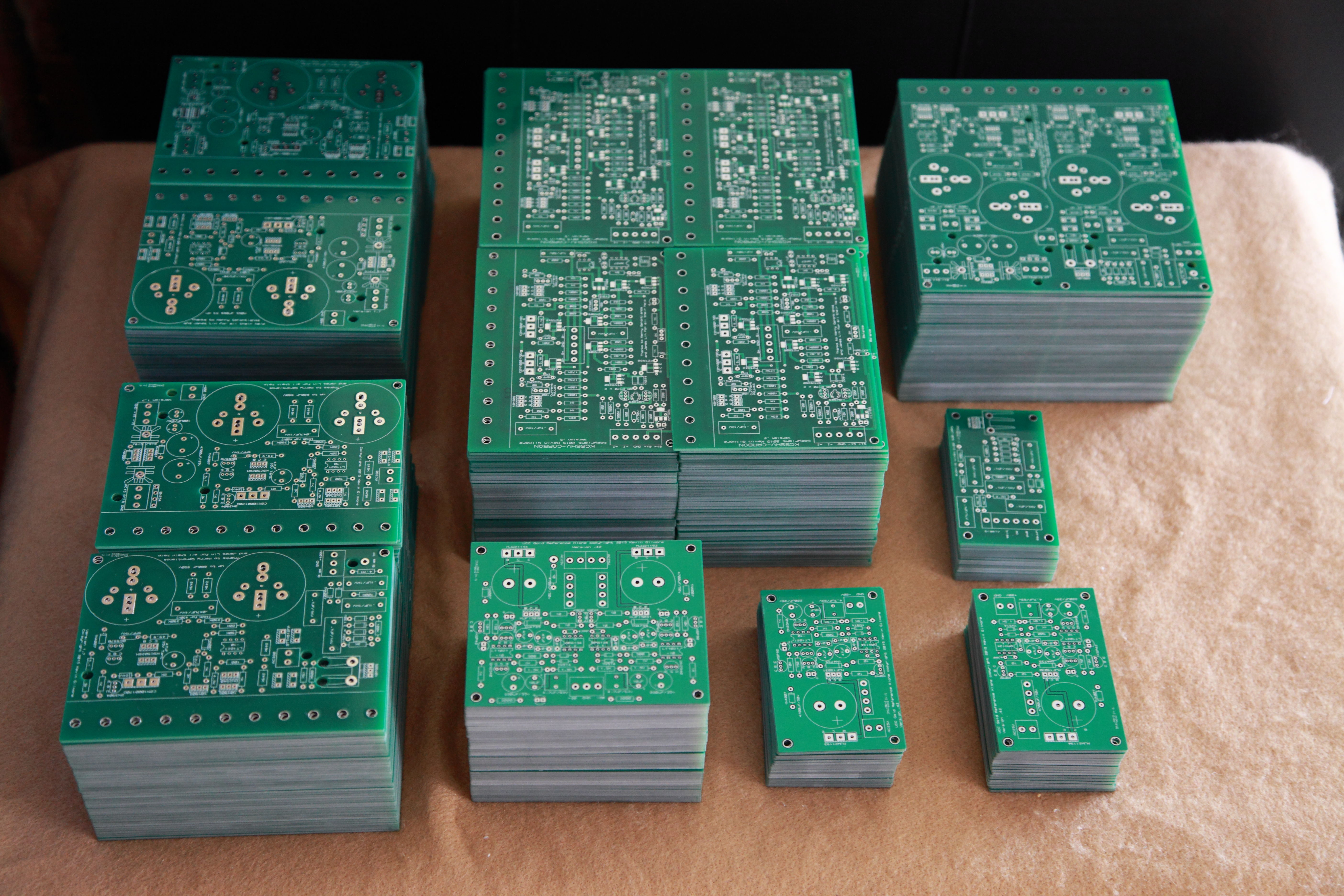

mwl168 Posted August 27, 2015 Author Report Share Posted August 27, 2015 (edited) Look at what FedEx dropped off today:Here is what I found inside: Got home late tonight. Will post more pics tomorrow. Edited August 28, 2015 by mwl168 2 Quote Link to comment Share on other sites More sharing options...
eggil Posted August 27, 2015 Report Share Posted August 27, 2015 Wow! That was quick! Quote Link to comment Share on other sites More sharing options...
wink Posted August 27, 2015 Report Share Posted August 27, 2015 Soldering irons are at the ready.......... Quote Link to comment Share on other sites More sharing options...
kingofsnake Posted August 27, 2015 Report Share Posted August 27, 2015 WOW! that must be a good couple of KG's/$ worth of pcb's there. That didn't take very long. Quote Link to comment Share on other sites More sharing options...
Laowei Posted August 27, 2015 Report Share Posted August 27, 2015 Excellent! Quote Link to comment Share on other sites More sharing options...

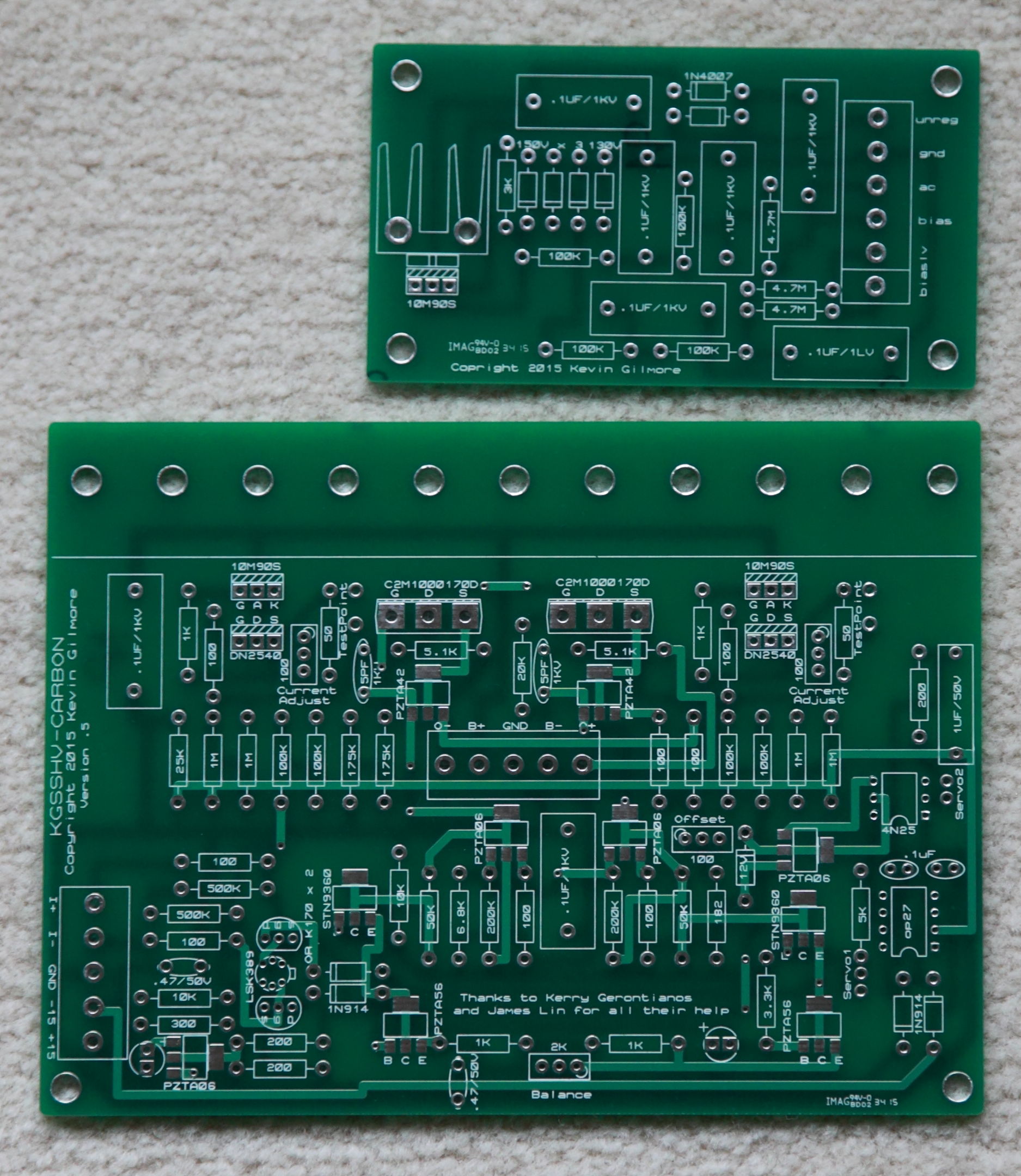

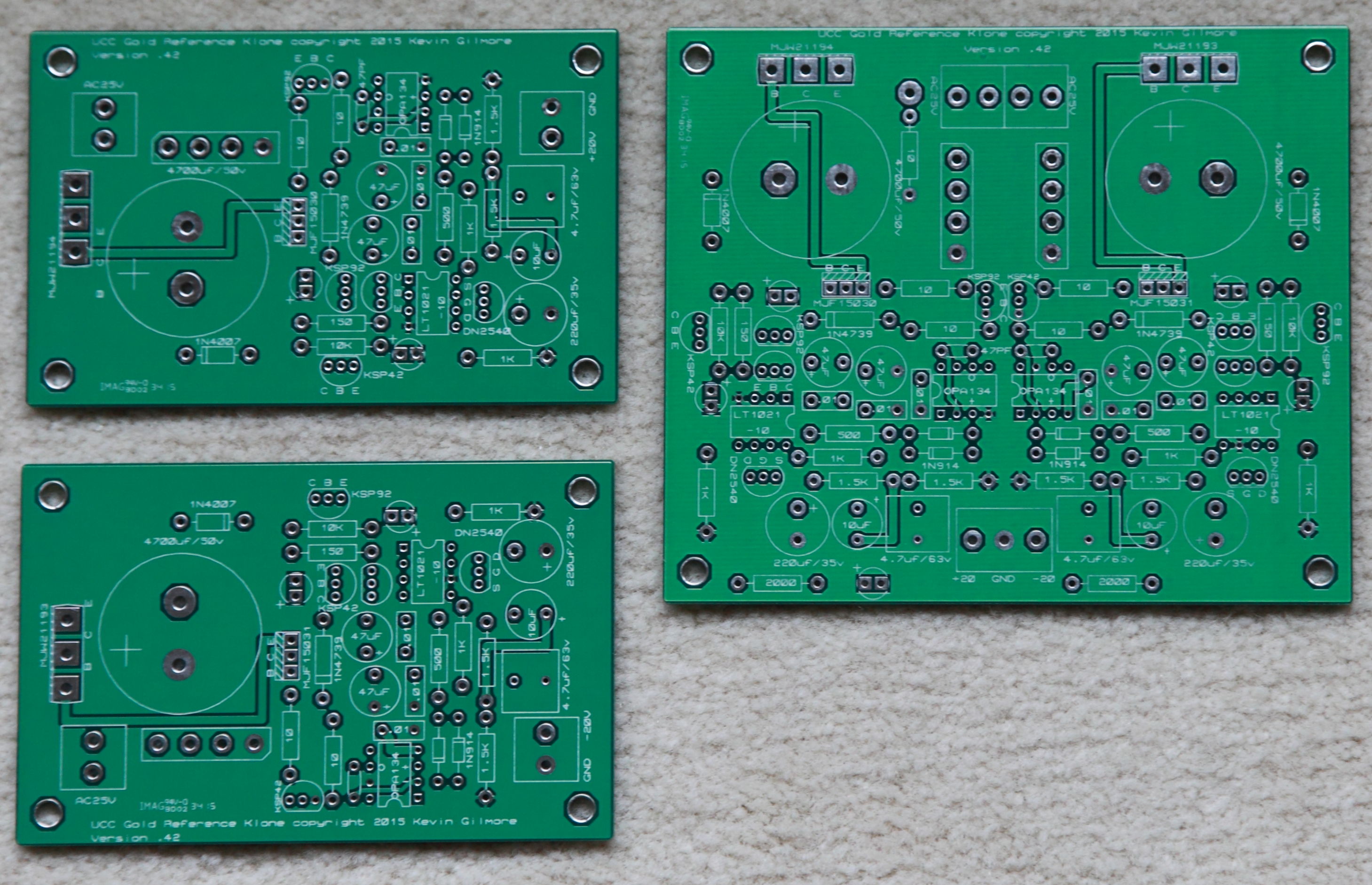

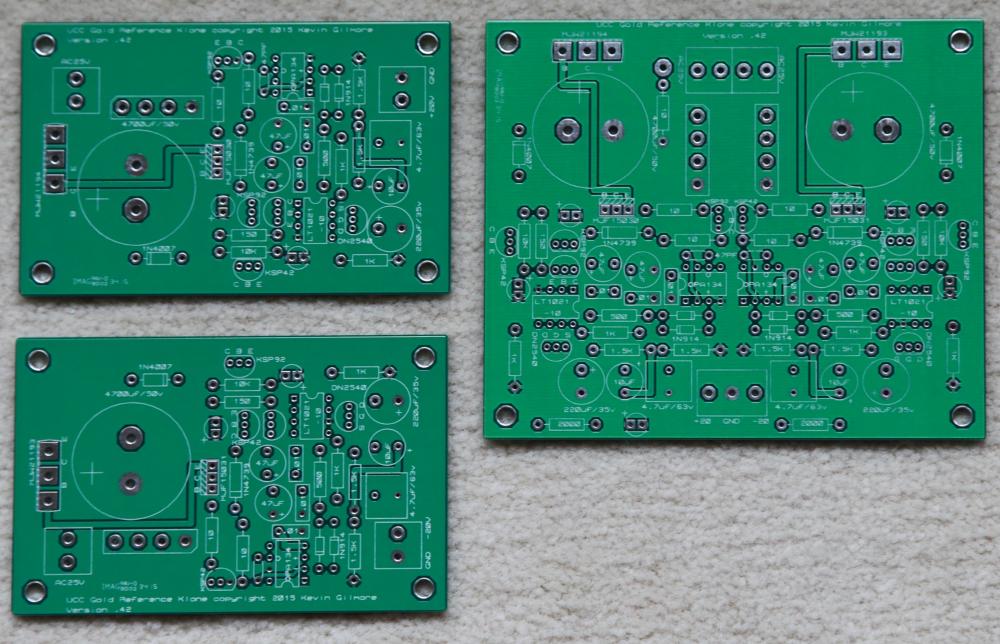

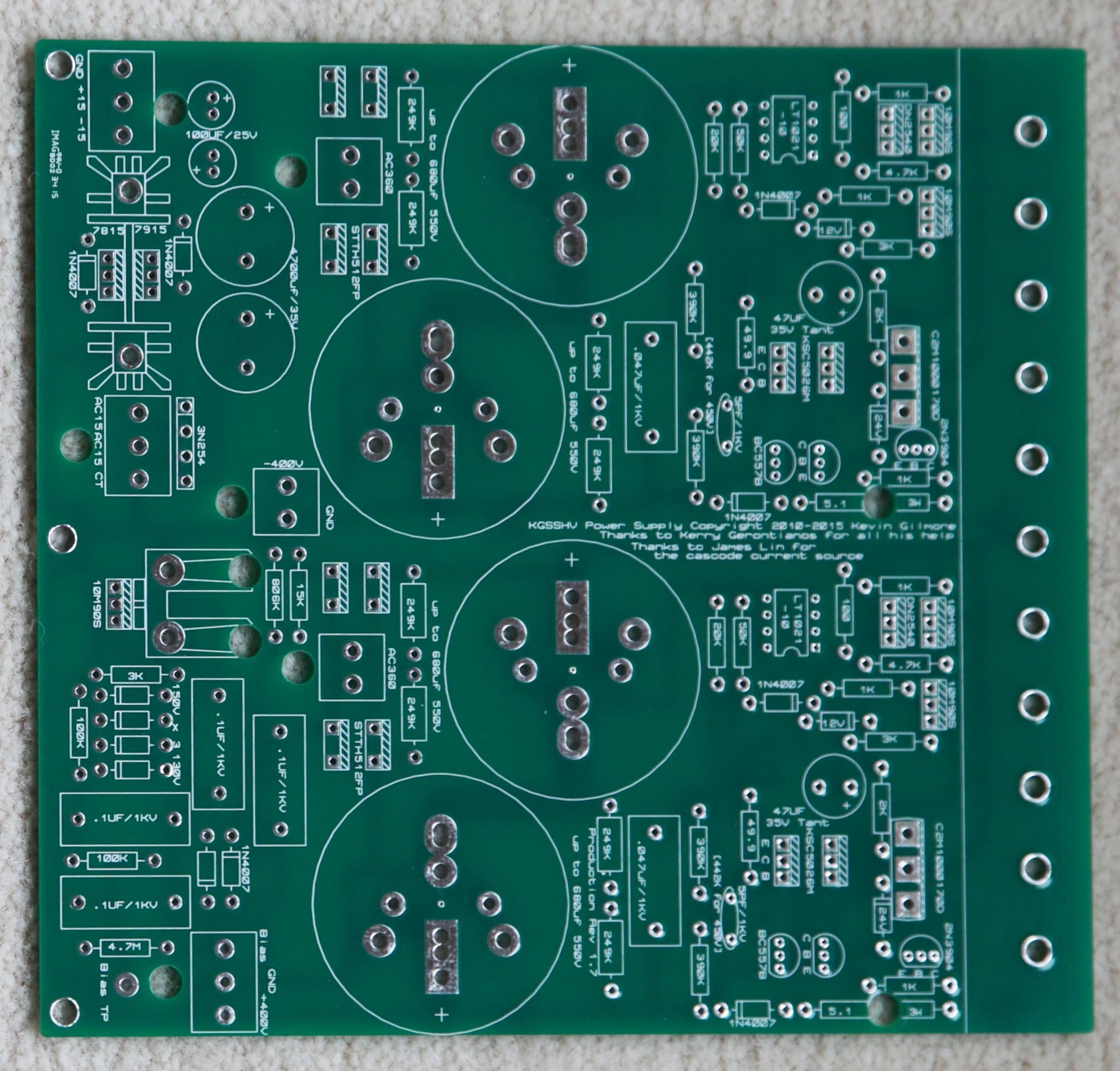

mwl168 Posted August 28, 2015 Author Report Share Posted August 28, 2015 (edited) More pics of the PCBs as promised.Out of town this weekend. Should start shipping packages out next week. Edited August 28, 2015 by mwl168 1 Quote Link to comment Share on other sites More sharing options...
headinclouds Posted August 29, 2015 Report Share Posted August 29, 2015 They look good. Excitement mounting! Quote Link to comment Share on other sites More sharing options...
gepardcv Posted August 29, 2015 Report Share Posted August 29, 2015 Speaking of mounting (pun intended, sorry!), does anyone have recommendations for finding appropriate angle brackets? I don't have easy access to a machine shop to make my own, and it doesn't look like attaching transistor tabs directly to the heatsinks is an option here. Quote Link to comment Share on other sites More sharing options...
Aive Posted August 29, 2015 Report Share Posted August 29, 2015 Hey Gepard, checkout your local hardware store, they should sell strips of angled aluminium brackets. They're usually quite thin though (if that's an issue?) 2 - 3mm thick... Quote Link to comment Share on other sites More sharing options...
insanity Posted August 30, 2015 Report Share Posted August 30, 2015 I agree with Aive. I am also planning on using backets from my local hardware store. I will do the cutting and drilling myself (not that many holes needed per bracket). But if someone has no access to a drillpress and saw, this could be difficult. I was also thinking if a thickness of 2-3mm was enough, but thats the only thing they sell. Quote Link to comment Share on other sites More sharing options...
kingofsnake Posted August 30, 2015 Report Share Posted August 30, 2015 I once used some 30mm x 30mm x 5mm angle for the brackets. I bent the legs of a 10M90S 90deg so they align with there corresponding holes exactly, however once i put a ceramic washer 2mm thick i believe underneath, the legs of the 10M90S were barely visible from the other side! i now use 3mm thick angle (E-bay) and it seems to work just fine. Quote Link to comment Share on other sites More sharing options...
Earspeakers Posted August 30, 2015 Report Share Posted August 30, 2015 Just a sanity check - angle brackets for the heatsinks? How big of a bracket, as big as is reasonable? Confidence that will produce enough ability to radiate heat? Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted August 30, 2015 Report Share Posted August 30, 2015 the angle brackets bolt to much bigger heatsinks, same way as T2because the sicfets are bigger I am now using 1.5 x 1.0 inch aluminum angle bracket .125 thick Quote Link to comment Share on other sites More sharing options...
Earspeakers Posted August 30, 2015 Report Share Posted August 30, 2015 Got it, so the brackets go on the the PCB top, the silicon is bent horizontal to bolt to the angle bottom, and the angle vertical then bolts to the side mounted heatsink. I've only finished the KGST and KGSST so far with the on board heatsinks, got a Megatron board done except the final silicon (PS has the offboard heatsink), and a DIYT2 so haven't figured out how the offboard heatsinking is supposed to work. Makes sense, thx Quote Link to comment Share on other sites More sharing options...
mwl168 Posted August 30, 2015 Author Report Share Posted August 30, 2015 There will be a few days delay in shipping of boards. I apologize.Went down to the main USPS office Saturday morning to pick up packaging supply only to be told that they do not have any of the kind I need in stock and that I have to order them online. Placed the order last night and it says it will take 3 - 5 business days.Boards are sorted and ready to be packaged. The boards appear to be very good quality by visual inspection. Quote Link to comment Share on other sites More sharing options...
Pars Posted August 31, 2015 Report Share Posted August 31, 2015 No problem here, and thanks for all of your efforts! Quote Link to comment Share on other sites More sharing options...
mwl168 Posted September 6, 2015 Author Report Share Posted September 6, 2015 I am sorry I don't have good news on the USPS shipping.The two kinds of packing containers I ordered a week ago, one did not arrive this week (supposed to be 3 -5 business days, it has been 6 days now), the one arrived today was not what I ordered (wrong dimension). Went down to another post office and was told again that they too do not have those containers in stock. Very disappointing!I did pick up a few containers that's only good for domestic priority shipping and cannot accommodate the GR HV Dual PSU. It's also not padded like the one I ordered. I will start shipping domestic orders that do not include the GR HV Dual boards.I apologize again for this delay. Quote Link to comment Share on other sites More sharing options...
palchiu Posted September 6, 2015 Report Share Posted September 6, 2015 (edited) No problem, Thanks for the GB. Edited September 6, 2015 by palchiu Quote Link to comment Share on other sites More sharing options...
kingofsnake Posted September 6, 2015 Report Share Posted September 6, 2015 No problem....Best to get the right packing materials. UK customs appear to have little regard for whats inside international packages judging by the condition some of my parcels arrive in! Quote Link to comment Share on other sites More sharing options...
mwl168 Posted September 6, 2015 Author Report Share Posted September 6, 2015 (edited) A bit of good news following the disappointing news last; my wife was able to score a few of the USPS containers (large padded priority mail envelope) I have been expecting from a grocery store of all places today. The attached photo is some of the packages ready to be shipped. As you can see some of them are still awaiting their containers. The photo is out of focus on purpose to protect privacy Edited September 6, 2015 by mwl168 Quote Link to comment Share on other sites More sharing options...
UFN Posted September 7, 2015 Report Share Posted September 7, 2015 Great. Hope my boards are among the ones that are ready to go //UFN Quote Link to comment Share on other sites More sharing options...
nopants Posted September 7, 2015 Report Share Posted September 7, 2015 looks great, thanks for putting these together as always Quote Link to comment Share on other sites More sharing options...
