Helium Posted June 5, 2015 Report Share Posted June 5, 2015 by the way fully balanced version coming. lots of parts! 100% differential 100% complementary http://gilmore.chem.northwestern.edu/cfa3production.pdf not sure why it took me years to come up with this NO FEEDBACK of any kind thd <.005% and absolutely flat over the 10hz to 200khz frequency response +0, -3db .017hz to 4.43 MHz So, is it end of the game SS dynamic amp??? What's your opinion? Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted June 6, 2015 Author Report Share Posted June 6, 2015 (edited) don't know yet. with the he1000 coming out, all this power is unnecessary and the ssdynalo works great. the no feedback part is sweet however. Edited June 6, 2015 by kevin gilmore Quote Link to comment Share on other sites More sharing options...
nopants Posted June 6, 2015 Report Share Posted June 6, 2015 (edited) Looks like I need to save the attenuator boards for this and not the T2 what's wrong with SMD in this case, the packages are large enough to do by hand, not to mention still available at mouser Edited June 6, 2015 by nopants Quote Link to comment Share on other sites More sharing options...
Helium Posted June 6, 2015 Report Share Posted June 6, 2015 Power is still necessary Looks like I need to save the attenuator boards for this and not the T2 what's wrong with SMD in this case, the packages are large enough to do by hand, not to mention still available at mouser Harder to match them. Anyway, there are just 4 of them per board. It's OK. Quote Link to comment Share on other sites More sharing options...
nopants Posted June 6, 2015 Report Share Posted June 6, 2015 Don't think you need to match anything Quote Link to comment Share on other sites More sharing options...
Luke Posted June 7, 2015 Report Share Posted June 7, 2015 Hi Kevin, I have read several times on other forums that the higher voltage 15034 & 15035 parts sound better than the 15031 and 15030. Is it worth trying both parts you think? probably not cheap though. Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted June 7, 2015 Author Report Share Posted June 7, 2015 I have never tried it. not available in plastic insulated tab, so you would have to make sure the insulation is right. at least its low voltage Quote Link to comment Share on other sites More sharing options...
Luke Posted June 8, 2015 Report Share Posted June 8, 2015 OK, so your not working on MJE package, i didn't pick that up, either way its probably easy to try. I actually have a few of the mje15035 & 15035. You mention Ayre in this thread, is this your inspiration for this amp? I believe all their amplifiers are zfb designs, maybe the codex is too, should see some reviews on this product soon. Quote Link to comment Share on other sites More sharing options...
Helium Posted June 8, 2015 Report Share Posted June 8, 2015 Try Toshiba 2SC5171/2SA1930. They are available at Bdet (2SC5171/2SA1930) and Mouser (2SA1930). Grab them! Quote Link to comment Share on other sites More sharing options...
Luke Posted June 8, 2015 Report Share Posted June 8, 2015 Nice tip, they are same pinout as onsemi parts, but you need to buy 500 of them from mouser or digikey. Quote Link to comment Share on other sites More sharing options...
Helium Posted June 8, 2015 Report Share Posted June 8, 2015 Minimum quantity from Mouser is 1 pcs (2SA1930). Same from BDent (2SC5171). Ah yes, 2SA1930 is in stock in Digikey. Minimum quantity is 1 pcs. too. Quote Link to comment Share on other sites More sharing options...
Luke Posted June 9, 2015 Report Share Posted June 9, 2015 where I live I gotta get a one stop shop. Last quote I got from Future Electronics was 70 dollars shipping. for 40 dollars worth of semis. I live in NZ, its far, but it aint the moon:-) Quote Link to comment Share on other sites More sharing options...
MLA Posted January 20, 2016 Report Share Posted January 20, 2016 Running my CFA2 at +/- 24V rails currently, but thinking about testing something a bit higher, given that the Transconductance Amp seems to benefit from slightly higher rails. Is this thinking about it backwards? and if not, what is the highest voltage possible in stock configuration (given adequate heatsinking)? Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted January 20, 2016 Author Report Share Posted January 20, 2016 the opamp blows up at +/-40V would have to check the other parts, but +/-30V should absolutely work speaking of power... unbalanced/balanced/cast to balanced input block for all sorts of things, but mainly the uberamp, just need to find a way to get it into the box will probably involve splitting off the driver section. Uses GR power supply +/-30V for the front end and another GR power supply +/-40V to run the regulated output voltages to the output amp. If i add zeners to the servo amp, can easily go to +/-50V and as shown, its 100 watts of pure class A, and something north of 225 watts A/B front end NO feedback of any kind, .0025% thd at 20khz, 2nd harmonic. 3rd harmonic not measurable. output amps are current feedback. i think i have created a monster 8 Quote Link to comment Share on other sites More sharing options...
Kerry Posted January 20, 2016 Report Share Posted January 20, 2016 You read my mind. I was looking for a project like this I'm at the early stages, but I'm planning on building some exotic speakers. More on that later. Quote Link to comment Share on other sites More sharing options...
MLA Posted January 20, 2016 Report Share Posted January 20, 2016 A monster indeed. Magnificent!!! Quote Link to comment Share on other sites More sharing options...
chinsettawong Posted January 20, 2016 Report Share Posted January 20, 2016 I absolutely need an amp like this for my ESL. Quote Link to comment Share on other sites More sharing options...
spritzer Posted January 20, 2016 Report Share Posted January 20, 2016 The design of this has absolutely nothing to do with me having Quad ESL57's and a new big living room... 4 Quote Link to comment Share on other sites More sharing options...
Marc Edwards Posted January 20, 2016 Report Share Posted January 20, 2016 OH yum! Quote Link to comment Share on other sites More sharing options...
GrindingThud Posted January 21, 2016 Report Share Posted January 21, 2016 Schweet! Quote Link to comment Share on other sites More sharing options...

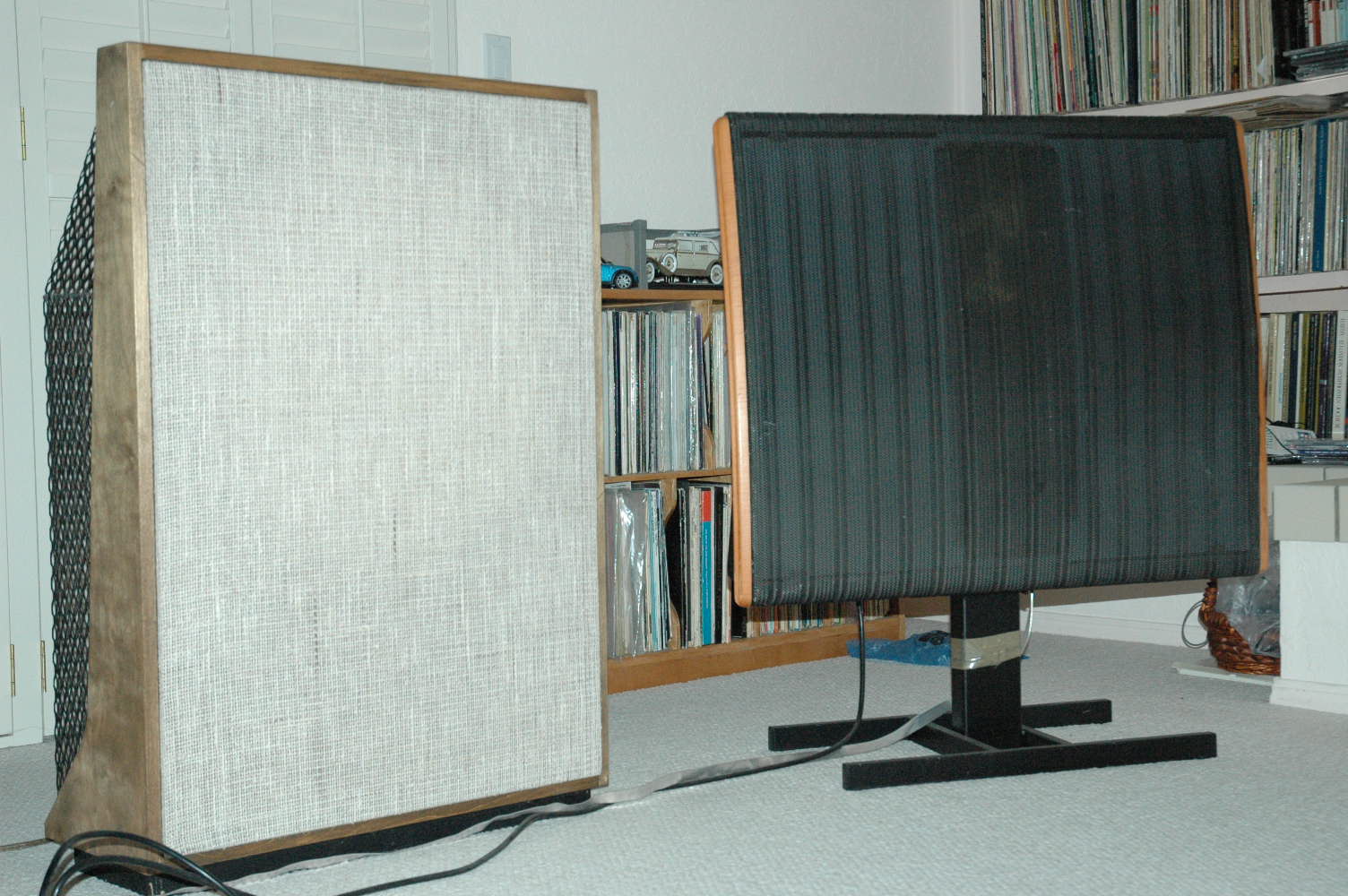

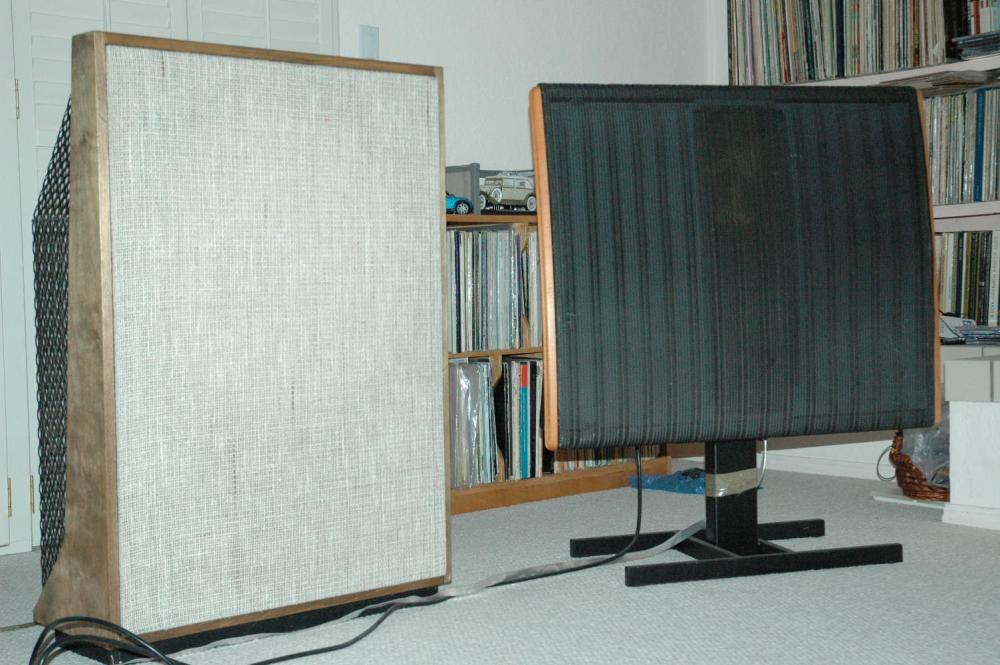

JimL Posted January 21, 2016 Report Share Posted January 21, 2016 8 hours ago, spritzer said: The design of this has absolutely nothing to do with me having Quad ESL57's and a new big living room... Welcome to the Quad side! I've had mine since the early 1980s. Quote Link to comment Share on other sites More sharing options...
n3rdling Posted January 21, 2016 Report Share Posted January 21, 2016 Quad 57 club checking in Birgir, when did you get yours? Quote Link to comment Share on other sites More sharing options...
wink Posted January 21, 2016 Report Share Posted January 21, 2016 Is this why Birgir is building something other than electrostatic amps..? From Mjolnir Audio on 17-01-2016 in the News section:- "Stay tuned soon for some crazy news such as me finally building some dynamic amplifiers and other madness… " Quote Link to comment Share on other sites More sharing options...
spritzer Posted January 21, 2016 Report Share Posted January 21, 2016 Gotta do some dynamic amps as well. Show people how they should be done as there is an awful amount of crap out there. 7 hours ago, n3rdling said: Quad 57 club checking in Birgir, when did you get yours? Late last year. There was a local set for sale that I tried to avoid but I finally broke down when the owner called me out of the blue. Apparently it is known here now that I like electrostatics... They are just sitting unused for now but I'll probably ship them out to be completely refurbed. Quote Link to comment Share on other sites More sharing options...
n3rdling Posted January 21, 2016 Report Share Posted January 21, 2016 Are they not working properly? I've heard from several Quad owners out here that their refurbed units never sounded the same, and that's with the popular restorers. Quote Link to comment Share on other sites More sharing options...
