kevin gilmore Posted March 29, 2015 Author Report Posted March 29, 2015 its bipolar inputs, (one of my pure bipolar series) so there is input offset bias current. Input pot really should be 10k or 20k. very fast, very low noise, very low distortion.
GrindingThud Posted March 30, 2015 Report Posted March 30, 2015 (edited) Input pot 10k (shorted for now). I have an interesting issue. I jumpered pin3 to ground (left the offset pins float) on the servo opamp. The output of the amp drifts to just under 2v offset (opamp pin 6 drifts to -19v). Or I can flip it if I drive the output the other way with a battery. -2V offset and 19V pin 6. Is the polarity of the feedback correct? Edited March 30, 2015 by GrindingThud
kevin gilmore Posted March 30, 2015 Author Report Posted March 30, 2015 (edited) shit, looks like the feedback is upside down again. my simulation software continues to do that. I thought i had it fixed, evidently not. same thing happened to the original squarewave clone. i am changing to new simulation software, probably today. huge learning curve, not happy. will check when i get home, i don't think i have that file here. better idea... remove r19 from the board. solder in 2 x 50k resistors on the bottom of the board from the opamp output pin to the top and bottom of the bias generator. Same as this. http://gilmore.chem.northwestern.edu/multiamp.pdf let me know... Edited March 30, 2015 by kevin gilmore
GrindingThud Posted March 30, 2015 Report Posted March 30, 2015 I was just going to swap pin 2 and 3....easy trace cut. Need to wait til Friday for the mod...too much work during the week.
kevin gilmore Posted March 30, 2015 Author Report Posted March 30, 2015 (edited) integrators do not work that way, but try it synthesis says that flipping + and - definitely does not work. the pair of resistors, but they need to be 5k not 50k Edited March 30, 2015 by kevin gilmore
GrindingThud Posted March 30, 2015 Report Posted March 30, 2015 Ok, I'll try the resistors 1st. So I'd tie the top of R4 by Q2 and bottom of R5 by Q4 back to pin 3 via the 5K pair....that will invert it?
kevin gilmore Posted March 31, 2015 Author Report Posted March 31, 2015 (edited) the 2 resistors go to C2 on the original schematic. top of R30, bottom of R15 the resistors join and connect to pin 6 of the opamp like this http://gilmore.chem.northwestern.edu/cfp2f.jpg Edited March 31, 2015 by kevin gilmore
GrindingThud Posted March 31, 2015 Report Posted March 31, 2015 Oh, shoot, way down there in the chain. Thanks for the clarification, I was thinking about it ass backwards trying to tie it back into the other section!
GrindingThud Posted April 4, 2015 Report Posted April 4, 2015 Yep, working great now. I used 5K instead of 15 because that's what I had laying around. I might have some 14.7s I'll use on the next board. Q27/28 run a little hot but I think only drop a third of a watt.
kevin gilmore Posted April 4, 2015 Author Report Posted April 4, 2015 oops, those should be 5k. The board says 5K now. maybe we can increase those. what is the voltage on pin 6 of the opamp to ground.
GrindingThud Posted April 4, 2015 Report Posted April 4, 2015 (edited) Opamp output is sitting at .455V with final amp output settled at 0.1mV with input shorted Driving the input positive or negative with a 1.5V battery (measured at 1.65V) drives pin 6 to +/-20 Output under those conditions is brought to +/-4.68V non-inverting. Without the servo, final output swings +/-5.8, so about 1.2V of correction. Gain is around 3.5 Edited April 4, 2015 by GrindingThud
kevin gilmore Posted April 4, 2015 Author Report Posted April 4, 2015 I agree with all of those numbers, especially the gain.
GrindingThud Posted April 4, 2015 Report Posted April 4, 2015 2nd board is done and mounted. Will test after I eat and then listen in stereo. .
nopants Posted April 4, 2015 Report Posted April 4, 2015 Thanks for being the alpha tester for this board, let us know how it sounds

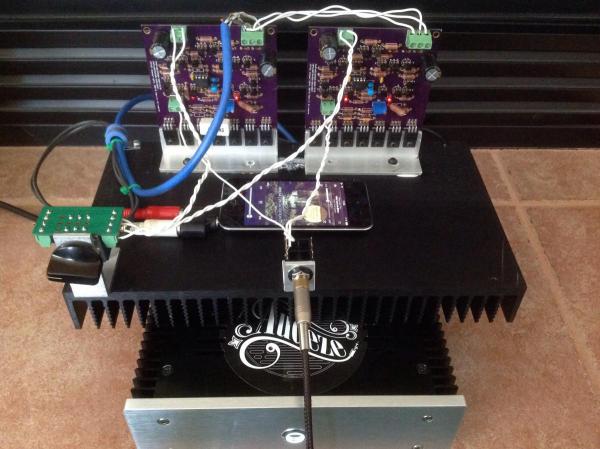

GrindingThud Posted April 5, 2015 Report Posted April 5, 2015 (edited) I'm going to put my wow hat on for this one. It sounds great. Tried it with cheesy iems and its dead quiet with the KSA5 psu. I've got my LCD2.2s on it and it's super transparent. Maybe could use a tad more gain. All was good for quite a while until I lost a 1ohm resistor....I stuffed a 10 in there (all I had) and biased a little lower until replacement comes in. Not sure what happened...maybe shorting the TRS..keeping an eye on that. This may be my new favorite once I get it boxed up. Edit...ok, duplicated the failure and these go nuclear when the TRS is shorted on insert: http://www.mouser.com/Search/ProductDetail.aspx?R=CPF11R0000FKEE6virtualkey61300000virtualkey71-CPF11R0000FKEE6 Need to get better resistors in that position. I'd have thunk these would have survived at 1W...guess not. Keeping an eye on Q27/28 also. They are quite hot to the touch. Updated photo....anchored everything to my test platform. Thanks for being the alpha tester for this board, let us know how it sounds Edited April 5, 2015 by GrindingThud
spritzer Posted April 5, 2015 Report Posted April 5, 2015 If you are using a TRS plug then I'd uprate those resistors massively. A lot of current will be flowing through them. Better yet, use a 4-pin XLR.
RudeWolf Posted April 5, 2015 Report Posted April 5, 2015 Yeah, if using TRS be very careful with plugging in and out headphones. Or use XLR altogether.
kevin gilmore Posted April 5, 2015 Author Report Posted April 5, 2015 (edited) i will see if i can cram 5 watt resistors in that place. re: q27,q28 probably better to put 1 watt transistors in there, trouble is finding them. Those transistors are rated at 500mw, and they are running at 436mw new board will take 5 watt resistors, these http://www.mouser.com/ProductDetail/Ohmite/WHE1R0FET/?qs=sGAEpiMZZMtlubZbdhIBIFwx82bjKdTOEgG%252bjKeDnyQ%3d but seriously, that power supply should not be able to supply more than 1 amp, so the 1 watt resistors should have been sufficient. will turn q27 and q28 into pzta56,pzta06 new board http://gilmore.chem.northwestern.edu/cfp2c.jpg and new board file in the boards directory thanks to grindingthud for doing this, my time is more limited these days, and I knew this amp was going to be amazingly good, and fairly cheap by the way, on my prototype I had to take it to someone to measure it, because its below the range on my equipment. Ends up .003% thd at 20khz at 40v peak to peak everything else like thd at 1khz is basically unmeasurable with even equipment in the $25k range. And its flat to more than 1mhz, the result of being a current amplifier. Edited April 5, 2015 by kevin gilmore
GrindingThud Posted April 5, 2015 Report Posted April 5, 2015 (edited) 4pin and mo bigger resistor it will be. Agree that resistor never should have opened...I'm thinking they may have been defective in some way or there is enough capacitance to spike it open. Never smoked one in the KSA5 clone or the SS Dynalo. Will go to wire wound non-inductives. I still may be able to get this together enough to bring to a meet next week in VA. Thanks for the kind words....it's a hobby for me and a bit fun. Edited April 5, 2015 by GrindingThud
GrindingThud Posted April 10, 2015 Report Posted April 10, 2015 Wondering if I should put a small series resistor on the input of the amp. At the pot extremes, I'm experiencing some noise, especially when maxxed. Of course it's never that high when listening, or my head would explode. This amp is spectacular!
kevin gilmore Posted April 10, 2015 Author Report Posted April 10, 2015 (edited) probably 100 ohm series resistor is good idea will add it to the board edit: changed 50 to 100 Edited April 10, 2015 by kevin gilmore
GrindingThud Posted April 10, 2015 Report Posted April 10, 2015 It's on a big sink, so it does not get hot. It does get warm after an hour or so. On the angle alone, it gets very hot in a few minutes.How hot does your sink get?
kevin gilmore Posted April 10, 2015 Author Report Posted April 10, 2015 (edited) 10 watts of heat per channel. As high as 15 with higher voltage rails. amp is 3db down at 4.3 MHz (seriously) Edited April 10, 2015 by kevin gilmore
