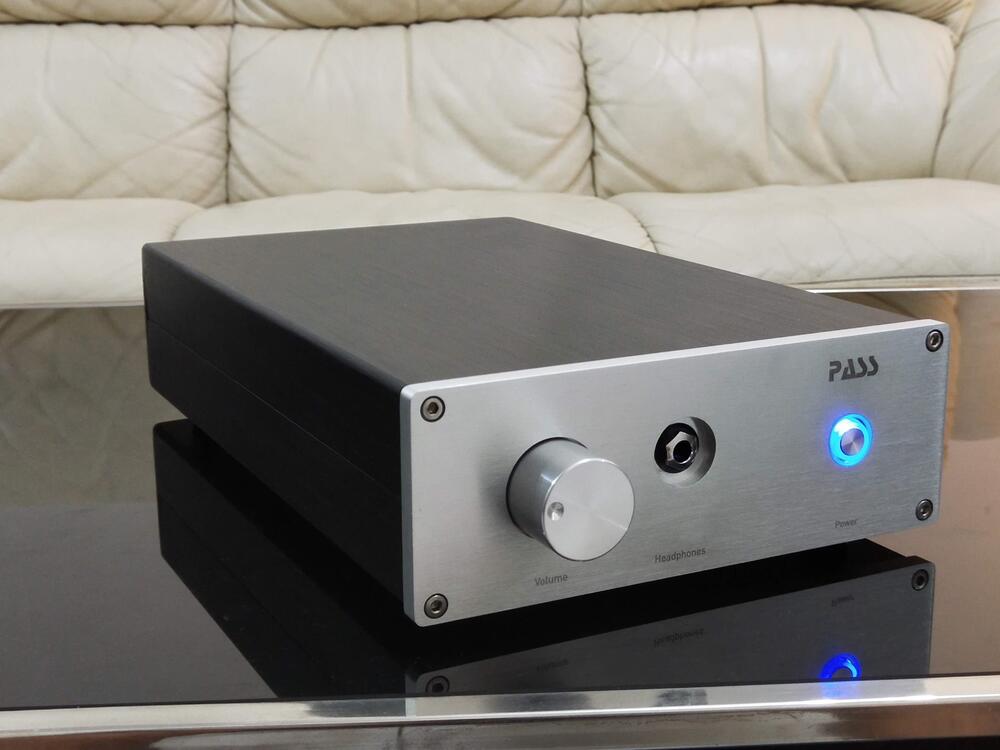

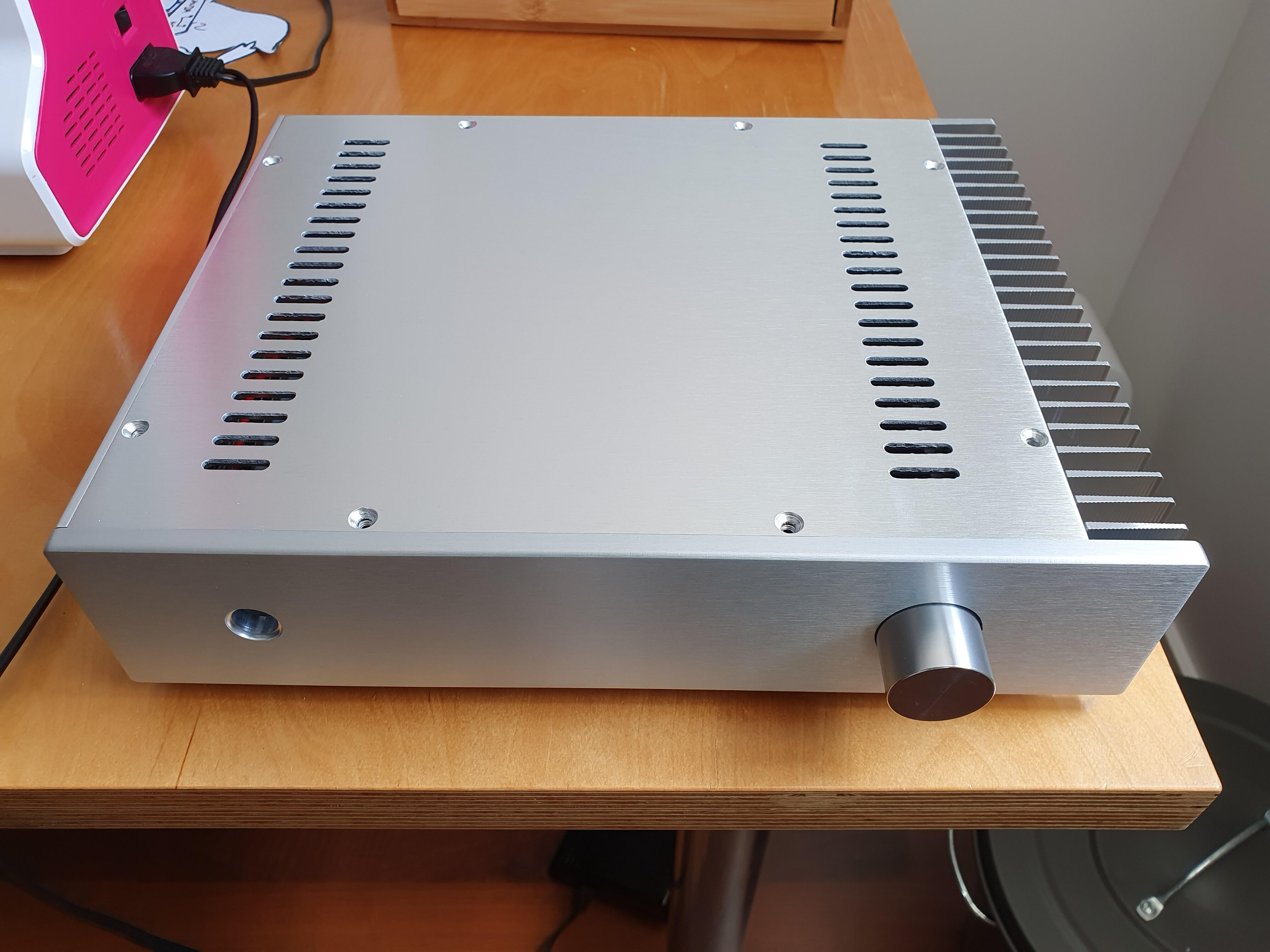

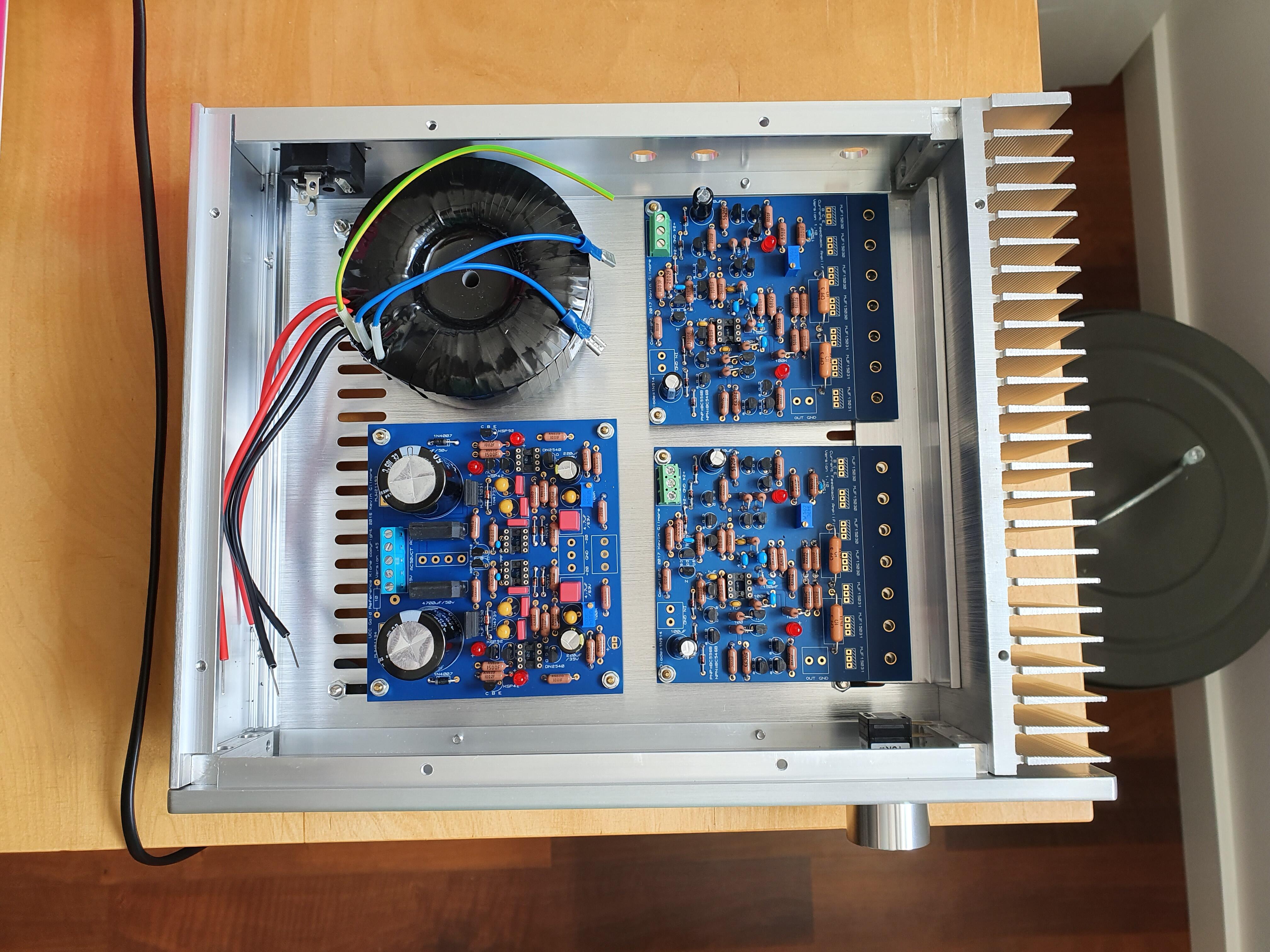

MASantos Posted June 1, 2020 Report Share Posted June 1, 2020 Looks great!! I got my case today. The power switch is rubbish and I'll try to get an illuminated pushbutton with European approval that fits the hole. Does anyone know of nice looking 1/4 Jacks other than neutrik? 3 Quote Link to comment Share on other sites More sharing options...
RudeWolf Posted June 1, 2020 Report Share Posted June 1, 2020 7 minutes ago, MASantos said: I got my case today. The power switch is rubbish and I'll try to get an illuminated pushbutton with European approval that fits the hole. Hunting for power switches is a nightmare, unless you're willing to go with a bulgin vandal-proof type of thing. I'm mounting my power switch on the bottom plate near the faceplate, so you can reach under the amp and easily push the toggler switch. 10 minutes ago, MASantos said: Does anyone know of nice looking 1/4 Jacks other than neutrik? This is also pretty okay - https://eu.mouser.com/ProductDetail/Amphenol-Audio/ACJM-MHOP?qs=t8VhaDIDl4uYvnn1Z02tXA%3D%3D But generally the choice isn't too big. Quote Link to comment Share on other sites More sharing options...
thuytn Posted June 2, 2020 Report Share Posted June 2, 2020 (edited) @RudeWolf How did you adjust the input trimpot? Also, what’s the part number of the 47uf ceramic cap on the CFA3 are you using? Great looking build, btw. I’m thinking of building the CFA3 with shorter heatsinks (300mm). Edited June 2, 2020 by thuytn 1 Quote Link to comment Share on other sites More sharing options...
RudeWolf Posted June 2, 2020 Report Share Posted June 2, 2020 17 hours ago, thuytn said: How did you adjust the input trimpot? Also, what’s the part number of the 47uf ceramic cap on the CFA3 are you using? I adjusted the trimpot to nullify DC on input board outputs, before the servo opamps got installed. For the ceramic cap I used this - https://eu.mouser.com/ProductDetail/81-RDEC71E476MWK1H3B 1 Quote Link to comment Share on other sites More sharing options...
MASantos Posted June 2, 2020 Report Share Posted June 2, 2020 On 6/1/2020 at 10:26 PM, RudeWolf said: Hunting for power switches is a nightmare, unless you're willing to go with a bulgin vandal-proof type of thing. I'm mounting my power switch on the bottom plate near the faceplate, so you can reach under the amp and easily push the toggler switch. This is also pretty okay - https://eu.mouser.com/ProductDetail/Amphenol-Audio/ACJM-MHOP?qs=t8VhaDIDl4uYvnn1Z02tXA%3D%3D But generally the choice isn't too big. I had the under switch in my power amp, but this one wont have feet high enough to reach under. I'm ordering a latching anti vandal switch and will be using a 4 pin xlr even though the amp is single ended. I already have my hd650 with a balanced connector so I wont have a need for adapter cables. Quote Link to comment Share on other sites More sharing options...

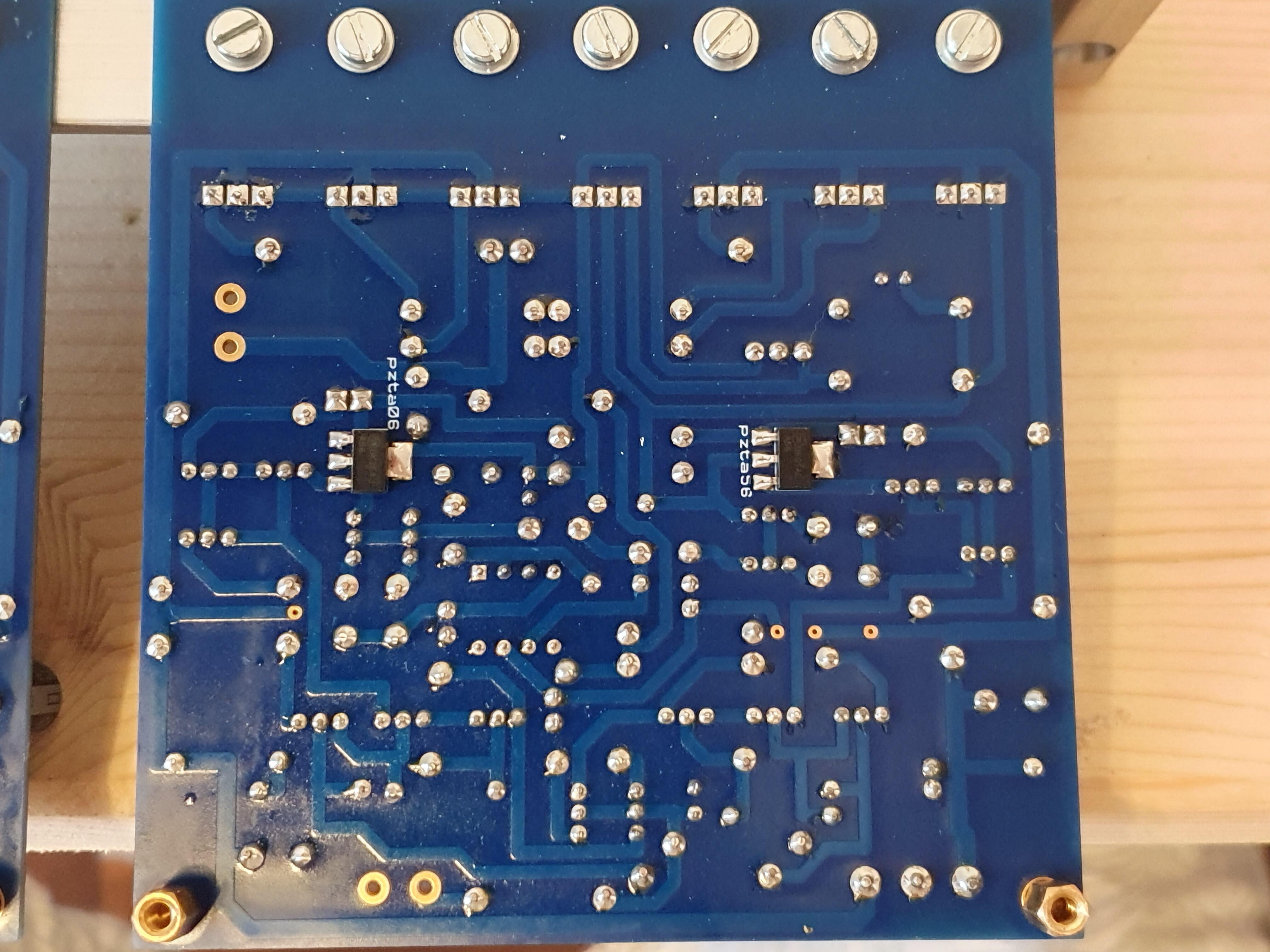

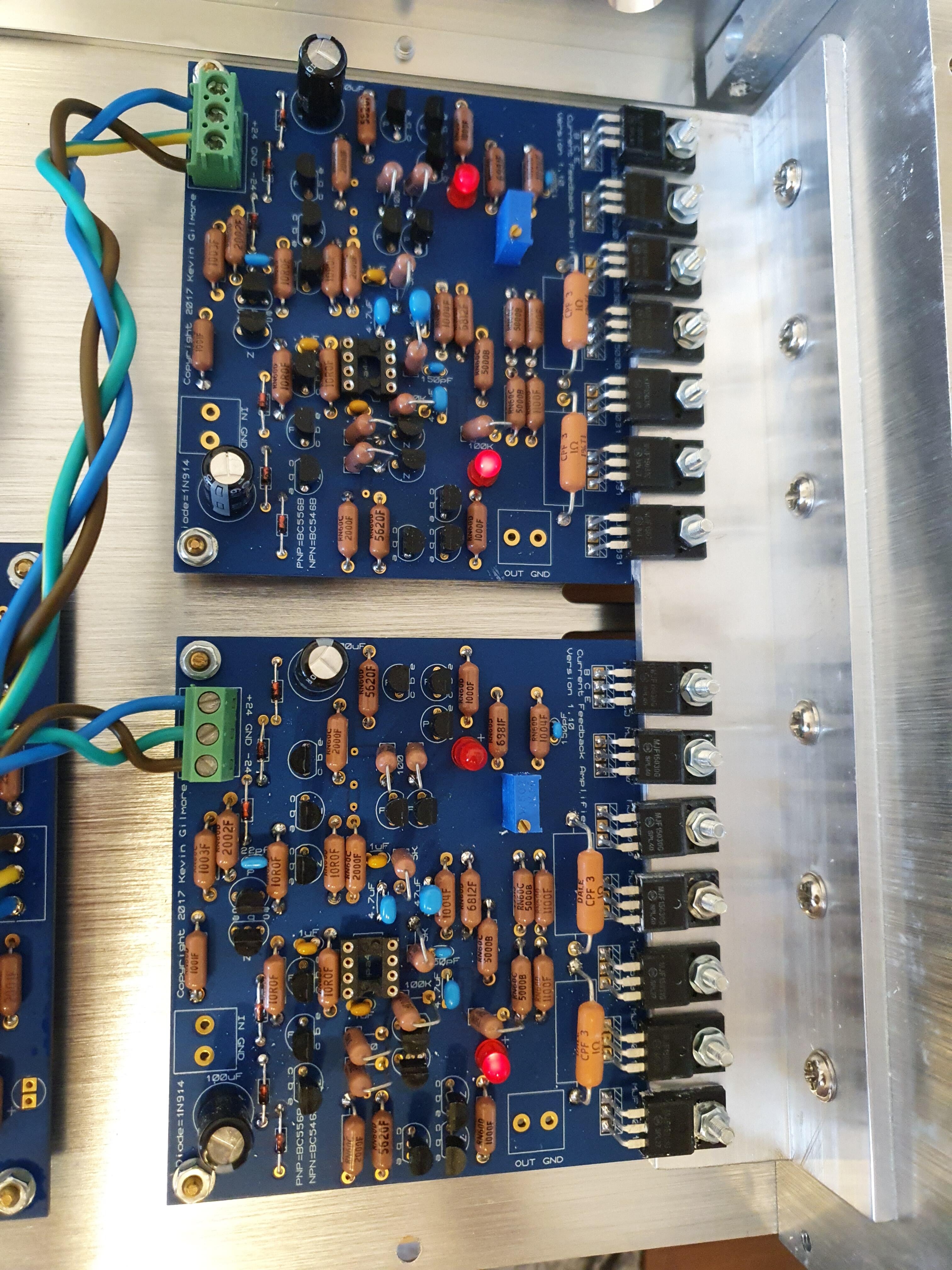

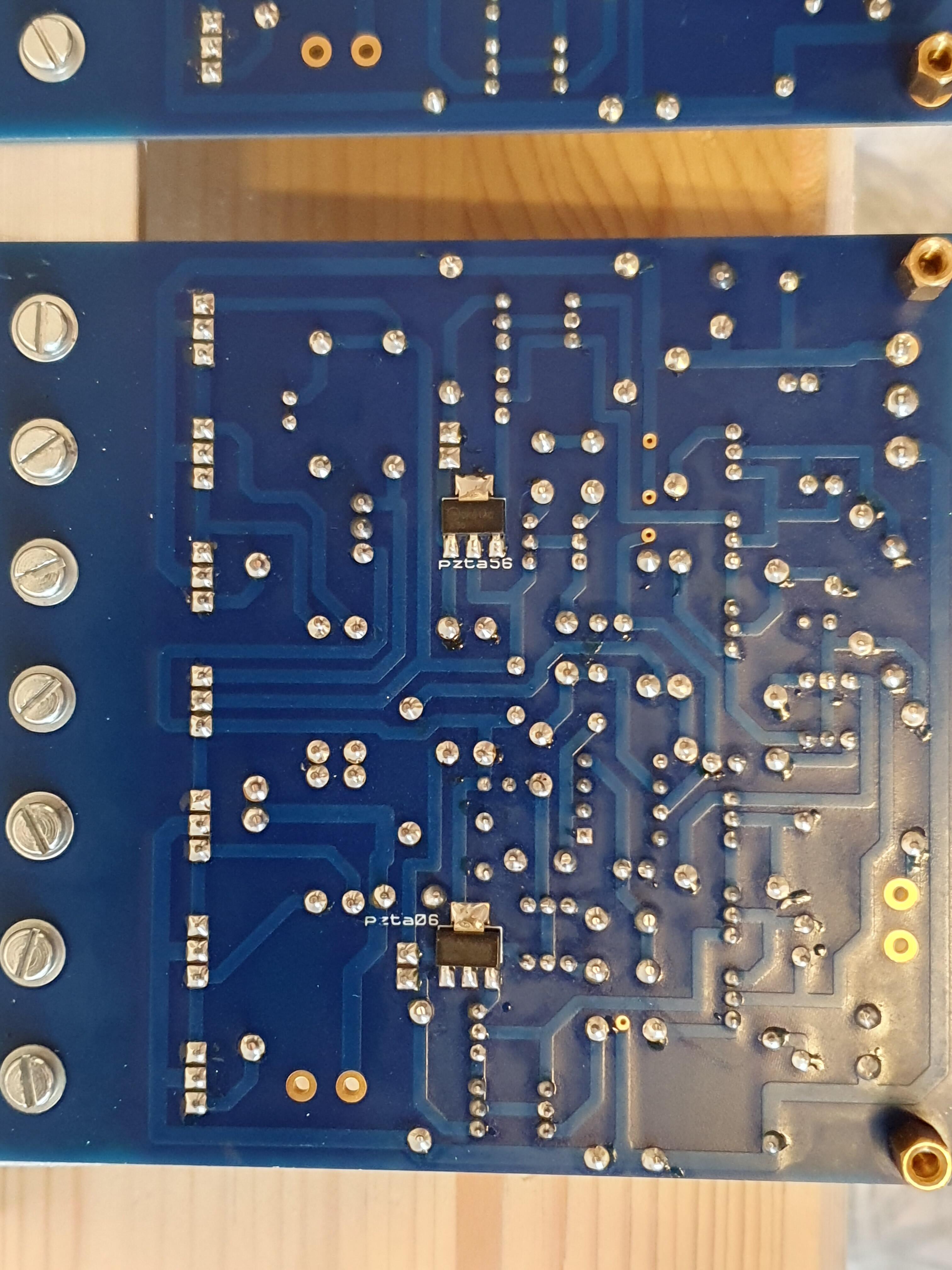

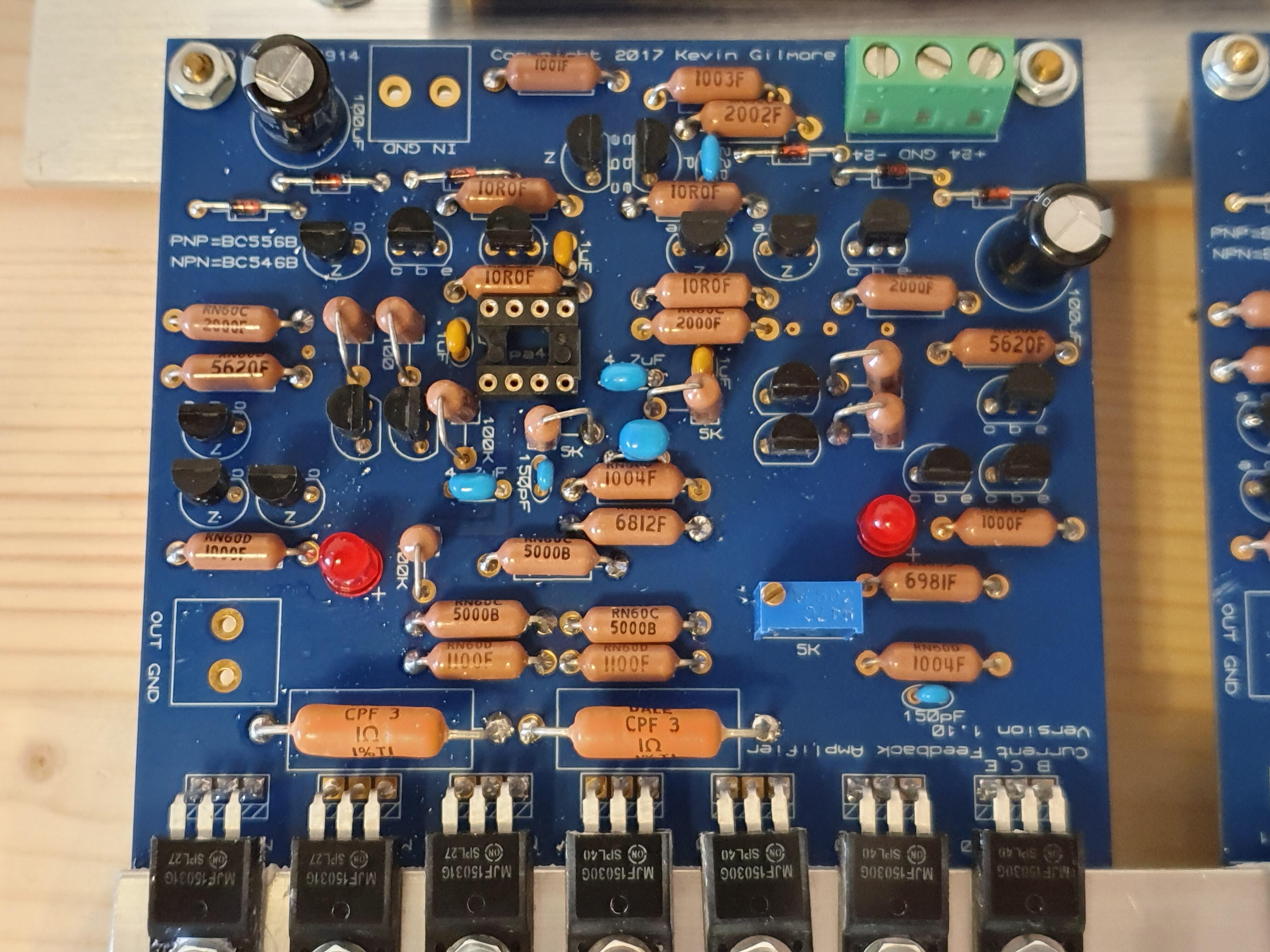

MASantos Posted June 4, 2020 Report Share Posted June 4, 2020 (edited) So I wired the amplifier board to the GRLV. One channel fires up ok. Both leds giving light, about 150mV across the output resistors 90mA offset without servo and input open. On the other channel I have one of the LED not lighting. No reading on output offset. all the LEDs test ok with a multimeter I diode check and emit a small light. On the mjf15030, the output resistor reads 30mv across. On the 15031 nothing across the output resistor. I don't see any solder bridges. Should I start replacing stuff? Edited June 4, 2020 by MASantos Quote Link to comment Share on other sites More sharing options...
mwl168 Posted June 4, 2020 Report Share Posted June 4, 2020 Two suggestions: 1. clean the solder flux on both side of the boards. 2. check to see all parts, especially the sands are the correct ones and inserted correctly. 1 Quote Link to comment Share on other sites More sharing options...
MASantos Posted June 4, 2020 Report Share Posted June 4, 2020 I cleaned the flux with 96%alcohol and a tooth broth. There are only a few spots left. I did check the orientation and parts but will do it again later today after clearing my head from it. Quote Link to comment Share on other sites More sharing options...
MASantos Posted June 4, 2020 Report Share Posted June 4, 2020 So I cleaned the boards once again and checked every transistor for orientation and location. Both boards match. 4 LEDs appear to be ok, similar voltage drop. I powered both boards and took some random VDC readings to ground. This is where things show that something is wrong. Most of the small critters have different readings. They all came from the same 100 unit strip bought from mouser. I guess I'll go ahead and start replacing them all. Quote Link to comment Share on other sites More sharing options...
mwl168 Posted June 4, 2020 Report Share Posted June 4, 2020 (edited) Before you start replacing the sands, I suggest you do a diode-test on each of the transistors on the board and compare the result between the working and malfunctioning boards. Edited June 4, 2020 by mwl168 Quote Link to comment Share on other sites More sharing options...
MASantos Posted June 4, 2020 Report Share Posted June 4, 2020 (edited) Thanks for the tip.Will do it tomorrow and report back. Edited June 4, 2020 by MASantos Quote Link to comment Share on other sites More sharing options...
MASantos Posted June 5, 2020 Report Share Posted June 5, 2020 Did the diode across the board and found some discrepancies in the input pair. Replaced both critters and voila. Board is biasing normally, both LEDs are shining. 60mV of DC offset on both channels with inputs shorted. Will finish wiring inputs output while waiting for servo opamps. 2 Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted June 5, 2020 Author Report Share Posted June 5, 2020 60mv without the opamp is the right number. 1 Quote Link to comment Share on other sites More sharing options...
MASantos Posted June 5, 2020 Report Share Posted June 5, 2020 That's reassuring! Mouser forgot my opamps. They're in transit as we speak. Regarding biasing, I have about 190mV across the 1ohm output resistors, heatsink is around 40 C . What is the target for biasing? Quote Link to comment Share on other sites More sharing options...
mwl168 Posted June 5, 2020 Report Share Posted June 5, 2020 I am not sure if there is a "target" biasing. I've tried between 150mA to over 200mA and settled on 180mA IIRC. 1 Quote Link to comment Share on other sites More sharing options...
dingding123 Posted June 7, 2020 Report Share Posted June 7, 2020 I biased mine (balanced) at around 100mA, and didn't notice any sonic improvement from 80mA up actually. But please take my view with a pinch of salt as I am using a small on-board heatsink and is hitting around 55 deg C at 100mA. Output devices used were MJE15034/5 That being said, do you guys notice improvement jump at around 150mA? Quote Link to comment Share on other sites More sharing options...
dingding123 Posted June 7, 2020 Report Share Posted June 7, 2020 Just a few words on the sound of the balanced CFA (with single sigma22, mje15034/5 output transistors, default gain). Fed by Susy dynalo (thru-hole version) with GVLR PSU as DAC buffer. I think "natural" would be apt to describe the sound of CFA. The timbre is simply natural sounding without exaggeration of any sort. The sound stage is expansive yet the imaging isn't smeared. Using dynalo>>CFA as compared to using dynalo alone makes the soundstage more expanded (less 'in your head' feeling when it comes to vocals). The background is dark (unlike dynahi), and the overall signature is neutral and less warm compared to dynahi. CFA doesn't play nearly as loud as the dynahi at default gain, but it plays with class and authority. It is simply the best sounding amp I've heard, natural tube-like sound without any obvious colouration. Thank you so much Dr Gilmore! Next step - split chassis and dual GRLV PSU. PS: attached is a preview of PCB (sans ground pour) I made according to the gerbers and schematics. 8cm*10cm. compatible with the dynahi heatsinks. Probably very amateur but it works. I don't mind sharing if anyone wants. Quote Link to comment Share on other sites More sharing options...

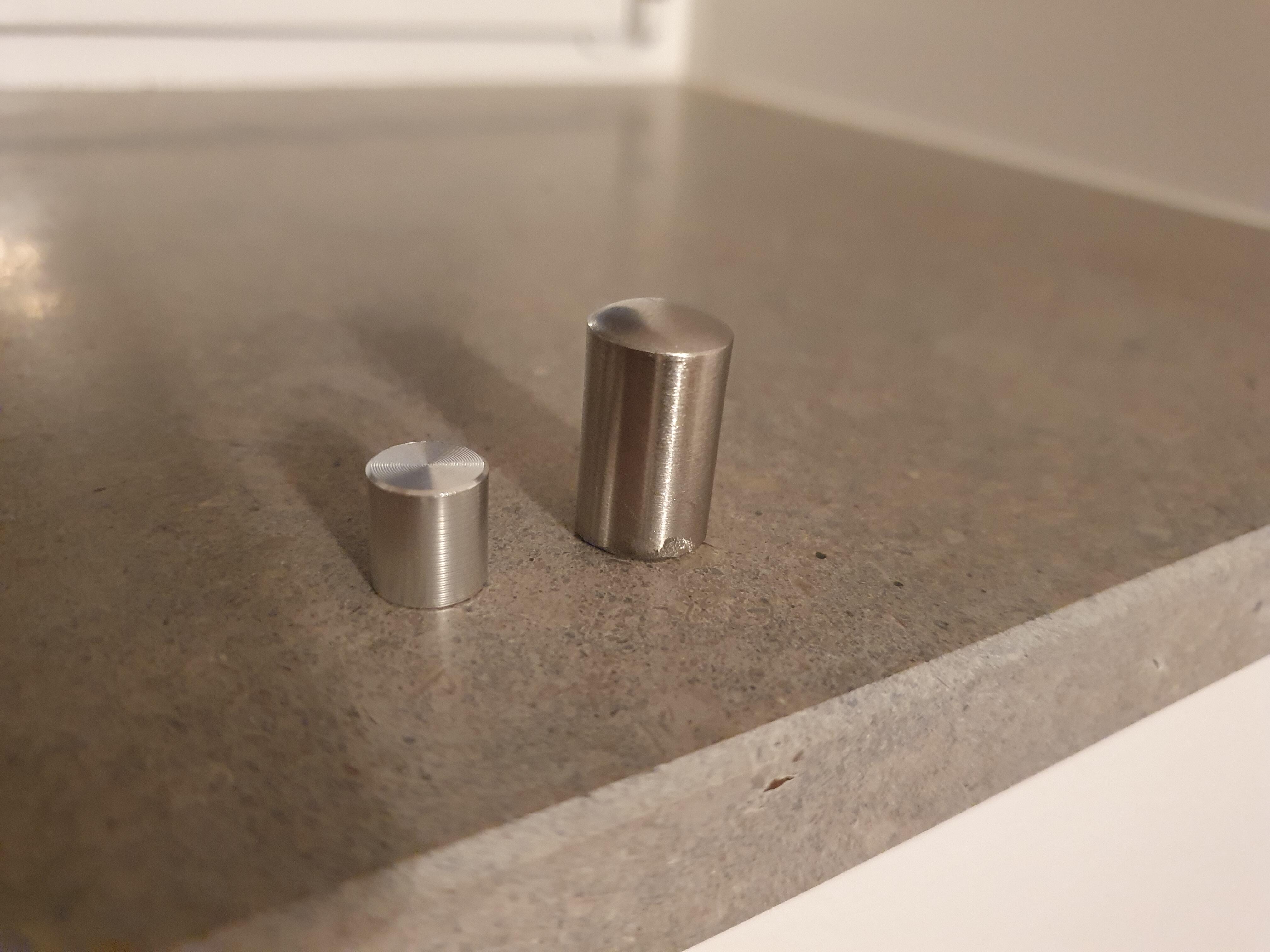

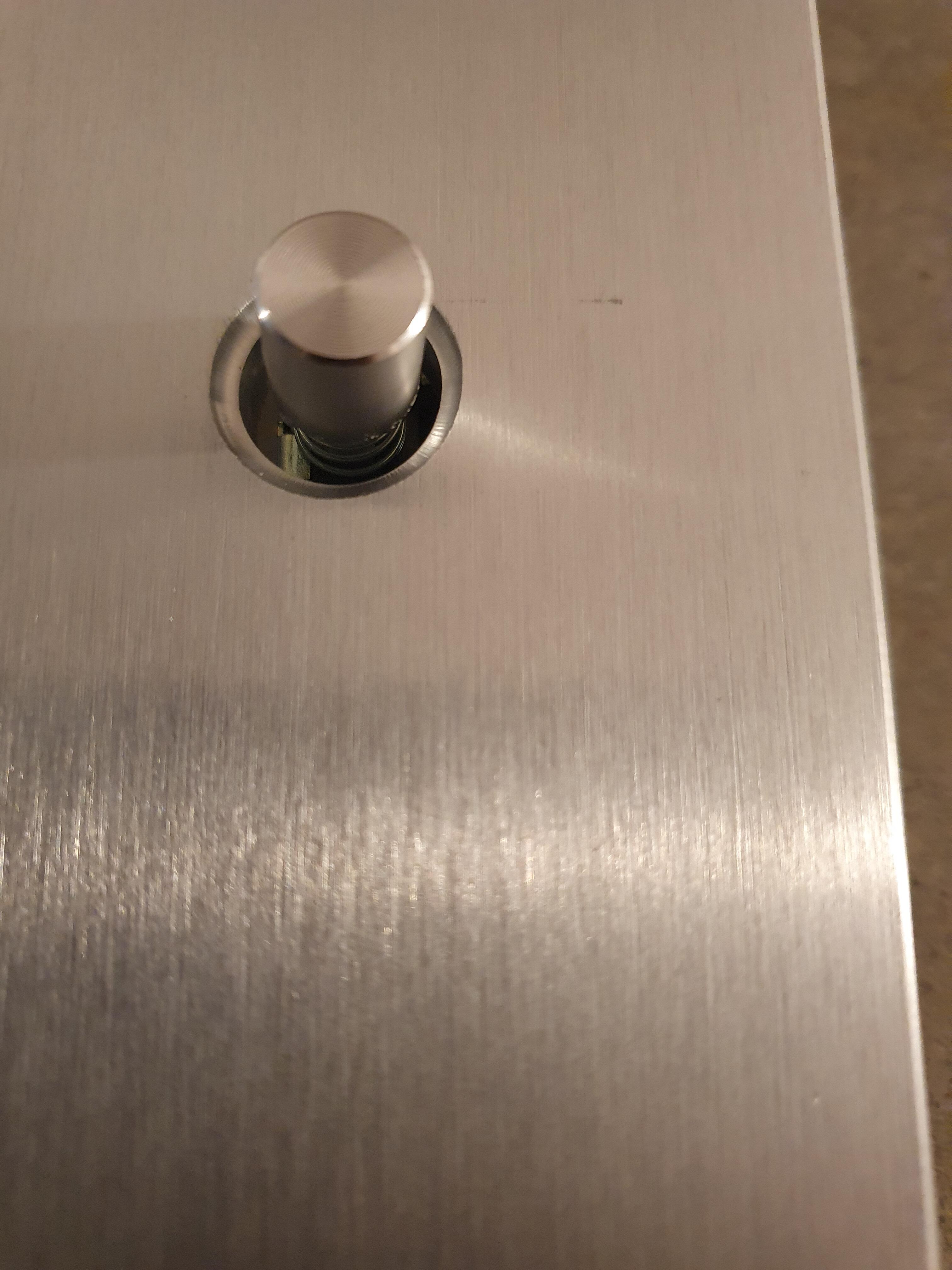

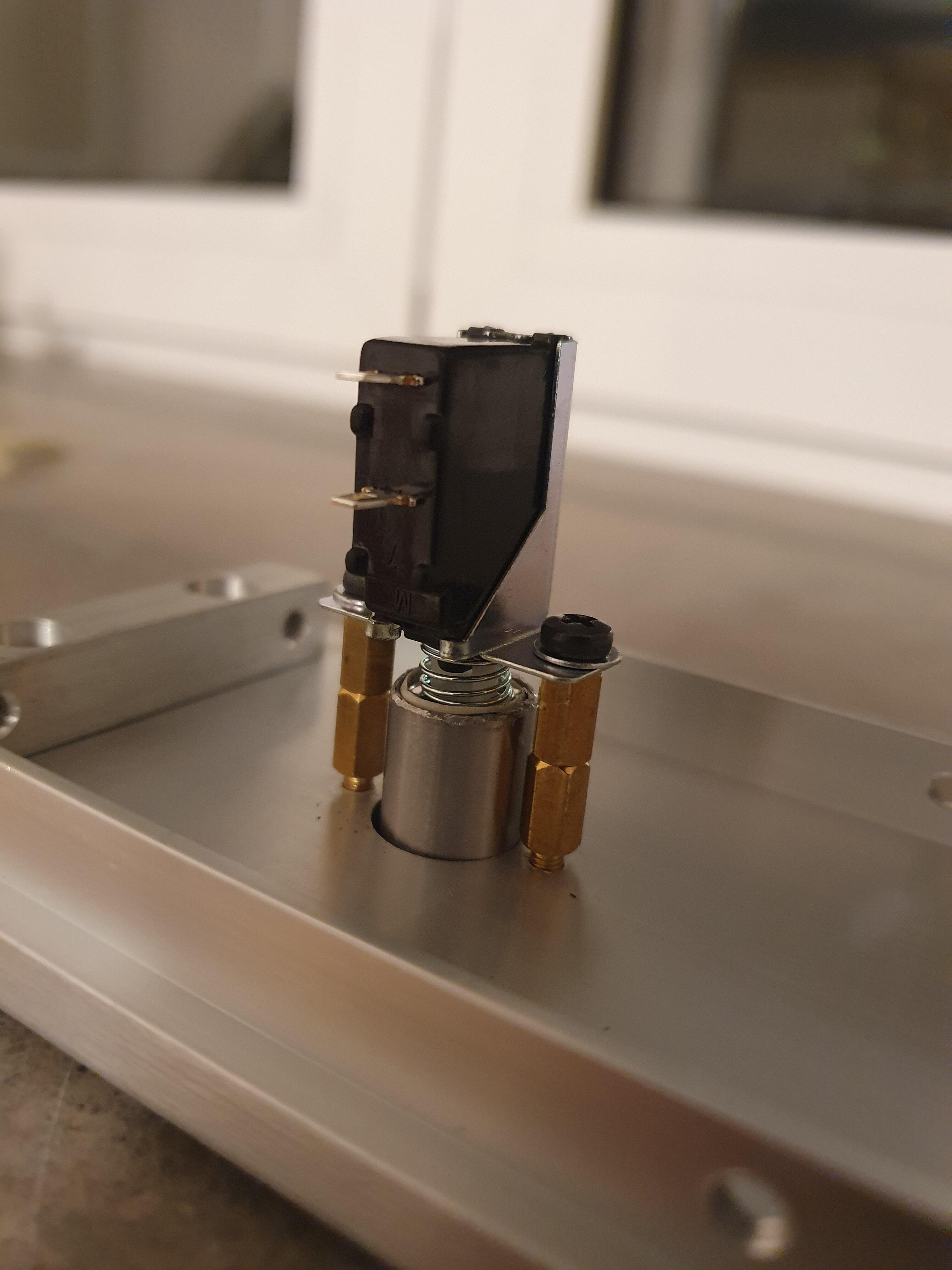

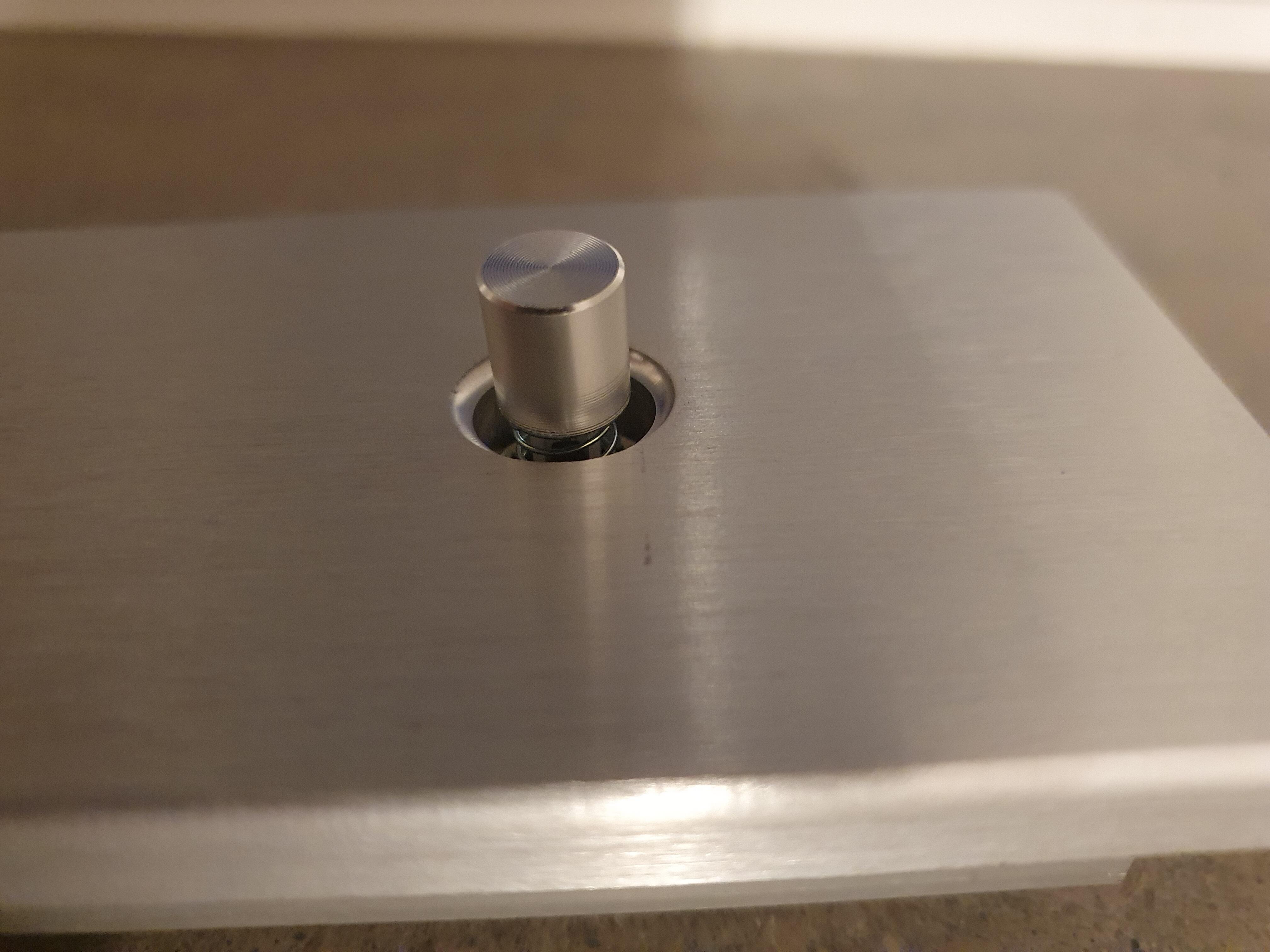

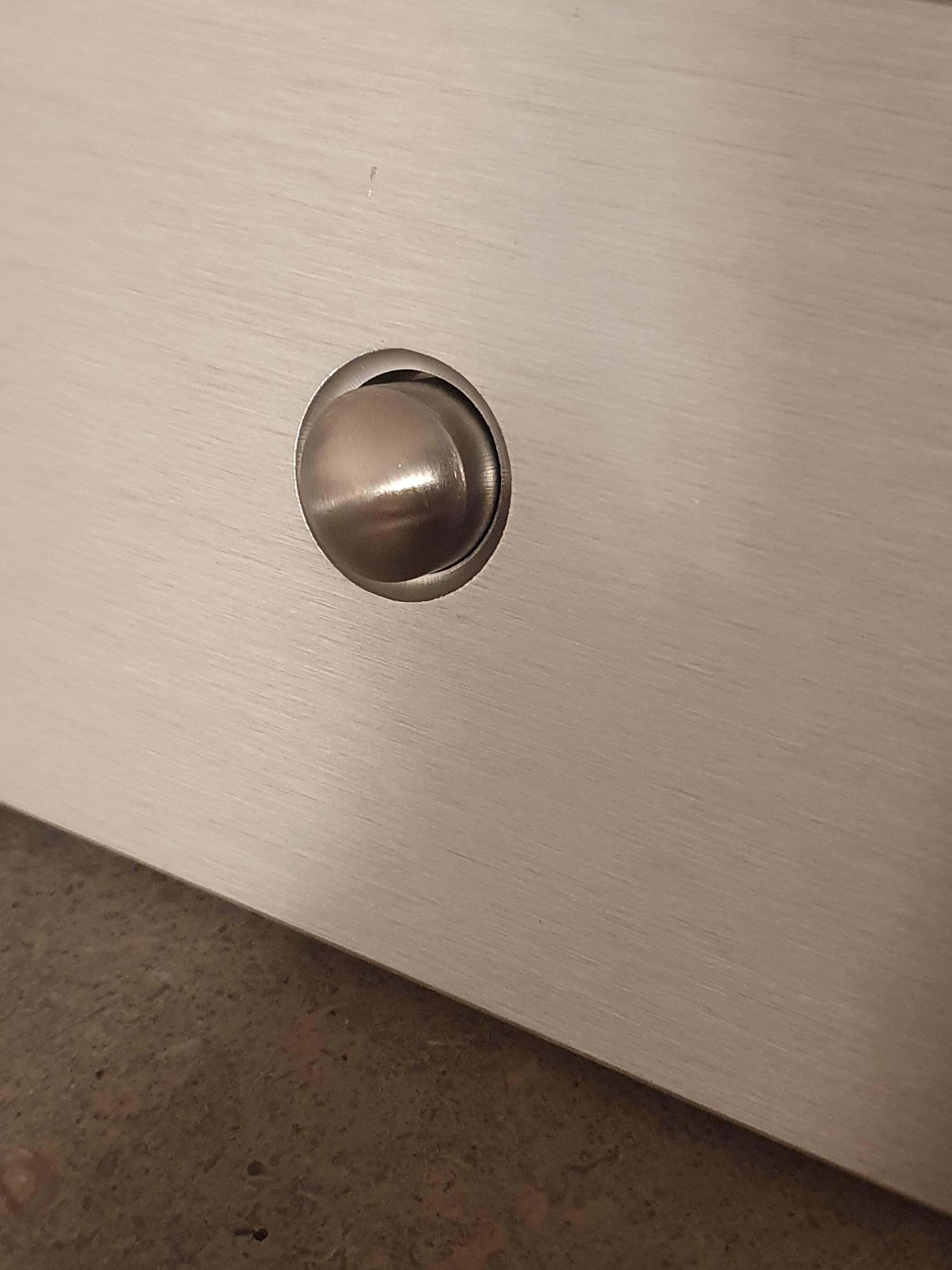

MASantos Posted June 8, 2020 Report Share Posted June 8, 2020 So when I got my case I got pretty upset with the looks of the power switch: So I search around the house for what could be used to improve this and found and unused aluminum kitchen drawer handle. Nice looks, hollow and easy to cut. A couple of minutes later: 11 Quote Link to comment Share on other sites More sharing options...

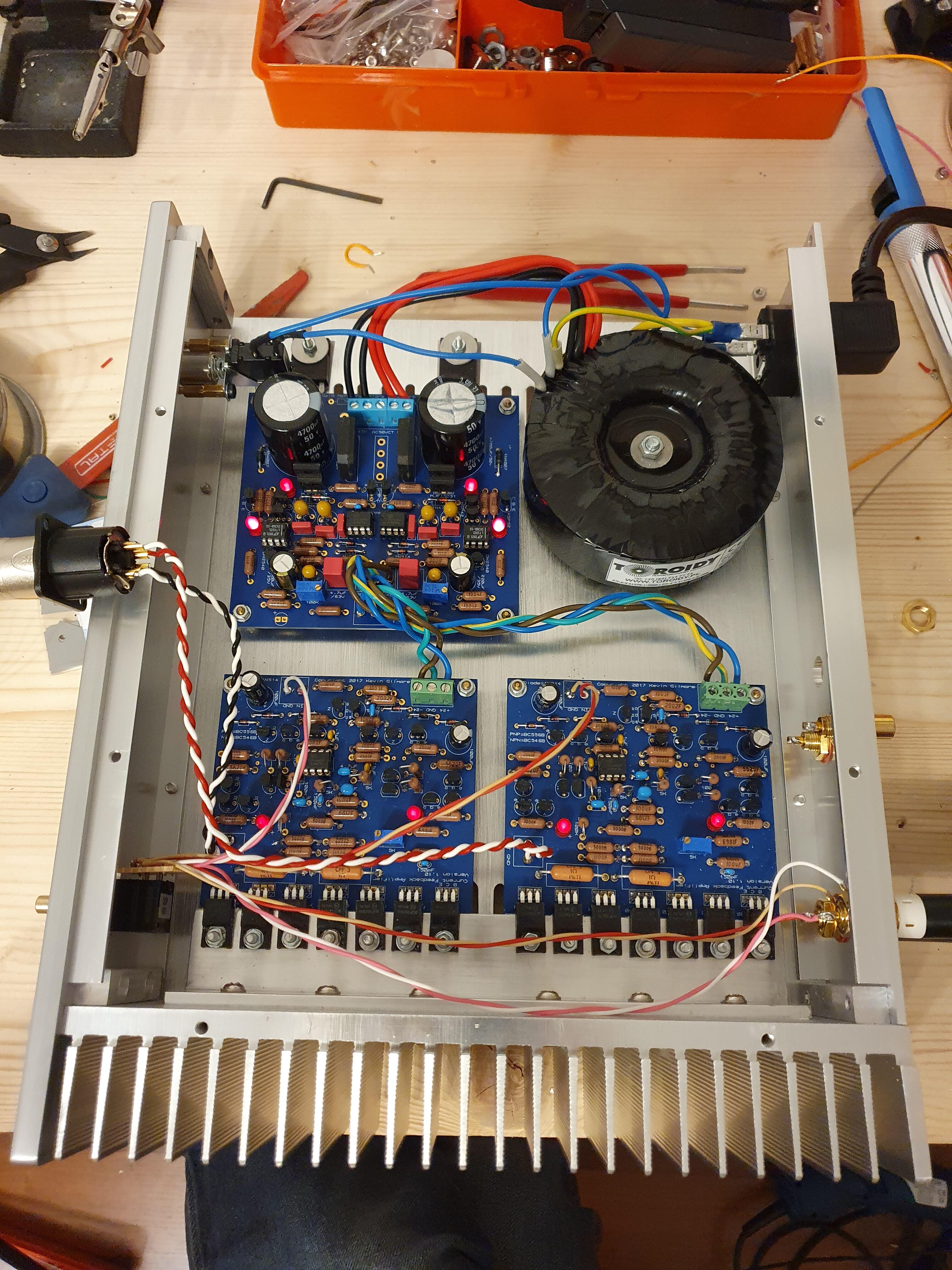

MASantos Posted June 10, 2020 Report Share Posted June 10, 2020 It's alive! Finished wiring today, only thing missing is drilling the front panel for the 4 pin XLR, waiting on a drill bit. Probably the best amplifier I had for the HD650. Absolutely dead silent, great sound! I'll need to make a better comparison with the dynalo mini, but at first glance it sure seems like a winner. Thanks for all the help I got during the build! 6 Quote Link to comment Share on other sites More sharing options...
Pars Posted June 10, 2020 Report Share Posted June 10, 2020 The case looks decent... something from ebay/aliexpress? It looks like the switch was drilled for a Bulgin type vandal switch... Quote Link to comment Share on other sites More sharing options...
swt61 Posted June 10, 2020 Report Share Posted June 10, 2020 Those damn Bulgins vandalize everything! 1 1 Quote Link to comment Share on other sites More sharing options...
MASantos Posted June 10, 2020 Report Share Posted June 10, 2020 24 minutes ago, Pars said: The case looks decent... something from ebay/aliexpress? It looks like the switch was drilled for a Bulgin type vandal switch... The case is alright. Not top notch but also not a bad price considering it has most of the drilling done. The whole for the switch is 13mm wide with a little bevel on the front. The cap on the pushbutton didn't fit right so I made that cosmetic upgrade. I am considering painting the front panel mate black. Quote Link to comment Share on other sites More sharing options...
GrindingThud Posted June 11, 2020 Report Share Posted June 11, 2020 Nice! Makes me want to put mine in a case now. Quote Link to comment Share on other sites More sharing options...
thuytn Posted June 11, 2020 Report Share Posted June 11, 2020 How hot does the heatsink get? Seems to me it's like 220-250mm long? That power hole seems to be meant for the 12mm Bulgin-like switch... Quote Link to comment Share on other sites More sharing options...
penmarker Posted June 11, 2020 Report Share Posted June 11, 2020 I bought a case off Aliexpress with the same switch, with the exception of a translucent ring around the switch nub head. With the ring the clearance is better but the hole could've been half a millimetre smaller though. Quote Link to comment Share on other sites More sharing options...
