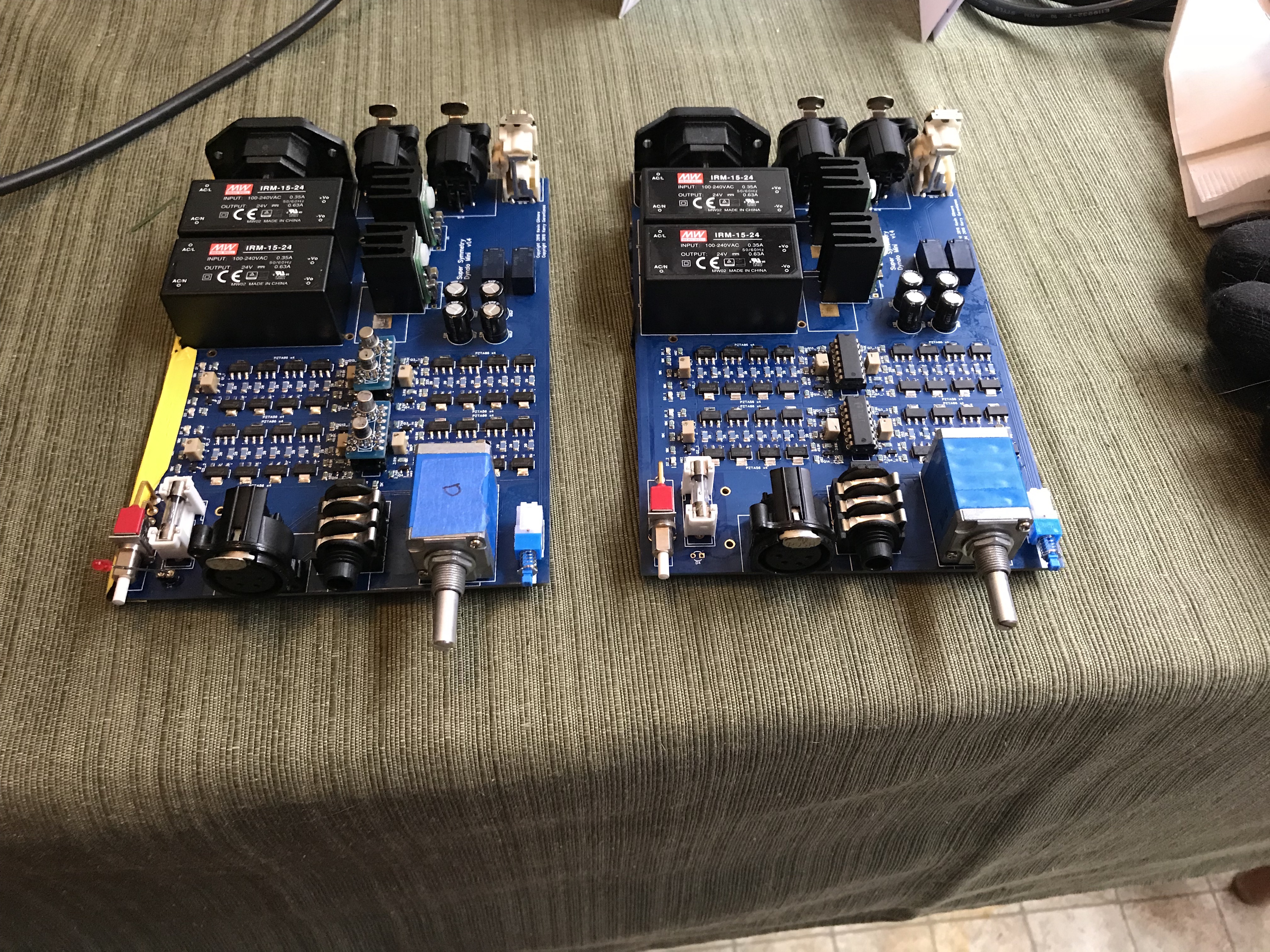

Pars Posted February 22, 2018 Report Share Posted February 22, 2018 (edited) Moved a couple of 4.7u on the above to straighten them. Two down (less casing), 3rd (above) in progress. Edited February 22, 2018 by Pars 6 Quote Link to comment Share on other sites More sharing options...
Pars Posted March 2, 2018 Report Share Posted March 2, 2018 (edited) Interesting problem, at least to me, and might help someone in the future with these. Fired up the 3rd board yesterday, and all looked well (LEDs, etc.). However, there were problems: Problem 1: Went to check DC offset, and the R channel (both +/-) was showing 4V offset. Not good. After looking the board over, I suspected one of the small transistors (MMBTA06/56), as there were a couple that were a bit crooked and I couldn't tell if all pins were soldered or not. Q3_2 looked suspect, so removed with hot air, which also took the 3.01K resistor right by it. Cleaned and fluxed the pads and got it put back together. I also touched up the solder connections on the others on both channels in this section of the board. Fired it back up, same problem. I then looked at Q1_2 and Q2_2. Straightened these and touched up the solder joints. Success! But I wasn't quite done... Problem 2: Adjusted DC offset (no pot in yet, so will recheck once that is in). I then started going down the 20ohm resistors checking the biasing. All looked good until I got to the L+ channel. These alternated from 290/220mV (they should be balanced between the NPN and PNP sides). The 20 ohm for the closest to the center NPN showed no drop across it. I retouched the solder joints for this transistor, but same problem. Removed and replaced the transistor. Success. Now bias was the same as the other channels and consistent across all resistors. Ohming that transistor out, it appears to be good. I couldn't see any evidence of solder on the bottom of the tab (collector). I know when I checked voltage on it, it showed V+, but I was probably pushing it down with the probe. The collectors aren't connected on the middle small pin on these from what I can tell in the gerbers. I had used hot air to install these originally, but had hit the tabs with an iron with a wider chisel tip. These are considerably more difficult to troubleshoot/rework than the full size dynalos are, so it pays to take your time building them. Before I checked the end transistors in #1, I wasn't relishing having to do more extensive troubleshooting/rework on this. The other two boards came right up with no problems. And I'm still not fond of SMT pots Also, since I don't think this is documented anywhere, with the board facing you (pot, outputs, etc.), looking at the channels as quadrants, they are laid out as follows: L- L+ R- R+ Edited March 2, 2018 by Pars 3 Quote Link to comment Share on other sites More sharing options...
Pars Posted March 10, 2018 Report Share Posted March 10, 2018 I seem to be the only one participating in this thread... hmmm Just got the heatsinks today (45x35mm). After reading what some have said regarding the heatsinks tunneling heat down the transistor rows, I'm considering drilling 2-3 holes in the heatsinks along the rows to allow them to vent. I'll run the thermal heatsink tape in rows just on top of the transistors. Anyone think this is a bad idea? Quote Link to comment Share on other sites More sharing options...
Skooby Posted March 10, 2018 Report Share Posted March 10, 2018 Well, if you can get the heat sinks to transfer some heat to the chassis (shimming extra metals on top the sink so it can get touch the chassis top), doubt that the heat in the channels would be a problem. My Mini's temp is about 32C with help from the chassis to dissipate the heat; without the chassis help, it was well above 50C. I didn't do any hole into my sinks. I see you didn't attempt QFN solderings with your new re-flow gun? 1 Quote Link to comment Share on other sites More sharing options...
Pars Posted March 10, 2018 Report Share Posted March 10, 2018 I messed around on another board without any success (had a couple extra that I had forgotten about). The chip may be fried after my earlier attempts as well. I kind of lost interest in it also, probably doesn't help. Quote Link to comment Share on other sites More sharing options...
Skooby Posted March 10, 2018 Report Share Posted March 10, 2018 My hat's off to those who managed to solder on the qfn's. On my latest boards, could only solder the positive qfns, gave up on the negative. Will try to-220 tps7a3301 on the boards from the current GB. Quote Link to comment Share on other sites More sharing options...
Pars Posted March 10, 2018 Report Share Posted March 10, 2018 (edited) Agreed. I know mypasswordis and cspirou were two who managed it. I was trying to use the advice I got from mypasswordis in my last attempt. I would think the lighter copper weight on the GB boards would make this more doable. Many of the pins on the regs go to ground, and on the 3oz boards, difficult to heat. Kerry's prototype board that he did was 1oz copper, and he told me via pm that he doesn't think the board needs to be any heavier than that. I would agree. Edited March 10, 2018 by Pars Quote Link to comment Share on other sites More sharing options...
mypasswordis Posted March 10, 2018 Report Share Posted March 10, 2018 Definitely, 1oz copper will make things much easier to solder. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted March 10, 2018 Report Share Posted March 10, 2018 Definitely, 1oz copper will make things much easier to solder. ... or properly sized ground spokes instead of solid ground plane connections. Just taking a board and ordering it with moar copper isn’t always the best idea. Quote Link to comment Share on other sites More sharing options...
Pars Posted March 10, 2018 Report Share Posted March 10, 2018 (edited) I think they are still talking 2oz for the group buy. I don't know what the basis for the current moar is better philosophy on copper weight is. All of the older GBs (dynalo, dynahi, etc.) were 1oz boards, many of which I have reworked several times with no problems. Some boards need the heavier copper (Stax stuff, the GRLV/GRHV). Most don't. Edited March 10, 2018 by Pars 1 Quote Link to comment Share on other sites More sharing options...
cspirou Posted March 10, 2018 Report Share Posted March 10, 2018 I managed to get it soldered with reflow oven and smd rework station. It wasn't really so bad as long as the right amount of solder is used (less is better). Though it could be easier. I agree that if the board was designed for 1oz that it should stay 1 oz. Considering how hot the transistors get, I do think the extra copper helps with heat dissipation. but there's probably much better ways to implement that. Why do STAX boards need higher copper weight considering that electrostatic headphones are low current? Quote Link to comment Share on other sites More sharing options...
Pars Posted March 10, 2018 Report Share Posted March 10, 2018 As for board copper weight, I believe it is based on trace width/cross section and current capability, but I could be wrong. Quote Link to comment Share on other sites More sharing options...
jose Posted March 10, 2018 Report Share Posted March 10, 2018 good question Quote Link to comment Share on other sites More sharing options...
UFN Posted March 10, 2018 Report Share Posted March 10, 2018 I don't think the Stax amps need more than 1 Oz copper because of the low current, but firstly everything here is overkill so if 2 Oz copper is good then 3 Oz is surely better Secondly, the 2 Oz boards will generally take more (re)heating so they stand a better chance of surviving rework which does come in handy for every DIY'er at some point. Last but not least, most of the amp designs have originally been offered to the community through early large GBs and when you are ordering 30/50/100 PCBs the additional cost per board becomes almost negligible. Quote Link to comment Share on other sites More sharing options...
Pars Posted March 10, 2018 Report Share Posted March 10, 2018 I just looked (way) back. Amb apparently uses 2oz copper on the beta22, sigma22 and CK2III boards. The Dynafet boards were also 2oz copper. AFAIK, all of the prior GB boards (imagineering) were 1oz boards (the old Dynalo rev B and C boards, the original Dynahi, etc.) I'm not in for any dynalo mini boards, but this is from the experience of building 3 of them, plus talking to Kerry. I may fuck around with one of the spare boards I have and some new parts (which I still have). Reflow oven seems to be the best bet and I may commandeer the toaster oven briefly again. This worked pretty well for putting the tantalum caps on the underside of the last board I did. Even with my Hakko 936 and a 3.2mm chisel bit, cranked up to 750F +, I had to use a hot air rework station to get some of the connections to ground to flow well. Quote Link to comment Share on other sites More sharing options...
Helium Posted March 11, 2018 Report Share Posted March 11, 2018 Try Metcal PS-900. Clearer better than Hakko 888d (I have both). Hakko 888d is a great station, but sorry to say, Metcal is better. Reason I still keep Hakko is that I already invested in lots of Hakko tips, including so called 'microwave' tips which I use for soldering SOIC packages and the like (when heat transfer speed is not critical). But most of soldering is done by Metcal, including joints to heavy ground planes. Quote Link to comment Share on other sites More sharing options...
Pars Posted March 11, 2018 Report Share Posted March 11, 2018 Sure, I'd love a Metcal and I'm sure they are better than the Hakko I have. They also seem rather pricey, even on ebay. Also difficult to tell if you are getting the full soldering station or not as most sellers seem to sell everything separately. Quote Link to comment Share on other sites More sharing options...
spritzer Posted March 11, 2018 Author Report Share Posted March 11, 2018 Metcal is always the way. Quote Link to comment Share on other sites More sharing options...
Pars Posted March 11, 2018 Report Share Posted March 11, 2018 (edited) Looking at ebay, this one popped up: https://www.ebay.com/itm/OKi-SmartHeat-PS-800-Single-Port-Soldering-System-Kit-Pen-Tip-Holder-PS800E-OK/132491900159?epid=2238602788&hash=item1ed921f4ff:g:Cl4AAOSw9p9adI3M It doesn't seem complete... what else would I need? This one does seem complete though: https://www.ebay.com/itm/OKi-Single-Output-Solder-System-with-SmartHeat-Six-Solder-Tips-BRAND-NEW/192469300137?hash=item2cd01073a9:g:vfsAAOSwOFBaiDfI Edited March 11, 2018 by Pars Quote Link to comment Share on other sites More sharing options...
guzziguy Posted March 11, 2018 Report Share Posted March 11, 2018 4 minutes ago, Pars said: ... It doesn't seem complete... what else would I need? Mo' money! 1 Quote Link to comment Share on other sites More sharing options...
spritzer Posted March 11, 2018 Author Report Share Posted March 11, 2018 I'd just go with Mouser.... https://www2.mouser.com/ProductDetail/Metcal/PS-900?qs=sGAEpiMZZMtV0HPngiEil%2frl7NJWznw4 Quote Link to comment Share on other sites More sharing options...
Pars Posted March 11, 2018 Report Share Posted March 11, 2018 Shit, didn't even realize they carried them. That isn't too bad... Quote Link to comment Share on other sites More sharing options...
Helium Posted March 11, 2018 Report Share Posted March 11, 2018 5 hours ago, Pars said: Looking at ebay, this one popped up: https://www.ebay.com/itm/OKi-SmartHeat-PS-800-Single-Port-Soldering-System-Kit-Pen-Tip-Holder-PS800E-OK/132491900159?epid=2238602788&hash=item1ed921f4ff:g:Cl4AAOSw9p9adI3M It doesn't seem complete... what else would I need? This one does seem complete though: https://www.ebay.com/itm/OKi-Single-Output-Solder-System-with-SmartHeat-Six-Solder-Tips-BRAND-NEW/192469300137?hash=item2cd01073a9:g:vfsAAOSwOFBaiDfI You may want the latest PS900 (2nd one), not PS800. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted March 12, 2018 Report Share Posted March 12, 2018 In generally, nicer irons get you better recovery time (ahem). In general, use the largest tip you can, as things seem to go faster that way (squints). Preheating the board using a secondary source can assist in getting the deed done efficiently (slowly backs away). Quote Link to comment Share on other sites More sharing options...
mypasswordis Posted March 29, 2018 Report Share Posted March 29, 2018 Sometimes brute force can also work (turns 360 degrees and moonwalks into the distance). I just bought a Quick 861DW for that 1000W soldering power, will let you know how it works on these thick copper Dynalo boards when I get it in a month. Quote Link to comment Share on other sites More sharing options...
