The Multi Amp aka Dynalo Mk2

[Pars]

Same number of output devices (8 per +/- channel, or 16 per L/R channel). Mini uses 16 PZTA06/56 and 6 MMBTA06/56. Full uses 22 MPSW06/56 (thru-hole, not available anymore), or 22 PZTA06/56 (16 output, 6 biasing/VAS) for the SMT version (current). I don't see a schematic for this version (the thru-hole schematic is still on Kevin's site).

[masamoto]

2 minutes ago, Pars said:

Same number of output devices (8 per +/- channel, or 16 per L/R channel). Mini uses 16 PZTA06/56 and 6 MMBTA06/56. Full uses 22 MPSW06/56 (thru-hole, not available anymore), or 22 PZTA06/56 (16 output, 6 biasing/VAS) for the SMT version (current). I don't see a schematic for this version (the thru-hole schematic is still on Kevin's site).



page 33

[Pars]

Schematic for the SMT SS Dynalo, not the mini.

[masamoto]

The SMT is not the mini? I only find 2 board versions one is the mini which has a lot of SMT parts and the regular trough hole version. Hmm I need to double check.

[cspirou]

So biasing/VAS is certainly different between the two. Is this why the mini version needed heatsinks for the output transistors?

[Pars]

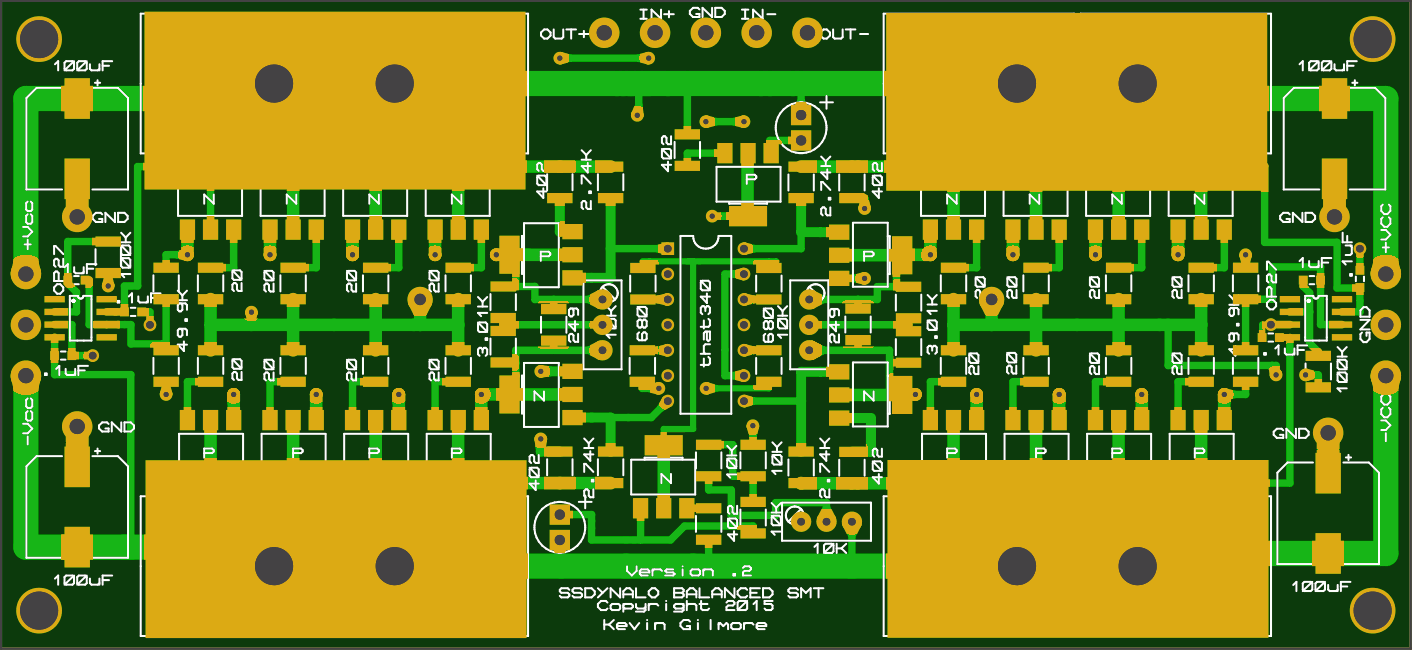

Both the ssdyna 15 and 17 files are SMT, didn't check the others. The top image of the 15 file is shown below (dynalobal15.zip)

The MPSW thru-hole transistors were discontinued, forcing the move to SMT.



[masamoto]

On 17.12.2016 at 5:56 PM, Kerry said:

Here are the schematics:





I've got to look up the settings again for the positive rail. I'm running out in a bit so may need to do it later.

EDIT:  Ok so the silk screen should read 14.2V before you start bridging the jumpers.  You should bridge 3P2V, 1P6V, 0P8V, 0P2V for a 20V output.

Also, updated schematics to make them higher resolution.



SuperSymmetryDynalo-v1-5.zip

 kgdynalobal9.zip

These are the 2 I am referring to.

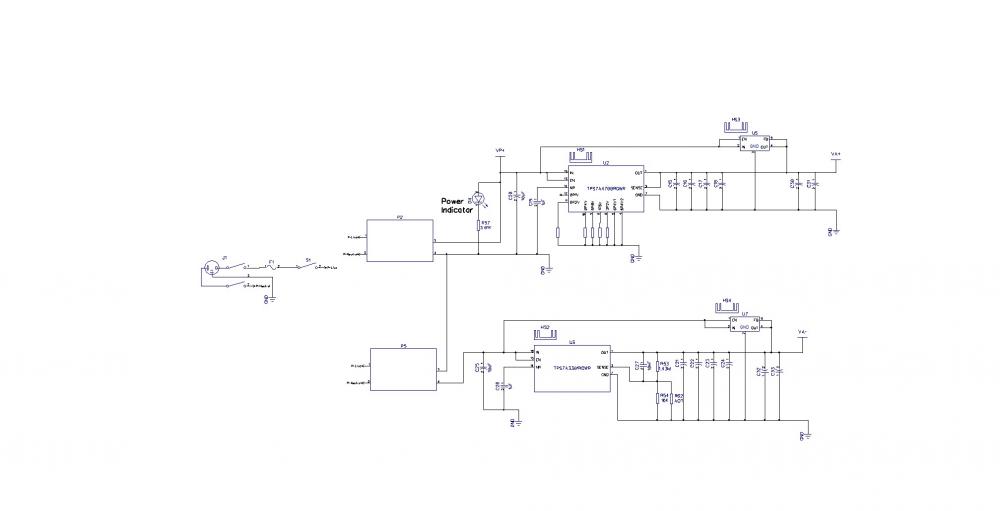

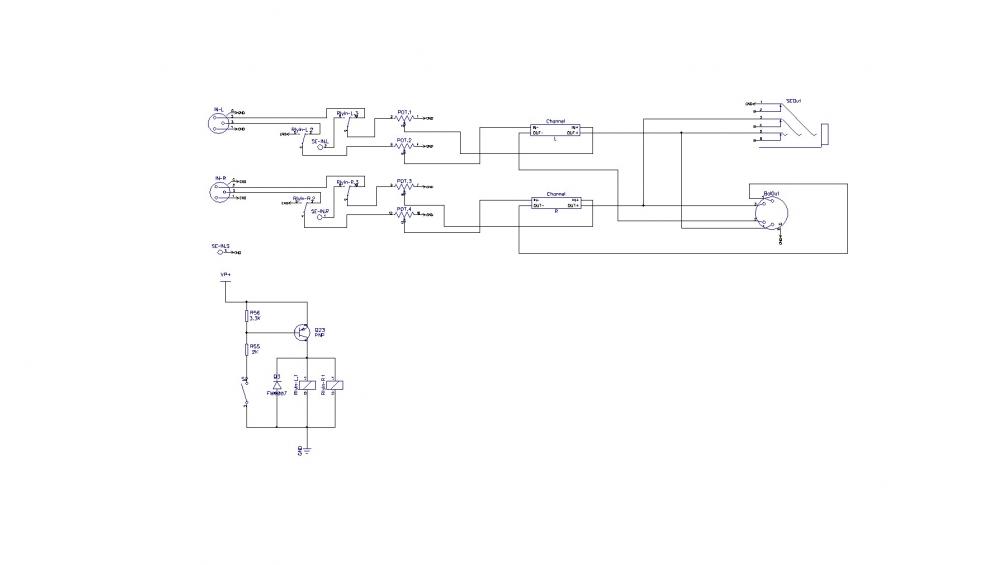

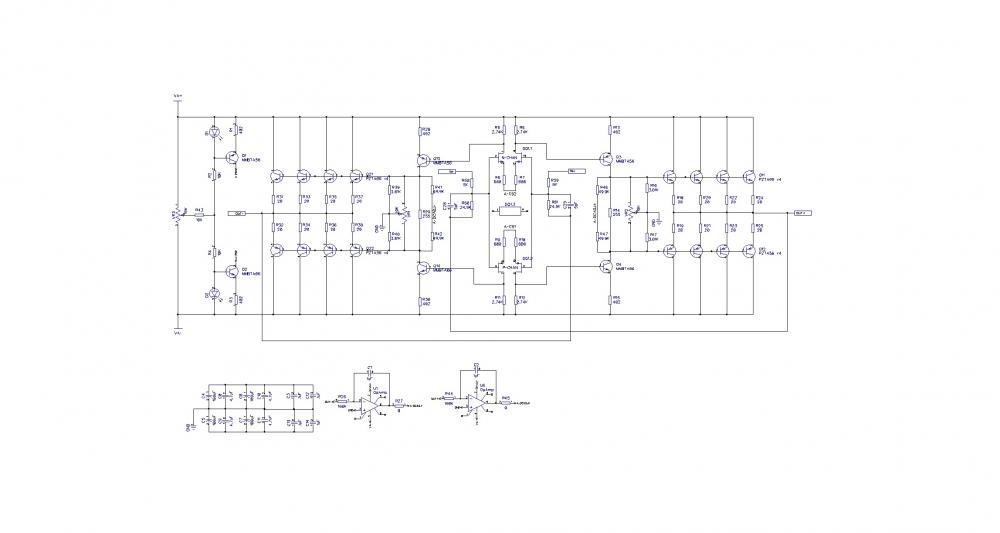

These pictures are for the SuperSymmetryDynalo-v1-5.zip version which as far as I know is the mini.

I didn't look into the  (dynalobalXX.zip) at all since they seem a bit older.

I might have to reread the whole blog  and write down some sort of version control for everything.

[Pars]

Yes, that is the mini. The kgdynalobal9 is the full size, but is also SMT for most of it. Use with the GRLV (or Amb sigma22, etc.) PSUs, normally at +/-20V.

The kgdynalobal files seem to use SMT transistors, but thru-hole resistors. These are all full size; I'm not sure which is considered to be the latest. The kgdynalobal9.zip  was what was used for the recent group buy, here.

  6/5/2015  9:49 AM       242761 kgdynalobal5.zip
 11/2/2016 11:09 AM         4298 kgdynalobal9.PKP
  2/6/2016  8:25 AM       325771 kgdynalobal9.zip
11/13/2016  6:34 AM        88083 kgdynalobal9g.zip
11/12/2016  4:20 PM        79877 kgdynalobal9G2.zip

 6/23/2015  6:59 AM       237220 dynalobal12.zip
 6/23/2015  6:59 AM       235328 dynalobal13.zip
 6/25/2015  4:22 AM       236564 dynalobal15.zip
 6/25/2015  4:22 AM       252016 dynalobal17.zip

[Kerry]

52 minutes ago, cspirou said:

So biasing/VAS is certainly different between the two. Is this why the mini version needed heatsinks for the output transistors?

No.  The bias/VAS, etc. are the same.  There are some slight value differences in the biasing resistors (accounted for in the BOM), but that's because the LEDs have different forward voltages so the resistors need to be adjusted.

Edited March 5, 2017 by Kerry

[masamoto]

2 hours ago, Pars said:

Schematic for the SMT SS Dynalo, not the mini.

So the Schematic is for the mini? And the SMT SS Dynalo board (dynalobalXX.zip) is outdated?

It's good to know that there is a version called SMT but if it's redundant.

[Pars]

It isn't outdated nor redundant. It is the full-size SS Dynalo, vs. the mini that Kerry did the board layout for.

The schematic you posted above is for the mini.

[johnwmclean]

Kerrys awesome mini will fit a FPE profile 1 enclosure.
The smallest I could get it: 133.92mm (W) x 172.72mm (D) x 42mm (H)

Smaller than Cavalli’s Liquid Carbon in height and depth, and only slightly wider by 6mm.
Cavalli’s Liquid Carbon = 127mm (W) x 178mm (D) x 45mm (H)

I get my panels next week, I can’t wait to see how it turns out! Here are the drawings.

Will share if anyone’s interested .

Edited March 9, 2017 by johnwmclean

[Pars]

I dunno John, you do such shitty work... sure, I'd love it if you shared that

[swt61]

^ He really should be embarrassed posting the sub-par stuff he builds.

He should ship it all to me for proper disposal.

[Pars]

^ I knew I forgot something in that post... disposal of that crap

[Kerry]

Nice John!

Prior comments not withstanding, I'd like to get the FPE files

[wink]

That design is soooo bad, it almost makes me want to start DIYlng again.......

[gepardcv]

Wonderful work. I'm interested, too!

[MLA]

As am I! A really great piece of work!

[purk]

Just pure awesomeness John!  Can't wait to see the finished product!!

[muskyhuntr]

I too am interested!  Good work!

Me

[sbelyo]

definitely could use 2 of those myself

[johnwmclean]

Thanks guys, I'll do a fit test once I have the panels (should be early next week) and will then post up the final FPE files and photos.



[wink]

I wonder how long it will take for the chassis design to invade the Chinese clone sites.......

[johnwmclean]

Well that was very quick shipping from FPE ,

Initially I was going for an all out black box, but FPE don’t do anodising after milling leaving the panels with silver edges, which got me thinking silver sides would help blend in more naturally, so that’s what I did.

I’m really happy with the result overall, the fit is really good, the side edges and base of board have have good clearances. I’m still waiting on feet, final LED and volume knob. I’ll do some testing and see how I go with the temperature, uncased I was getting around ~65° over the regs, THATs and outputs, I may have to turn it down a little, depending...



Here are the FPE files;

https://akashare.egnyte.com/dl/PjWB17863x

The side panels are profile 1 cut to a length of 172.7mm.



Edited March 13, 2017 by johnwmclean
