DonAudio Posted May 5, 2016 Report Share Posted May 5, 2016 I purchased a megatron board and power supply board from Joachim. I believe I have a complete list of the parts necessary to build except for the following. I was wondering if anyone would be able to guide me to an appropriate source for these items. Any help would be appreciated: Qty Value Ea Schematic X-Ref 12 2sc4686a 1.4 16.8 Q1-4, Q9-10 4 2sa1968 0.7 2.8 either this 4 ixtp01n100d 1.29 5.16 or this 4 2sa1486 1.86 7.44 Q15-16 4 2sc2705 0.46 1.84 Q11-12 4 2sc2240 0.38 1.52 Q13-14 4 2sa970 0.38 1.52 Q17-18 2 LSK389 10 20 Q19,Q22 2 2SC1815 0.19 0.38 Q20 2 OP27GPZ 1.93 3.86 U2, 6 2 2sc3675 1.22 2.44 Q5, 15 Quote Link to comment Share on other sites More sharing options...
congo5 Posted May 5, 2016 Report Share Posted May 5, 2016 Megatron? this looks like an older KGSSHV BOM if so http://www.bdent.com/ Quote Link to comment Share on other sites More sharing options...
mwl168 Posted May 5, 2016 Report Share Posted May 5, 2016 No sure what's the currency used for the parts price. If it's USD, many of thm look way low to me. Quote Link to comment Share on other sites More sharing options...
joehpj Posted May 5, 2016 Report Share Posted May 5, 2016 No this is wrong for megatron. At least no lsk389 is needed Quote Link to comment Share on other sites More sharing options...
bravi Posted September 18, 2016 Report Share Posted September 18, 2016 The 1000pf and 3900pf 1000v capacitors for the psu board are listed as obsolete with mouser and digikey. Has anyone tried alternatives such as metalised polypropylene caps of the same value? Can it be used? The one I have tentatively shortlisted are shown as useful for high dv/dt apps. Appreciate some guidance on this. By the way, I have installed stn9360 using small conversion pcbs instead of 2SA1486, as the 2SA1486 lot I had purchased all topped out at around 310v on the transistor tester. Quote Link to comment Share on other sites More sharing options...
Leve Posted September 18, 2016 Report Share Posted September 18, 2016 Bravi.. the 3900pf capacitors listed in the BOM here: https://docs.google.com/spreadsheets/d/1tQvwqsARXGge6Tw6edqicCDti6Mite2F24T5YddyEEc/edit#gid=0 are available from Mouser, and are a film type. RS have several options listed for the 1000pf if you can't find them at Mouser.. the problem you have to watch going to a different type is that there's not a lot of room where these go on the board, so check the size and lead spacing. Glad to see another Megatron going together "down under".. mine is just about ready for it's initial start up (fingers all crossed here). Quote Link to comment Share on other sites More sharing options...
palchiu Posted September 18, 2016 Report Share Posted September 18, 2016 On 2016/5/5 at 9:47 AM, DonAudio said: I purchased a megatron board and power supply board from Joachim. I believe I have a complete list of the parts necessary to build except for the following. I was wondering if anyone would be able to guide me to an appropriate source for these items. Any help would be appreciated: Qty Value Ea Schematic X-Ref 12 2sc4686a 1.4 16.8 Q1-4, Q9-10 4 2sa1968 0.7 2.8 either this 4 ixtp01n100d 1.29 5.16 or this 4 2sa1486 1.86 7.44 Q15-16 4 2sc2705 0.46 1.84 Q11-12 4 2sc2240 0.38 1.52 Q13-14 4 2sa970 0.38 1.52 Q17-18 2 LSK389 10 20 Q19,Q22 2 2SC1815 0.19 0.38 Q20 2 OP27GPZ 1.93 3.86 U2, 6 2 2sc3675 1.22 2.44 Q5, 15 This should be KGSSHV's BOM Quote Link to comment Share on other sites More sharing options...
bravi Posted September 18, 2016 Report Share Posted September 18, 2016 Hi Leve, Thanks for the reply. Located the 3900pf piece. Using the reference provided the 1000pf cap comes up as a ceramic disc cap made by Murata and indicating obsolete. Yes, I can that disc space is limited, but may have to think of a different way to locate if it does not fit. Cheers! 1 Quote Link to comment Share on other sites More sharing options...
Leve Posted September 18, 2016 Report Share Posted September 18, 2016 These are showing as out-of-stock at RS, but I have some here I can send you if you want to drop me a pm with your details: http://au.rs-online.com/web/p/ceramic-single-layer-capacitors/7214975/ Update.. they have several options in stock, but still happy to send you some if you prefer: http://au.rs-online.com/web/p/ceramic-single-layer-capacitors/7214966/ http://au.rs-online.com/web/p/ceramic-single-layer-capacitors/8313036/ Quote Link to comment Share on other sites More sharing options...
Leve Posted October 3, 2016 Report Share Posted October 3, 2016 Finally - another Megatron is alive.. all the voltages came in within a couple of volts, and it really is a great sounding amp. I still have a bit of mounting and case work to do before it's finished, but listening is a constant distraction. The only issue I have is that I find I'm mostly up into the last 10% of the pot, and I'm wondering if I have something wrong, or is it just because the Mk 1 007 headphones are that hungry ? Any advice would be appreciated. 3 Quote Link to comment Share on other sites More sharing options...
chinsettawong Posted October 3, 2016 Report Share Posted October 3, 2016 Your amp looks really nice. Please show us the underside as well. About the volume, it might have something to do with your source putting out too soft sound too. Please check. Quote Link to comment Share on other sites More sharing options...
Leve Posted October 3, 2016 Report Share Posted October 3, 2016 28 minutes ago, chinsettawong said: 28 minutes ago, chinsettawong said: Your amp looks really nice. Please show us the underside as well. About the volume, it might have something to do with your source putting out too soft sound too. Please check. Thank you chinsettawong. The source is a Yamaha SACD player (CD-S2100) so it's a balanced 2v output. Here's the underside with board not yet fully mounted and transformers not yet hooked up: 1 Quote Link to comment Share on other sites More sharing options...
johnwmclean Posted October 4, 2016 Report Share Posted October 4, 2016 Beautiful work! 1 Quote Link to comment Share on other sites More sharing options...
eggil Posted October 5, 2016 Report Share Posted October 5, 2016 Congratulations on a very nice build! 1 Quote Link to comment Share on other sites More sharing options...
bravi Posted October 7, 2016 Report Share Posted October 7, 2016 Very nice build Leve. The VCaps will really let the sound bloom after some time. I hope to start the case preparation for my build this week end. The boards need just one or two more bits I begin testing. Quote Link to comment Share on other sites More sharing options...
astrostar59 Posted October 7, 2016 Report Share Posted October 7, 2016 (edited) Leve does your pot have a 100K resistor load on it? I replaced my pot resistor on my Passive pre-amplifier for a 10K load, which redialed the gain to the pot. Edited October 7, 2016 by astrostar59 Quote Link to comment Share on other sites More sharing options...
Leve Posted October 7, 2016 Report Share Posted October 7, 2016 3 hours ago, astrostar59 said: Leve does your pot have a 100K resistor load on it? I replaced my pot resistor on my Passive pre-amplifier for a 10K load, which redialed the gain to the pot. No. The input goes directly to the pot and from the pot directly to the board. At full volume I measure about 0.5 ohms between input and output. The pot is Khozmo's new relay based design. Quote Link to comment Share on other sites More sharing options...

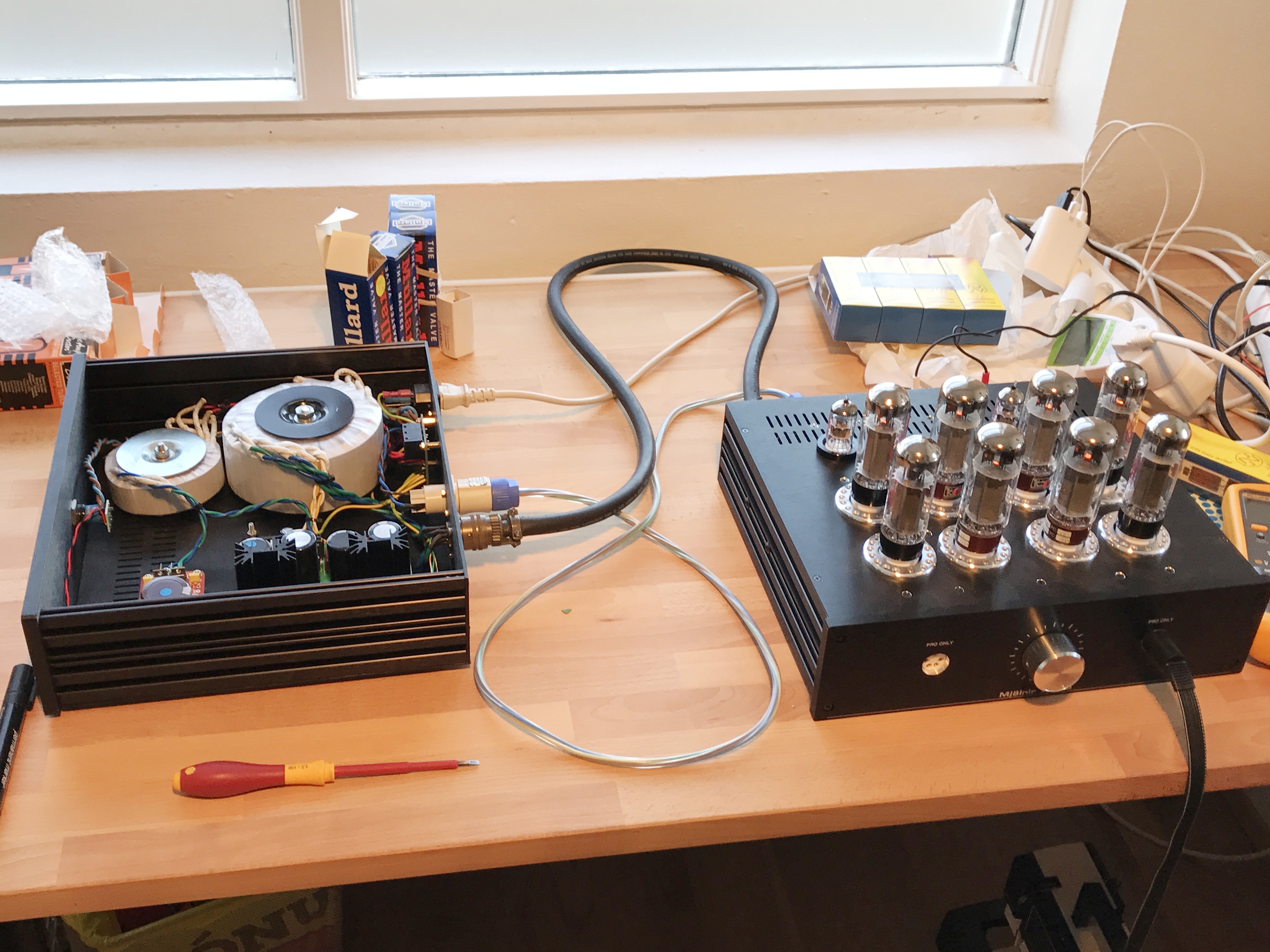

spritzer Posted February 4, 2017 Report Share Posted February 4, 2017 I finally finished this one today after about... 4 years or so... Let's just say that I hate anything with umbilical cables... Besides the madness of using 4 mains transformers and the super short filament winding's for the CCS tubes this was easy enough. Running at +/-400V off a BHSE power supply with the dropper resistor and zeners to feed the front end. Only main difference is the 12VDC supply used to heat the front end tubes so the board was cut up pretty bad. Next one will use the Megatron V2 pcb's in about 3 years or so... 11 Quote Link to comment Share on other sites More sharing options...
nopants Posted February 5, 2017 Report Share Posted February 5, 2017 how do you like it against the other amplifiers in your stable? 1 Quote Link to comment Share on other sites More sharing options...
spritzer Posted February 5, 2017 Report Share Posted February 5, 2017 It's excellent, nothing short of that for an all tube design. Gives the BHSE a run for its money... Quote Link to comment Share on other sites More sharing options...
JimL Posted February 5, 2017 Report Share Posted February 5, 2017 Great job, spritzer and congratulations! Perfect for those cold Icelandic summers. Quote Link to comment Share on other sites More sharing options...
wink Posted February 6, 2017 Report Share Posted February 6, 2017 Can you do one in solid state....? 1 Quote Link to comment Share on other sites More sharing options...
johnwmclean Posted February 6, 2017 Report Share Posted February 6, 2017 Really beautiful! Quote Link to comment Share on other sites More sharing options...
spritzer Posted February 6, 2017 Report Share Posted February 6, 2017 I might do a version of this circuit with SS CCS just to make it a lot less complicated. 3 Quote Link to comment Share on other sites More sharing options...
mwl168 Posted April 11, 2017 Report Share Posted April 11, 2017 According to the Gerber viewer I used, the Megatron board dimension is 228.6mm x 228.6mm. Can someone confirm? Thanks! Quote Link to comment Share on other sites More sharing options...
