Audiojunkie Posted July 30, 2014 Report Share Posted July 30, 2014 A real beauty! Congrats! Quote Link to comment Share on other sites More sharing options...
johnwmclean Posted July 30, 2014 Report Share Posted July 30, 2014 OOoh thats lovely... well done! Quote Link to comment Share on other sites More sharing options...
eggil Posted July 30, 2014 Report Share Posted July 30, 2014 (edited) Congratulations! Edited July 30, 2014 by eggil Quote Link to comment Share on other sites More sharing options...
JoaMat Posted July 30, 2014 Report Share Posted July 30, 2014 Very nice indeed. Well done. Quote Link to comment Share on other sites More sharing options...

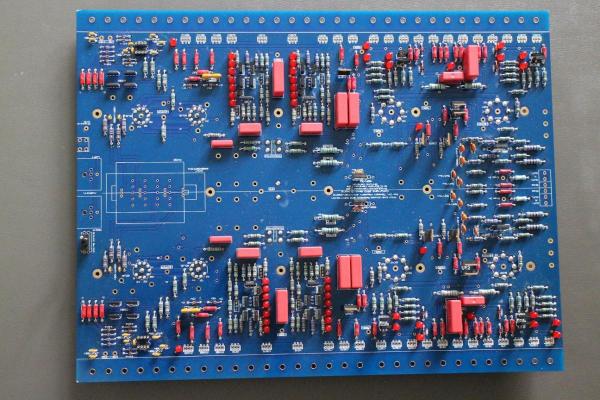

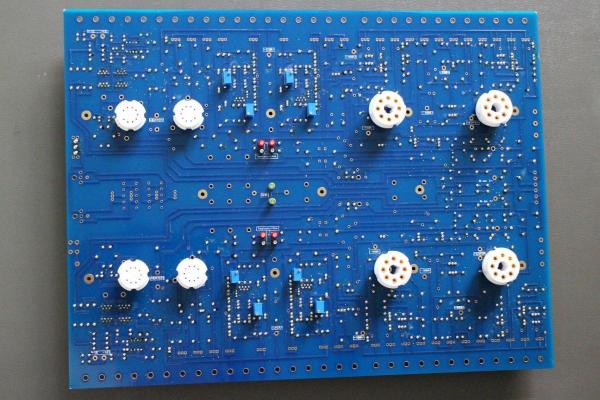

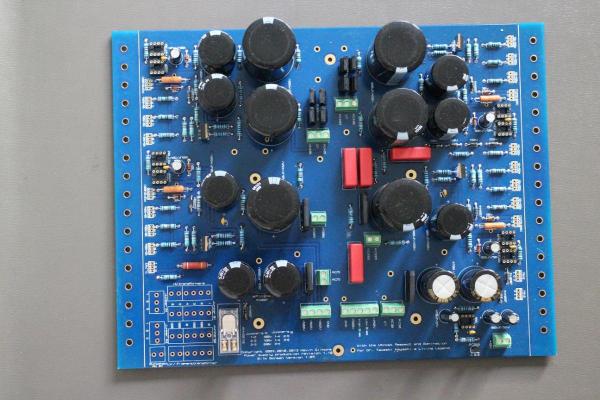

niner Posted July 30, 2014 Report Share Posted July 30, 2014 very nice job. you are ready to do the T2. Indeed I'm ready. T2 boards are fully stuffed. I'm waiting for the chassis from Tran. Quote Link to comment Share on other sites More sharing options...

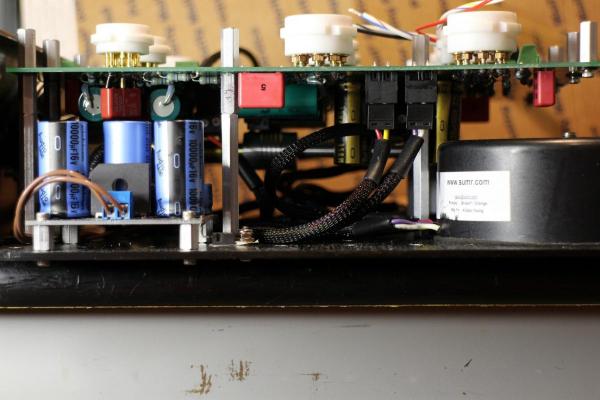

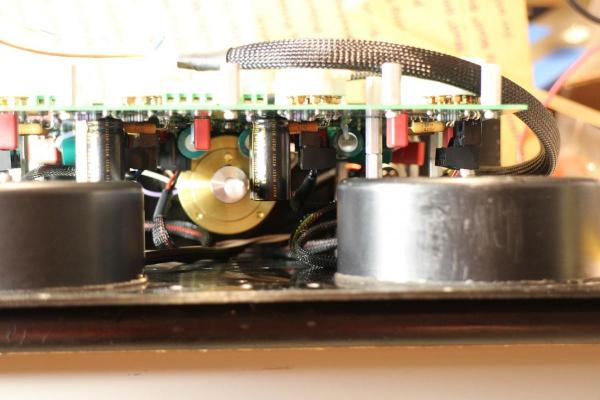

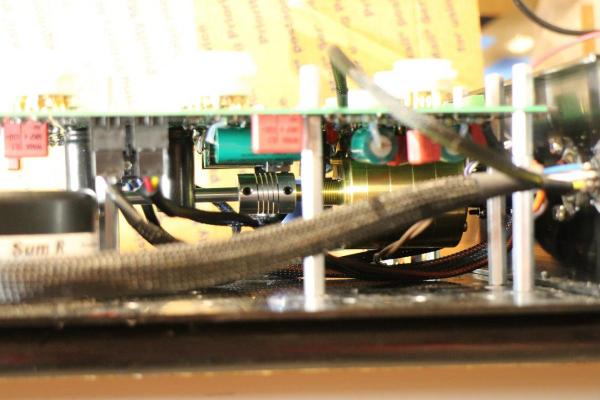

niner Posted July 30, 2014 Report Share Posted July 30, 2014 Thank you guys for the encouragement. I left my SD card at home, but I have a few inside shot of the amp. I used good quality components: Alps RK50 pot, Takman REY resistors, Solen FEP Teflon caps in the signal path, WIMA bypass caps, Nichicon Audio caps, Teflon tube sockets. I made PCBs for the 300V power supply and front-end DC heater. Transformers are from Sumr. Chassis are ordered from eBay. 1 Quote Link to comment Share on other sites More sharing options...
PICaudio Posted July 30, 2014 Report Share Posted July 30, 2014 awesome job!!!! Quote Link to comment Share on other sites More sharing options...
jgazal Posted July 30, 2014 Report Share Posted July 30, 2014 Inspiring work! Quote Link to comment Share on other sites More sharing options...
spritzer Posted July 30, 2014 Report Share Posted July 30, 2014 As a fan of cramped builds I like that one. Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted July 30, 2014 Report Share Posted July 30, 2014 niner: its always useful to learn to read a schematic. Sometimes there are things on a schematic that aren't translated to PCB artwork that are useful to know. You need to remove two capacitors on your T2 build, check the schematic for more info. Quote Link to comment Share on other sites More sharing options...
niner Posted July 31, 2014 Report Share Posted July 31, 2014 niner: its always useful to learn to read a schematic. Sometimes there are things on a schematic that aren't translated to PCB artwork that are useful to know. You need to remove two capacitors on your T2 build, check the schematic for more info. hi luvdunhill, thank you for the suggestion. which cap I need to remove? if you mean C12 or C13, then yes, I knew I populated both of them. I was stuffing the board late at night, and didn't realize I put both of them on until I soldered them down. I should remove them before I forget about it. Thanks anyway! Quote Link to comment Share on other sites More sharing options...
luvdunhill Posted July 31, 2014 Report Share Posted July 31, 2014 Yup. Plenty of builds in the T2 thread where both are populated, so glad you caught it Quote Link to comment Share on other sites More sharing options...

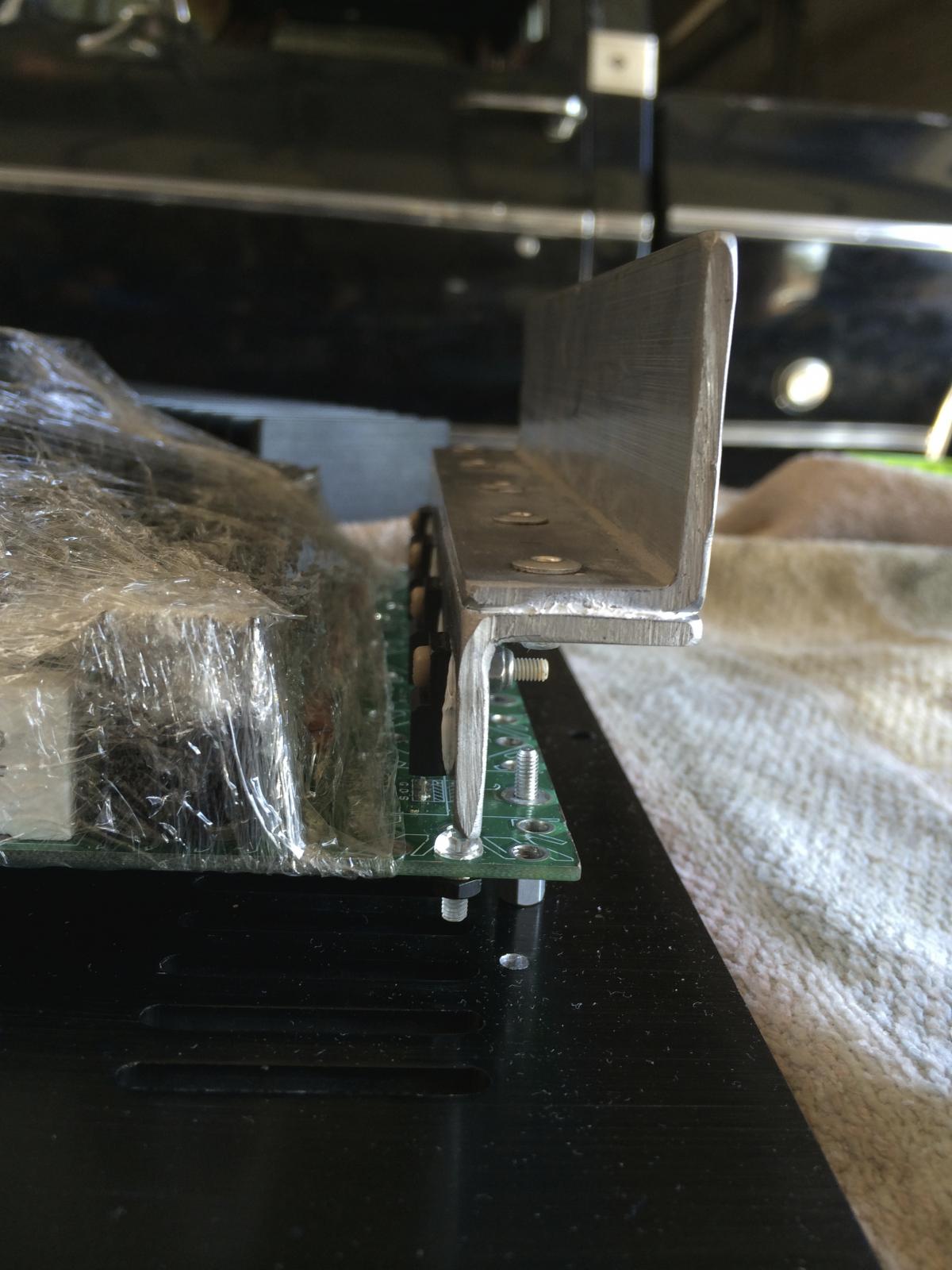

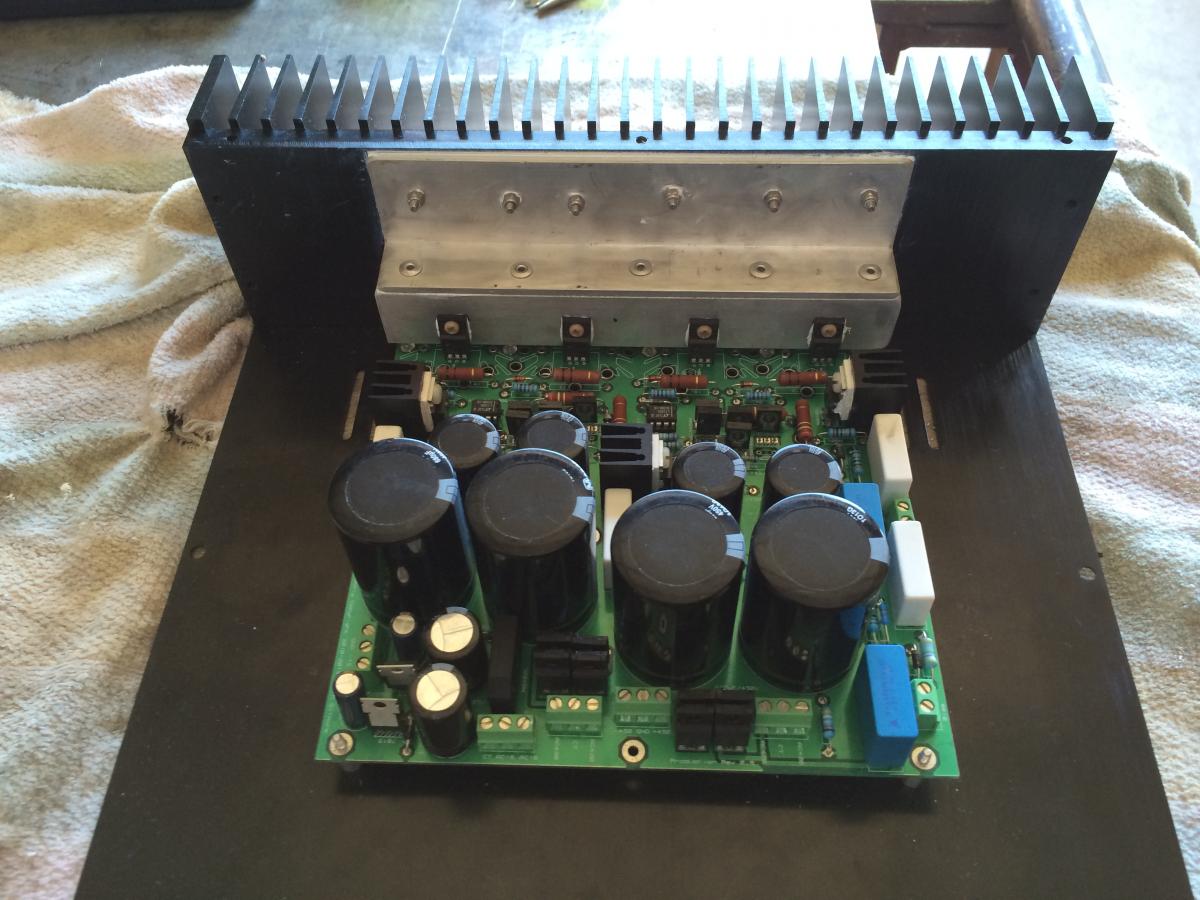

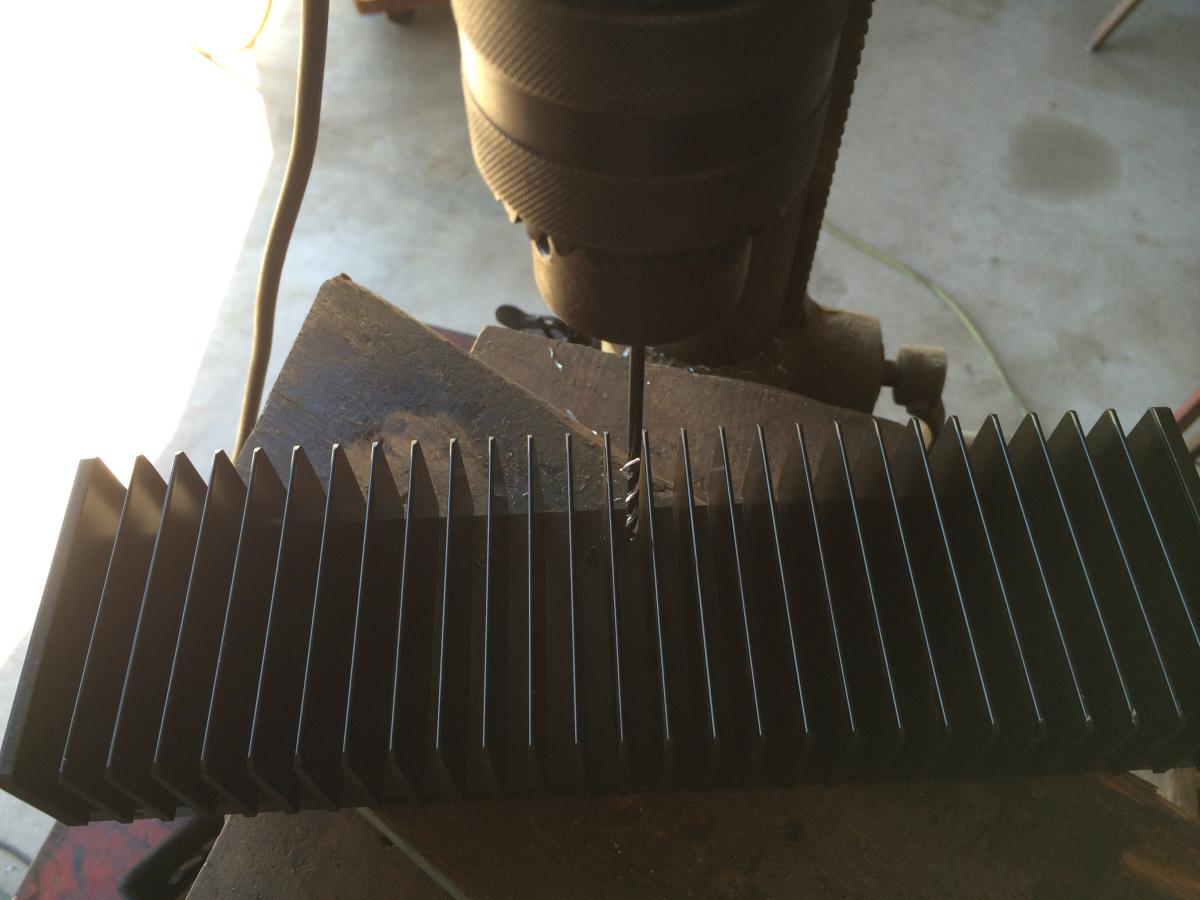

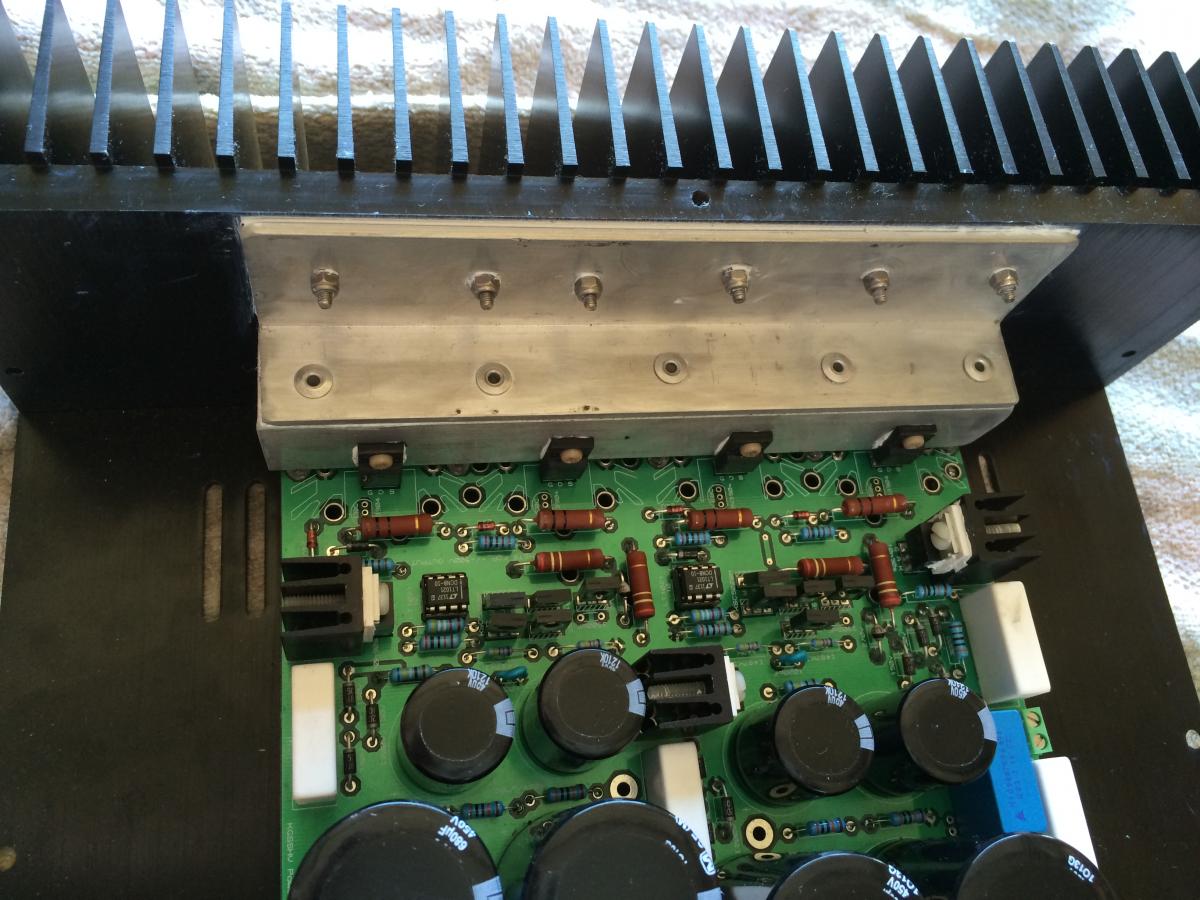

eggil Posted August 5, 2014 Report Share Posted August 5, 2014 This is what I've done to the PSU. Temperature is staying in the 50 Celsius so far. Cheap heatsink amplifier case from ebay. Quote Link to comment Share on other sites More sharing options...
chinsettawong Posted August 5, 2014 Report Share Posted August 5, 2014 Good idea! Quote Link to comment Share on other sites More sharing options...
Victor Chew Posted August 5, 2014 Report Share Posted August 5, 2014 (edited) What is the temperature at the "L" bracket holding the 8N80C? Edited August 5, 2014 by Victor Chew Quote Link to comment Share on other sites More sharing options...
eggil Posted August 5, 2014 Report Share Posted August 5, 2014 After 40 minutes, about 40+ Celsius, but have not connected the amp yet. Quote Link to comment Share on other sites More sharing options...
nopants Posted August 6, 2014 Report Share Posted August 6, 2014 can always attach a resistive load Quote Link to comment Share on other sites More sharing options...
niner Posted August 6, 2014 Report Share Posted August 6, 2014 I have access to an Audio Precision analyzer, but I have never measure an amp for electrostatic device. Do I need a dummy load? Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted August 6, 2014 Author Report Share Posted August 6, 2014 you need a 120pf dummy load, and a minimum of a 10x high impedance attenuator otherwise one accident and you blow the crap out of the AP Quote Link to comment Share on other sites More sharing options...
niner Posted August 6, 2014 Report Share Posted August 6, 2014 So will a 100pF 1KV cap across the + & - output do it? Is 1M high enough? With a balanced attenuator like this (but with high impedance)? Quote Link to comment Share on other sites More sharing options...
kevin gilmore Posted August 7, 2014 Author Report Share Posted August 7, 2014 yep 10:1 or 100:1 with an impedance of R1 = 500K or more Quote Link to comment Share on other sites More sharing options...
niner Posted August 7, 2014 Report Share Posted August 7, 2014 Thanks Kevin. Quote Link to comment Share on other sites More sharing options...

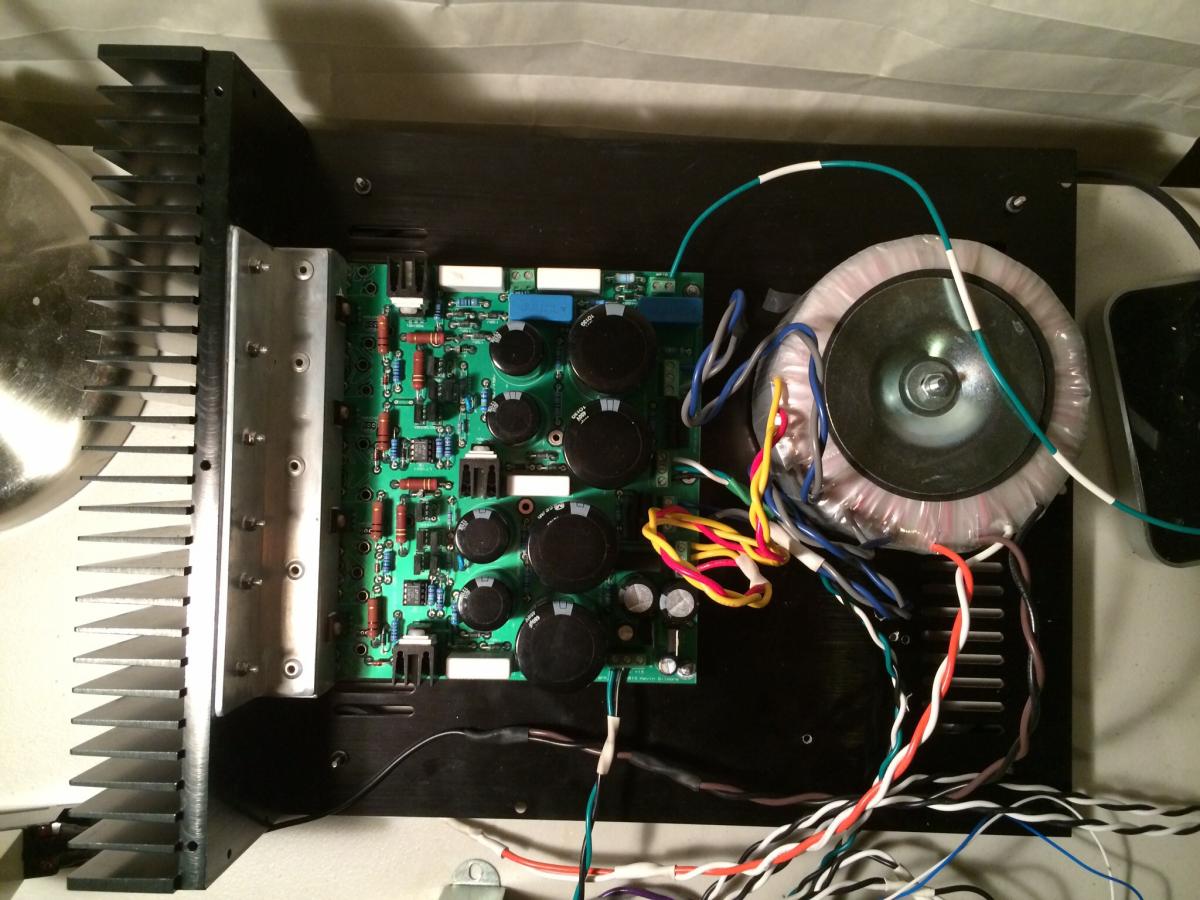

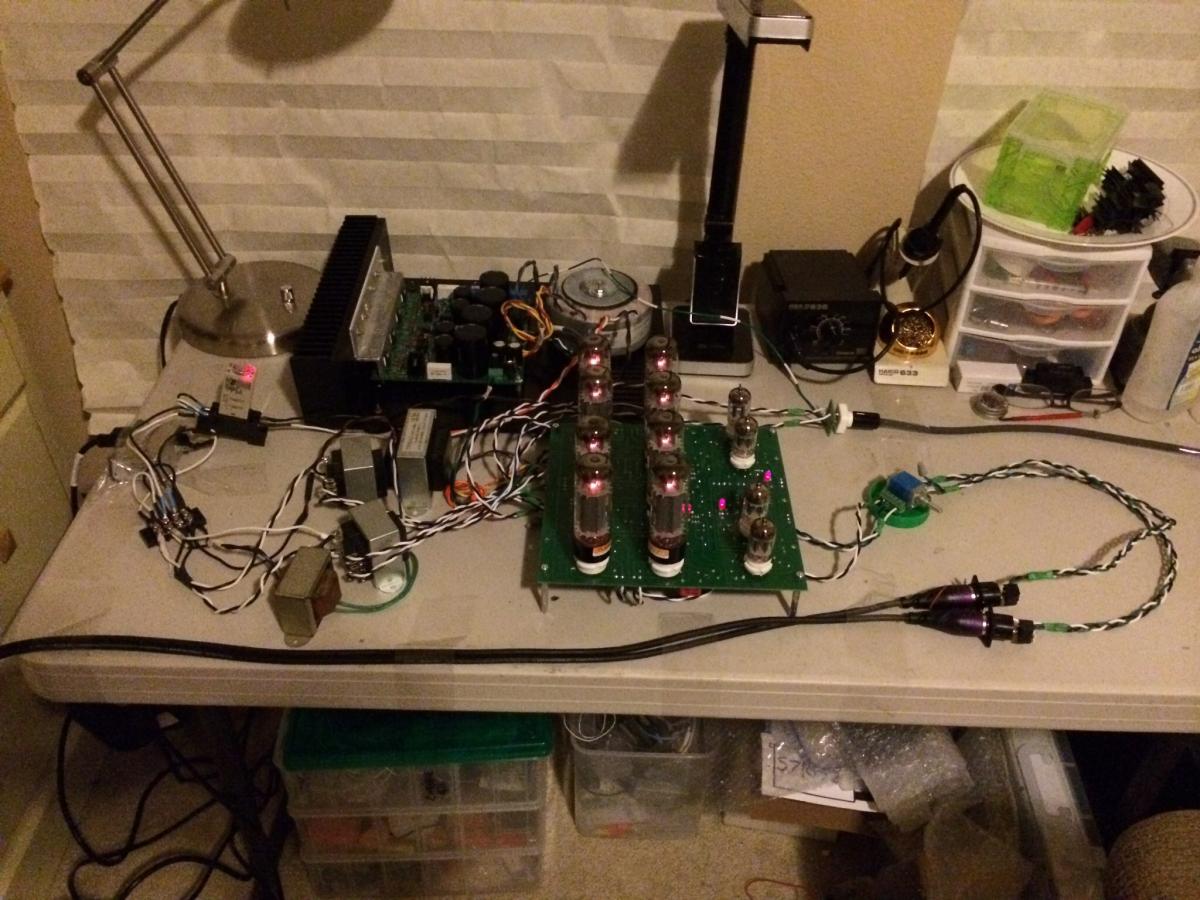

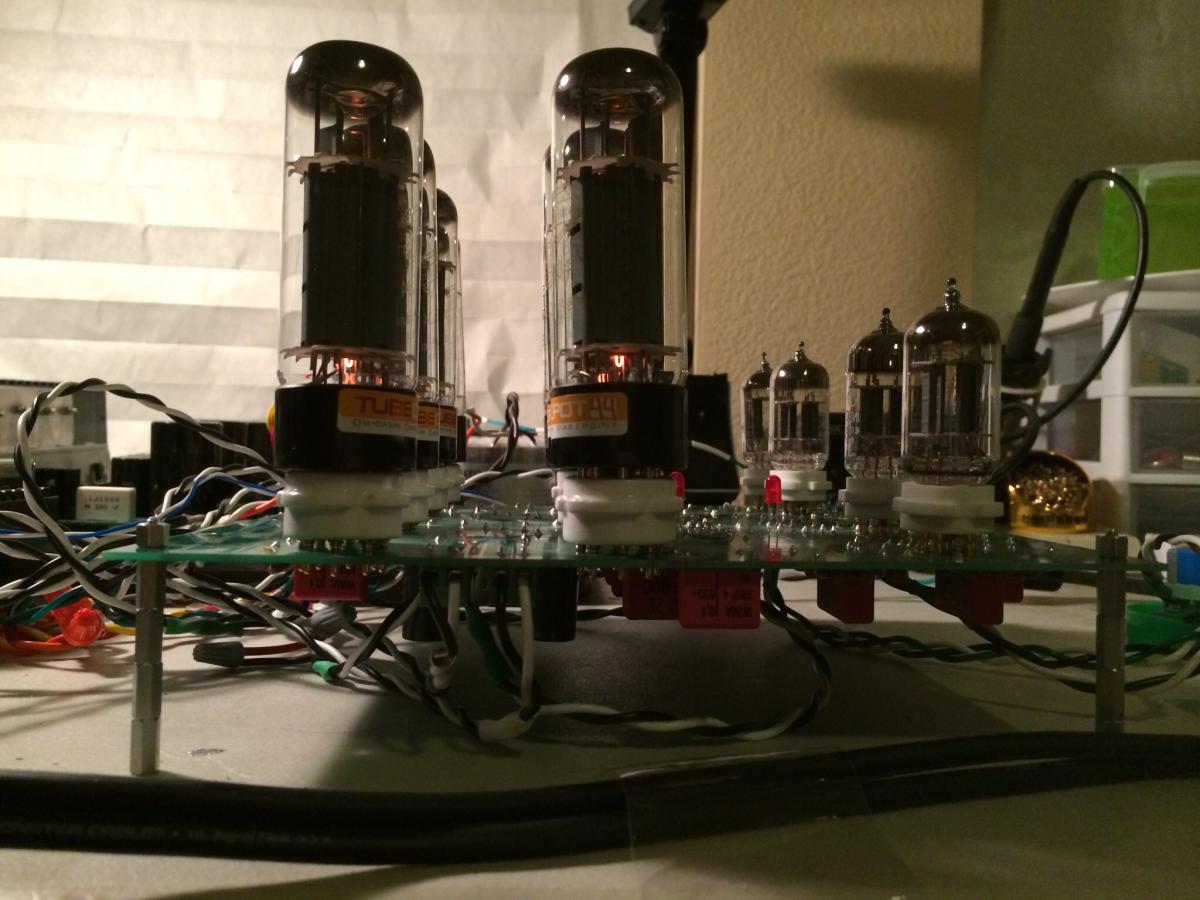

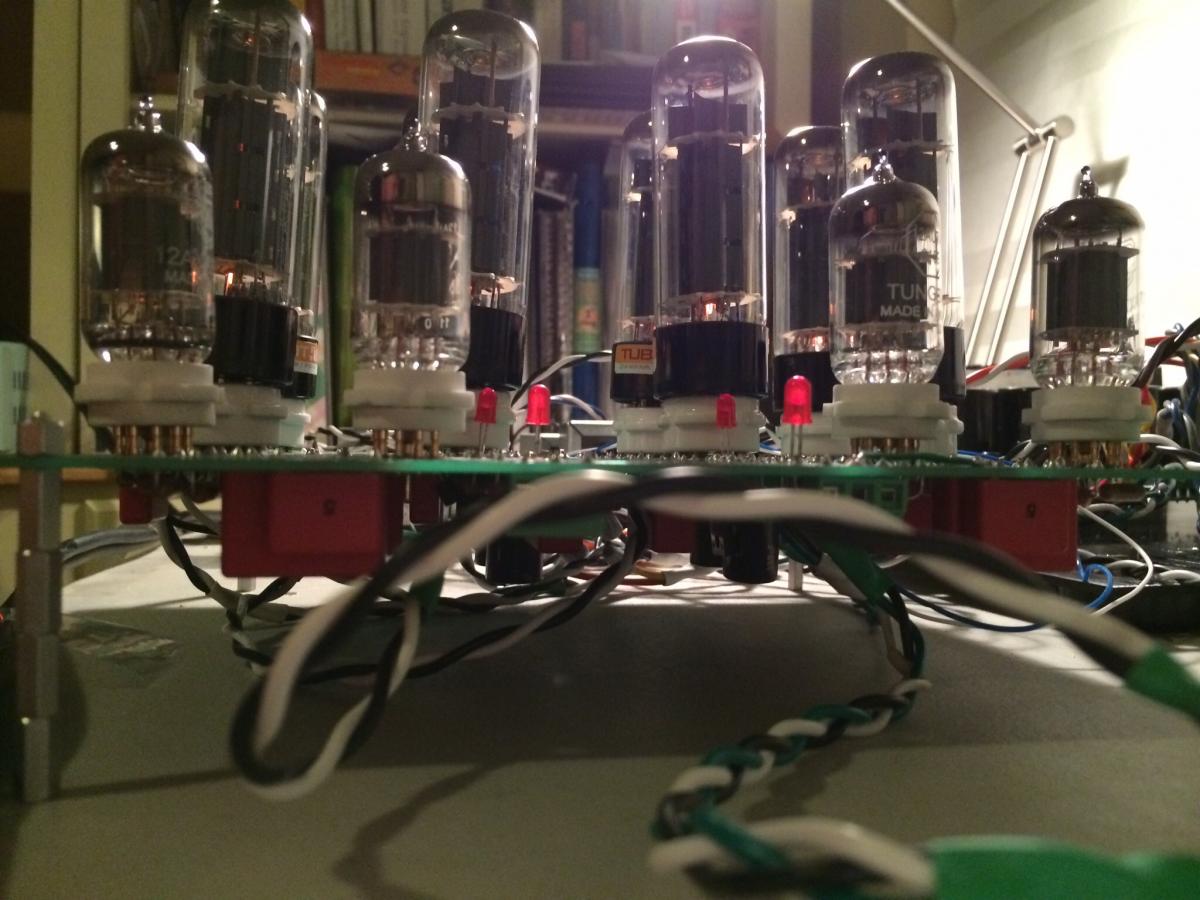

eggil Posted August 9, 2014 Report Share Posted August 9, 2014 (edited) Temperature with the offboard external heatsinks is 56 degrees Celsius at the contact point with the transistors, about 42 degrees in the heatsink fins. Very pleased with the results. It reached 90 plus Celsius with the small onboard heat sinks. I have not cased it yet (working on the PSU first). The sound is to my ears moar better than the KGSSHV. Have not compared it side by side with the BHSE, but I bet they are pretty similar. Simply Stunning! Edited August 9, 2014 by eggil 1 Quote Link to comment Share on other sites More sharing options...
Jon L Posted August 9, 2014 Report Share Posted August 9, 2014 Nice. Quote Link to comment Share on other sites More sharing options...
chinsettawong Posted August 9, 2014 Report Share Posted August 9, 2014 Nice!!! Quote Link to comment Share on other sites More sharing options...
