Megatron Electrostatic Headphone Amplifier


kevin gilmore

Recommended Posts

60 - 70°C is what I consider to be the long term safe margin for non-tube electronics. Remember that lower temps yield a longer lifespan. Can't really remember, but the rule of thumb was like double the hours for every ten degrees or so.

Link to comment
Share on other sites

I'm considering tricking mine out with another hv supply for the 300v line, anyone know of appropriate low power (ie reasonably sized) transformer? how does the srd generate bias in that small package?



It doesn't make any sense to use a PSU that is not better than the KGSSHV unit as you'd just degrade the performance.  Dropping the voltage with a resistor for the front end doesn't have that big of an impact though.



For a transformer you might get away with an oversized 230VAC unit.  The margins are very small and I'd use a 250V unit instead but it could work without dropping out of regulation.



The SRD's use an input limited voltage multiplier.  It can't take any load though which means they are all but impossible to measure.

Link to comment
Share on other sites

May be a second. No more.

Currently measuring 85 degrees in one of the heatsinks.

It's too hot then, doubly so since it isn't cased yet. If you leave it as-is you need to consider how these devices fail and what overall effect that will have on the entire circuit when that happens...

Edited by luvdunhill
Link to comment
Share on other sites

Victor, I used 1K resistors.

I think I will modify the PSU per RiStaR's idea:
1- removing the heatsinks,
2- bending the transistors back, and
3-using an aluminum bracket, connect them to larger off-board heat sinks,
4-plus making sure there are large vents in the case.



http://www.ebay.com/itm/171015163803?_trksid=p2059210.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT

Edited by eggil
Link to comment
Share on other sites

Ik wlll get you more power. It is going to pull a lot of current and the psu is going to get quite hot.



Offboard sounds like a good idea but I am not sure how much current those tracks are rated for, how much they can take and for how long they will last. For that reason, I have decided to stick to specs. and to use 1.5k.. But of course, with 1k you are going to get more power and arguably/perhaps "better sound". I have heard Kelvin's, using 1k, and I must say it sounds very good to me. No way to A/B compare until I am done with mine.

Link to comment
Share on other sites

Just changed the resistors from 1K to 1.5K. (Thank God for the Hakko 808).

Everything works but won't be able to leave it on long enough to measure temperature tonight.

CORRECTION:

With the 1.5 K resistors: temperature in the mid 80's after 1 hour of listening.

With the 1 K resistor: 91 degrees!

It is still too high.

Edited by eggil
Link to comment
Share on other sites

OK then. Now to buy a chassis with a big external heatsink to offboard the transistors after removing the 4 small heat sinks, similar to the offboard KGSSHV built, using aluminum brackets.

Edited by eggil
Link to comment
Share on other sites

Angle the devices and sink to the chassis floor.

The pcb already has holes just for this occasion.

If you still worried about heat, up the thickness of the base panel, I'm thinking 6mm.

Edit: Maybe your pcb doesn't have screw holes, but you can still do this with a bit of care.

Edited by johnwmclean
Link to comment
Share on other sites

Simply using the chassis won't be enough.  Add some thick aluminum plates as heatspeaders and then some heatsinks will work.  Something inline with this:






You can use internal heatsinks if there is enough airflow for them to function properly.  There are no chassis like this so you need to fabricate everything.

Link to comment
Share on other sites

EDIT: I should have listened to luvdunhill earlier:

This is what he mentioned before about removing heatsinks:

1. remove the device

2.  use a heat gun and heat up the heat sink. Use a heat shield to avoid the PCB. Get 'em hot
3.  thread a piece of string through the hole so you have something to pull
4.  Use Chip Quik
5.  pull

They pop right off

I struggled removing the first 2 heatsinks, then I remembered I had some Chip Quik and the next 2 heat sinks popped without difficulty. I used a regular solder gun, but still worked great.

That stuff is magic! My PSU is now ready for bigger heatsinks.

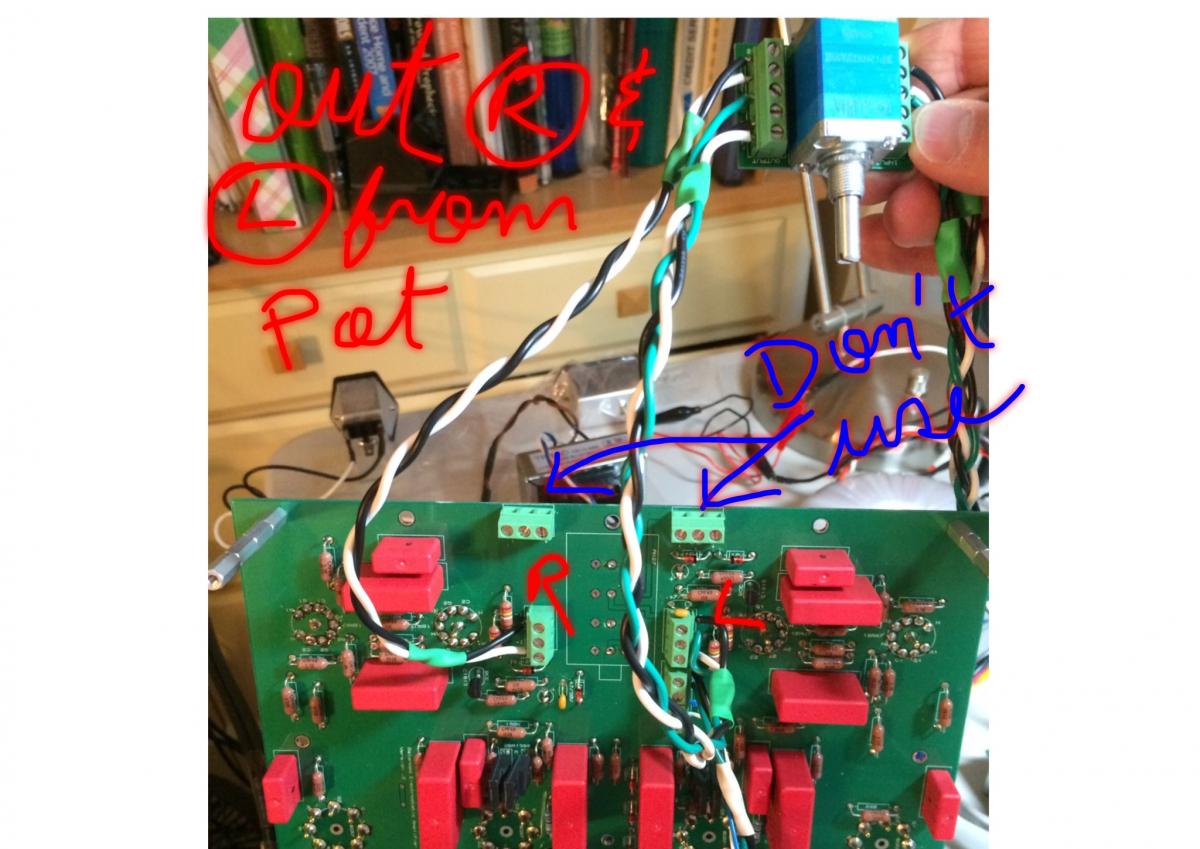

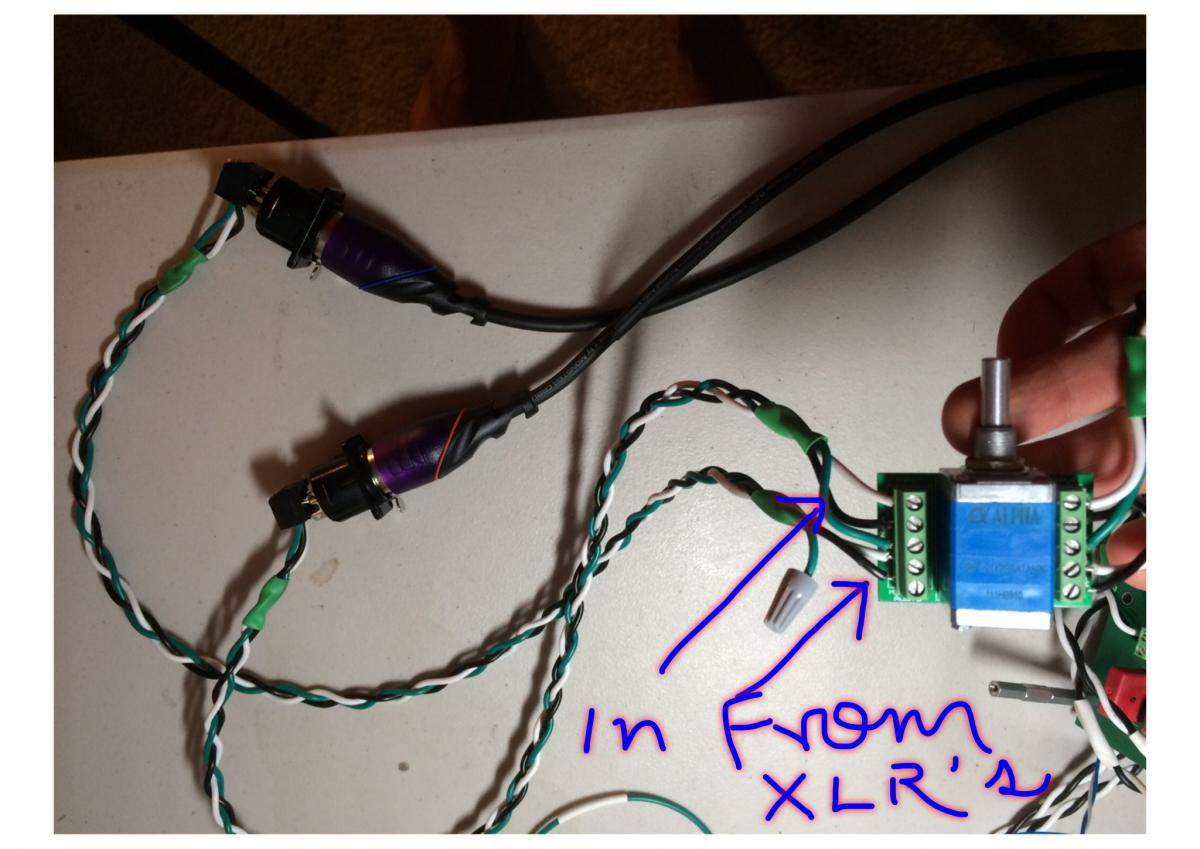

And in case anybody is wondering how to connect an external pot, here are some pics.

post-2299-0-70713500-1404615742_thumb.jp

post-2299-0-82130500-1404615760_thumb.jp

Edited by eggil
Link to comment
Share on other sites

Dear all,

I've got an idea to using T2 psu in the megatron plan. Is it an good idea, or not?

It's nearly impossible to get 2SC3840 & 2SA1684 in local resource, and, fortunately, I got six 2SC3675!



So, I wonder to modify the T2 psu by adding more one fqp8n80c.....



Is it work fine for megatron ?
