drteming Posted June 23, 2016 Report Posted June 23, 2016 Got it cased. Pretty standard. I apologize for the power switch--I couldn't resist. 5
UFN Posted June 23, 2016 Report Posted June 23, 2016 Nice. Although I'd have considered a red LED to match the switch cover and the Neutrik locking tab //UFN
drteming Posted June 23, 2016 Report Posted June 23, 2016 3 hours ago, UFN said: Nice. Although I'd have considered a red LED to match the switch cover and the Neutrik locking tab //UFN Never thought of it. I just got blue because all of my other stuff have blue LED's. A red LED would definitely tie it all together. Been binge listening to Cowboy Junkies. Fell in love with Margo Timmins' voice all over again.
rumina Posted June 24, 2016 Report Posted June 24, 2016 Nice made, it's good to cover the trafo, without i had some noice in one channel .
drteming Posted June 24, 2016 Report Posted June 24, 2016 Picked up a couple of red LED's and popped one in. Looks much better. Thanks UFN. I noted a 60 Hz hum with low impedance headphones with the music off and the volume turned all the way up. Can't hear it with high impedance phones though. The cables hooked up to the RCA input are 2 conductor, shielded, and I had grounded the shielding. When I disconnected the shield ground, the hum went away. I had also grounded the output cables, but disconnecting those did not make a difference. For symmetry, I cut off all the ground wires to the shields.
Fabian85 Posted August 31, 2016 Report Posted August 31, 2016 Long time reader, first time poster... Bought the boards from a member over at DIYA... this amp was going to be my first step into headphone listening. Starting by quoting Rod Elliot: most problems in circuits are due to incorrect parts... built the amp according to BOM, fired up the PSU (v2), checked voltages, all is fine. Hooked up amp (without OPAmps in place)... smoke in front of Q23 on the 2R Resistor... checked the PSU again: fried. Checking amp board... reverse installed Q24 and Q26... I am waiting for the PSU replacement parts. Meanwhile I desoldered the incorrect installed MJF transistors and placed in new ones. Any idea what to replace before hooking up the repaired PSU? Or should I just do a power up and see? Regards, Fabian
GrindingThud Posted August 31, 2016 Report Posted August 31, 2016 I'd check the 2Rs R34/36. I don't see any real reason anything else would be affected.
Fabian85 Posted September 4, 2016 Report Posted September 4, 2016 Thanks for the reply... was able to test the amp, working and sounding good... My PSU is making some... weird behavior... I exchanged all the semiconductors, tested the values of the resistors. At startup I get +24V / -4V... shorting legs 3 and 4 of the OP27 GP on the negativ side with a screwdriver for a glimpse of a second, the PSU shows +22 -22V... anybody an idea?
kevin gilmore Posted September 4, 2016 Author Report Posted September 4, 2016 (edited) its supposed to be +/-22V check polarity of all electrolytics could also be a loose ground Edited September 4, 2016 by kevin gilmore
Fabian85 Posted September 6, 2016 Report Posted September 6, 2016 Thanks for the replies... gave up the rev2 PSU as I could not get it fixed. Just built the zener supply running perfect with +- 22V. Anybody tested different OPamps? Currently using OP27P... How much bias you would recommend maximum? Using the 63,5mm version and they barely get warm at 125mv (if I use Nelson Pass' of heatsink temperature analysis: less than "Blimey Hot", which means >10s hands on, so less or around 45°C). What kind of headphones would you recommend for this amp? Thinking about DT-880-600. Should be at a reasonable price... Thanks for all who helped to realize this project. A great sounding amp!
UFN Posted September 6, 2016 Report Posted September 6, 2016 The opamp is just a servo, so not much point in replacing the existing OP27s. As for headphones I believe this is intended for low-impedance phones so the 600ohm Beyers probably aren't the best choice. //UFN
Fabian85 Posted September 6, 2016 Report Posted September 6, 2016 So probably go with the 32 ohm version then?
Thai Tao Posted December 18, 2016 Report Posted December 18, 2016 Finally 3 or 4 months after finishing the krell, i have time to case it up. The wiring take me more time than populate all the components for the amp boards. 2
muskyhuntr Posted December 18, 2016 Report Posted December 18, 2016 (edited) Well done. Like that front panel! Me Edited December 21, 2016 by muskyhuntr
Thai Tao Posted December 20, 2016 Report Posted December 20, 2016 On 18/12/2016 at 9:54 PM, muskyhuntr said: Well done. Like that front panel! Me3 On 18/12/2016 at 10:15 PM, ang728 said: That engraving ! Well done~ Thanks you guys, actually that engraving and drill hole for audio jack (the volume pot hole come with the stock panel) cost me only 5$, incredible cheap!
ang728 Posted December 20, 2016 Report Posted December 20, 2016 51 minutes ago, Thai Tao said: Thanks you guys, actually that engraving and drill hole for audio jack (the volume pot hole come with the stock panel) cost me only 5$, incredible cheap! super cheap ! I saw breeze audio's box in the background.Did the chasis and engraving make by breeze audio?
rumina Posted December 21, 2016 Report Posted December 21, 2016 Thats a good looking amp, great work :-).

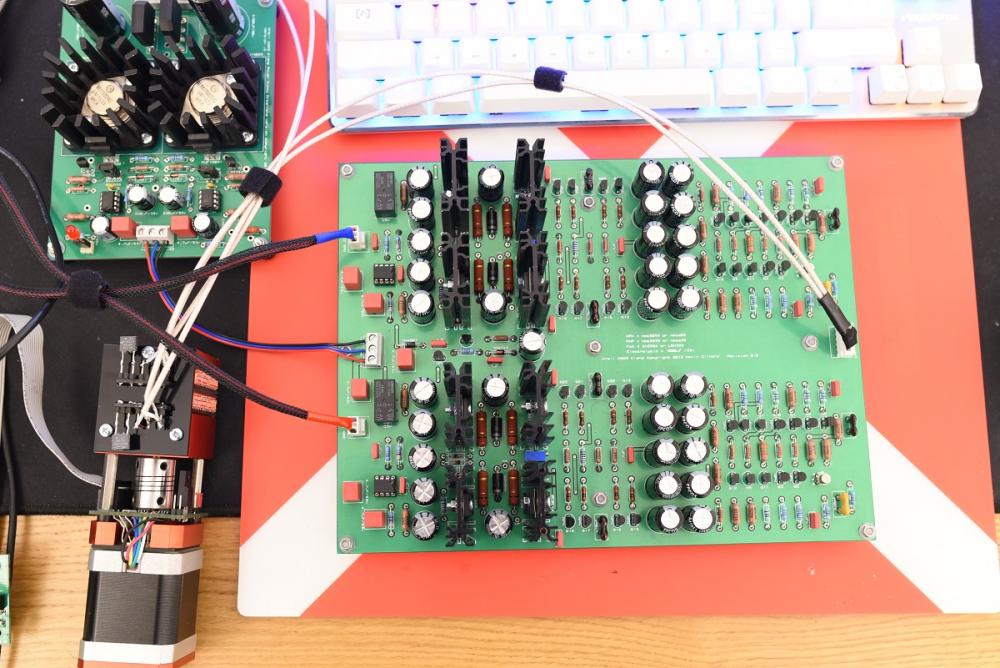

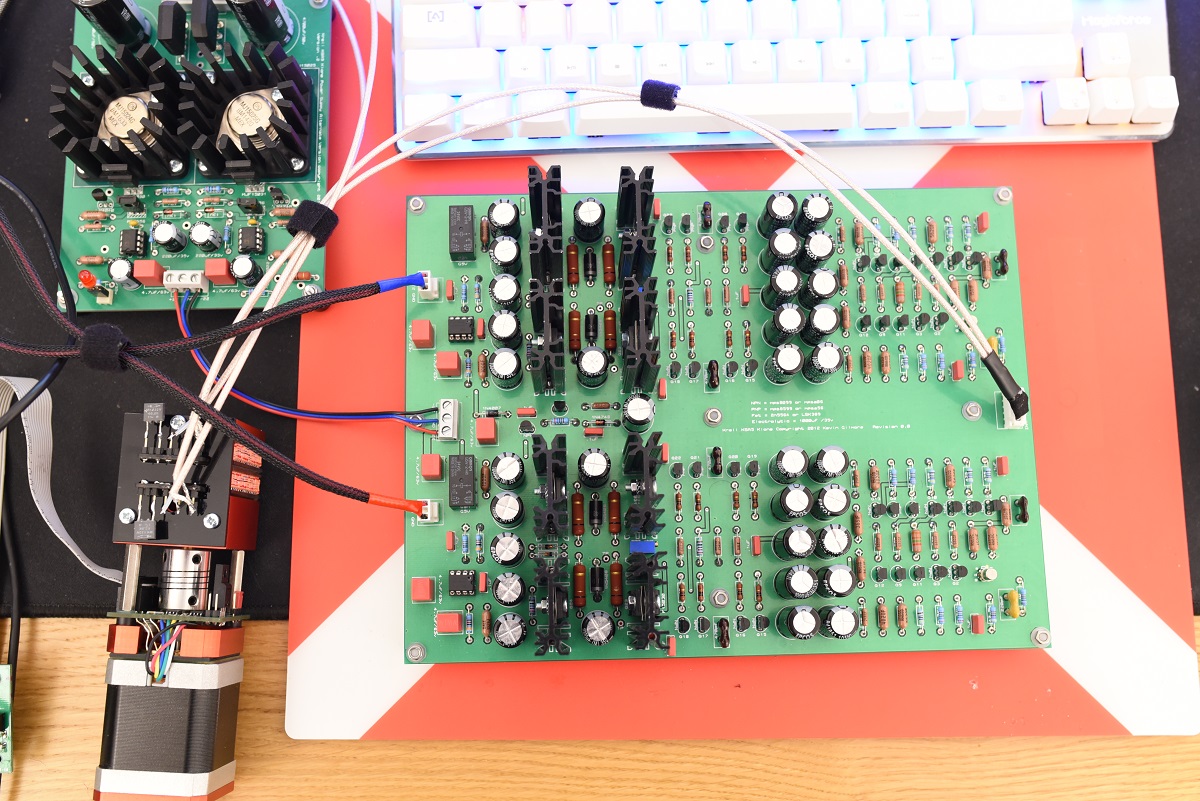

mmoraw Posted February 13, 2017 Report Posted February 13, 2017 Hi All, Got mine all up last night, or I should rather say, this morning... Sounds terrific. On my side, it was more an experiment, to see if it's any batter than the one I've been using for good few years, now rather than real need for an amp ... Will give it some extended listening sessions over the course of next few days ... I'm planing to try it with all the cans I got, HD800, K701, HD590 and K7xx, I've tried to match all the transistor pairs, although still had some dc offset in range of 40-50mV for both channels, obviously after installing op-amps everything looks absolutely fine. If I decide to keep it (read: case it) I will be putting some protection circuit (epsilon12) on top. I would like to thank you all here, and Kevin for the great work.
jack Posted February 25, 2017 Report Posted February 25, 2017 Hello First of all i would like to thank the authors for the awesome work done, to bring those devices available to us. I am starting my trip with building the ksa5 and using it as a line pre-amplifier. do you think this is a good idea or it is first of all a Headphone aplifier, and there are better solutions for the price when it comes to pre-amp.
jack Posted March 1, 2017 Report Posted March 1, 2017 Do you think i can use 2N5564 instead of LSK389?
spritzer Posted March 1, 2017 Report Posted March 1, 2017 I didn't look up the datasheet but if the max voltage is within spec and the pinout is the same then I don't see why not. Might not be as good though.
kevin gilmore Posted March 1, 2017 Author Report Posted March 1, 2017 2n5564 is the original part, however they are going to be very hard to find
Pars Posted March 2, 2017 Report Posted March 2, 2017 Linear Systems makes one now. Trendsetter has them, and they also have the LSK389.Sent from my iPhone using Tapatalk 1
