Pars

Thanks. I already had my own BOM for the CFP2. 2x that is missing the front end section on the CFP3, but should be more or less the same as an SS Dynalo for that portion.

I thought @luvdunhill had one, but maybe not? I assume the other forum is diyaudio?

Anyone have a CFP3 BOM? Excel spreadsheet preferred, but google or whatever is fine as well. Thanks!

Got it, thanks. I was trying to not disassemble it that far, so that is good to know.

Thanks. I guess one more thing to do on this thing Is that (paradoxper) who built this? Or was this one from Dukei?

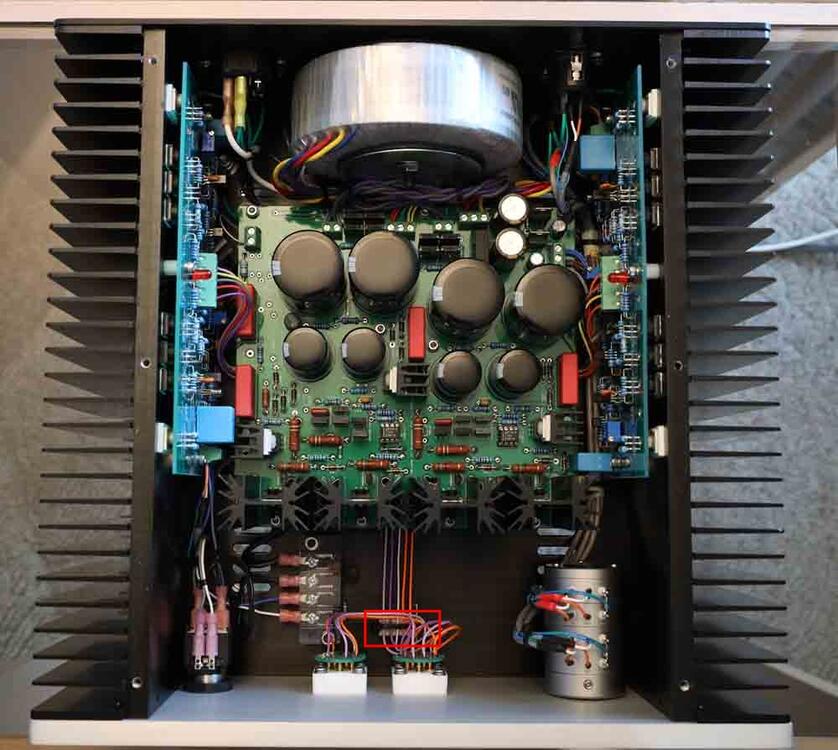

Working on a CFP3 for Todd, and had a question as to why a couple of caps aren't populated. This has switching for SS or ZF implemented. It's consistent in all 4 locations on the 2 boards.

Happy Birthday!

The diyaudio store offers matched quads (2 N, 2 P) of the singles also. https://diyaudiostore.com/collections/jfets/products/linear-systems-matched-jfets?variant=30120611840034

Micross in the UK was the one I was thinking of. Take a look here: http://www.linearsystems.com/purchase.html It would be nice if Linear would just go thru normal distributors like Mouser, Digikey, etc.

The only ones in your list currently available (without contortions) are the Linear Systems LSK489 / LSJ689. These are available from Trendsetter in the US. I'm not sure who in Europe carries them. You didn't indicate where you are, but judging by the Farnell I assumed Europe.

I noticed that you didn't tap the holes in the bracket for the screws? Any reason? Seems better to me than using nuts on the bottom. Also, I don't believe the metal rings on most of Kevin's boards are connected to anything.

Oh no no no... a GE Wildcat is what u really need. I can personally vouch for its awesomeness! https://www.ebay.com/itm/General-Electric-Wildcat-Vintage-GE-Turntable-Portable-Record-Player-Working-Tan/324509893961?hash=item4b8e4c0549:g:AbIAAOSwXh5gRCvK

Happy belated Birthday!

Schubert?

I probably have extras. Let me check. The gerbers for the ones I did aren't on Kevin's site. I've attached them here. THAT340-TO71.zip

Most kind of you. Yes, I would like a pair. PM me and we can discuss.

Adapter boards that I layed out and were in one of the GBs. I think you could just plug them into a 14 pin socket with no lead bending, but if I recall correctly, one of the JFETs would be backwards. No big deal on the Toshibas, at least according to John Curl. I presume the Linear Systems would be OK as well.

Not sure who you are asking, but no, I don't have any, and they probably would not be for sale if I did.

When I used the Linear duals, because of cost, I didn't bother matching them N to P. Kevin has said the CCS takes care of it anyway. If doing singles, if you can get them matched including N-P without a huge premium, I'd do it.

Cool. Thanks Kevin!

Unclear. Going back in the thread, I had posted this, as the schematics I have don't appear to have this fix in place. Shortly after this post, you released new gerbers including all fixes. However, there was an error with a 10K resistor connecting to a device emitter instead of the base. Not sure whether the fixes mentioned were in only referring to this or also included the servo fix. I don't see a pair of 15K resistors, as were used in the CFA2 fix, on the gerbers.

@kevin gilmoreDo the current gerbers (cfp3rs and cfp3rss) have the servo/current mirror correction done to the CFP2 on them? Or don't they need it? Thanks!

Does anyone have a pair of CFP3 boards they want to get rid of? Also, I see two sets of Gerbers: cfp3rs and cfp3rss. Is the difference the revised servo/current mirror? I'm assuming the cfp3rss is the most recent? Thanks!

Happy Birthday Nate!

Yes, not cheap, but considering it is a matched quad, approx. $11@. And generally unobtanium. The diyaudio store charges $39 for a similar matched quad of the Linear Systems devices (2 N, 2 P).
