stax mafia electrostatic portable in the works. would need the bias adjusted for the shure headphones.

files in the stax mafia google shares.

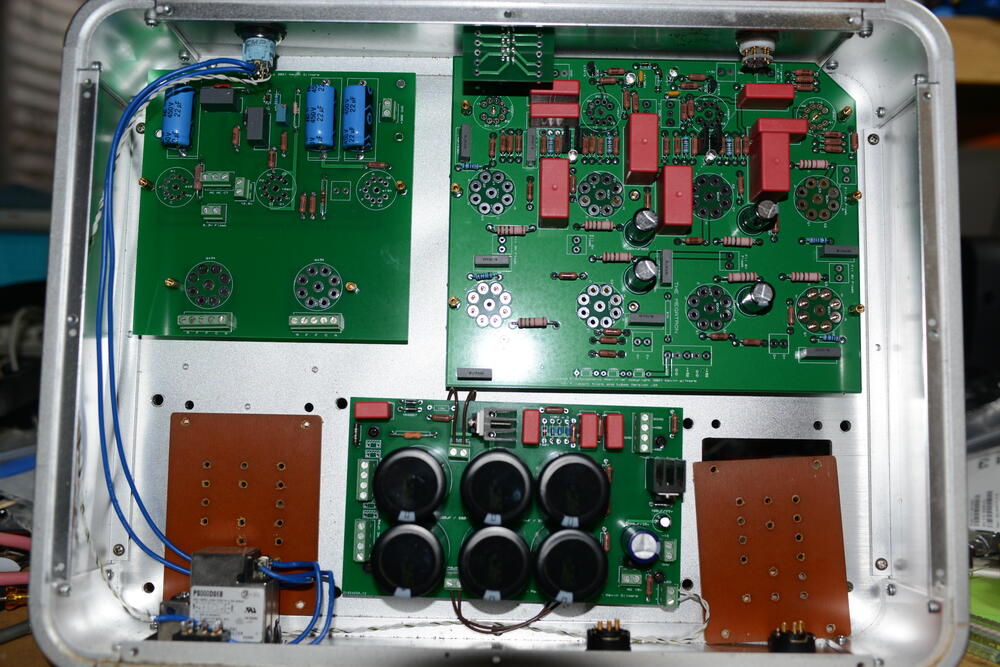

The output stage at least is definitely megatron. DC coupled with tube current source driving a gain tube. The rest of it has significant changes, why i don't know.

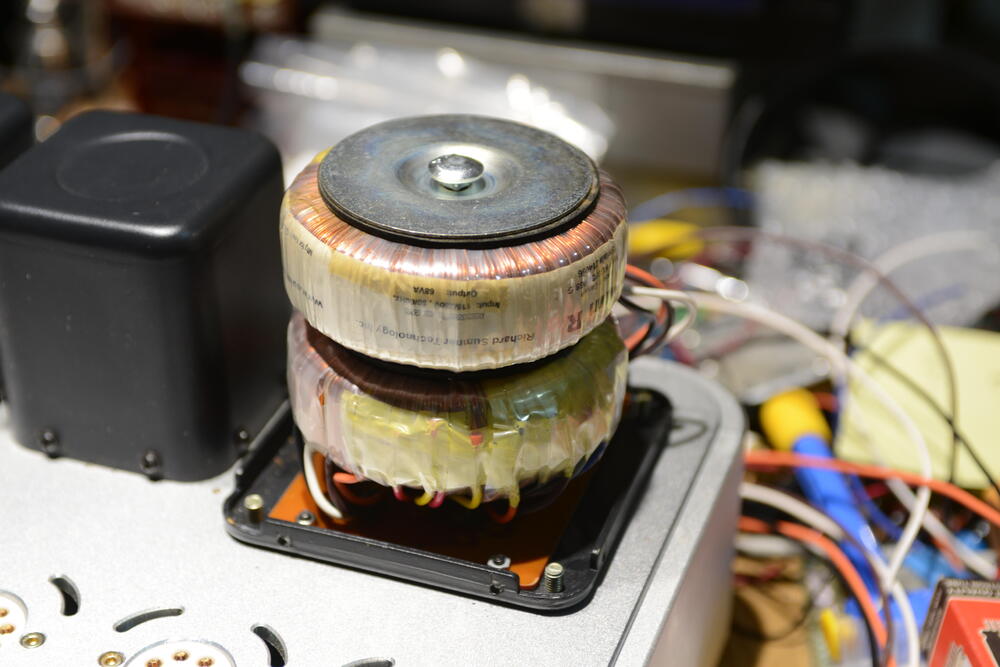

working on this megatron disaster from the pictures. Awaiting delivery of the item to confirm i have not made any mistakes in diagnosing the mikhail class fuckups. 1) The filament windings for the output tubes are all tied together. The 4 current sources are limited to +/-100v before the tubes arc. The gain output tubes are all referenced to ground and that violates the maximum cathode to filament voltage by 300v. This is the same as the singlepower esx disaster and every one of those also blew up. The filament transformer MUST be replaced and all the tubes rewired. which requires removal of the amp board. You need 6 filament windings for the output tubes plus a winding for the input tubes plus a winding for the -15v. left transformer left filament winding (blue wires) (notice tied to ground) for the current stage tubes and right filament winding also tied to ground for gain stage tubes. Since the amp board is missing the first stage current source which was replaced by a resistor to -45v and the second stage current source is missing, its easier to do a new board. 2) The high voltage transformer is also fucked. each 400v power supply is running on half wave rectification which results in amperes of ripple current at 30hz. 2 center tapped windings at 630v required plus pair of filament windings necessary to convert the tube rectifiers to dual full wave rectification. Guess what, new transformer required. even with a solid state rectifier a new transformer is required as the high voltage winding has no center tap. major stupid here. pretty sure i have identified a source for replacement transformers, just need to know the hole sizing and spacing. 3) have not even figured out the +300v supply yet, so many fuckups. So pretty much this is a complete and total rebuild. With the covid economy, could be months to get the repair parts.

i will be posting more about this one next week. The filaments for a megatron MUST BE FLOATING! And this one has them all tied together and referenced to ground. Just like the mikhail esx. And the power supply is half wave with the power caps seeing multiple amperes of peak current. Both power transformers will have to be replaced. The gain tubes have 400v between the cathodes and filaments. (data sheet says 100v max) the mcalister is actually repairable, but its a bunch of work. And those tubes are just about impossible to find.

i just noticed this. amplifier says its push pull amplifier. the megatron is NOT a push pull amplifier. Its dual single ended current source.

this is way to much dc input offset for the servo's to handle

you can use a shorter heatsink. maximum is about .7 watt

that is the bias supply current source and is at at least 700v. best for highest isolation.

oh my god, where to start? The 2 rectifier tubes are GZ34 correct? Full wave tube diodes run as half wave diodes. Why? +/-400v power supply appears to be completely unregulated. 2 x el84+12ax7 is regulated +300v power supply? Original power supply caps rated at 450, definitely not enough. 550v just barely enough and that depends on whether the output tubes are actually warm before the rectifiers get warm. input tube current sources replaced by single power supply and resistor? cascode tube current sources replaced with resistor? Not even sure how i would fix this. But the tube rectifier and unregulated power supply have to go. Probably enough room for a pair of GRHV power supplies (kerry style). 300v supply likely has to go too. If its blowing fuses, could be that the high voltage transformer windings were not rated for >500v wrt ground. Reminds me of mikhail.

littlefuse dalbani littlediode nikko... all the same company. and yes they sell lots of fakes. 2sa1968 are pnp. but if they test as 30v transistors, they are definitely fakes.

don't know about buying parts in india. parts in usa are around $150.

https://www.head-fi.org/threads/stax-srm-007tii-amp-tube-rolling-bias-adjustment.653258/post-16389801 this person published half the schematic. This schematic is similar to, but not the same as your amp which has dc filaments. you need to replace all the parts including the diodes and capacitors. the other high voltage caps don't look very good either. and likely one or more of the tubes are bad.

modifications would be required to lower the bias to 200v from 560. it is unknown whether the headphones can take the extra voltage swing of this amp. one version of this amp will definitely be analog input only. lithium batteries suck. get used to it.

you want the ground2 file.

cfa2 is balanced out only with a balanced input cfa3 is balanced out regardless of input. also some versions are ZF/SS

not cfa electrostatic.

makes no sense to make this a diy kit. the main board is more than 200 components on both sides of the board. The board house wants about $60 to assemble this board. no one i know can hand stuff that board for $60. The dac board is likely going to use the ess chip which has nda agreements associated with it. So no gerber files or schematics either. Still should be much cheaper than the d10 or kse1500.

doug is tall enough he does not need a ladder.

define similar. shure is 4 x discrete opamps made with 400v complementary bipolar parts. stax d10 is 2 x apex pa443 dual monolithic opamps made with 350v n-channel mosfets. stax d10 uses xmos 208 and ess dac. i don't remember what the shure uses. birgir has pictures of both should he desire to post them. there is a guy in ukraine (i think) that is selling a shure clone for about $800 (no dac)

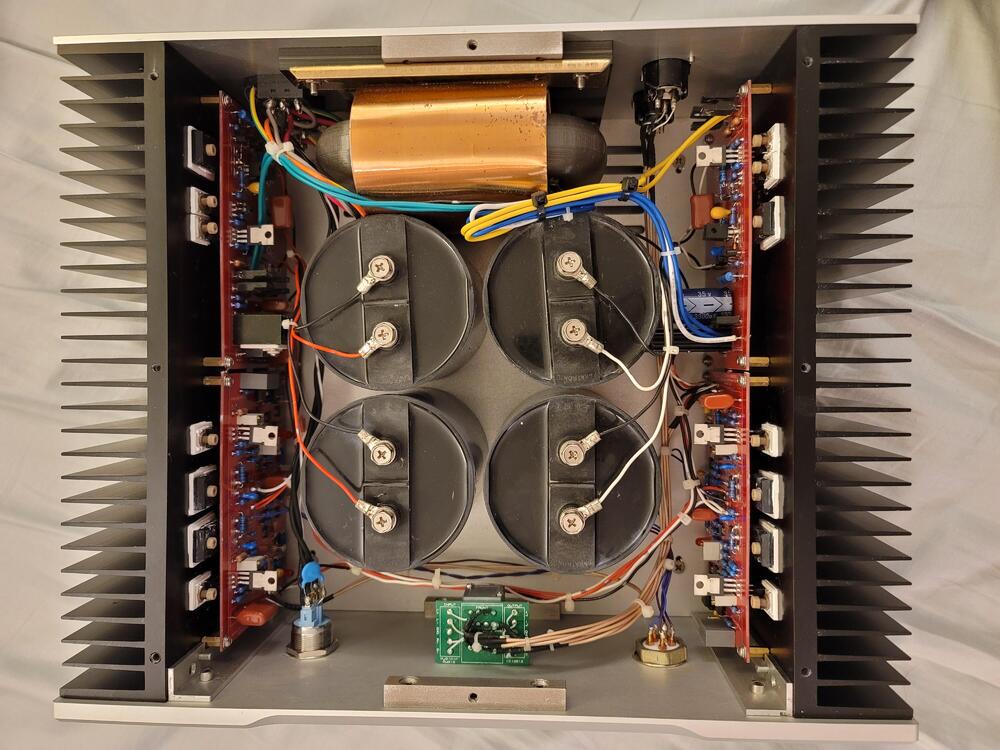

ULTRA REFERENCE electrostatic headphone amp KGSSHV Carbon for Stax SR-007 SR-009 | eBay they are 1500uf caps as i remember.

the guy in vietnam is using even bigger caps. so no reason why it should not work.

I think that caps that big can be very dangerous. So if you are going to use them, find a way to make sure you can never come in contact with either of the terminals.

musican pegasus is probably in the same range

depends on which version of the pcb.
